Siemens 6GK1543-1AA01 SIMATIC NET CP 5431 FMS/DP Communications Processor

Siemens 6GK1543-1AA01 SIMATIC NET CP 5431 FMS/DP Communications Processor

Description

The Siemens 6GK1543-1AA01, also known as the CP 5431 FMS/DP, is a specialized communications processor designed for the SIMATIC S5 automation system. This module facilitates robust data exchange and networking...

26 people are viewing this right now

Availability: Low stock: 9 left

SKU: 6GK1543-1AA01
Vendor: Siemens
Category: Communications Processor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

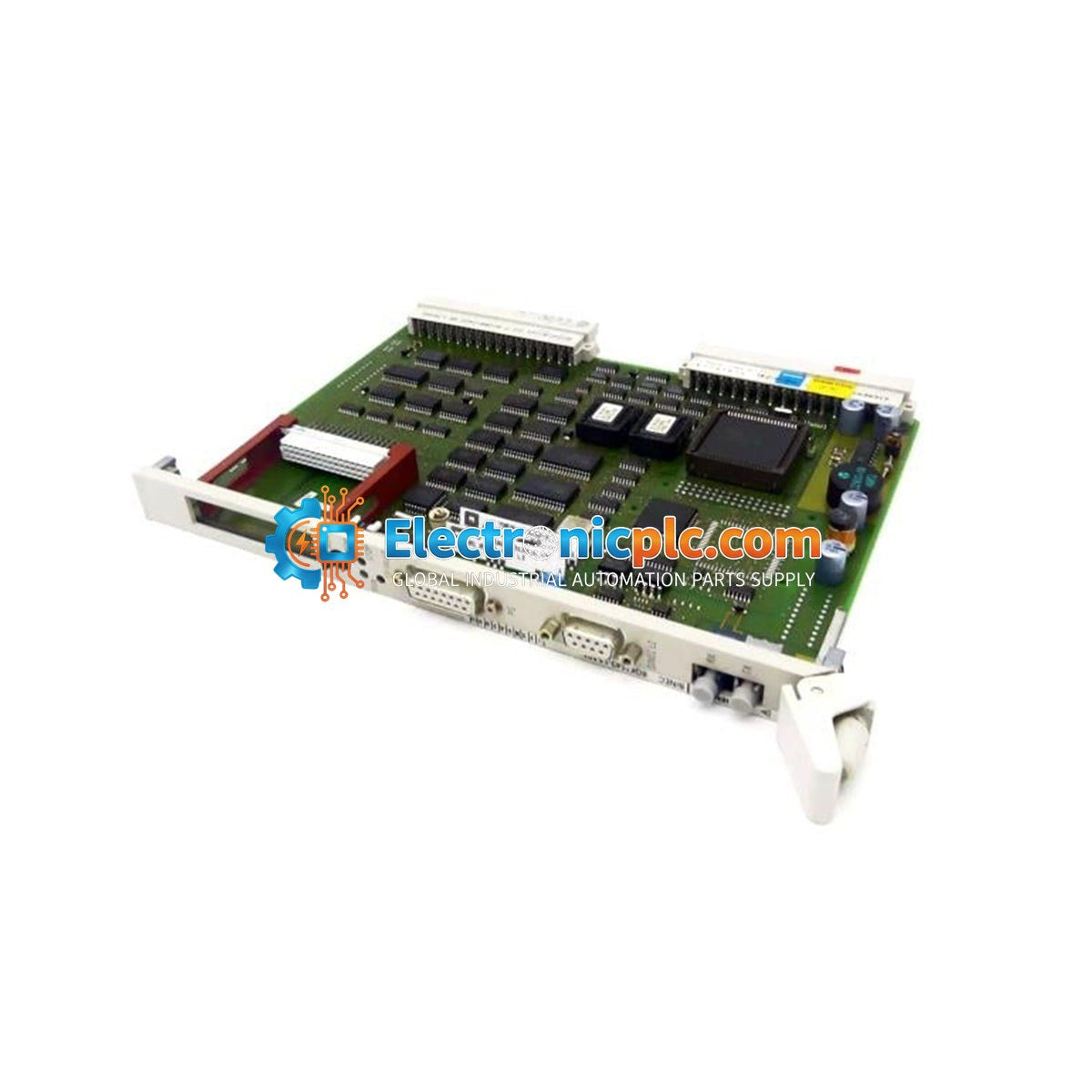

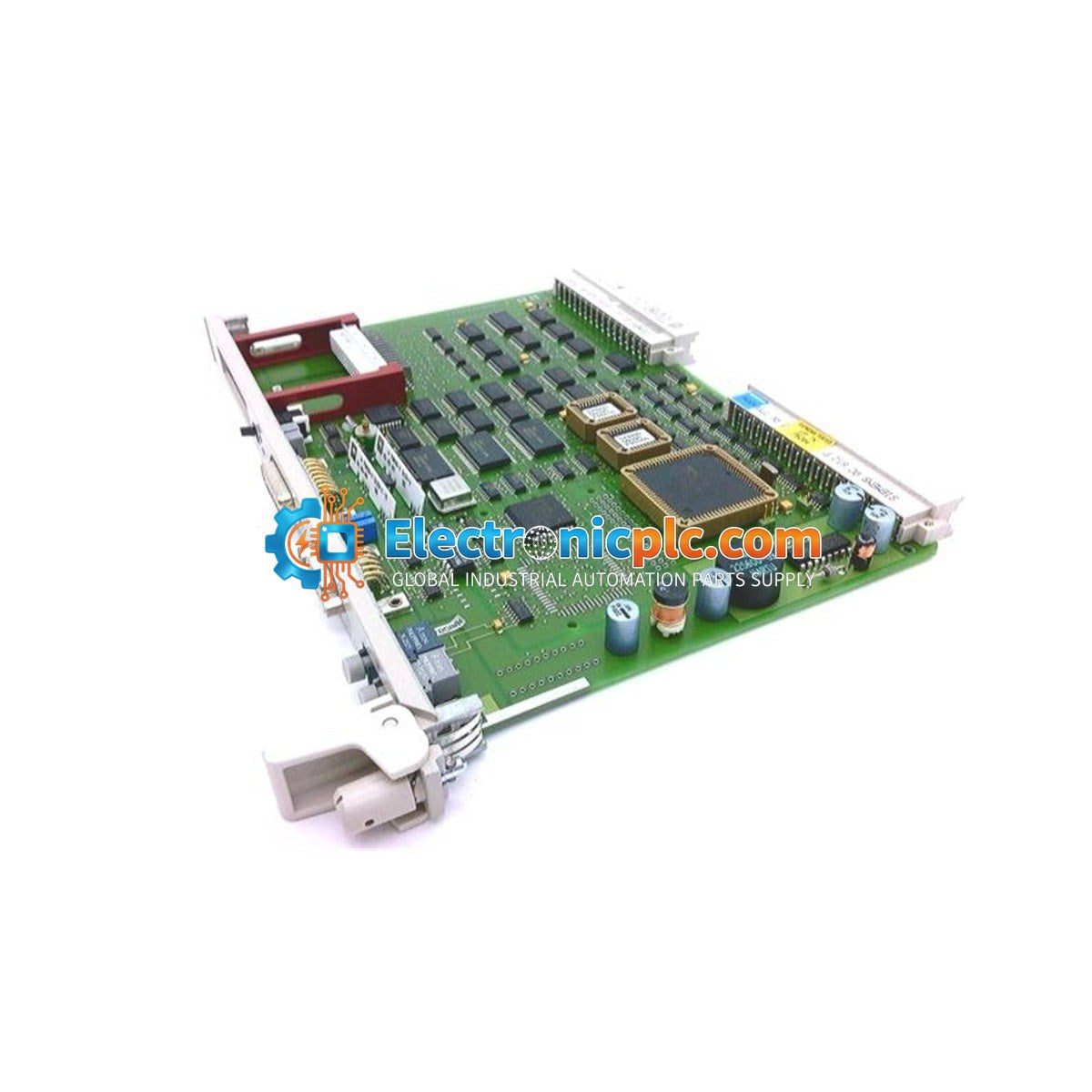

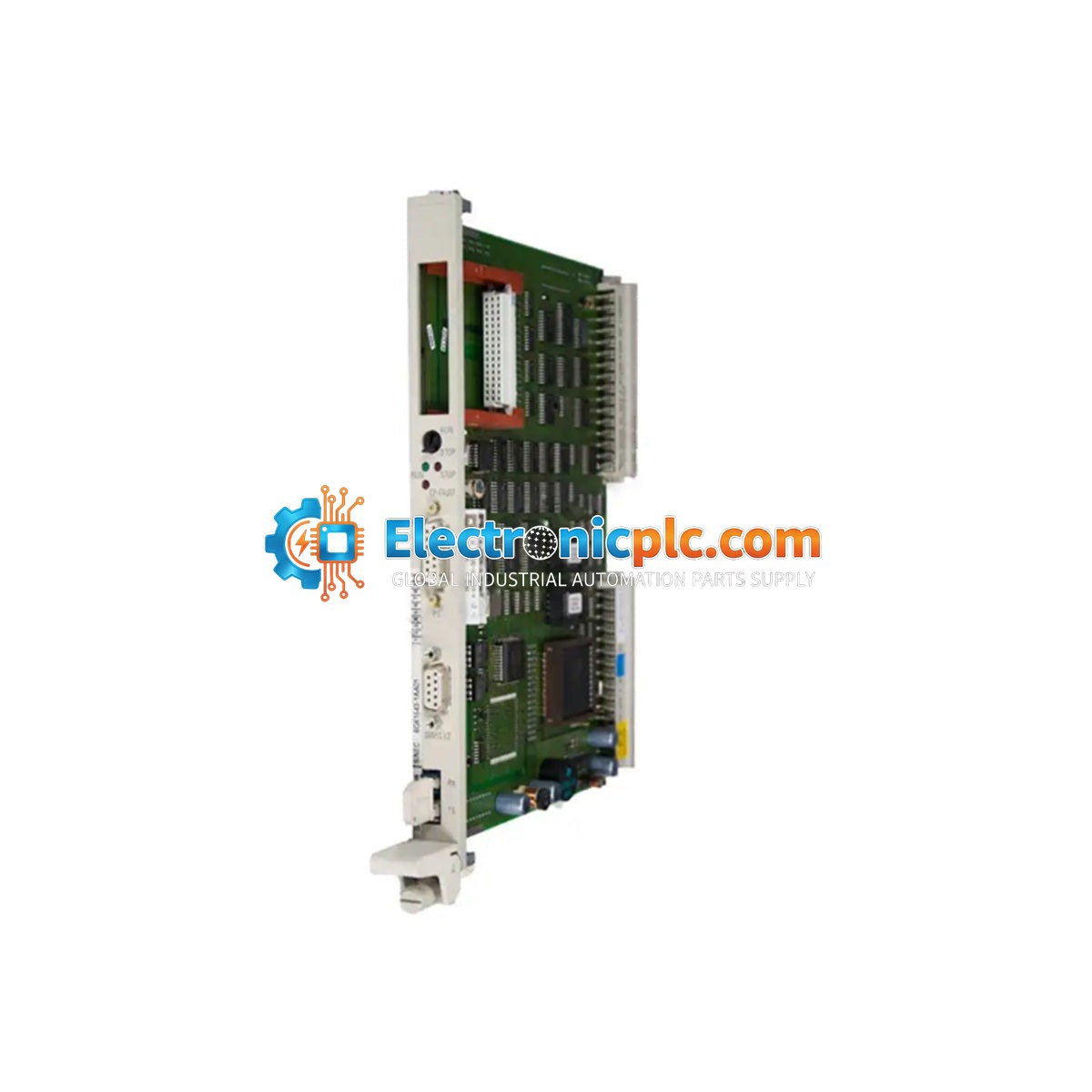

The Siemens 6GK1543-1AA01, also known as the CP 5431 FMS/DP, is a specialized communications processor designed for the SIMATIC S5 automation system. This module facilitates robust data exchange and networking capabilities, supporting both PROFIBUS FMS (Fieldbus Message Specification) and DP (Decentralized Peripherals) protocols. It is engineered for integration with various S5 controller series, including the 115U, 135U, and 155U, providing reliable communication interfaces for complex industrial control environments.

Features

  • Supports PROFIBUS FMS and DP communication standards.
  • Designed for seamless integration with SIMATIC S5 programmable logic controllers.
  • Enables high-speed data communication between automation stations and decentralized field devices.
  • Robust hardware design suitable for demanding industrial environments.
  • Status indicators for diagnostic monitoring of communication activity.

Applications

This communications processor is primarily utilized in legacy SIMATIC S5 automation systems where PROFIBUS connectivity is required for distributed I/O, HMI communication, or peer-to-peer controller networking. It is commonly found in manufacturing, process control, and infrastructure automation sectors requiring reliable fieldbus communication.

Technical Specifications

Product Model 6GK1543-1AA01
Module Type Communications Processor (CP)
Series SIMATIC NET / S5
Supported Protocols PROFIBUS FMS, PROFIBUS DP
Manufacturer Siemens
Status Discontinued by Manufacturer

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the CP 5431 module.
  • Verify that the module is correctly seated in the designated slot of the S5 rack to ensure proper backplane connection.
  • Use appropriate shielded PROFIBUS cabling to minimize electromagnetic interference (EMI) in industrial environments.
  • Ensure proper grounding of the PROFIBUS network segment to prevent ground loops and signal degradation.
  • Follow standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
  • After installation, configure the communication parameters via the appropriate Siemens programming software (e.g., STEP 5) to match the network requirements.

FAQ

Is the 6GK1543-1AA01 still in production?

No, this module has been discontinued by Siemens. It is typically sourced as a spare part for maintaining legacy systems.

What systems is this module compatible with?

The CP 5431 is designed for use with SIMATIC S5 systems, specifically the 115U, 135U, and 155U series, as well as S7-22X configurations where applicable.
