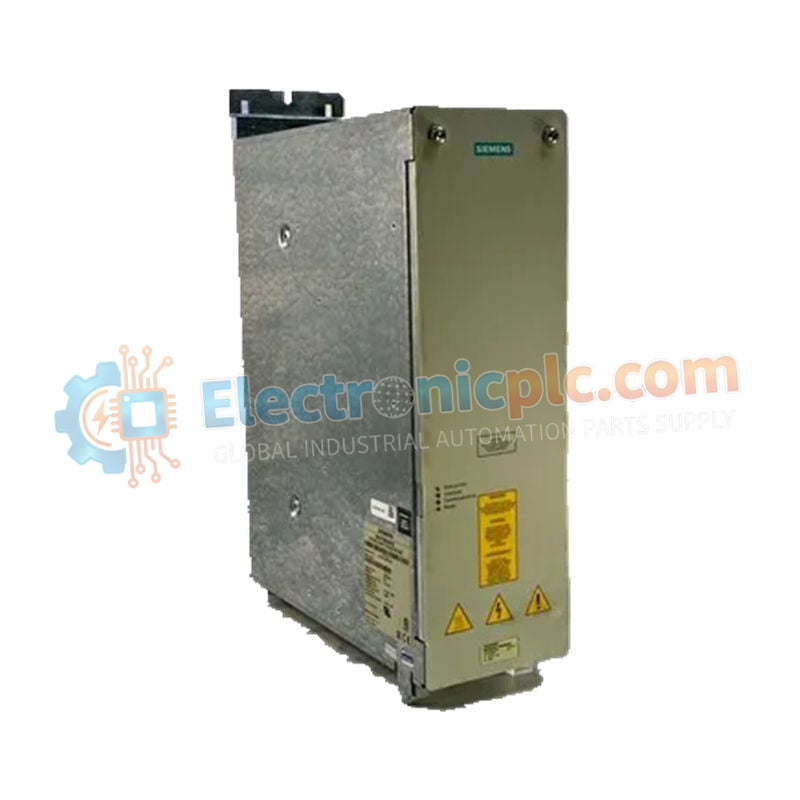

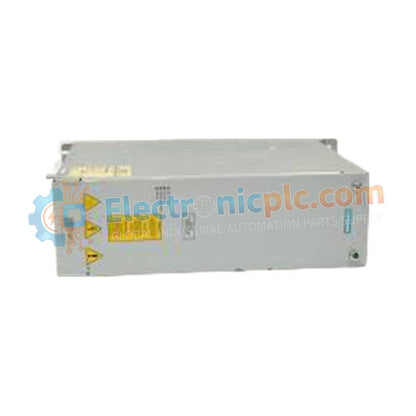

6SE7032-1HB87-2DA1 Siemens MASTERDRIVES Braking Module

6SE7032-1HB87-2DA1 Siemens MASTERDRIVES Braking Module

Technical Overview

The 6SE7032-1HB87-2DA1 is a high-performance braking module for Siemens SIMOVERT MASTERDRIVES inverters. It manages regenerative energy during motor deceleration by monitoring the DC link voltage and activating an external braking resistor to safely dissipate excess energy. This module...

22 people are viewing this right now

Availability: Low stock: 99 left

SKU: Drive Braking Module
Vendor: Siemens
Category: MASTERDRIVES Braking Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Technical Overview

The 6SE7032-1HB87-2DA1 is a high-performance braking module for Siemens SIMOVERT MASTERDRIVES inverters. It manages regenerative energy during motor deceleration by monitoring the DC link voltage and activating an external braking resistor to safely dissipate excess energy. This module prevents overvoltage faults and ensures controlled stopping of high-inertia loads, making it ideal for applications such as cranes, hoists, centrifuges, and high-speed conveyors.

Detailed Specifications

Feature Specification
Model 6SE7032-1HB87-2DA1
Product Family SIMOVERT MASTERDRIVES (VC/MC)
DC Link Voltage 510–650 V DC nominal
Threshold Voltage Adjustable (typically 673 V or 774 V DC)
Peak Braking Power 100 kW (short-term)
Continuous Braking Power 20 kW (rated thermal)
Duty Cycle Intermittent, 5–10% ED typical
Cooling Forced air (internal fan-assisted)
Protection Features Over-temperature, DC link overvoltage, short-circuit protection
Installation Modular integration into MASTERDRIVES cabinet/chassis
Weight 1.2 kg

Operational Logic

  • Voltage Monitoring: Constantly senses inverter DC bus voltage.

  • Chopper Action: When voltage exceeds the threshold, the module switches the external resistor into the circuit.

  • Energy Dissipation: Converts kinetic energy of the mechanical system into heat safely.

  • Applications: High-inertia loads requiring dynamic braking for process safety and efficiency.

Frequently Asked Questions

Do I need an external resistor?

  • Yes, the module requires a properly sized external braking resistor to dissipate energy safely.

Can this module be used with SINAMICS drives?

  • No, it is specific to legacy SIMOVERT MASTERDRIVES. SINAMICS systems require their own braking modules (e.g., 6SL series).

Why does the “Fault” LED illuminate?

  • Possible causes include thermal overload of the resistor, short circuit in resistor cabling, or internal IGBT failure.
