Description

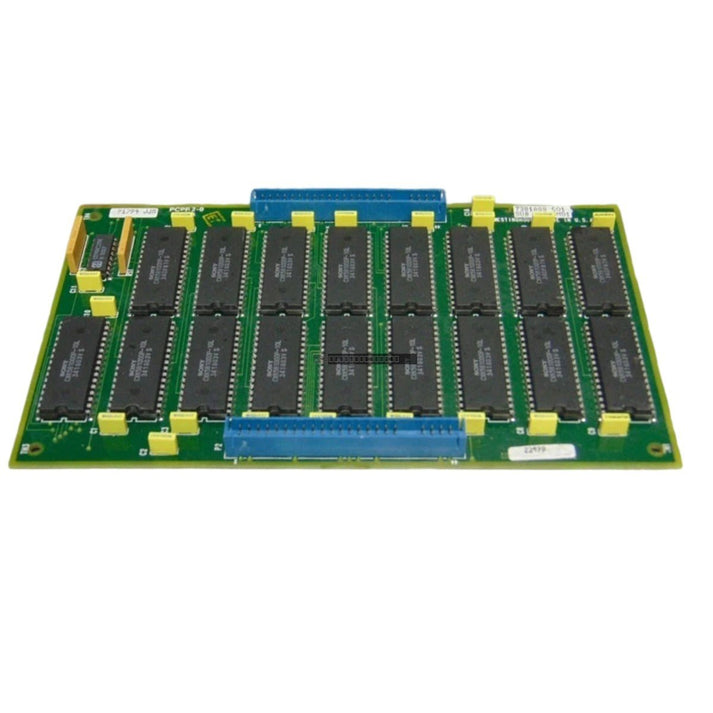

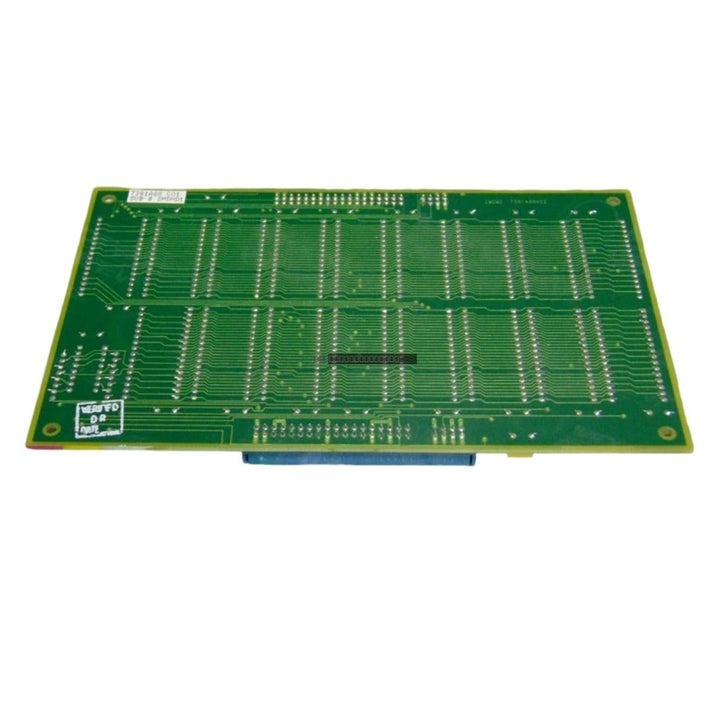

The Ovation 7381A88G01 Memory Board is a high-reliability data storage module engineered for integration within the Ovation distributed control system architecture. This component serves as a critical interface for the storage and rapid retrieval of control programs, process variables, and diagnostic data. Designed for demanding industrial environments, including power generation and heavy process manufacturing, the board ensures deterministic timing and system stability by providing high-speed memory access and robust data integrity management.

Features

• Industrial-grade persistent storage for critical control logic and configuration data.
• Onboard hardware-level error detection and correction to mitigate single-bit faults.
• High-speed internal bus interface for rapid communication with the host processor.
• Multi-layer PCB construction designed to minimize electromagnetic interference (EMI) and thermal sensitivity.
• Robust physical design suitable for secure rack-mount installation in high-vibration industrial chassis.

Applications

This memory board is primarily utilized in Ovation controller chassis to support continuous operation in mission-critical process control applications. It is essential for maintaining system availability in power plants, water treatment facilities, and large-scale industrial manufacturing sites where memory reliability is paramount to preventing controller downtime.

Technical Specifications

Installation Guidelines

• Ensure the controller chassis is powered down before inserting or removing the memory board to prevent electrical damage.
• Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the board is fully seated within the rack-mount interface to ensure reliable bus connectivity.
• Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the 0 to 60 degC range.
• Route all internal cabling away from high-EMI sources to maintain signal integrity.

FAQ

Is this module compatible with all Ovation systems?

The 7381A88G01 is designed for specific Ovation controller architectures. Please verify your existing controller hardware revision and part number compatibility before installation.

What is the primary function of the error-checking mechanism?

The onboard error-checking logic is designed to detect and correct single-bit memory faults in real-time, which helps prevent system crashes and data corruption during critical control sequences.
