Description

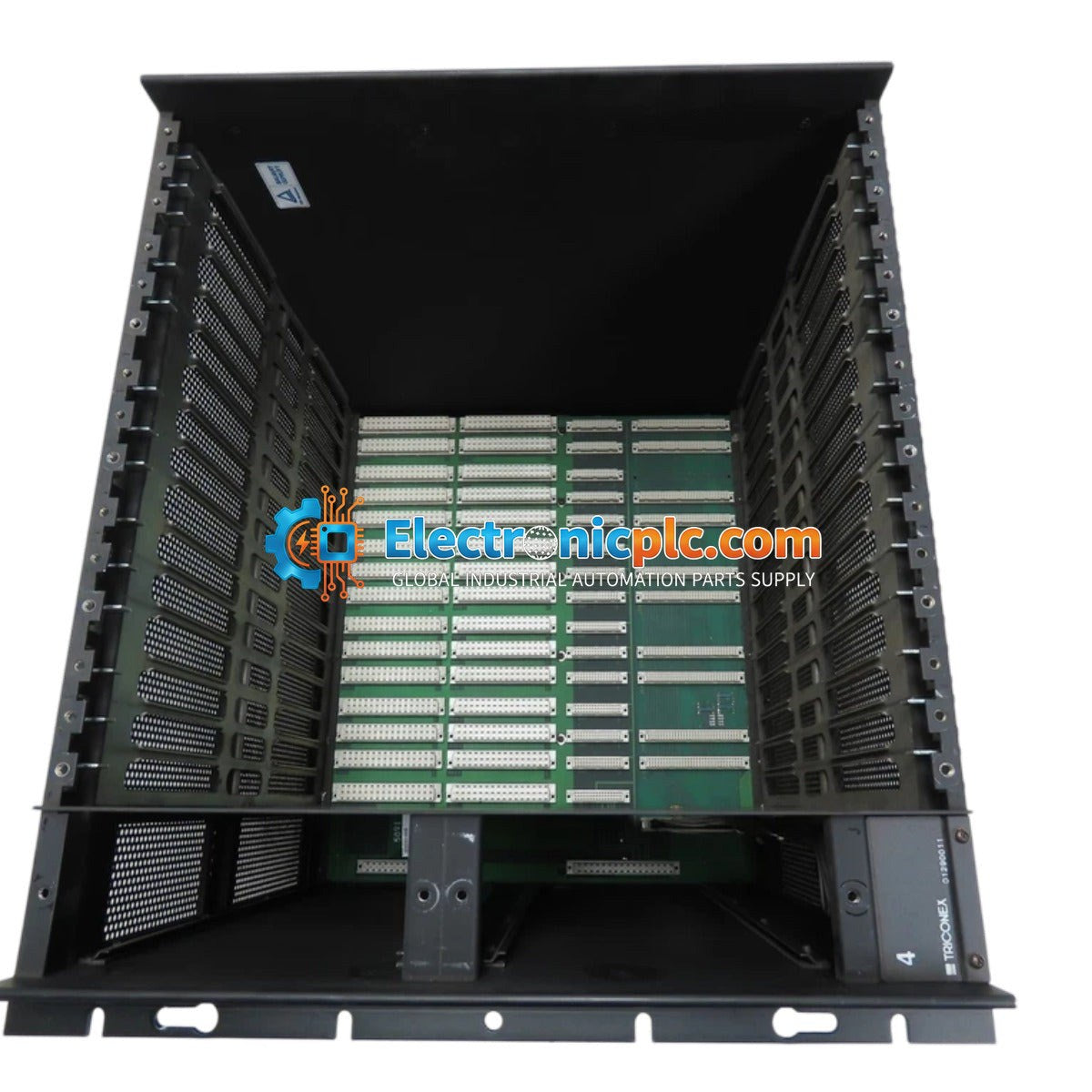

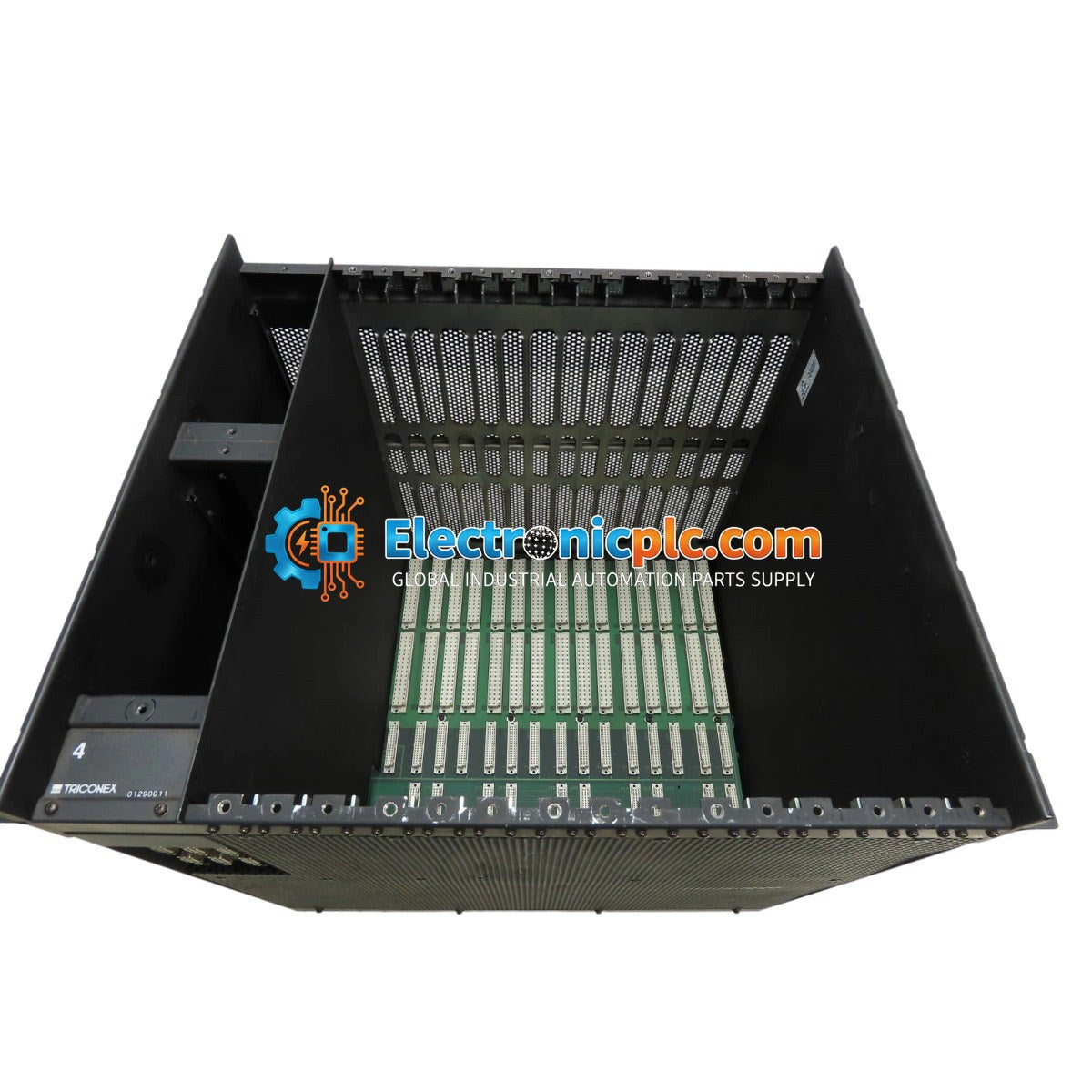

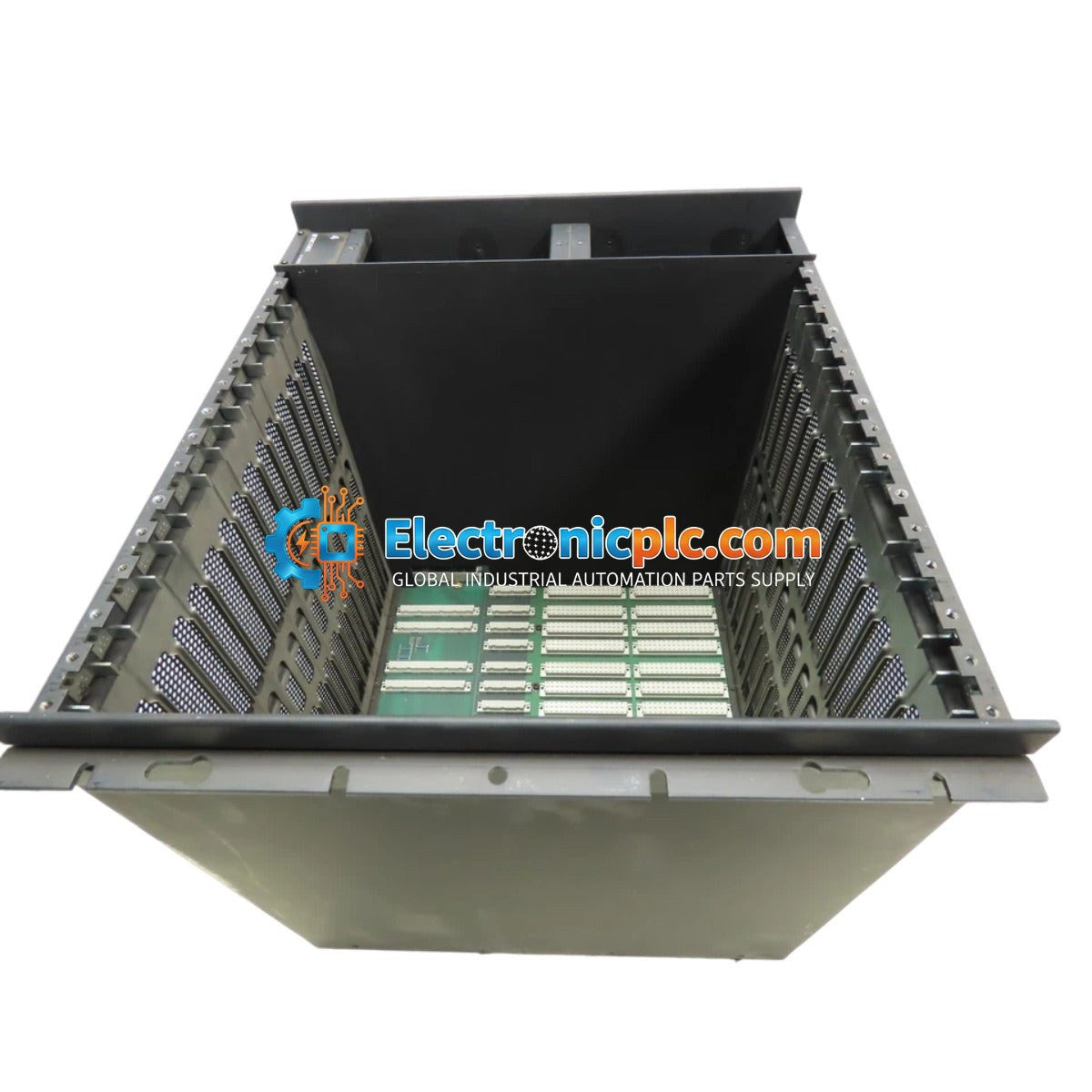

The Triconex 7400028-100, also designated as Model 8101, is a high-capacity 15-slot expansion chassis engineered for the Triconex Triple Modular Redundancy (TMR) safety system. This industrial-grade rack is designed to scale I/O density in mission-critical environments, including oil refineries, petrochemical plants, and power generation facilities. It provides a ruggedized physical and electrical foundation for redundant I/O modules, ensuring seamless data integration across the expansion bus. The robust backplane architecture is built to maintain system integrity under demanding thermal and electrical conditions, supporting high plant availability.

Features

• 15-slot configuration for high-density I/O expansion.
• Supports high-speed communication with the Main Processor (MP) via the I/O expansion bus.
• Dual-power rail distribution supporting redundant power supply modules.
• Passive backplane design to minimize active components and improve MTBF.
• Physical slot keying to prevent incorrect module insertion.
• Supports hot-swapping of modules for online maintenance without interrupting safety functions or process control loops.

Applications

The 7400028-100 expansion chassis is utilized in safety-instrumented systems (SIS) where high availability and fault tolerance are required. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops where TMR architecture is mandatory.

Technical Specifications

Installation Guidelines

• Ensure the chassis is mounted in a clean, dry, and vibration-free environment within a standard industrial cabinet.
• Maintain adequate clearance around the chassis to allow for proper airflow and cooling.
• Use ESD-safe handling procedures when inserting or removing modules to prevent damage to sensitive backplane components.
• Verify that power supply modules are correctly seated and secured before applying input voltage.
• Ensure all grounding connections are secure to minimize EMI and maintain signal integrity.
• Always power down the specific slot or follow established hot-swap procedures as defined in the Triconex system manual before module replacement.

FAQ

Is this chassis compatible with all Triconex I/O modules?

The 7400028-100 is designed for the Triconex TMR system. While it supports a wide range of standard I/O modules, always verify the specific module compatibility and slot requirements against your system's configuration documentation.

Does this chassis support redundant power supplies?

Yes, the chassis features dual-power rail distribution specifically designed to accommodate redundant power supply modules for high-availability applications.
