Product Overview

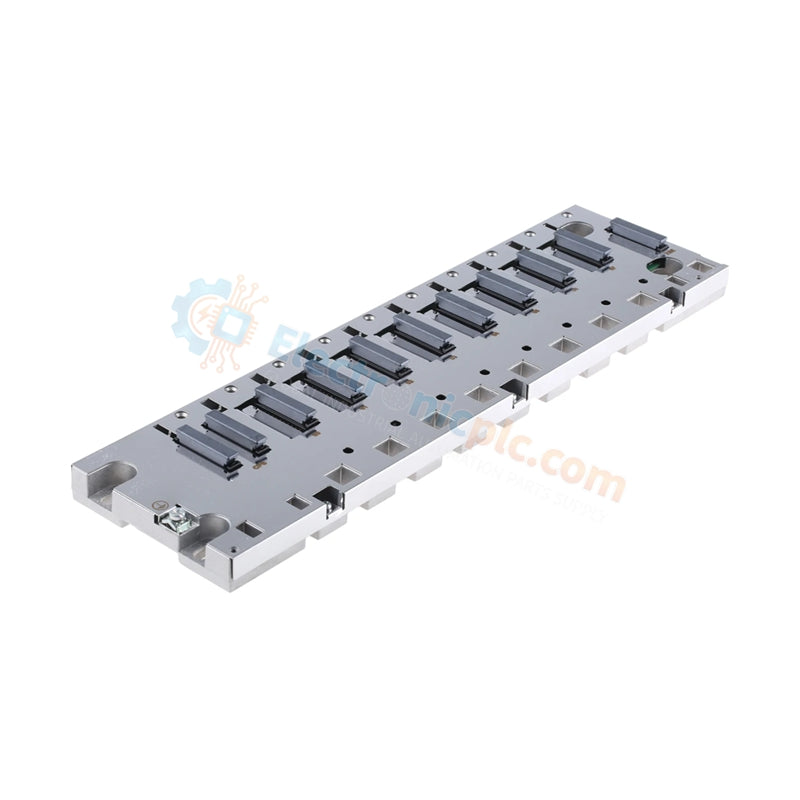

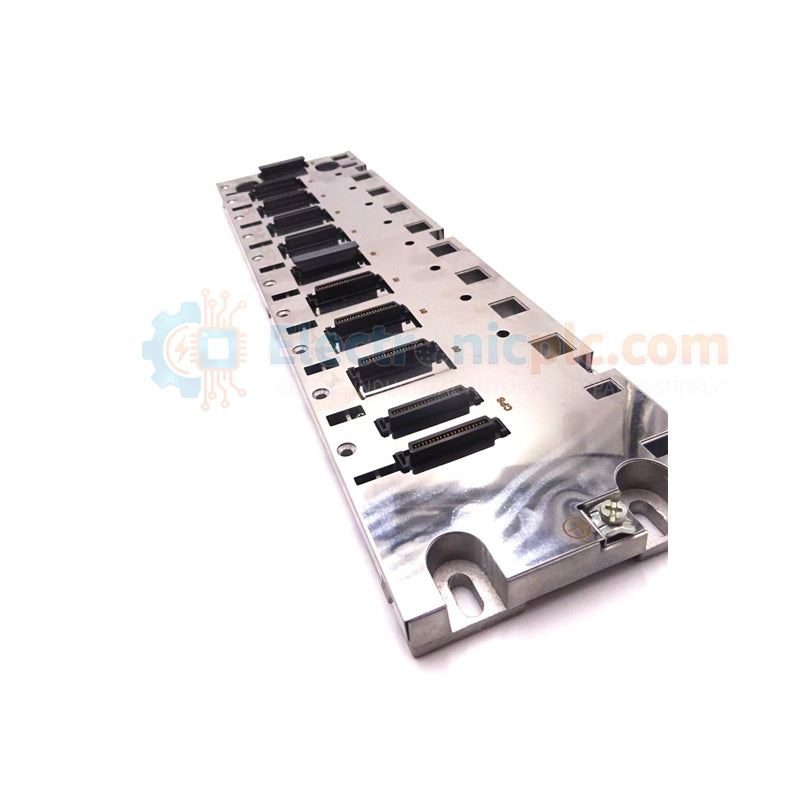

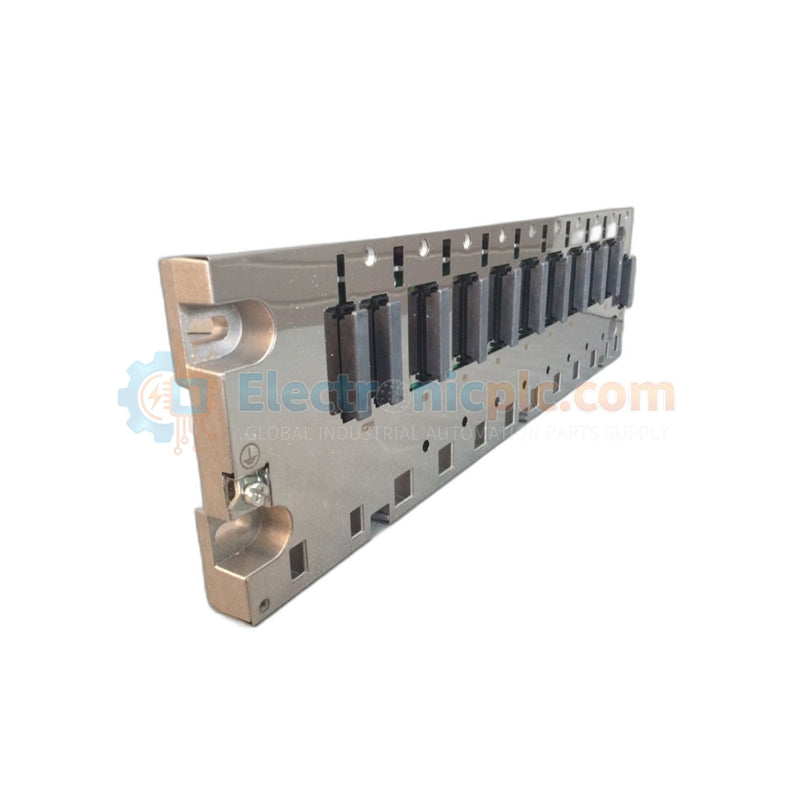

The Schneider Electric BMXXBP0800 functions as the essential structural and communication foundation for the Modicon X80 automation platform. This 8-slot backplane accommodates Modicon M340 processors, power supplies, and a wide array of I/O and specific application modules. It facilitates high-speed data synchronization across the X-bus architecture, ensuring deterministic performance for complex industrial control tasks. We provide this unit as 100% Brand New and Original factory equipment, guaranteeing full compatibility with your Modicon PAC ecosystem.

Technical Specifications

• Manufacturer: Schneider Electric

• Model Number: BMXXBP0800

• Product Series: Modicon X80 / M340

• Number of Slots: 8 Bus X slots

• Compatibility: BMXP34 processors, BMXCPS power supplies, I/O modules

• Power Consumption: 2.21 W

• Expansion Slot: 1 connector for XBE expansion modules

• Fixing Mode: 4 M4/M5/M6 screws (panel/plate) or 35 mm symmetrical DIN rail

• Dimensions (W x H x D): 372.8 x 103.7 x 19 mm (14.7 x 4.08 x 0.7 in)

• Net Weight: 0.95 kg (2.09 lb)

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• IP Protection: IP20

• MTBF: 1,700,000 hours

Engineering Advantages

• High-Speed X-Bus Communication: The backplane utilizes an optimized X-bus architecture to eliminate data bottlenecks between the CPU and I/O modules. This allows for rapid scan times and precise control over high-density industrial processes.

• Versatile Mounting Configurations: The BMXXBP0800 supports three distinct mounting methods: symmetrical DIN rail, panel mounting, or mounting plate fixing via M4/M5/M6 screws. This flexibility simplifies integration into existing control cabinets with limited spatial footprints.

• Seamless System Expansion: An integrated XBE expansion connector allows you to link multiple racks together. This scalability enables engineers to expand I/O capacity as plant requirements grow without replacing the primary backplane hardware.

• Extreme Mechanical Reliability: With an MTBF of 1.7 million hours, the backplane withstands the continuous vibration and thermal cycling typical of heavy manufacturing environments. The IP20-rated housing protects internal connections while maintaining efficient heat dissipation.

FAQs

• Does this backplane support Ethernet backplane communication?

  The BMXXBP0800 is a standard X-bus backplane. If your application requires Ethernet backplane capabilities (Ethernet + X-bus), you should look at the BMXXBP0800H or the BMEXBP series. The BMXXBP0800 primarily supports the X-bus communication used by M340 processors.

• What power supplies are compatible with this rack?

  This backplane works with the full range of Modicon BMXCPS power supply modules. You must install the power supply in the dedicated leftmost slot to provide the necessary 3.3V and 24V DC power to the backplane bus.

• Is any specialized software needed to configure the backplane?

  You configure the backplane layout within the EcoStruxure Control Expert (formerly Unity Pro) software environment. The software automatically recognizes the 8-slot configuration once you select the BMXXBP0800 model in your project hardware configuration.
