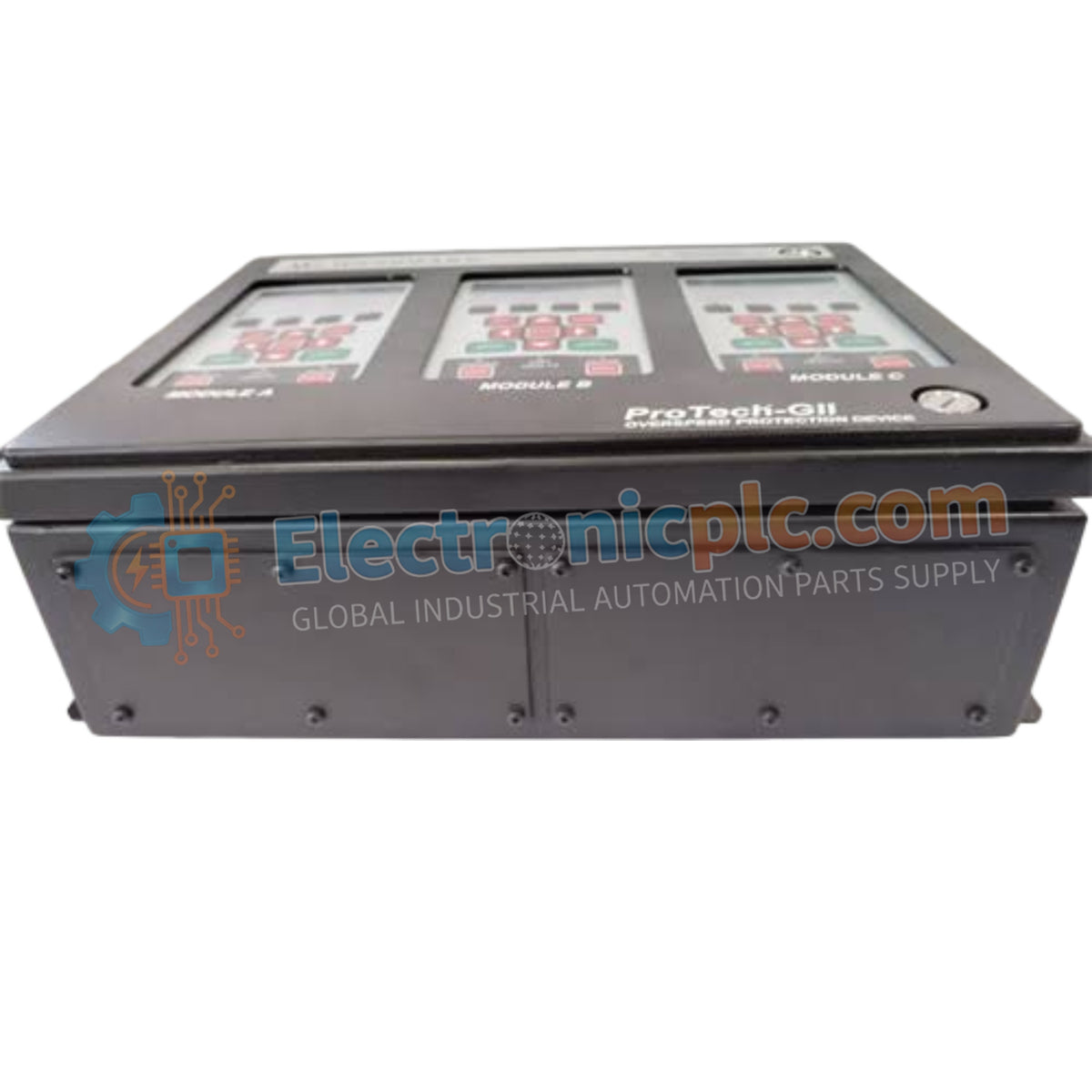

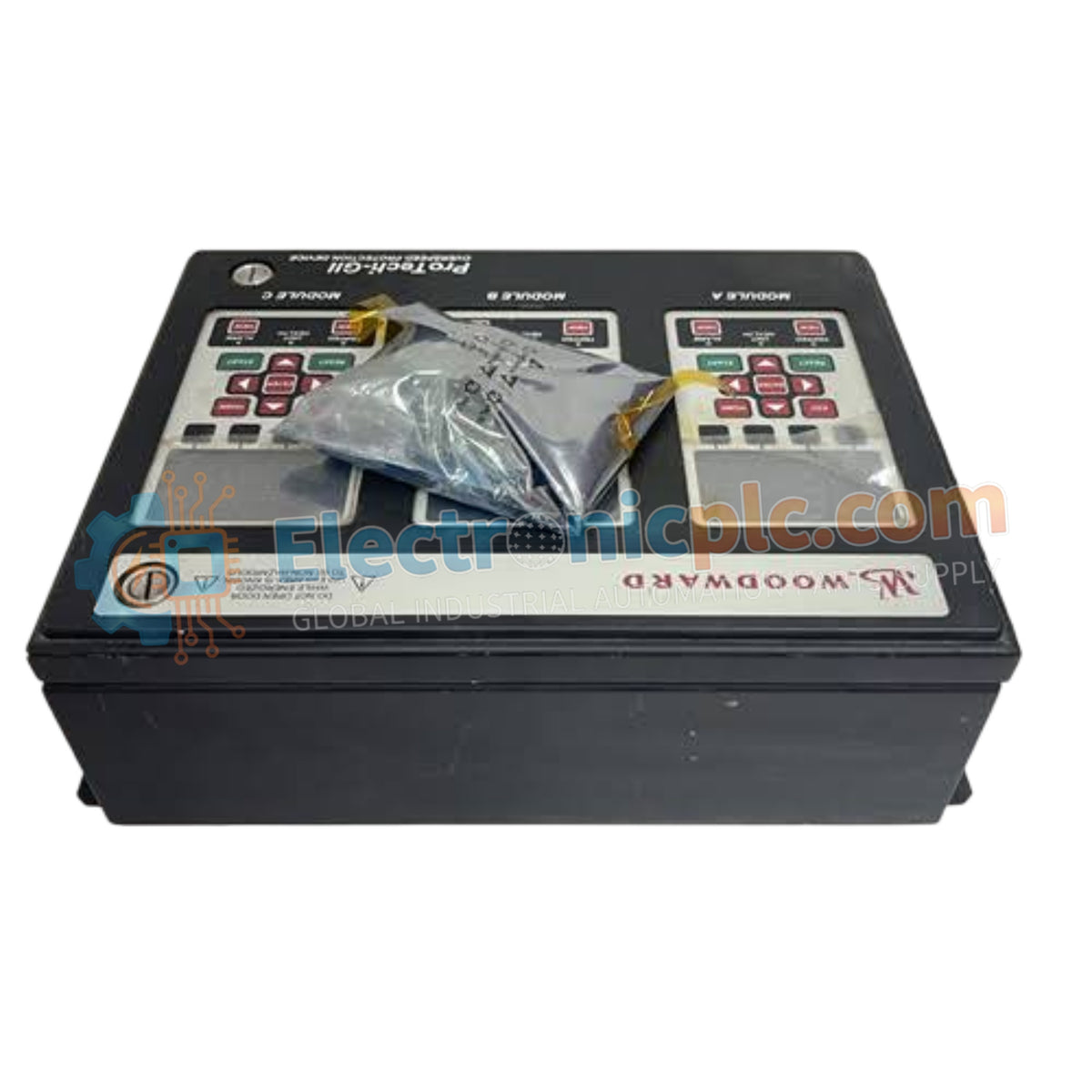

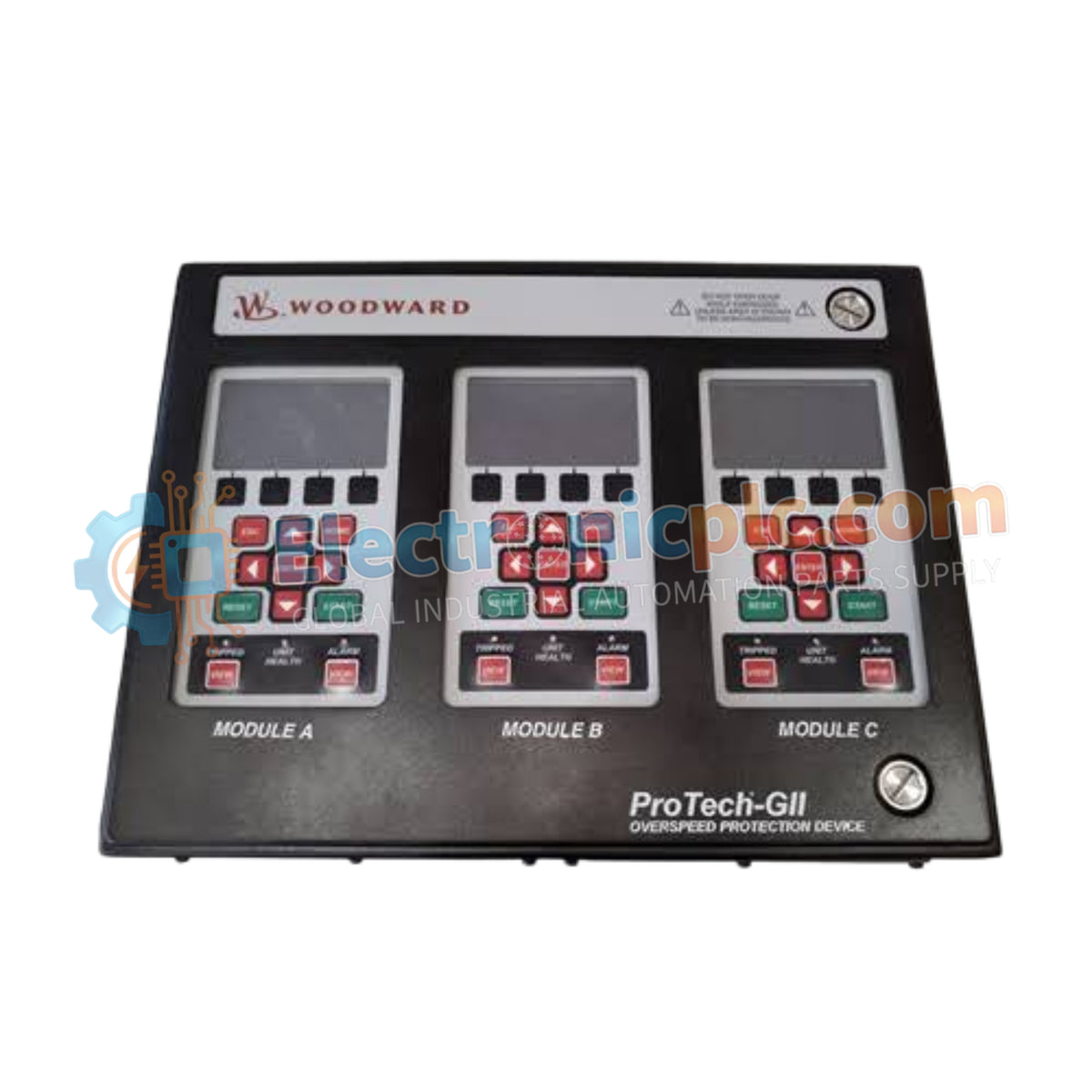

The Woodward 8237-1247, also cataloged as the 8237-1247 Overspeed Protection System, operates as a dedicated hardware component for turbine rotational monitoring and trip shutdown execution within ProTech-GII safety platforms.

Hardware Specifications

Thermal Heat Sink Dissipation & Speed Control Stability

Internal electronic voting circuits and power distribution channels generate operational thermal loads managed through direct convection across the bulkhead chassis. Efficient thermal heat sink dissipation ensures stable component performance during continuous operation in high-temperature turbine environments up to +60 deg C. The triple modular redundancy architecture processes magnetic pickup signals with a rapid 3 ms interrupt execution time, maintaining precise actuator loop feedback response to suppress trip delays during overacceleration events.

Frequently Asked Questions

• Q: How does the 2-out-of-3 voting architecture maintain system availability during a channel fault?
• A: The triple modular redundancy structure evaluates inputs across three independent processing modules; a failure or trip command on a single module generates an alarm without triggering a false system shutdown unless a second module concurs.
• Q: What cable grounding practices apply to the magnetic pickup (MPU) speed sensor inputs?
• A: MPU input connections must use twisted-pair shielded cabling, with the cable shield grounded strictly at a single terminal point on the main chassis ground to avoid induced electrical noise on the 100 to 32,000 Hz signal loop.
• Q: What enclosure sealing measures ensure IP56 protection during field installation?
• A: Cable penetration points must be sealed using properly sized IP56-rated cable glands, and the front access door latches must be fully secured against panel gasket surfaces.

Field Installation Guidelines

• Mount the unit vertically against a flat bulkhead surface using all mounting points to withstand mechanical turbine vibration.
• Connect high-voltage DC power feeds (100 to 150 VDC) through dedicated fused disconnects, ensuring correct power terminal polarity prior to energizing.
• Route speed sensor cables, communication lines, and trip relay wiring in separate grounded conduit runs to prevent electromagnetic interference.
• Verify that the primary chassis earth lug is connected directly to the plant grounding grid using a heavy low-impedance ground strap.
