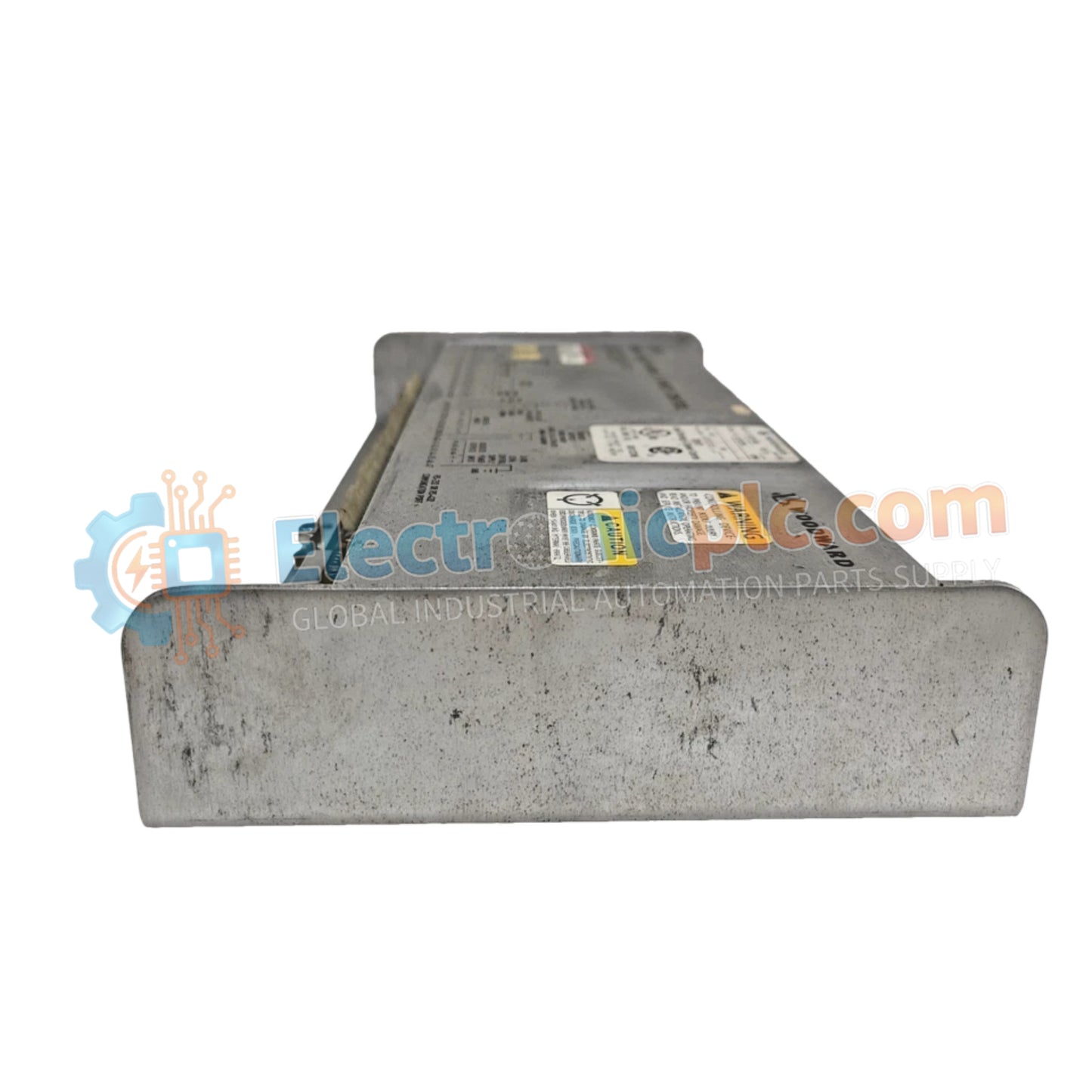

8273-501 2301D Digital Control WOODWARD

8273-501 2301D Digital Control WOODWARD

Configured for precise engine-driven generator regulation and speed reference execution in power management networks, the WOODWARD 8273-501 (8273-501 Digital Load Sharing and Speed Control) provides direct physical/electrical execution.

Hardware Specifications

...
16 people are viewing this right now

Availability: Low stock: 6 left

SKU: 8273-501
Vendor: Woodward
Category: Digital Control
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for precise engine-driven generator regulation and speed reference execution in power management networks, the WOODWARD 8273-501 (8273-501 Digital Load Sharing and Speed Control) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 8273-501
Brand WOODWARD
Origin USA
Weight 1.91 kg (2 lbs)
Dimensions 263 x 58 x 28 mm
Operating Temp -40 to 70 deg C (-40 to +158 deg F)
Power Consumption Less than 20 W
Input Voltage 18 to 40 VDC (24 VDC nominal)
Speed Range 90 to 3600 RPM
MPU Frequency Range 100 to 20,000 Hz
Analog I/O 2 configurable inputs, 1 configurable output
Discrete I/O 8 discrete inputs (3 configurable), 4 configurable relay outputs
Serial Communication RS-232 / RS-422 via 9-pin connector (1200 to 38,400 baud, full duplex)

Actuator Loop Feedback Response and Dynamic Load Sharing

The module evaluates incoming MPU frequency signals ranging from 100 to 20,000 Hz to calculate real-time speed deviations against a 4-20 mA speed reference input. Control routines switch between isochronous and droop load sharing modes, maintaining high actuator loop feedback response. Internal output drivers adjust governor actuator positioning to balance generator load steps without inducing speed hunting or mechanical resonance.

Frequently Asked Questions

Q: How is the RS-232/RS-422 serial interface configured for parameter tuning?

A: Serial communication connects via the dedicated 9-pin connector at baud rates between 1200 and 38,400 baud in full duplex mode to adjust internal control parameters using Woodward service software.

Q: What power supply tolerances are required for continuous operation?

A: The hardware operates within an 18 to 40 VDC input range (nominal 24 VDC) and draws less than 20 W under full I/O loading conditions.

Field Installation Guidelines

  1. Mount the control chassis securely on a flat vertical surface within an ordinary (non-hazardous) location enclosure.
  2. Route magnetic pickup unit (MPU) wires using twisted-shielded pair conductors, terminating the shield at the chassis ground lug only.
  3. Ensure the main 24 VDC power supply feed incorporates an inline slow-blow fuse rated to support the 20 W power requirement.
  4. Maintain separation between RS-232/RS-422 serial lines and high-current relay output cabling to prevent electrical noise coupling.
  5. Provide a minimum clearance of 50 mm around the housing to facilitate thermal convection cooling across the unit.
