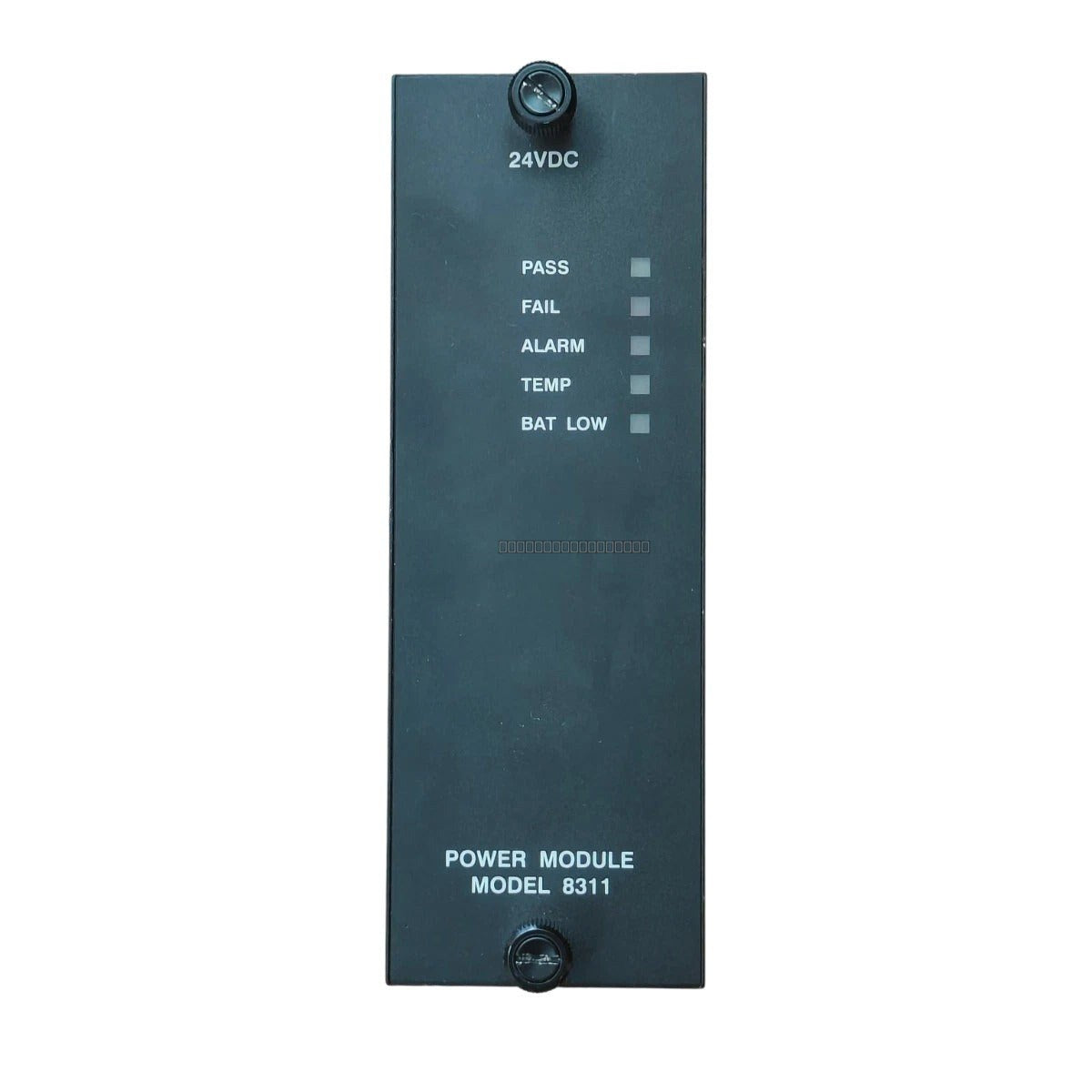

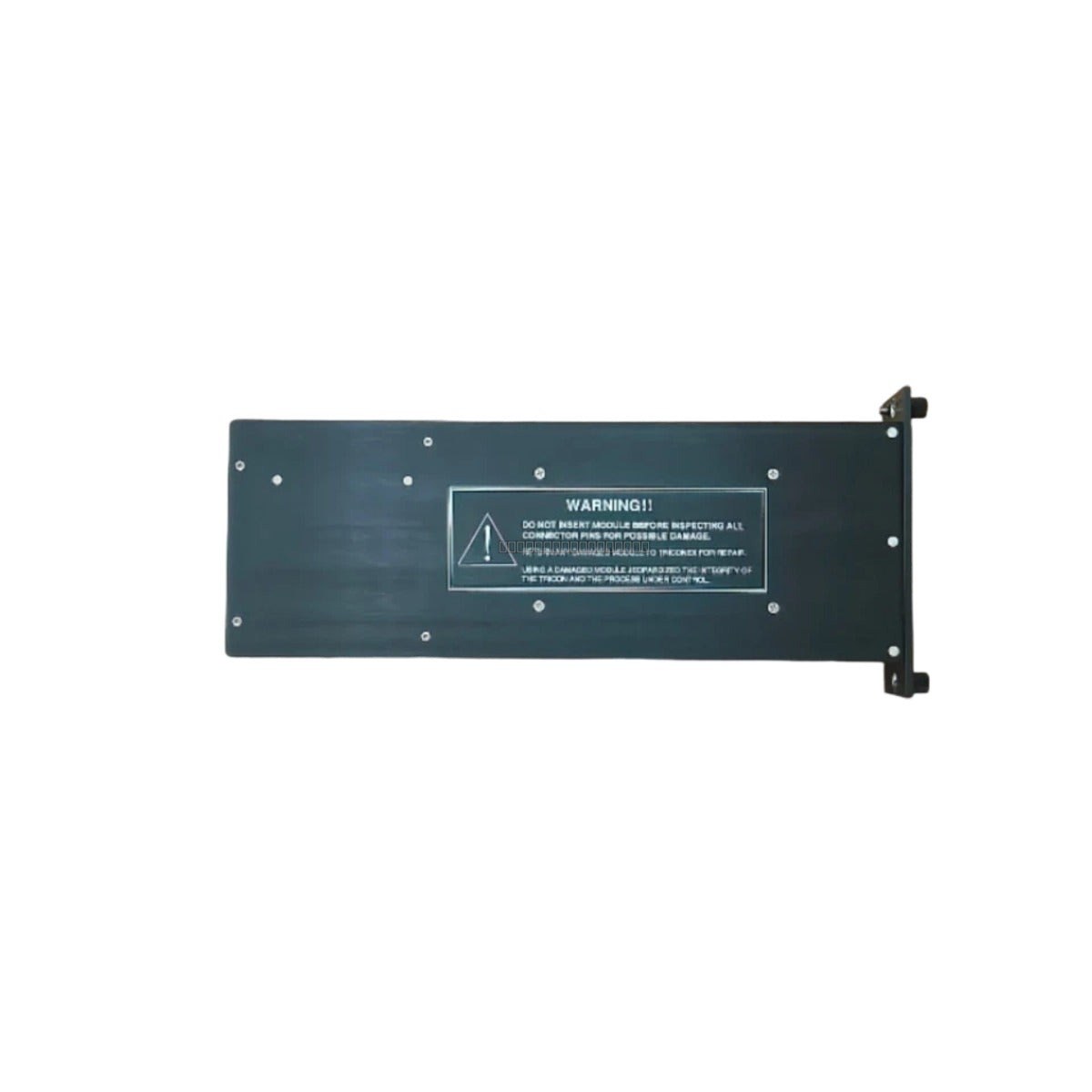

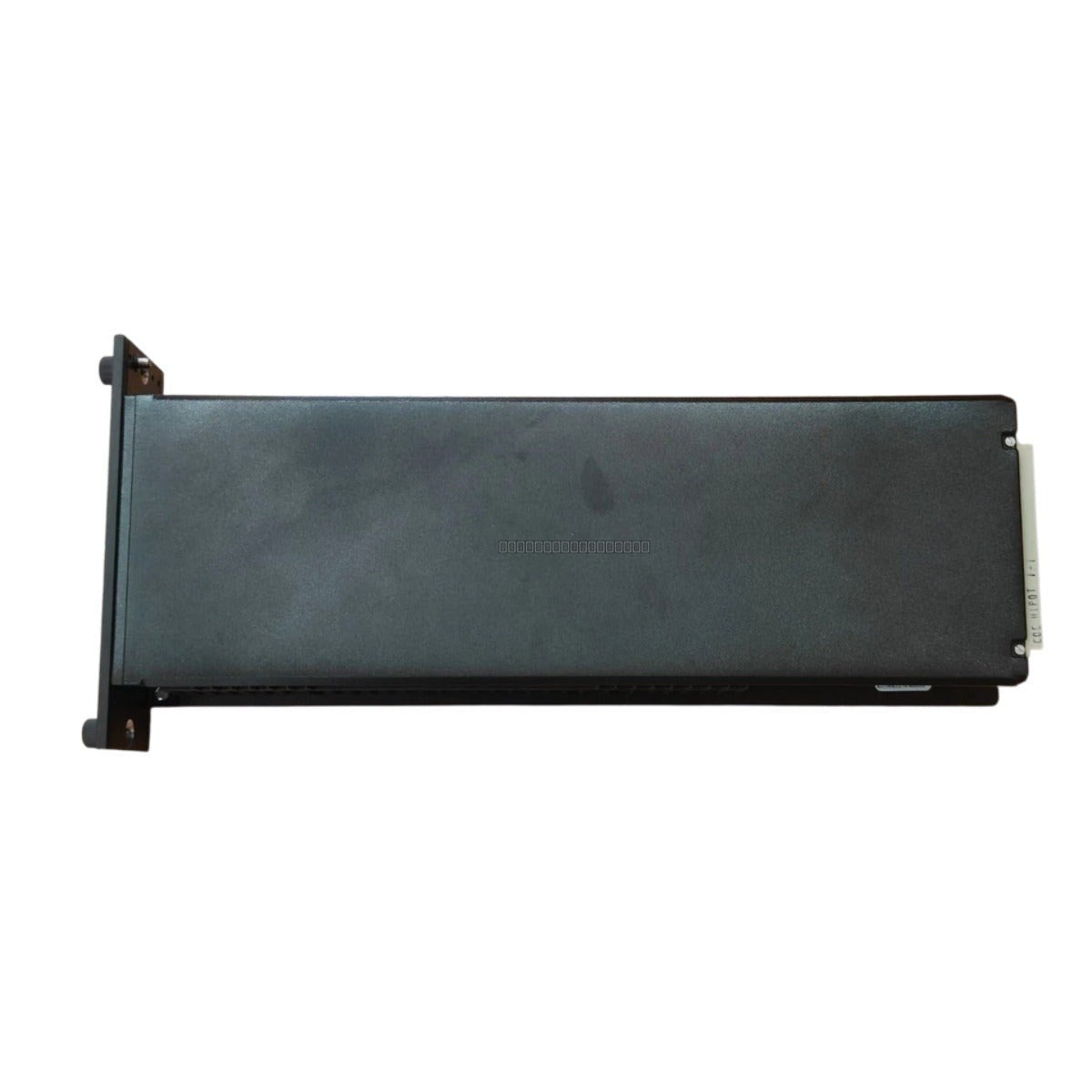

Triconex 8311 High Density Power Supply Module

Triconex 8311 High Density Power Supply Module

The Triconex 8311 is a high-density power supply module engineered to provide regulated and stable power within Tricon safety-critical control systems. This module converts unregulated input voltage into filtered control...

19 people are viewing this right now

Availability: Low stock: 2 left

SKU: 8311
Vendor: Triconex
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Triconex 8311 is a high-density power supply module engineered to provide regulated and stable power within Tricon safety-critical control systems. This module converts unregulated input voltage into filtered control power, supporting critical instrument loops in demanding industrial environments including oil and gas, chemical processing, and thermal power generation. By providing continuous voltage monitoring and integrated fault isolation, the 8311 protects processor racks from grid transients and helps prevent system-wide logic disruptions.

Features

  • Designed for high-density thermal efficiency with a compact physical footprint.
  • Provides regulated DC-to-DC power distribution for safety-critical controller racks.
  • Integrated overcurrent and overvoltage protection circuitry.
  • Includes a 15 A time-delay fuse for rapid downstream fault isolation.
  • Internal energy storage provides a minimum hold time of 2.8 ms during input supply interruptions.

Applications

The 8311 module is specifically designed for use in Tricon safety-instrumented systems (SIS) where high availability and power reliability are required. It is suitable for deployment in hazardous industrial sectors such as petrochemical refining, mining, and power plant automation.

Technical Specifications

Brand Invensys Triconex
Model 8311
Module Type High Density Power Supply Module
Nominal Input Voltage 24 VDC
Input Voltage Range 22 to 31 VDC
Output Current 5 A
Fuse Rating 15 A, time-delay
Output Hold Time 2.8 ms (minimum)
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the chassis.
  • Verify that the input voltage matches the 24 VDC nominal requirement before energizing.
  • Ensure proper seating in the Tricon rack to maintain electrical contact and cooling airflow.
  • Maintain adequate ventilation in the cabinet to ensure operation within the 0 to 60 deg C temperature range.
  • Handle with care to avoid electrostatic discharge (ESD) damage to internal components.

FAQ

Is the 8311 compatible with AC input voltages?

No, the 8311 is designed for DC input only. It accepts a nominal 24 VDC input (range 22 to 31 VDC) and does not support AC power sources.

What is the primary function of the internal fuse?

The 15 A time-delay fuse is integrated into the module to provide immediate isolation of downstream faults, protecting the integrity of the broader safety system.
