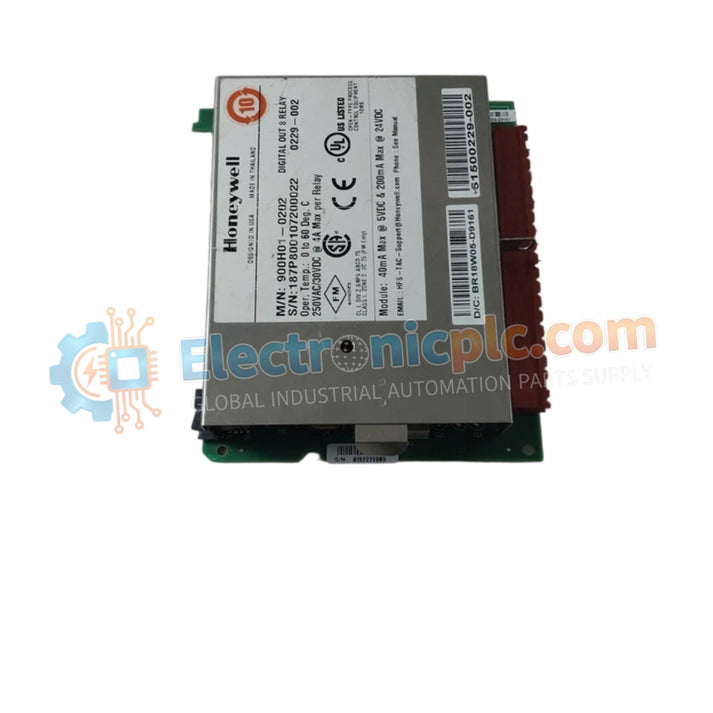

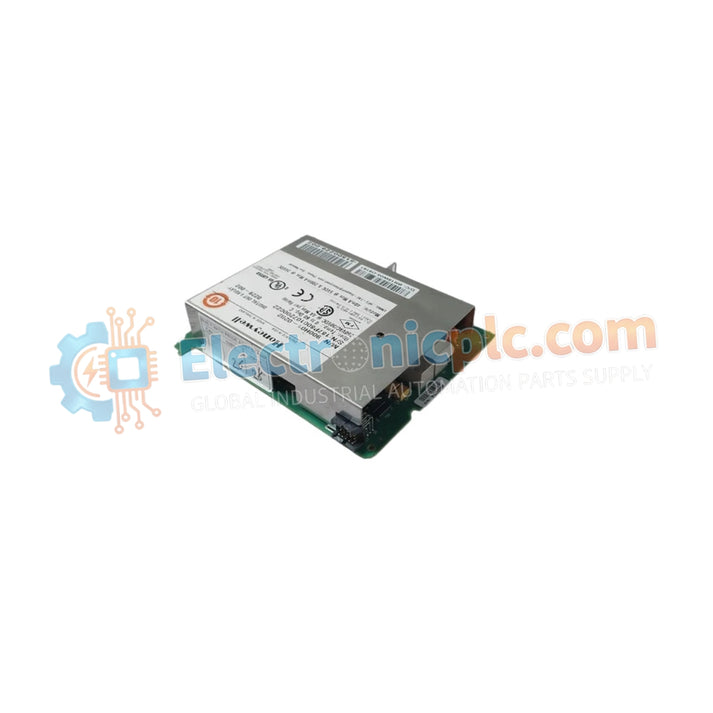

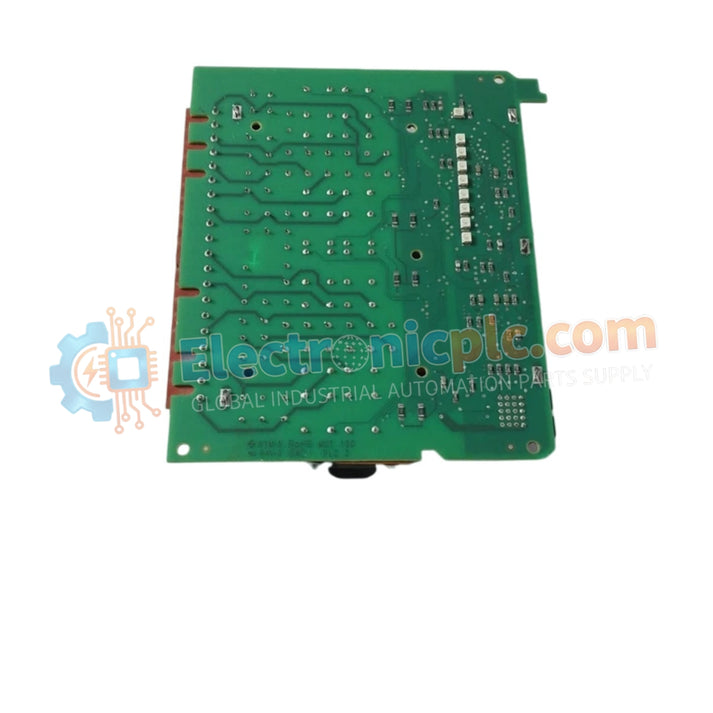

900H01-0202 Honeywell ControlEdge HC900 Digital Output Relay Module

900H01-0202 Honeywell ControlEdge HC900 Digital Output Relay Module

Product Overview

The Honeywell 900H01-0202 is an 8-channel electromechanical relay output module for the ControlEdge HC900 system. It provides mixed Form A and Form C relay outputs for controlling field...

22 people are viewing this right now

Availability: Low stock: 50 left

SKU: 900H01-0202
Vendor: Honeywell
Category: Digital Output Relay Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell 900H01-0202 is an 8-channel electromechanical relay output module for the ControlEdge HC900 system. It provides mixed Form A and Form C relay outputs for controlling field devices such as motor starters, solenoids, and alarm circuits, offering strong electrical isolation and flexible switching capability.

Technical Specifications

Parameter Specification
Channels 8 (4 Form A, 4 Form C)
Relay Type Electromechanical
Voltage Rating 120/240 VAC or 30 VDC
Current Rating 4 A (resistive), 0.5 A (incandescent)
Response Time ON ≤ 11 ms / OFF ≤ 8 ms
Dimensions 137 × 35.6 mm
Weight 0.425 kg

Engineering Advantages

Mixed Relay Configuration
Combines Form A and Form C outputs in one module, supporting both simple switching and changeover control.

High Load Capability
Handles up to 4 A per channel, reducing the need for external interposing relays.

Full Electrical Isolation
Provides strong separation between field power and control logic, improving system safety.

LED Diagnostics
Per-channel status LEDs enable quick identification of output activity and module health.

FAQs

Does it require external fuses?
Yes. Each output must be externally fused according to the connected load.

Is it suitable for high-speed switching?
No. Due to mechanical relay limitations, it is not suitable for high-frequency or PWM applications.

Is it compatible with HC900 racks?
Yes. It is fully compatible with standard HC900 I/O racks and terminal assemblies.

Is this product 100% brand new?
Yes. The Honeywell 900H01-0202 is supplied as a 100% brand new, original factory unit in sealed packaging.
