The A6312/06 is a high-precision pulse processing module designed for the Emerson AMS 6500 and MMS 6000 machinery protection systems. As a "Speed Key" interface, it captures rotational velocity and phase reference (Keyphasor) signals, converting raw electronic pulses from transducers into...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

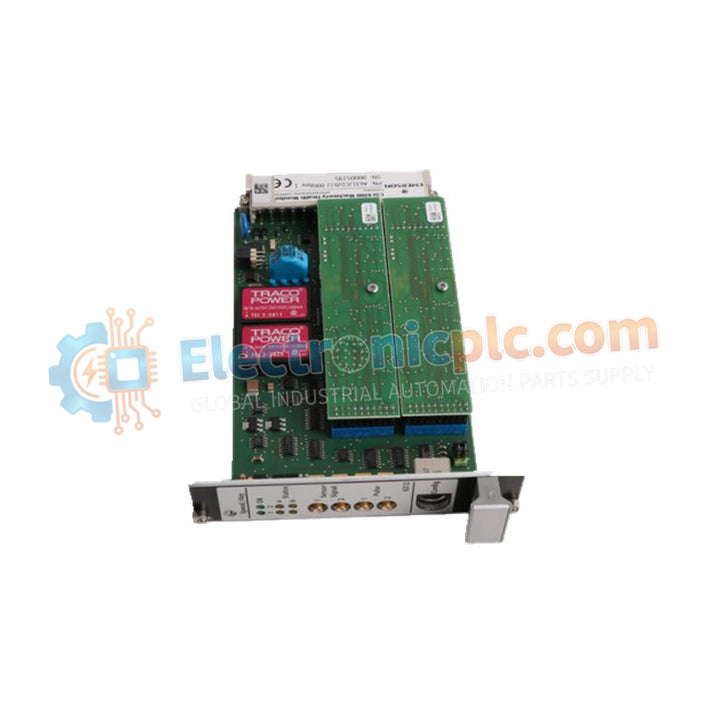

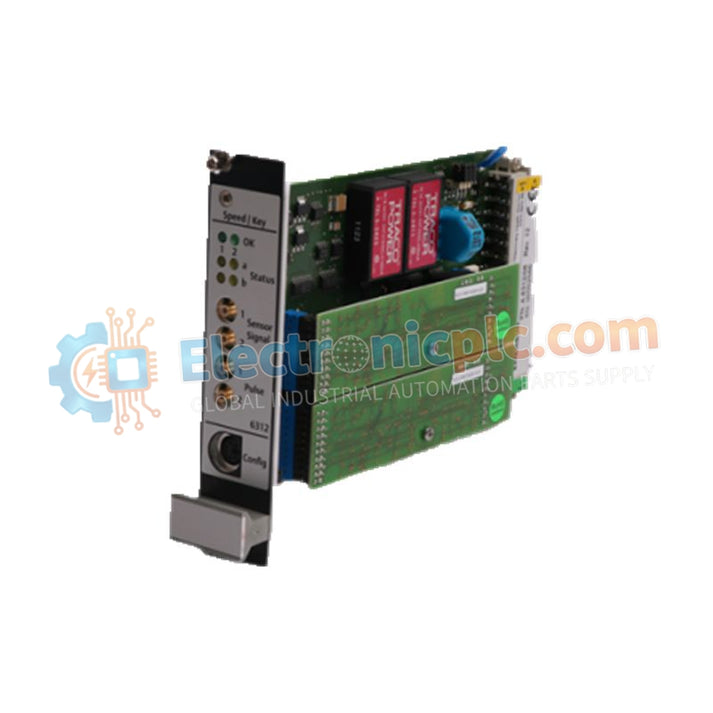

The A6312/06 is a high-precision pulse processing module designed for the Emerson AMS 6500 and MMS 6000 machinery protection systems. As a "Speed Key" interface, it captures rotational velocity and phase reference (Keyphasor) signals, converting raw electronic pulses from transducers into high-resolution timing data. This data is essential for vibration analysis, enabling the system to correlate vibration measurements with the exact angular position of the rotating shaft.
Optimized for industrial turbomachinery, the A6312/06 ensures low-latency signal acquisition across a wide frequency range, making it critical for calculating synchronous vibration vectors and shaft RPM. Its robust design guarantees signal integrity, even in electromagnetically noisy environments, ensuring deterministic data flow essential for preventing mechanical resonance and prolonging machine lifespan.
| Specification | Details |
|---|---|
| Model Number | A6312/06 |
| Monitoring Function | Single-Channel Speed and Phase Reference (Key) |
| Input Compatibility | Hall-effect sensors, Eddy Current probes, and Electromagnetic Pickups (MPU) |
| Frequency Response | 0.01 Hz to 50,000 Hz |
| Signal Resolution | High-speed internal pulse interval timing |
| Signal Outputs | Buffered front-panel BNC for external analyzer connection |
| System Integration | Compatible with AMS 6500 and MMS 6000 protection racks |
| Operating Temperature | -20°C to +65°C (-4°F to +149°F) |
| Dimensions | 3.1 cm x 19.0 cm x 12.8 cm |
| Weight | 0.26 kg |
The A6312/06 is deployed in power generation and petrochemical sectors to monitor steam and gas turbines, high-speed centrifugal compressors, and large induction motors. It provides the "Once-Per-Turn" reference pulse for generating orbit plots, polar plots, and Bode diagrams, which are used for machine balancing and diagnostic troubleshooting.
What is the difference between the A6312/06 and the A6312/08?
The A6312/06 is a single-channel speed/key module, whereas the A6312/08 offers dual-channel monitoring. The /06 is ideal for systems that only require one phase reference or speed input per rack slot, offering a more compact hardware footprint.
Does this module support both active and passive sensors?
Yes, the A6312/06 is configurable to accept signals from passive magnetic pickups (self-generating) and active proximity probes (requiring external power), as long as the trigger thresholds are correctly set in the configuration software.
Can the buffered output be used for safety-critical shutdowns?
The buffered BNC output is intended for diagnostic use with portable analyzers. For safety-critical overspeed protection, the module communicates via the rack backplane to trigger relay outputs on dedicated protection modules.
