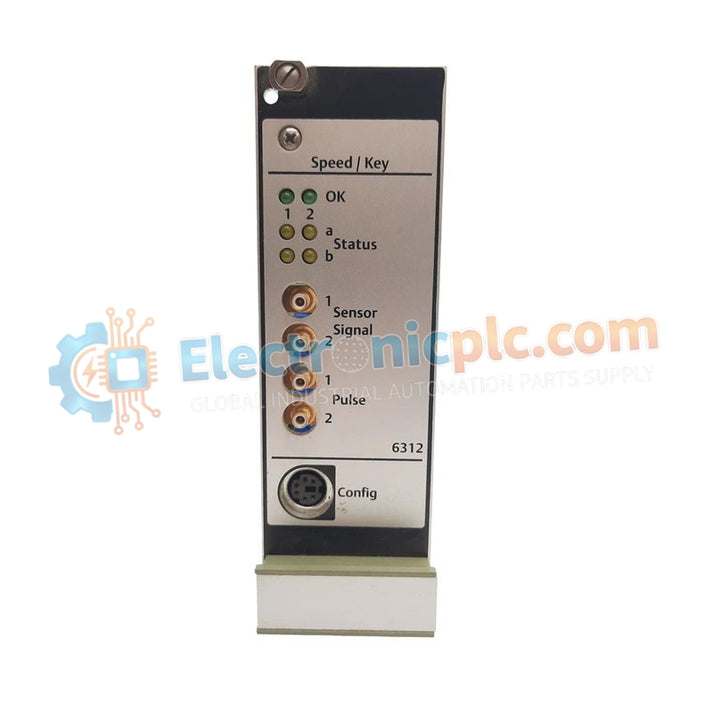

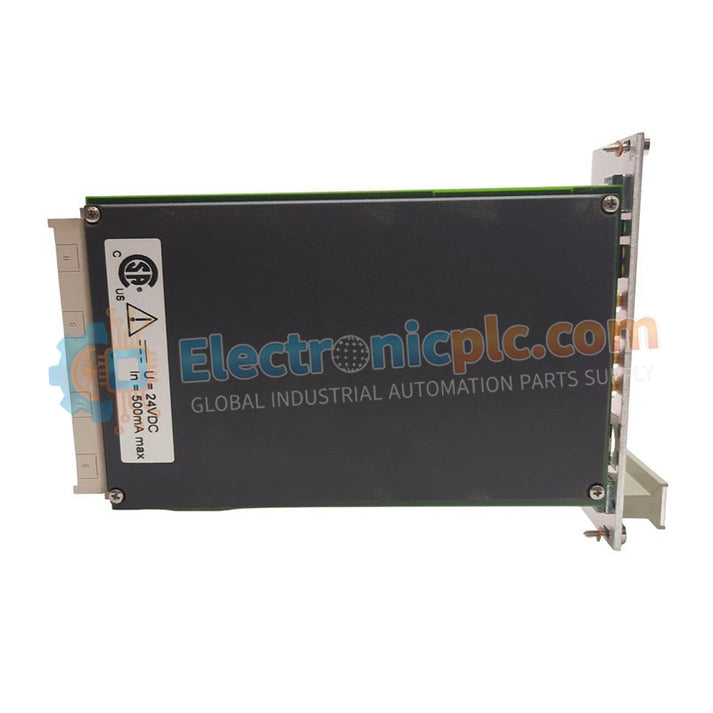

The Emerson A6312/08 is a high-speed pulse acquisition module designed for the Emerson AMS 6500 Machinery Protection System. It monitors rotational velocity and phase reference (Keyphasor) signals, critical for vibration analysis and machine protection. By processing pulse trains from eddy current...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Emerson A6312/08 is a high-speed pulse acquisition module designed for the Emerson AMS 6500 Machinery Protection System. It monitors rotational velocity and phase reference (Keyphasor) signals, critical for vibration analysis and machine protection. By processing pulse trains from eddy current probes or hall-effect sensors, the module delivers deterministic timing data for vibration vector calculation and overspeed condition detection. It supports dual-channel capability, allowing for independent or redundant monitoring of shafts, and can handle extremely high pulse frequencies, making it suitable for high-speed turbo-machinery.
| Specification | Details |
|---|---|
| Model Designation | A6312/08 |
| Series | AMS 6500 / MMS 6000 Protection System |
| Function | Dual-Channel Speed and Phase Reference (Key) Monitoring |
| Input Compatibility | Eddy current sensors, electromagnetic sensors, proximity probes |
| Frequency Range | 0.01 Hz to 50,000 Hz |
| Signal Types | Pulse or Trigger inputs (Phase reference pulses) |
| Output Interface | Buffered sensor outputs via front-panel connectors |
| Internal Processing | Precision pulse interval timing for speed calculation |
| Configuration Port | RS-232 or backplane-based setup |
| Operating Temperature | -20°C to +65°C |
| Dimensions | 4 cm x 19 cm x 12.8 cm |
| Weight | 0.28 kg |
The A6312/08 is essential for monitoring steam turbines, gas turbines, and centrifugal compressors in power plants and petrochemical facilities. It provides the Once-Per-Turn reference signal used in orbit plots and polar plots, critical for diagnosing issues like rotor unbalance or shaft cracks.
What is the difference between the A6312 and a standard vibration module?
While vibration modules measure displacement or velocity, the A6312/08 focuses on timing. It provides the reference "Key" for correlating vibration peaks with the shaft’s angular position.
Does this module support overspeed trip functionality?
The A6312/08 delivers high-accuracy speed data and can trigger alarms. However, for SIL-rated overspeed shutdowns, it is typically used alongside a dedicated protection module like the A6370.
Can it interface with passive magnetic pickups?
Yes, the A6312/08 supports various trigger thresholds, making it compatible with self-generating magnetic sensors and powered proximity probes.
