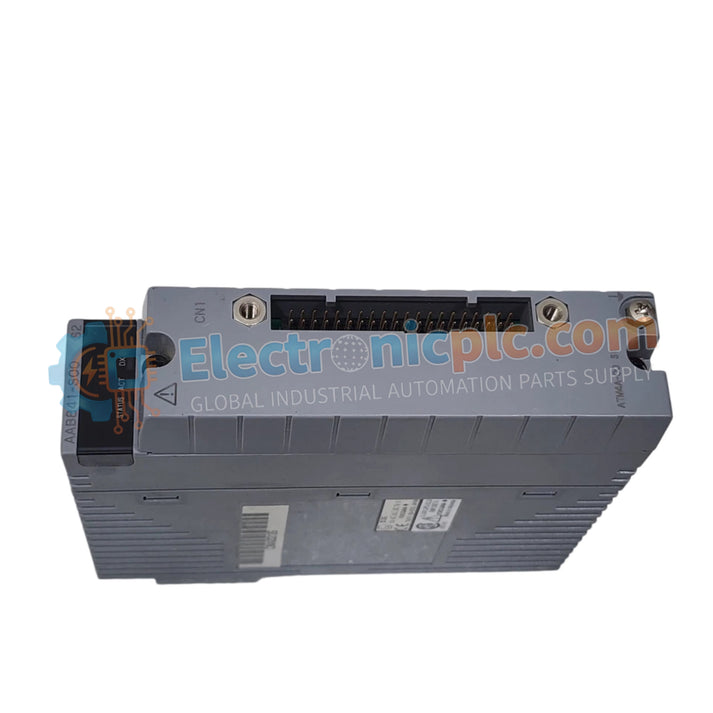

AAB841-S03/M4A00 Analog I/O Module YOKOGAWA

AAB841-S03/M4A00 Analog I/O Module YOKOGAWA

Configured for high-density signal processing in distributed control systems, the YOKOGAWA AAB841-S03/M4A00 (AAB841 Analog I/O Module) provides direct electrical execution of 1 to 5 VDC analog inputs and 4 to...

22 people are viewing this right now

Availability: In stock

SKU: AAB841-S03/M4A00
Vendor: Yokogawa
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-density signal processing in distributed control systems, the YOKOGAWA AAB841-S03/M4A00 (AAB841 Analog I/O Module) provides direct electrical execution of 1 to 5 VDC analog inputs and 4 to 20 mA analog outputs. The module manages parallel signal conversion across 8-channel input and 8-channel output loops, functioning as a non-isolated interface component within the system backplane.

Suffix Breakdown & Model Matrix

  • AAB841: Base model for 8-channel input (1 to 5 V) and 8-channel output (4 to 20 mA) analog I/O.
  • -S: Standard hardware configuration.
  • 0: Basic functional revision.
  • 3: Environmental specification including ISA Standard G3 corrosive gas resistance and an extended temperature range of -20 to 70 deg C.
  • /M4A00: Factory-integrated support for MAC2 compatible adapter, specifically the ATM4A-00 model interface.

Hardware Specifications

Parameter Specification
Model AAB841-S03/M4A00
Brand YOKOGAWA
Origin Japan
Weight 0.3 kg
Dimensions Standard Yokogawa module footprint
Operating Temp -20 to 70 deg C
Power Consumption Subject to backplane load
Input Signal 1 to 5 VDC (8-channel)
Output Signal 4 to 20 mA (8-channel)
Isolation Non-Isolated

Channel-to-Channel Isolation and Loop Protocol

The AAB841-S03/M4A00 architecture is optimized for integration with standard 4-20 mA HART loop protocol environments. Despite the non-isolated nature of the signal channels, the module maintains strict adherence to loop impedance standards to ensure accurate analog signal conversion. The /M4A00 option facilitates direct interfacing with legacy MAC2 adapter systems, allowing for consolidated signal routing without additional external conversion circuitry. Cold junction compensation is not applicable to these voltage/current ranges; however, the module’s processing speed is tuned to maintain high loop sampling frequency required for process control stability.

Frequently Asked Questions

Q: Can this module be hot-swapped while the DCS is in operational mode?

A: No. Hot-swapping is not supported for this hardware revision. Ensure the specific rack slot is powered down prior to physical extraction or installation to avoid backplane bus damage.

Q: Is the AAB841-S03/M4A00 compatible with field devices requiring galvanic isolation?

A: This model is non-isolated. If the field loop requires galvanic isolation for common-mode noise suppression or safety protection, external signal isolators must be installed between the field device and the module terminal board.

Field Installation Guidelines

  1. Verify that the rack power supply is set to the OFF position before handling the module.
  2. Ensure the module is seated squarely within the designated backplane slot; do not force the module if the alignment guides do not engage.
  3. Fasten the module mounting screws to ensure proper chassis contact, which is essential for electromagnetic interference (EMI) shielding.
  4. When wiring 1 to 5 VDC inputs and 4 to 20 mA outputs, use shielded twisted-pair cables to prevent signal degradation.
  5. Bond the cable shields to a dedicated signal ground bus within the terminal cabinet to maintain noise immunity in high-density installations.
