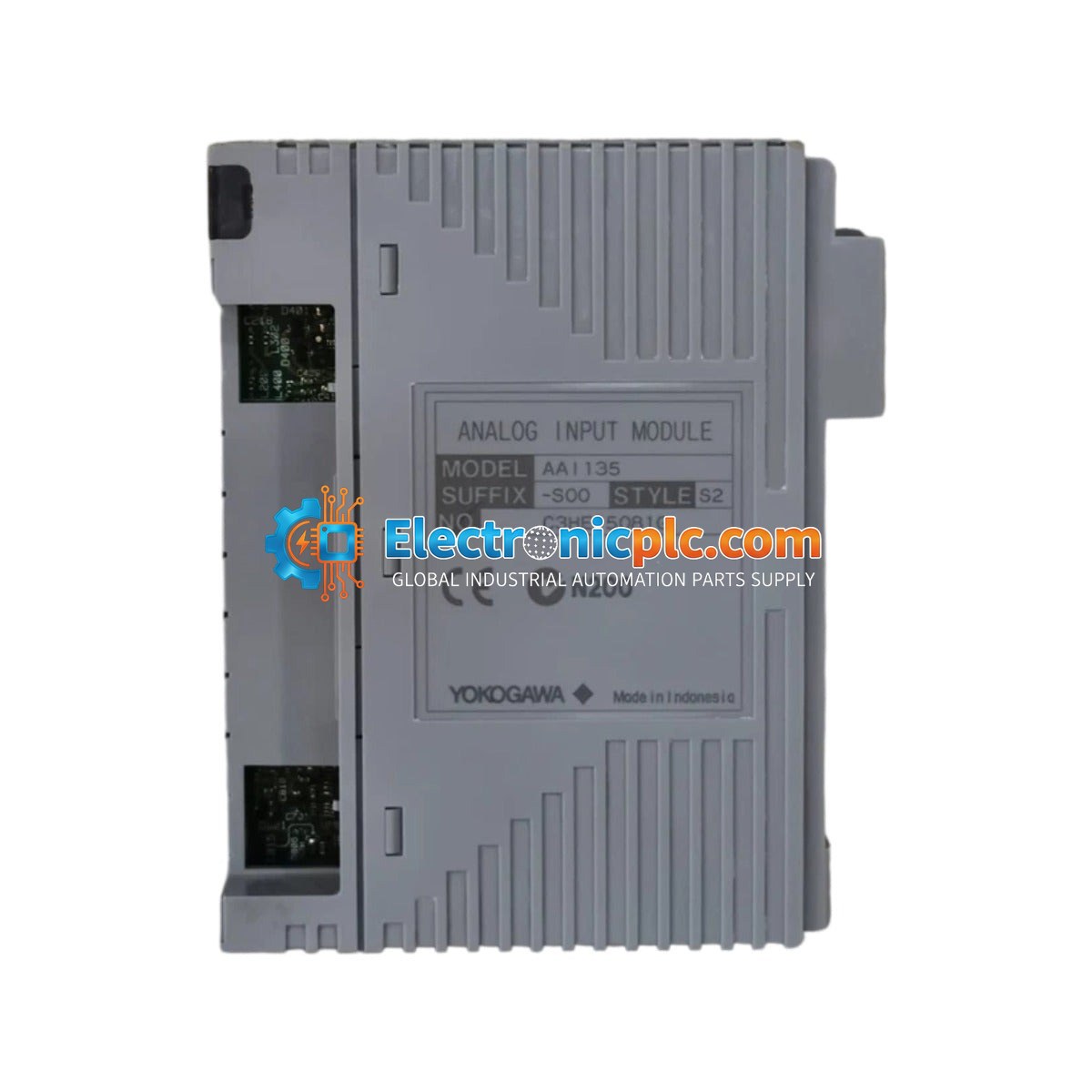

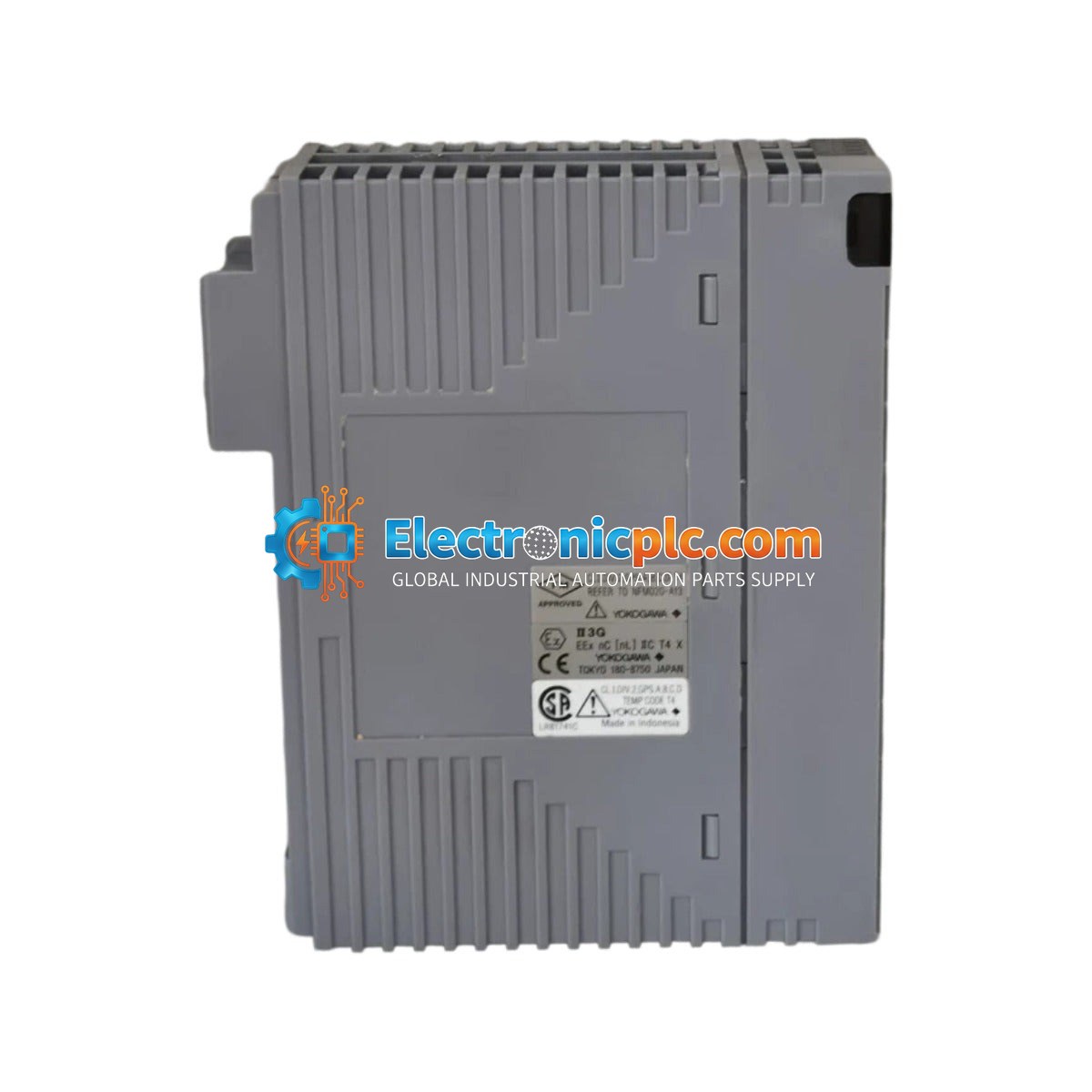

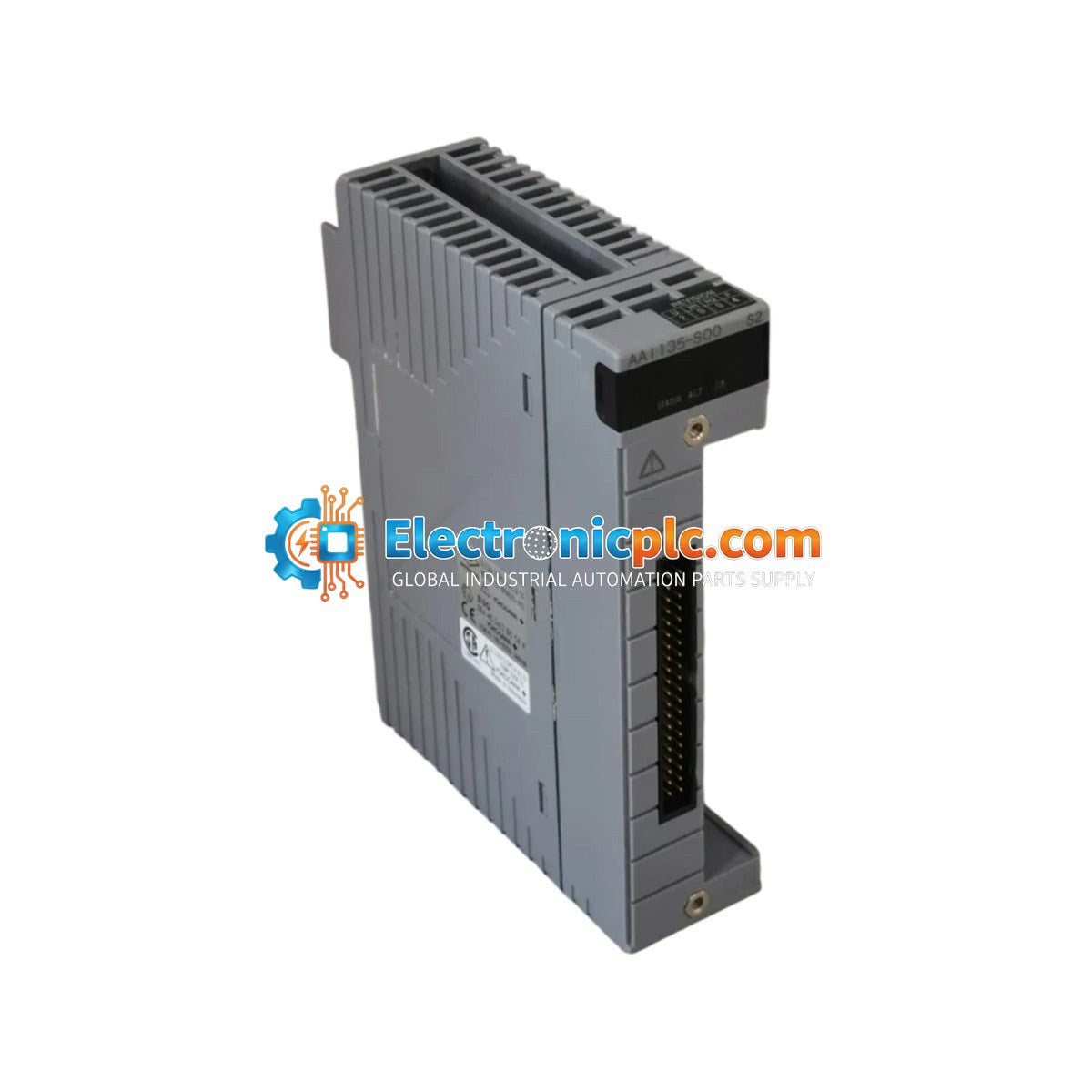

Yokogawa AAI135-S00 Analog Input Module

Yokogawa AAI135-S00 Analog Input Module

Description

The Yokogawa AAI135-S00 is a high-performance 8-channel analog input module designed for the CENTUM VP and CENTUM CS 3000 distributed control systems. This module provides isolated signal processing for 4...

27 people are viewing this right now

Availability: Low stock: 2 left

SKU: AAI135-S00
Vendor: Yokogawa
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Yokogawa AAI135-S00 is a high-performance 8-channel analog input module designed for the CENTUM VP and CENTUM CS 3000 distributed control systems. This module provides isolated signal processing for 4 to 20 mA DC inputs and supports HART communication, making it suitable for critical process automation applications requiring high accuracy and channel-to-channel isolation.

Features

  • 8-channel isolated analog input
  • Supports 4 to 20 mA DC signals
  • Integrated HART communication capability
  • High-speed 10 ms data update period
  • Robust isolation between input channels and system

Technical Specifications

Item Specification
Model AAI135-S00
Number of I/O channels 8-channel, isolated
I/O signal 4 to 20 mA
Allowable input current 25 mA
Withstanding voltage 500 V AC (input to system / channel to channel)
Input resistance 290 Ohm (20 mA) to 450 Ohm (4 mA)
Accuracy +/- 16 uA
Data update period 10 ms
Transmitter power supply 15.0 V to 29.3 V
Temperature drift +/- 16 uA / 10 deg C
Max current consumption 360 mA (5 V DC), 450 mA (24 V DC)
External connection Pressure clamp, MIL connector, KS1 cable

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the backplane.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal electronics.
  • Ensure proper seating in the I/O rack and secure the module using the integrated locking mechanisms.
  • Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference in industrial environments.
  • Verify that the field wiring matches the terminal assignment for the specific connection method (pressure clamp or dedicated cable).

FAQ

Does the AAI135-S00 support HART communication?

Yes, this module supports HART communication, allowing for the transmission of digital data alongside the analog 4-20 mA signal for device diagnostics and configuration.

What is the isolation rating of this module?

The module features 500 V AC withstanding voltage between input channels and between the input and the system, ensuring high signal integrity and protection against ground loops.
