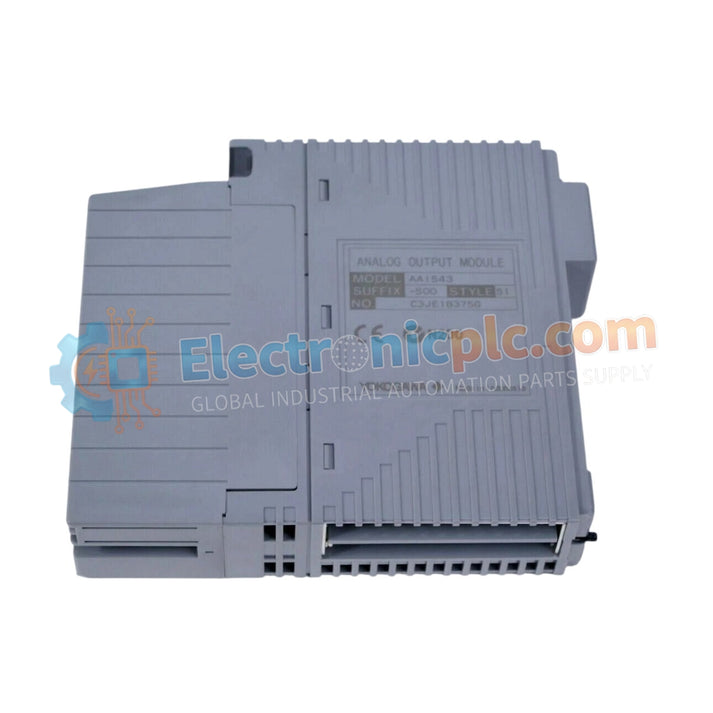

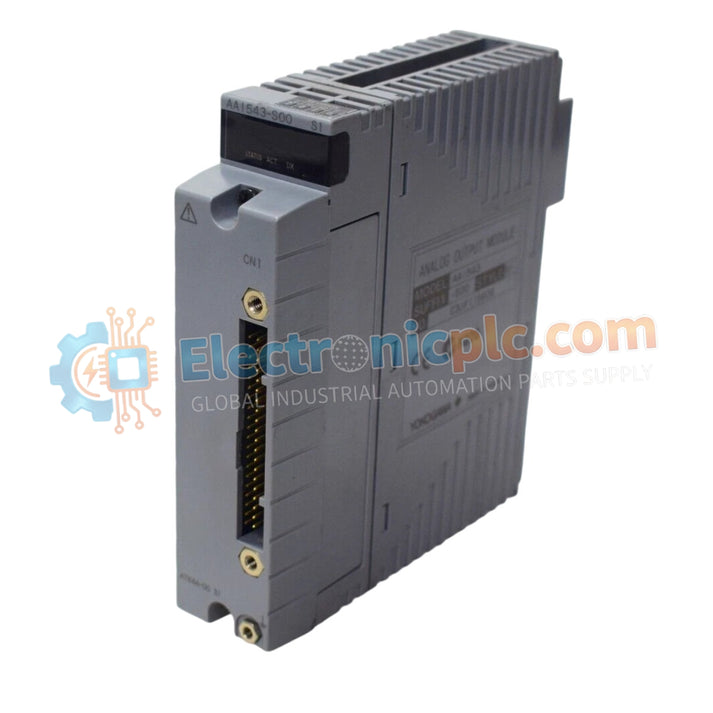

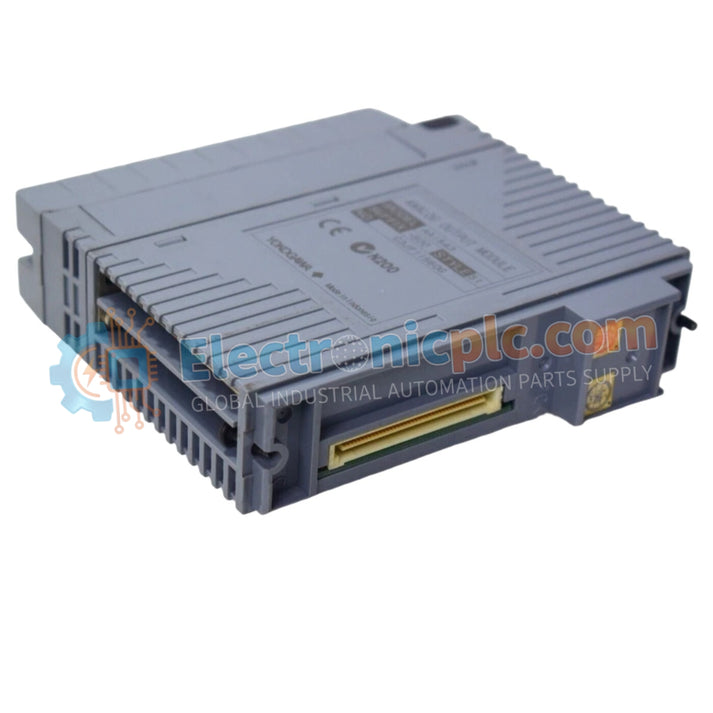

The YOKOGAWA AAI543-S00 S1 (AAI543-S00 Analog Output Module) serves as the primary AAI543-S00 S1 Analog Output Module utilized to execute high-density 4-20 mA control signal output across DCS platforms.

Suffix Breakdown & Model Matrix

• AAI543-S00: Base analog output module designation, configured for 16-channel isolated signal output.
• S1: Revision level indicating standard configuration for cabinet mounting.

Hardware Specifications

DCS Process Control Integration

The AAI543-S00 S1 module incorporates channel-to-channel isolation to prevent ground loop interference within the DCS instrumentation architecture. It supports the 4-20 mA HART loop protocol for robust communication with intelligent field devices. The internal circuitry provides a 1500 V AC withstanding voltage rating between the output and the system, ensuring high-voltage isolation in complex process environments. The module features circuit-open detection at current levels below 0.65 mA, allowing for rapid fault diagnostics.

Frequently Asked Questions

Q: Does this module support redundant operation?

A: Yes. The module is engineered for dual-redundant configurations, utilizing a standard switch-over response to maintain process control continuity during module failure.

Q: How does ambient temperature affect signal accuracy?

A: The module exhibits a thermal drift characteristic of +/- 16 uA per 10 deg C change in ambient temperature.

Field Installation Guidelines

1. Verify system power is isolated before mounting the module to the backplane.
2. Ensure the module is seated fully in the chassis to engage the backplane pins and achieve secure grounding.
3. Tighten the front-panel mounting screws to maintain a low-impedance bond with the grounded cabinet enclosure.
4. Verify all wiring terminal connections are torqued to manufacturer specifications to ensure connectivity and prevent resistive heating.
5. Confirm the load resistance in the field loop does not exceed 750 Ohm to maintain output signal accuracy.
