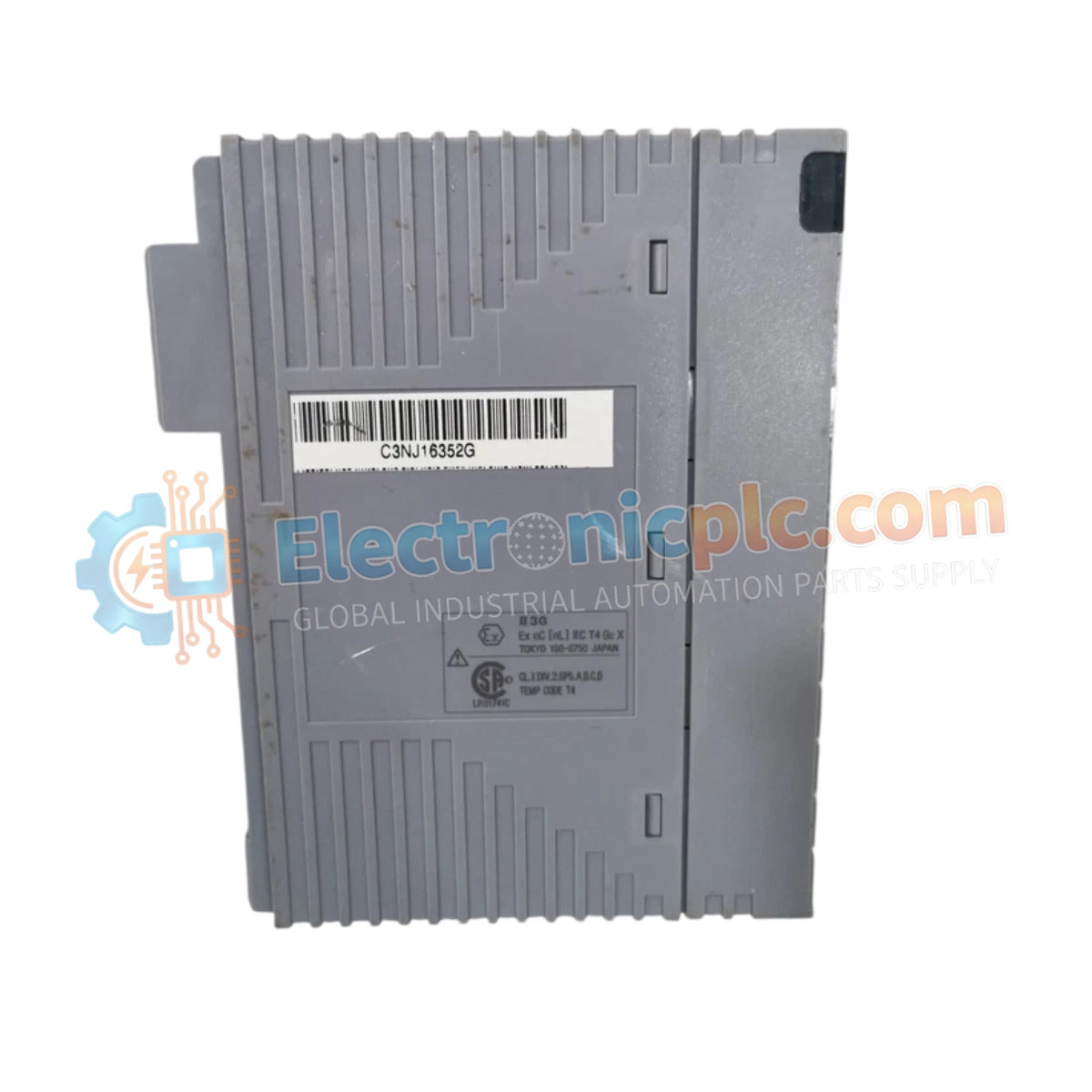

Configured for high-density process signal acquisition in distributed control system platforms, the Yokogawa AAV141-S50 (AAV141 Analog Input Module) provides direct physical electrical execution for 16-channel 1-5 V analog voltage monitoring.

Suffix Breakdown & Model Matrix

• AAV141: Base model identifier for 16-channel 1-5 V analog voltage input modules.
• -S: Standard hardware performance classification.
• 5: Non-explosion-proof design configuration.
• 0: Basic functionality and interface type.

Hardware Specifications

FOUNDATION Fieldbus and Channel Isolation

The AAV141-S50 architecture is optimized for voltage-level signal acquisition within DCS racks. As a non-isolated module, it is designed for environments where common-mode voltage between channels is controlled and loop isolation is provided at the field terminal level. The module maintains high measurement precision for 1-5 VDC signals, ensuring that voltage drops across field wiring do not result in significant measurement errors.

Frequently Asked Questions

Q: Does the non-isolated nature of the AAV141-S50 affect its use with floating voltage sources?

A: Since the module is non-isolated, all 16 channels share a common reference ground. If the field devices provide floating outputs, external signal isolation may be required to prevent ground loops between the field instrumentation and the DCS backplane.

Q: Is this module compatible with standard 4-20 mA current loops?

A: No, the AAV141-S50 is specifically calibrated for 1-5 VDC voltage inputs; using it for current loops without an external precision resistor to convert current to voltage will result in incorrect readings and potentially damage the input stage.

Field Installation Guidelines

• Ensure the module is fully seated on the I/O rack backplane to guarantee a stable connection for signal data transfer.
• Use shielded, twisted-pair cabling for all voltage inputs, ensuring the cable shield is grounded at the cabinet entrance to minimize RFI/EMI interference.
• Verify that the input voltage does not exceed the absolute maximum rating of the module to prevent damage to the analog-to-digital converter circuitry.
• Maintain a clean operating environment; as a high-density, non-isolated module, metallic particulates near the connector area can lead to signal shorting across the 16 input channels.
