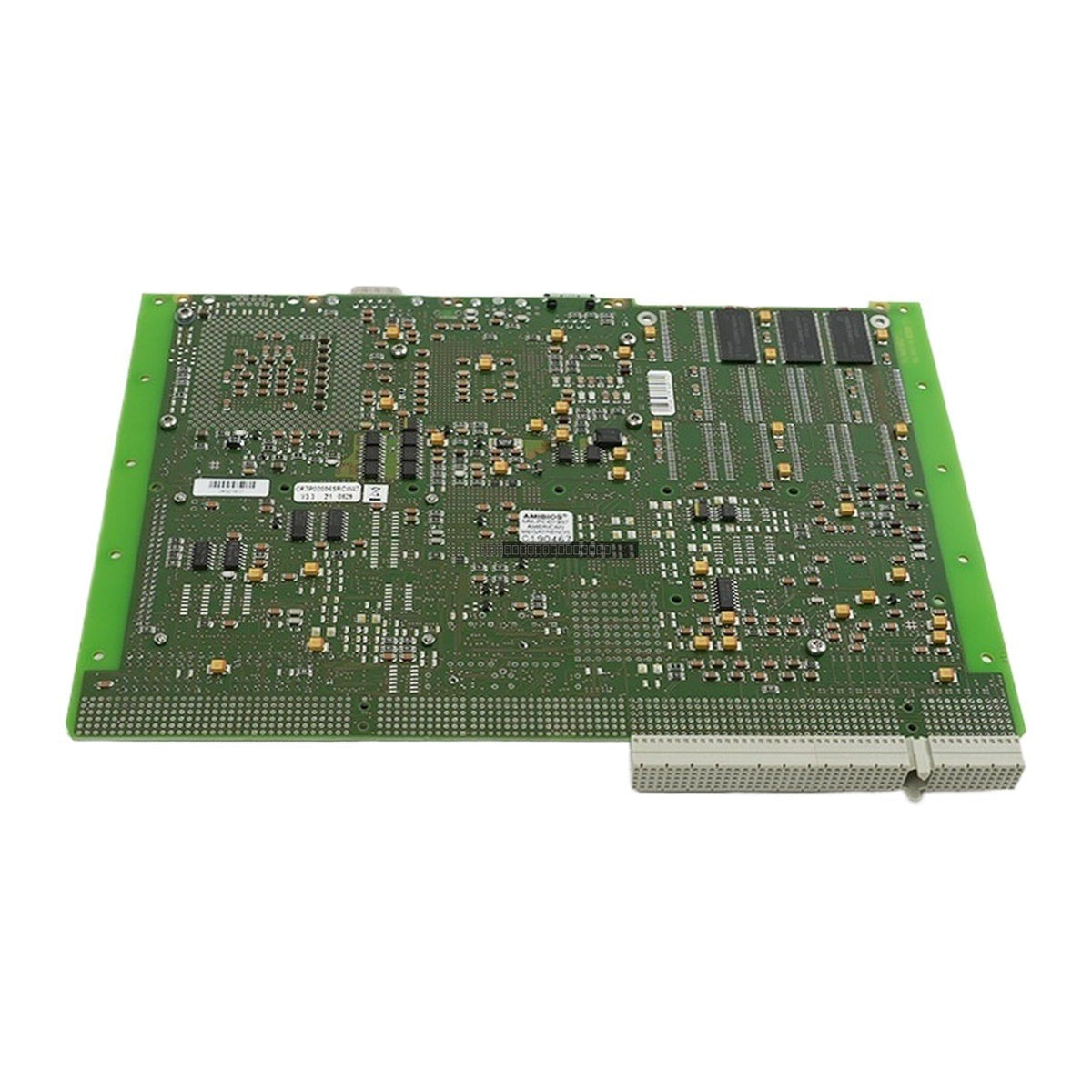

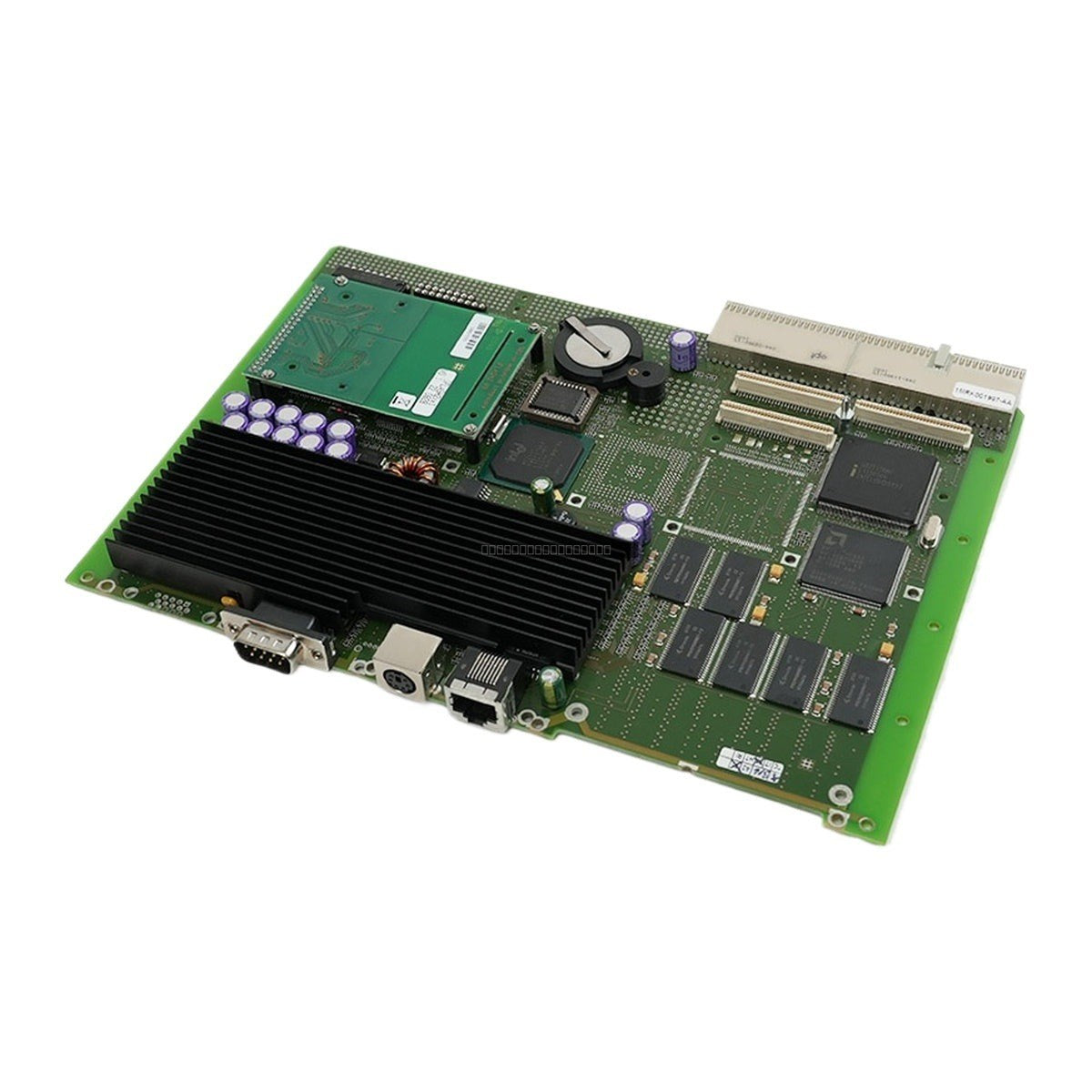

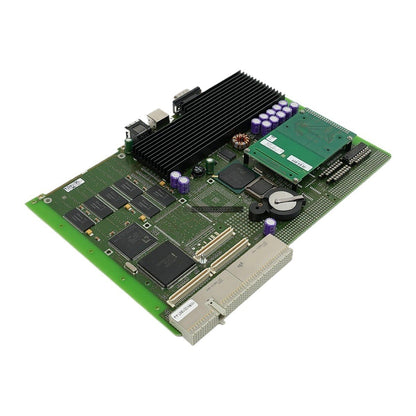

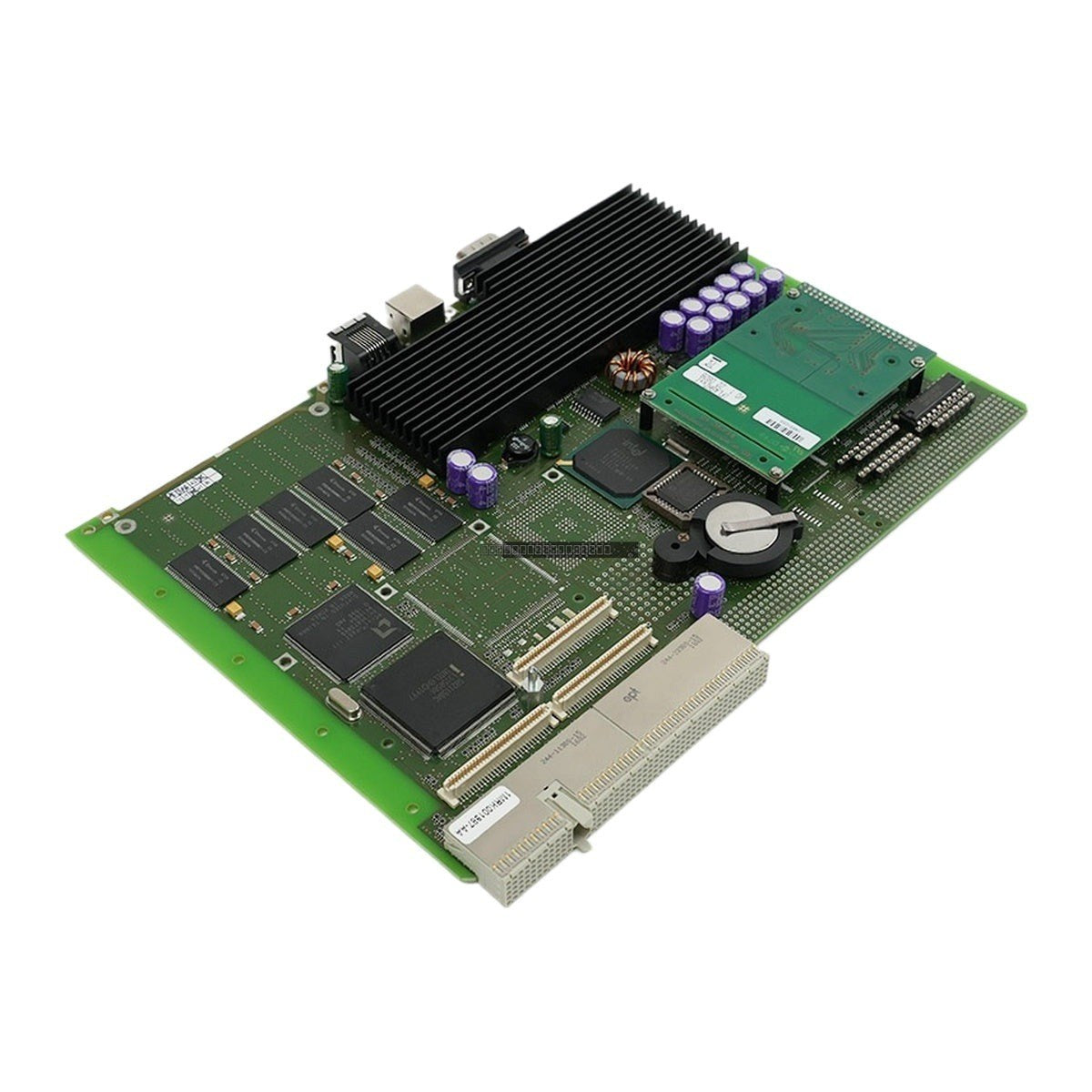

ABB 1MRK001987-AA Compact Current Relay

ABB 1MRK001987-AA Compact Current Relay

The ABB 1MRK001987-AA is a compact current relay designed for precise monitoring and protection applications. This device features a 3-phase current transformer (CT) input, providing robust performance in industrial power...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 1MRK001987-AA
Vendor: ABB
Category: Current Relay
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB 1MRK001987-AA is a compact current relay designed for precise monitoring and protection applications. This device features a 3-phase current transformer (CT) input, providing robust performance in industrial power management systems.

Features

  • 3-phase CT input configuration.
  • Wide measurement range from 0.05 to 40 times the nominal current (In).
  • High measurement accuracy of ±1% of reading ±0.5% In.
  • Versatile power supply compatibility supporting 24 to 240 V AC/DC.
  • Harmonic analysis capability up to the 15th harmonic.
  • Low power burden for efficient operation.

Technical Specifications

Model 1MRK001987-AA
Rated Current (In) 1 A or 5 A
Measurement Range 0.05 – 40 x In
Accuracy ±1% of reading ±0.5% In
Frequency 50 / 60 Hz ±5%
Rated Voltage 24 – 240 V AC/DC
Power Burden (Current) < 0.1 VA @ In
Power Burden (Voltage) 3 W (stand-by)
In-rush Current < 10 W for 100 ms

Installation Guidelines

  • Ensure the device is powered down before performing any wiring or installation tasks.
  • Verify that the CT input wiring is securely terminated and matches the phase configuration of the monitored circuit.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) in high-voltage environments.
  • Ensure adequate ventilation around the unit to prevent thermal buildup during operation.
  • Handle with care to prevent electrostatic discharge (ESD) damage to internal components.

FAQ

What is the primary function of the 1MRK001987-AA?
This module serves as a compact current relay designed to monitor 3-phase current inputs for protection and control purposes in electrical systems.

Does this relay support both 50 Hz and 60 Hz systems?
Yes, the unit is designed to operate within a frequency range of 50/60 Hz ±5%.

What is the rated voltage range for the power supply?
The relay accepts a wide input voltage range of 24 to 240 V AC/DC.
