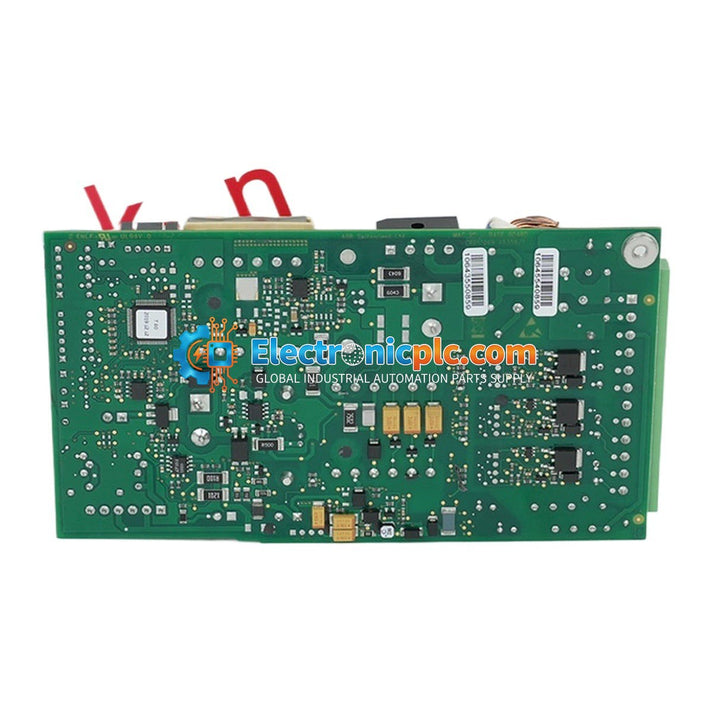

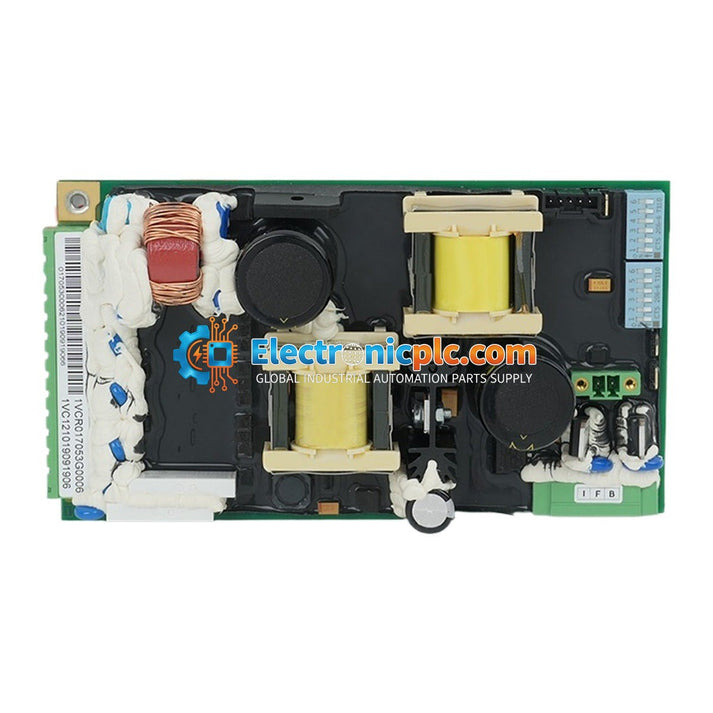

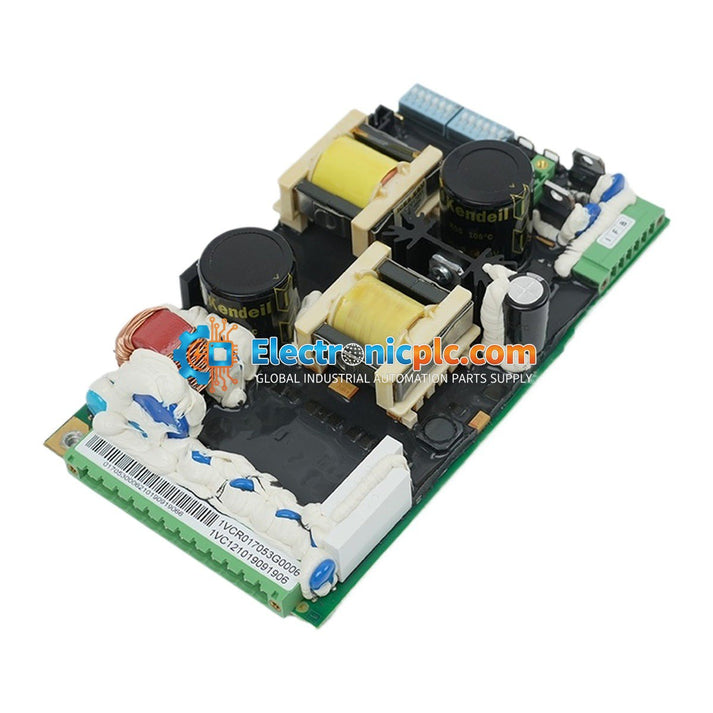

ABB 1VCR017053G0006 VSC Power Supply and Control Board

ABB 1VCR017053G0006 VSC Power Supply and Control Board

Description

The ABB 1VCR017053G0006 is a specialized power supply and control board engineered for the ABB V-Contact VSC series of medium-voltage vacuum contactors. This module serves as the electronic interface...

23 people are viewing this right now

Availability: Low stock: 10 left

SKU: 1VCR017053G0006
Vendor: ABB
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB 1VCR017053G0006 is a specialized power supply and control board engineered for the ABB V-Contact VSC series of medium-voltage vacuum contactors. This module serves as the electronic interface for the contactor's bistable MAC drive, managing control signals and providing stable operating power for switching operations in medium-voltage distribution networks.

Features

  • Multi-voltage electronic feeder design for versatile input compatibility.
  • Capacitor energy storage drive for reliable actuation.
  • Integrated control coil continuity monitoring.
  • Optimized for high-frequency switching operations in industrial and marine environments.
  • Ultra-low power consumption during steady-state operation.

Applications

  • Industrial motor control and protection.
  • Transformer switching and power factor correction banks.
  • Marine propulsion and vessel power distribution systems.
  • Mining and petrochemical extraction machinery (pumps, compressors, conveyors).
  • Water treatment infrastructure and high-capacity aeration blowers.

Technical Specifications

Model 1VCR017053G0006
Rated Voltage Up to 12 kV
Rated Current 400 A
Breaking Capacity 6 kA (unfused); up to 50 kA with SCPD
Input Voltage Range AC 150 V – 280 V
Rated Frequency 50 Hz
Operating Temperature -40 degC to +70 degC
Humidity Up to 95% RH (non-condensing)
Ingress Protection IP20

Installation Guidelines

  • Safety First: Always isolate, rack out, and ground the circuit breaker or Motor Control Center (MCC) enclosure before beginning work.
  • Stored Energy: The VSC electronic board utilizes large internal capacitors. Wait at least 5 to 10 minutes after disconnecting auxiliary control voltage to allow residual energy to dissipate before accessing the control compartment.
  • ESD Protection: Always wear a grounded static-control wrist strap when handling the module to prevent damage to sensitive microprocessors.
  • Mounting: Designed for installation inside protected control cabinets. Ensure adequate ventilation to maintain ambient temperatures within the specified -40 degC to +70 degC range.

FAQ

What is the primary function of the 1VCR017053G0006?
It is a dedicated power supply and control board for ABB V-Contact VSC medium-voltage vacuum contactors, managing the bistable MAC drive and control signal processing.

Can this board be used in marine environments?
Yes, the module is suitable for marine sectors. DNV-compliant coating is available for corrosive or high-humidity environments.

What is the required maintenance for the capacitors?
The board uses high-reliability capacitors as part of its energy storage drive. Ensure the unit is kept free of dust and moisture, and verify that the control cabinet environment remains within the IP20 operating limits.
