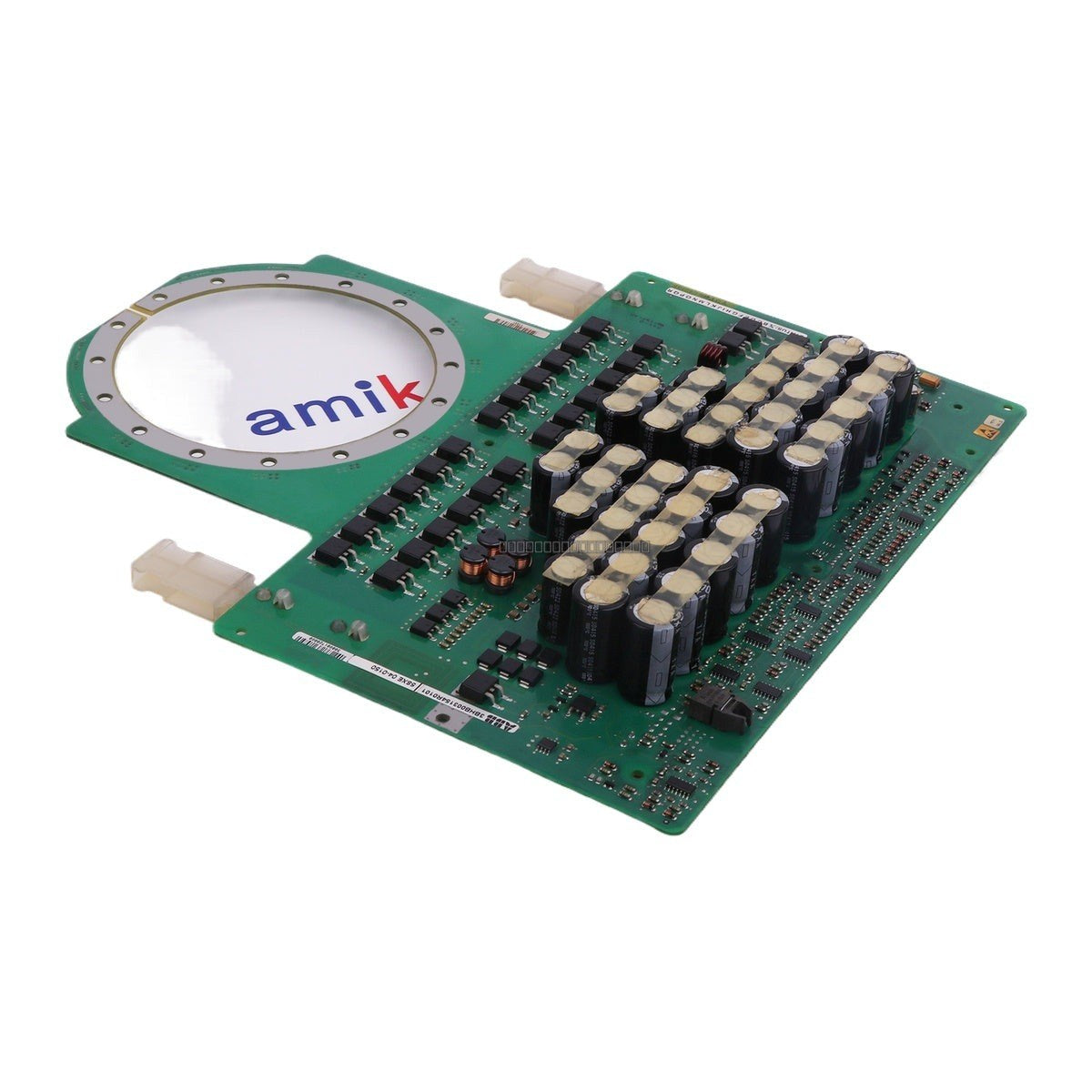

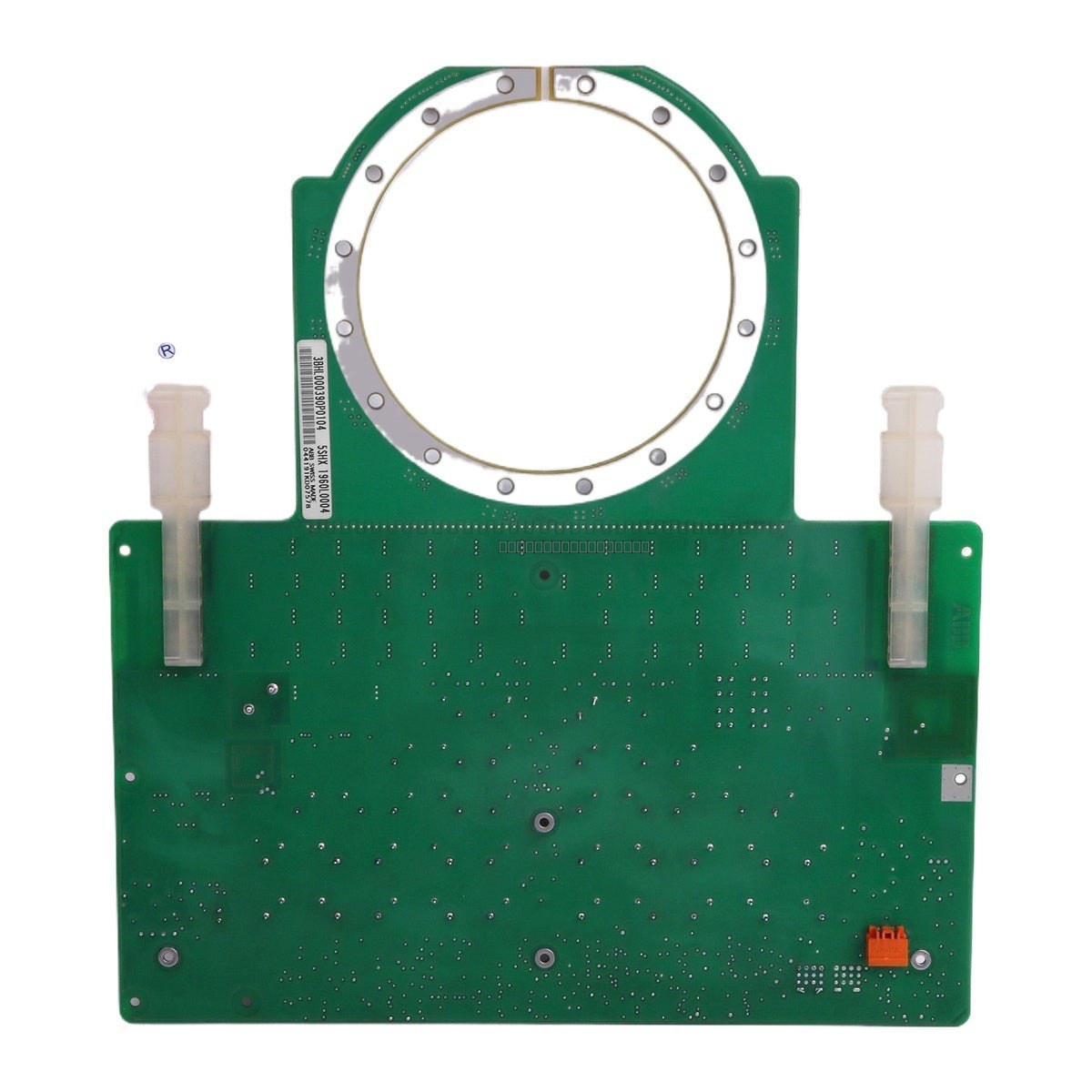

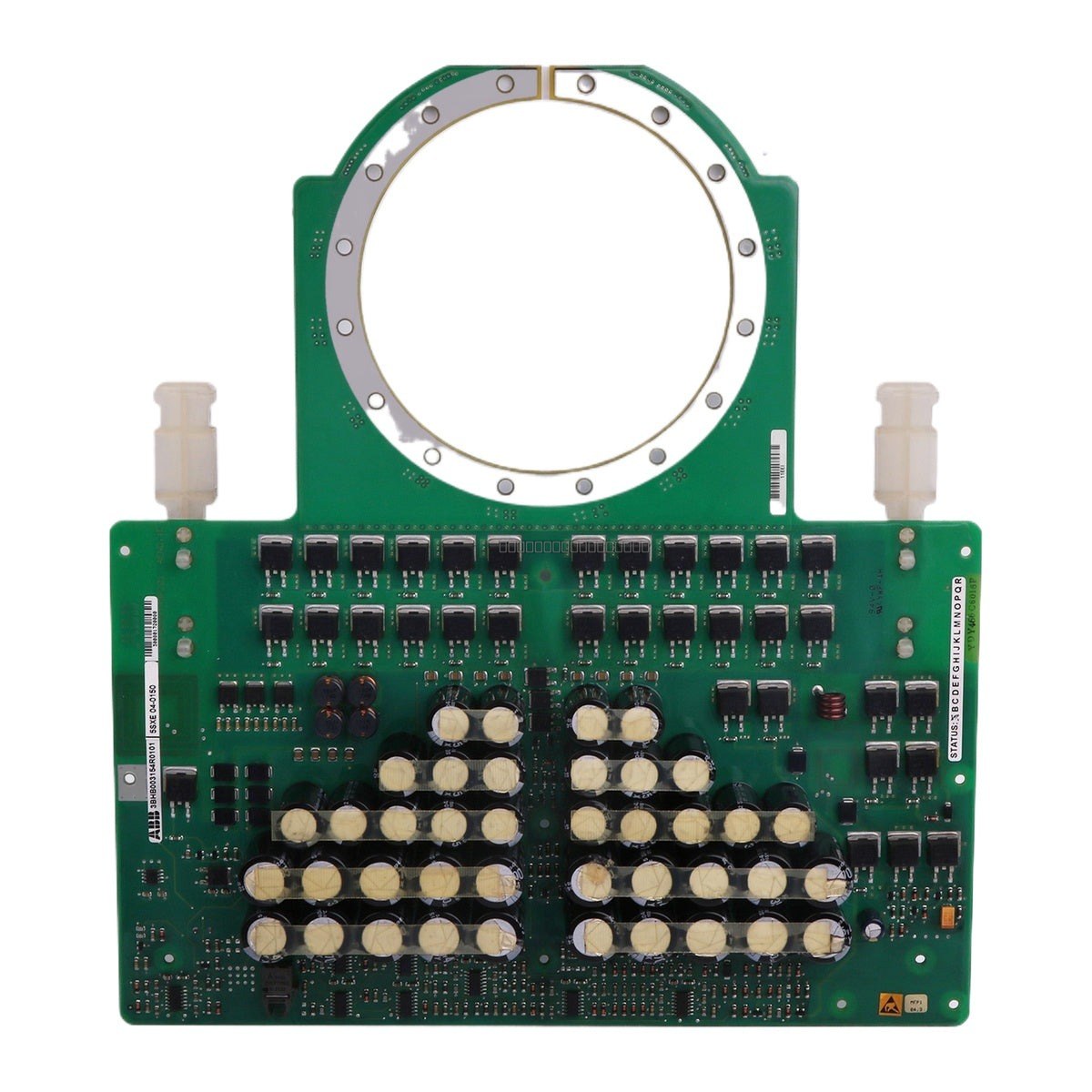

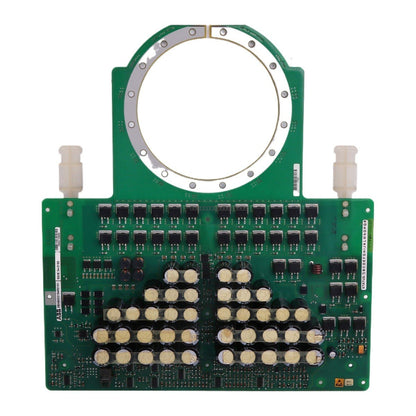

ABB 3BHL000390P0104 IGCT Module Board

ABB 3BHL000390P0104 IGCT Module Board

Description

The ABB 3BHL000390P0104 is an Integrated Gate-Commutated Thyristor (IGCT) module board, designed for high-power industrial power electronics applications. This component is a critical part of power conversion systems, facilitating efficient...

15 people are viewing this right now

Availability: Low stock: 8 left

SKU: 3BHL000390P0104 3BHB003154R0101 5SHX1960L0004
Vendor: ABB
Category: IGCT Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB 3BHL000390P0104 is an Integrated Gate-Commutated Thyristor (IGCT) module board, designed for high-power industrial power electronics applications. This component is a critical part of power conversion systems, facilitating efficient switching and control of high-voltage, high-current electrical loads. Please note that this specific model has been discontinued by the manufacturer.

Features

  • High-performance IGCT technology for robust power switching.
  • Engineered for integration within ABB power electronic assemblies.
  • Designed for high-reliability industrial environments.
  • Compact board-level construction for efficient space utilization in power stacks.

Technical Specifications

Manufacturer ABB
Model / Part Number 3BHL000390P0104
Associated Part Numbers 3BHB003154R0101, 5SHX1960L0004
Component Type IGCT Module Board
Weight 0.85 kg

Installation Guidelines

  • Ensure all power is disconnected from the system before attempting to install or remove the IGCT module.
  • Handle the module with care, utilizing proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive electronic components.
  • Verify that all mounting surfaces are clean and free of debris to ensure proper thermal contact and mechanical stability.
  • Ensure that all electrical connections are properly seated and tightened to the manufacturer's specified torque requirements to prevent arcing or high-resistance connections.
  • Verify that the cooling system (heatsinks, fans, or liquid cooling loops) is fully functional and unobstructed to prevent thermal overload during operation.

FAQ

Is this product still in production?

No, this model has been discontinued by ABB. We provide high-quality spare parts to support legacy systems.

What is an IGCT module used for?

IGCT modules are primarily used in high-power converters, such as those found in medium-voltage drives, traction inverters, and utility-scale power transmission systems, where high switching speed and low conduction losses are required.
