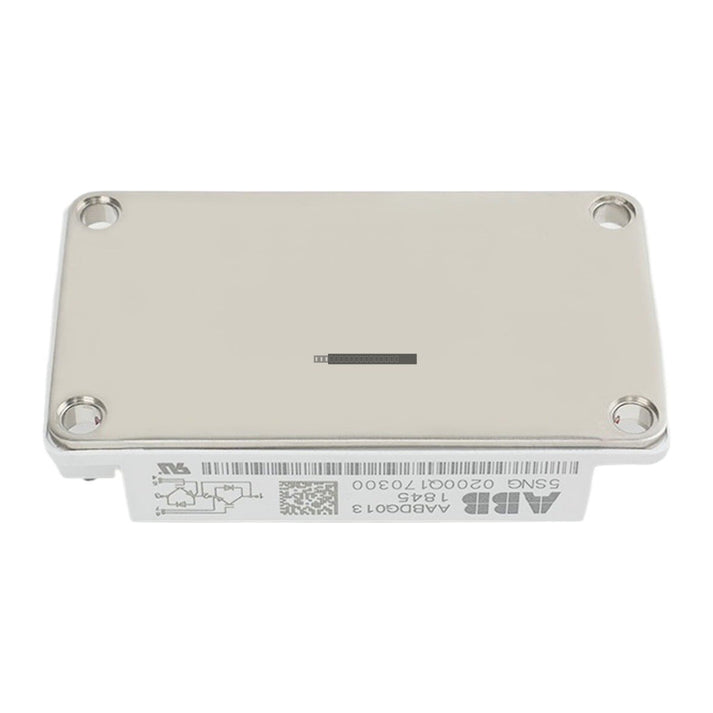

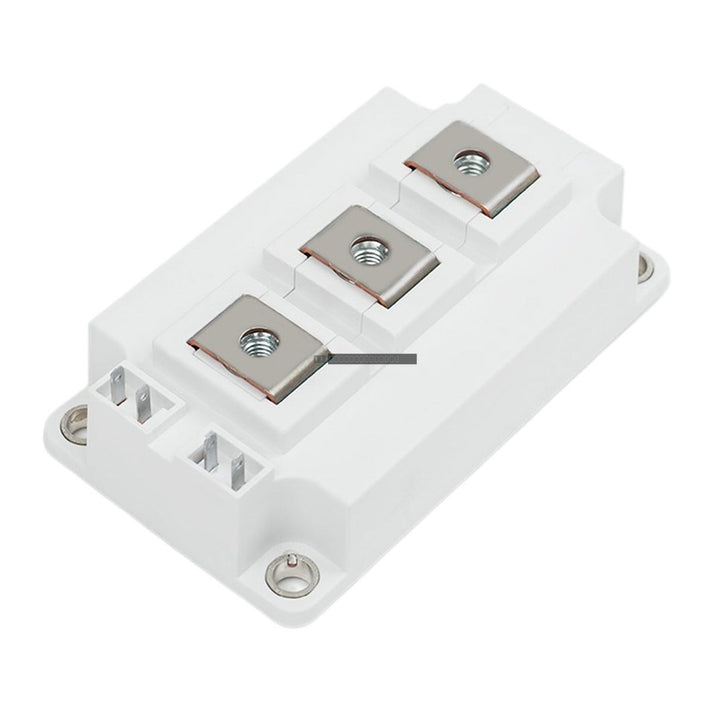

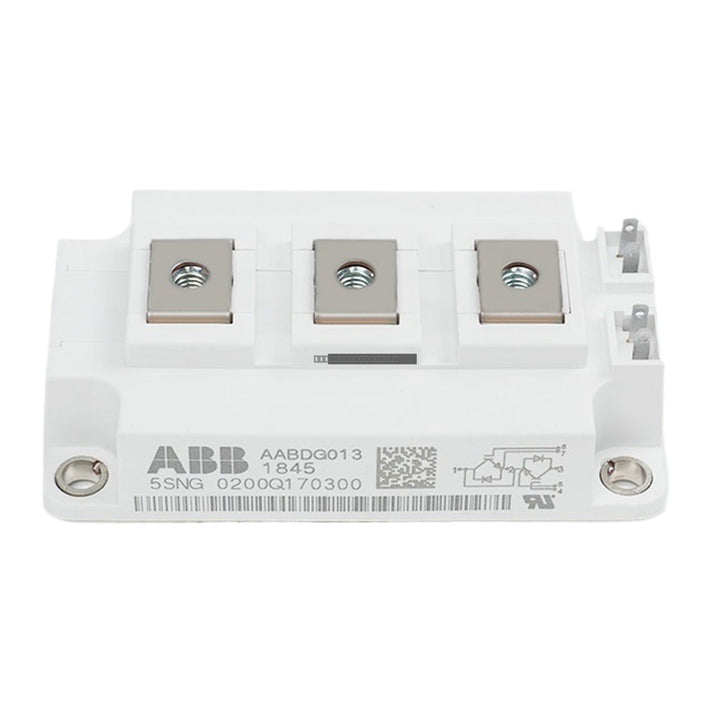

ABB 5SNG0200Q170300 IGBT Module

ABB 5SNG0200Q170300 IGBT Module

The ABB 5SNG0200Q170300 is a high-performance 1700V, 200A phase-leg IGBT module from the 62Pak series. Engineered with rugged SPT++ chip technology, this module is designed to provide ultra-low switching losses...

15 people are viewing this right now

Availability: In stock

SKU: 5SNG0200Q170300
Vendor: ABB
Category: IGBT Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB 5SNG0200Q170300 is a high-performance 1700V, 200A phase-leg IGBT module from the 62Pak series. Engineered with rugged SPT++ chip technology, this module is designed to provide ultra-low switching losses and high power density for demanding industrial power conversion applications.

Features

  • 1700V SPT++ fast switching IGBT/diode chipset for optimized efficiency.
  • Full 175 degC operating temperature capability with full square Safe Operating Area (SOA).
  • Best-in-class temperature cycling performance utilizing advanced bond-wire chip connection technology.
  • Standard 62mm package design, facilitating drop-in replacement in existing systems.

Applications

  • Industrial Motor Drives and power conversion systems.
  • Renewable energy infrastructure, including wind turbine converters and solar inverters.
  • Traction converters for railway and electrified transportation.
  • Uninterruptible Power Supply (UPS) systems requiring high reliability.
  • Medium Voltage Drives (MVD).

Technical Specifications

Model 5SNG0200Q170300
Voltage Rating 1700 V
Current Rating 2 x 200 A
Configuration Phase leg IGBT
VCEsat 2.65 V
Max Operating Temperature 175 degC

Installation Guidelines

  • ESD Precautions: IGBT modules are sensitive to Electrostatic Discharge. Always handle in an ESD-controlled environment and keep in anti-static packaging until the moment of installation.
  • Mounting: Refer to ABB Document No. 5SYA 2106 for detailed mechanical mounting procedures, including torque requirements for terminal and mounting screws.
  • Cooling: Ensure adequate thermal management. Thermal fatigue is a primary failure mode; verify that the heatsink interface is clean, flat, and that thermal grease is applied according to manufacturer specifications to maintain optimal heat transfer.
  • Safety: Ensure the system is fully de-energized and capacitors are discharged before attempting to install or remove the module.

FAQ

What is the 5SNG0200Q170300?

The 5SNG0200Q170300 is a 1700V, 200A 62Pak phase-leg IGBT module designed for high-power switching applications in industrial environments.

What are the primary specifications?

This module features a 1700V, 200A rating, utilizing SPT++ chip technology in a standard 62mm package, capable of operating at temperatures up to 175 degC.

What are common failure modes for this module?

Typical failure modes include thermal fatigue due to inadequate cooling, overcurrent conditions, and overheating. Maintaining proper thermal contact with the heatsink is critical for long-term reliability.
