Description

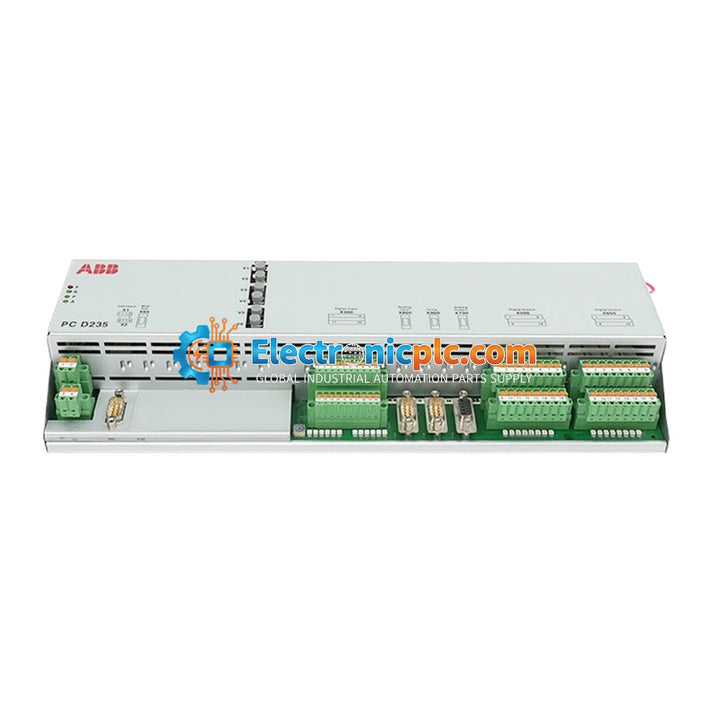

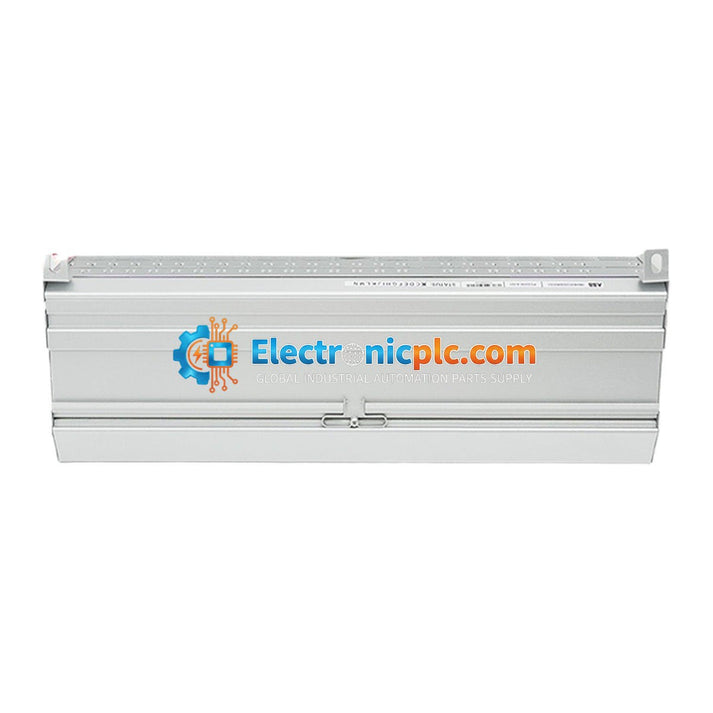

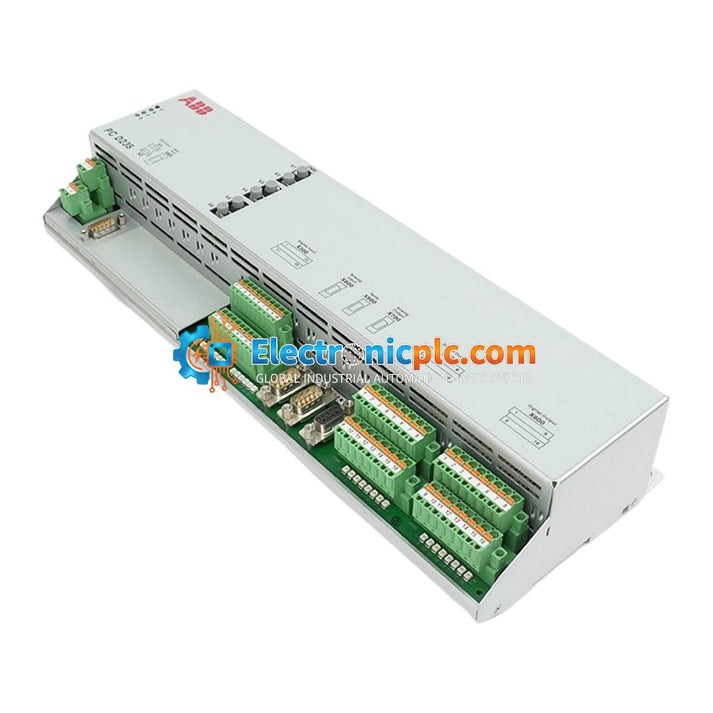

The ABB 3BHE032025R0101, also identified as PCD235A101, is a specialized Exciter Control Module designed for the UNITROL series. This module serves as a critical component in power generation and industrial drive systems, providing precise control and regulation of generator excitation. It is engineered to manage field parameters to ensure stable generator output and reliable performance under varying load conditions.

Features

• Designed for integration within the ABB UNITROL exciter control system architecture.
• Provides high-precision regulation of field voltage and current.
• Supports standard CT (Current Transformer) inputs for generator current monitoring.
• Robust construction suitable for demanding industrial power plant environments.
• Low power consumption profile for efficient operation within control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet is properly grounded before installing the module to prevent electrostatic discharge (ESD) damage.
• Verify that the supply voltage matches the specified 110/220V AC range before power-up.
• Route signal cables (CT inputs) separately from high-voltage power lines to minimize electromagnetic interference (EMI).
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the -20 degC to +60 degC range.
• Always disconnect power before inserting or removing the module from the rack or backplane.

FAQ

What is the primary function of the PCD235A101 module?

The PCD235A101 is an exciter control module used in ABB UNITROL systems to regulate the excitation of generators, ensuring stable voltage and current output.

Is this module compatible with standard CT inputs?

Yes, this module is designed to accept 0-5A AC inputs from current transformers for generator current monitoring.

What are the environmental requirements for this module?

The module is rated for operation between -20 degC and +60 degC with a non-condensing humidity range of 5-95% RH.
