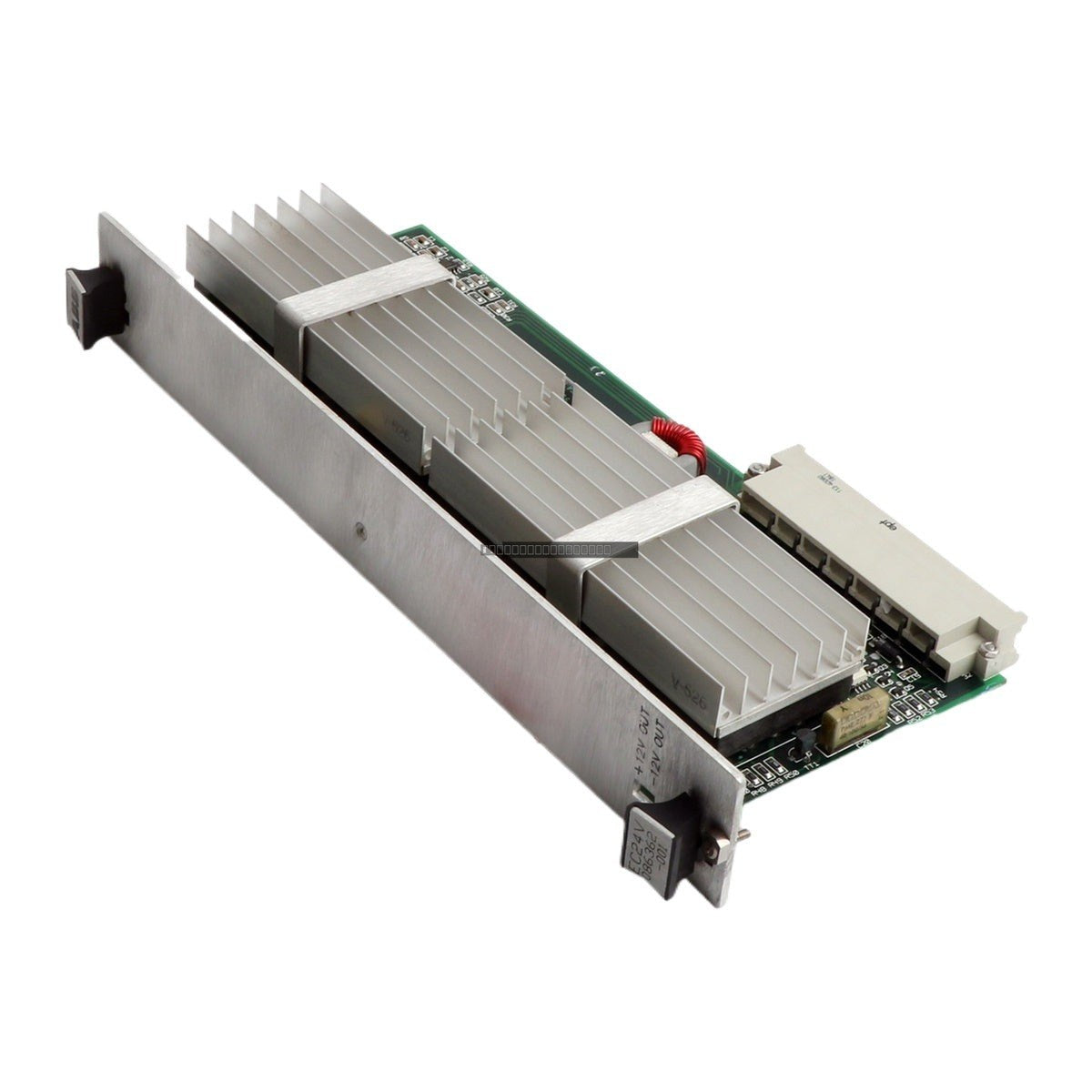

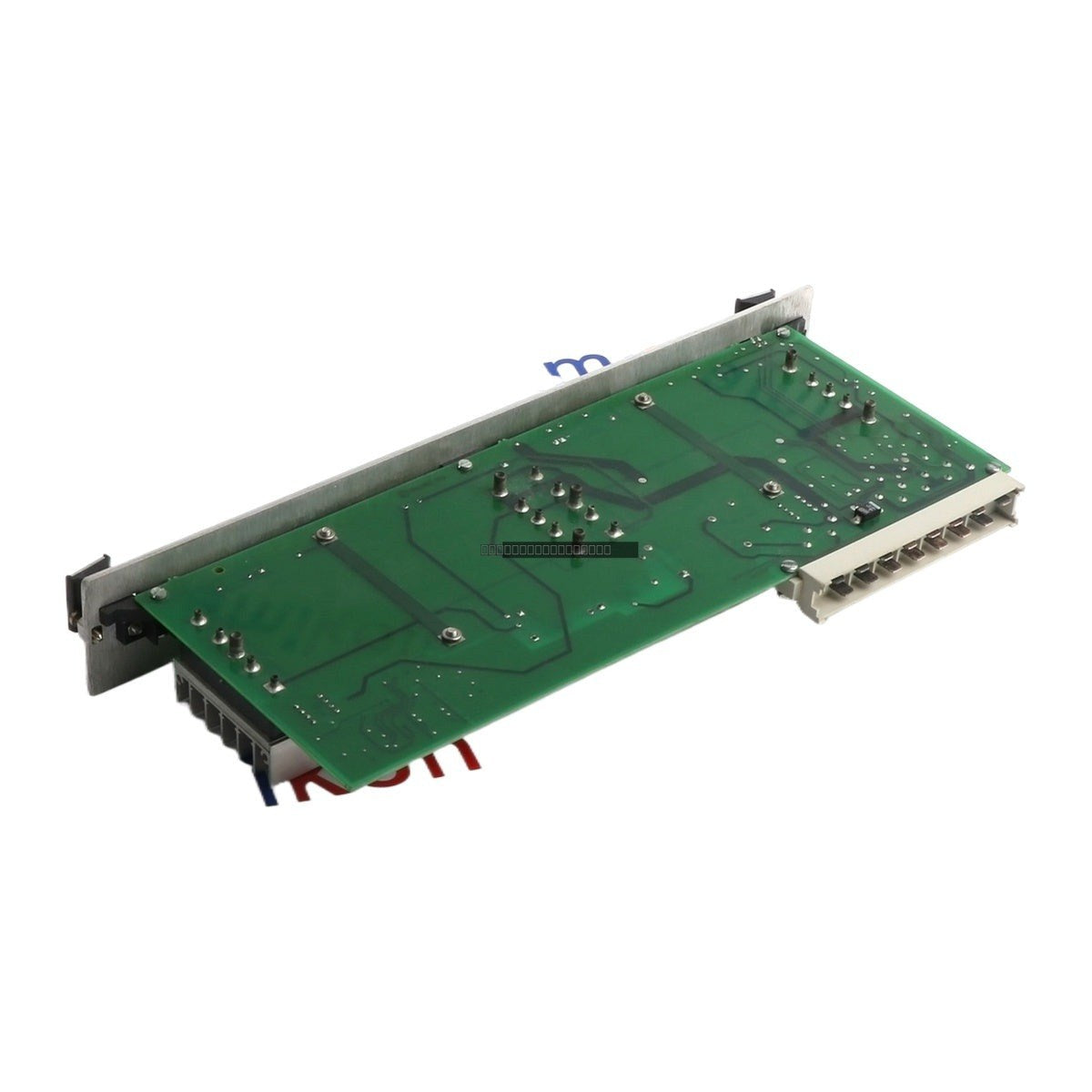

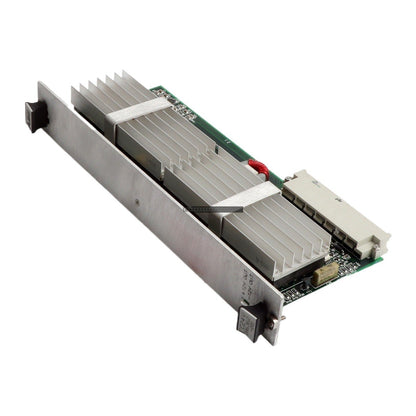

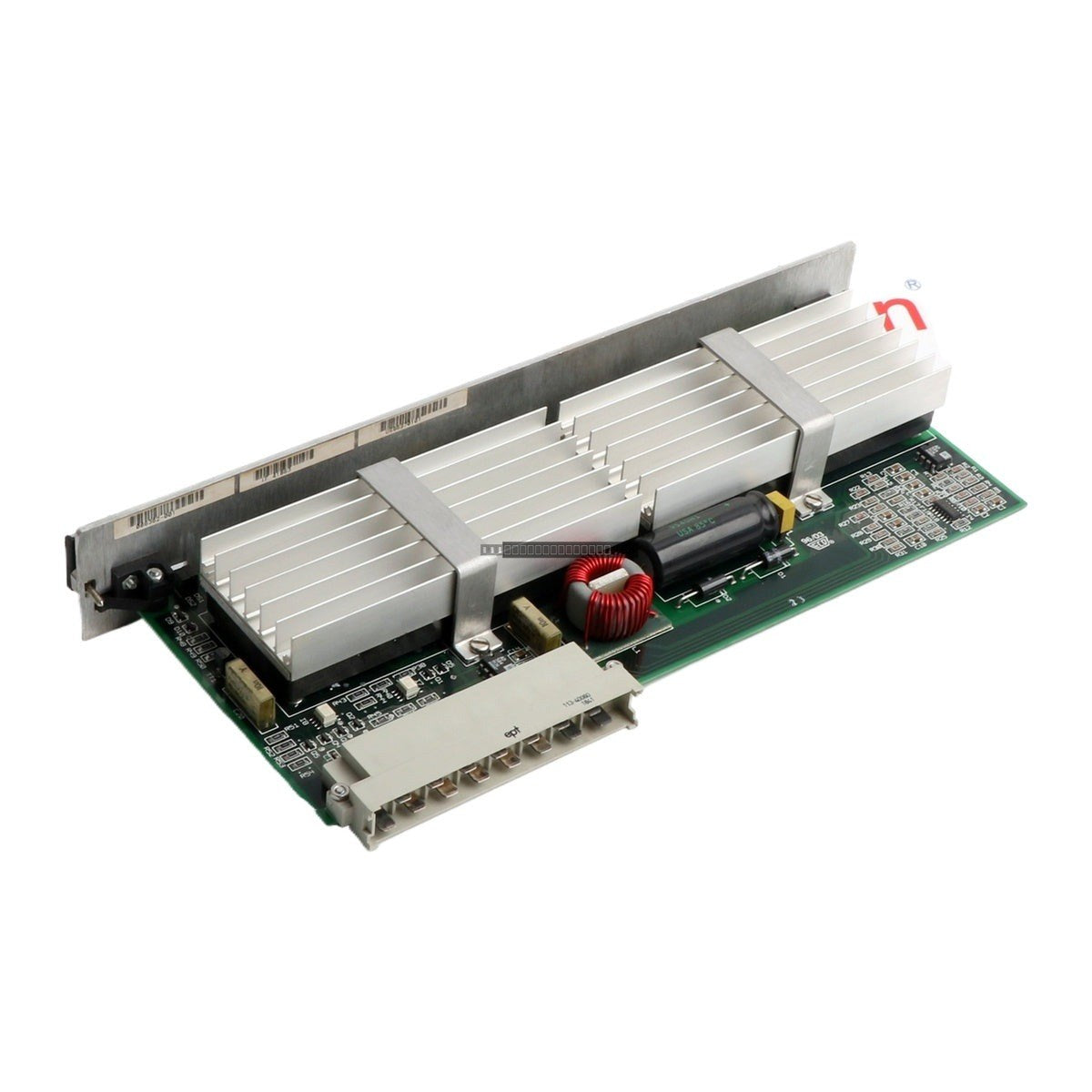

ABB Accuray EC24V 086362-001 Bulk DC Power Supply Module

ABB Accuray EC24V 086362-001 Bulk DC Power Supply Module

The ABB Accuray EC24V (086362-001) is a specialized bulk DC power supply module designed for industrial control applications. This unit provides reliable power distribution and integrated signal processing capabilities, ensuring...

21 people are viewing this right now

Availability: Low stock: 1 left

SKU: EC24V 086362-001
Vendor: ABB
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB Accuray EC24V (086362-001) is a specialized bulk DC power supply module designed for industrial control applications. This unit provides reliable power distribution and integrated signal processing capabilities, ensuring stable operation within Accuray system architectures.

Features

  • Integrated 32-bit DSP for high-speed signal processing
  • 4 MB Flash memory for firmware and configuration storage
  • Flexible I/O configuration including 6 digital inputs and 2 configurable analog inputs
  • Robust isolation between I/O and logic circuits
  • Compact design suitable for standard industrial control cabinets

Technical Specifications

Product Model EC24V 086362-001
Supply Voltage 24V DC +/- 10%
Power Consumption ≤ 15 W
Isolation 500V AC (I/O to logic)
Digital Inputs 6x 24V DC
Analog Inputs 2x +/- 10V / 0-20mA
Operating Temperature -15 degC to +50 degC (5 degF to 122 degF)
Humidity 5-95% RH (non-condensing)

Installation Guidelines

  • Ensure the power supply is disconnected before installation or removal of the module.
  • Mount the module in a well-ventilated enclosure to maintain operating temperatures within the specified range.
  • Use shielded cables for all analog signal connections to minimize electromagnetic interference (EMI).
  • Verify that the input supply voltage matches the 24V DC +/- 10% requirement before energizing.
  • Ensure proper grounding of the module chassis to the system common ground point to prevent noise coupling.

FAQ

What is the primary function of the EC24V module?
The EC24V is a bulk DC power supply module that also incorporates digital and analog I/O processing for ABB Accuray systems.

Can this module operate in high-humidity environments?
The module is rated for 5-95% relative humidity, provided the environment is non-condensing.

What is the power requirement for this unit?
The unit requires a 24V DC supply with a tolerance of +/- 10% and consumes no more than 15W during operation.
