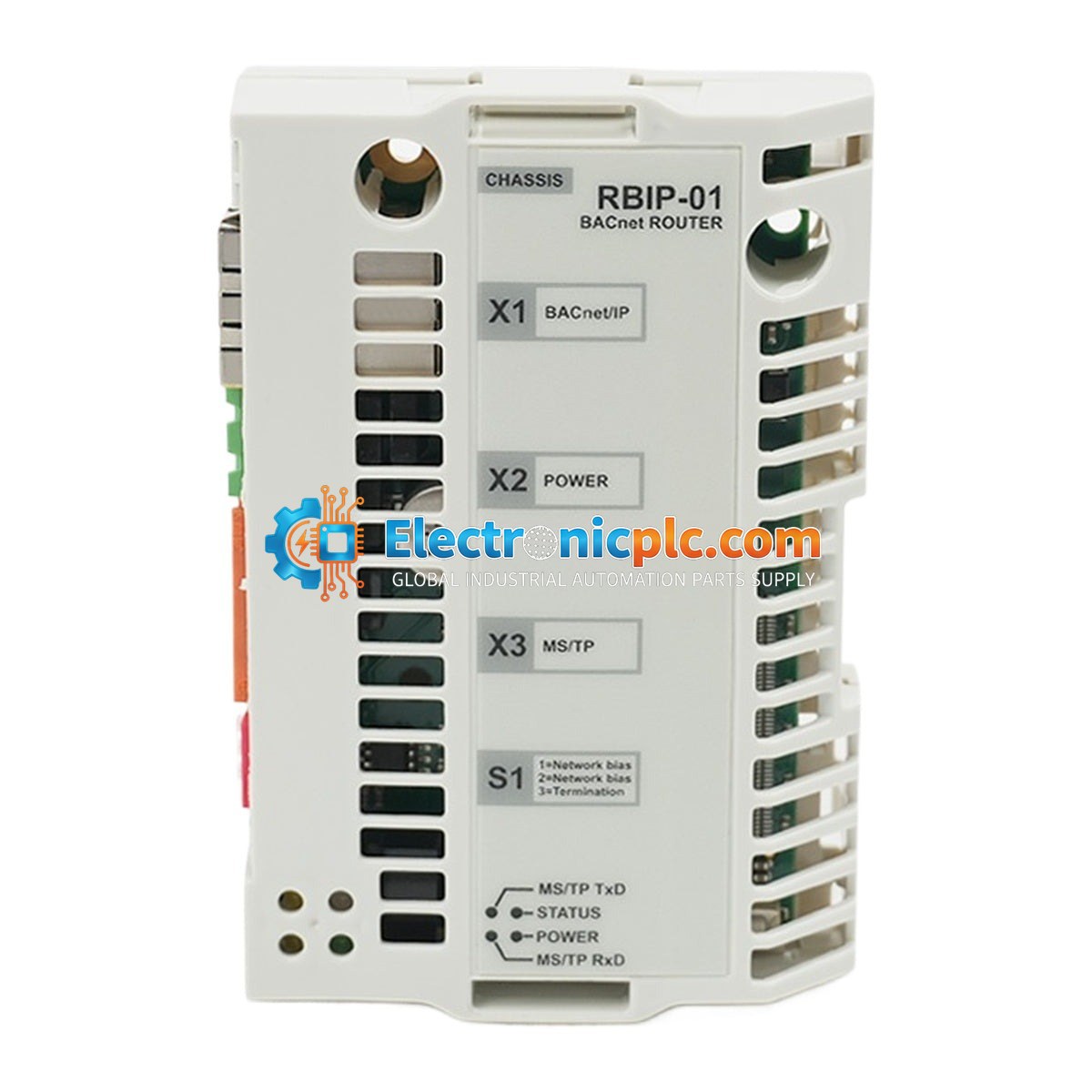

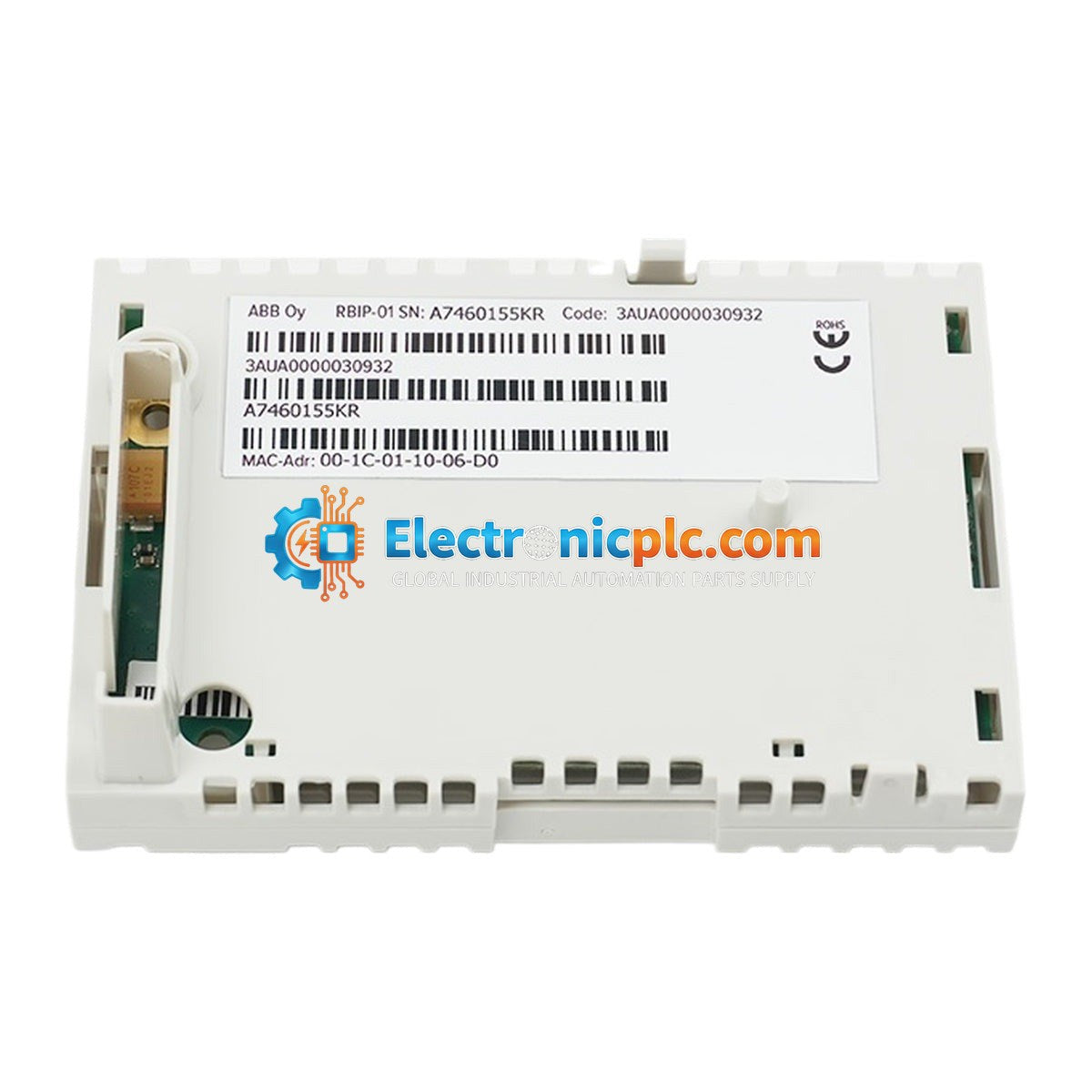

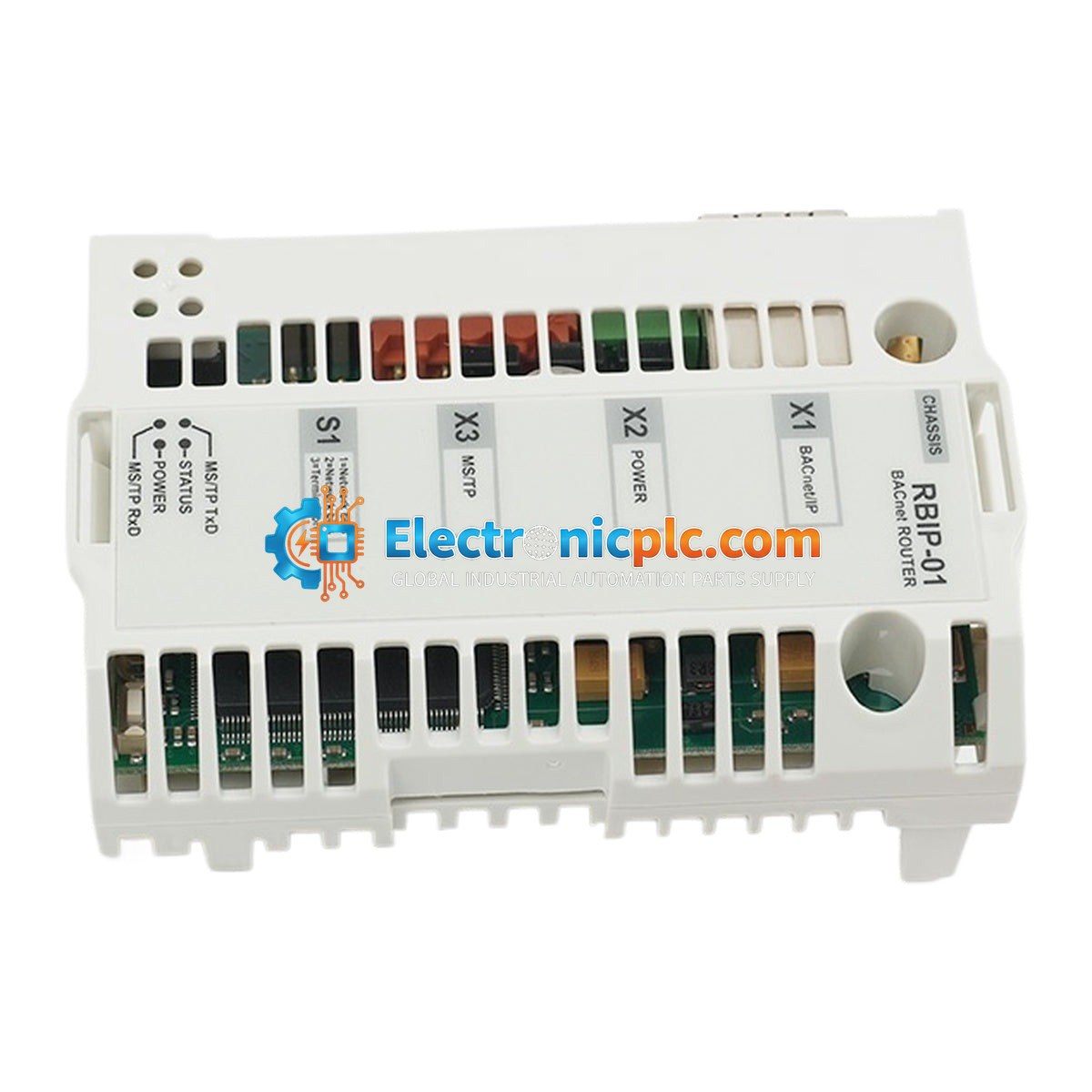

ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

ABB RBIP-01 3AUA0000030932 BACnet/IP Router Module

Description

The ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives. This module functions as a bridge between BACnet/IP (Ethernet) and...

28 people are viewing this right now

Availability: Low stock: 10 left

SKU: RBIP-01 3AUA0000030932
Vendor: ABB
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB RBIP-01 (3AUA0000030932) is a high-performance BACnet/IP Router Module designed to provide seamless connectivity for ABB ACH550 HVAC drives. This module functions as a bridge between BACnet/IP (Ethernet) and BACnet MS/TP (RS-485) networks, allowing building management systems to monitor and control drive parameters without the need for external gateways. It is a snap-on module that installs directly into the drive housing, offering a compact and integrated communication solution.

Features

  • Designed for ABB ACH550 HVAC drive series
  • Supports BACnet/IP to BACnet MS/TP routing
  • Integrated web server for configuration and diagnostics
  • 10/100 Mbps Ethernet transfer rate
  • EIA-485 serial port for MS/TP communication
  • Snap-on mounting for internal drive installation

Applications

  • Air Handling Units (AHUs): Fan speed control and ventilation management
  • Pumping Stations: Fluid movement control and energy monitoring
  • Compressors and Chillers: HVAC refrigeration cycle management
  • Industrial Automation: Integration of frequency converters into larger building management systems

Technical Specifications

Model RBIP-01
Order Code 3AUA0000030932
Manufacturer ABB
Power Supply 12...26 V DC / AC, 200 mA
Ethernet Speed 10/100 Mbps
Serial Port 1 x EIA-485 (BACnet MS/TP)
Operating Temperature 0 to 45 degC (32 to 113 degF)
Operating Humidity 20 to 80% relative humidity
Tariff Code 8537101190

Installation Guidelines

  • Safety Warning: Always switch off mains power and wait at least 5 minutes for the drive's intermediate circuit capacitors to discharge before installing or removing the module.
  • Mounting: The module is designed for snap-on installation inside the compatible ABB drive. Ensure the module is firmly seated in the designated slot.
  • Wiring: Use the provided 2-pin connector for power supply and the 4-pin connector for EIA-485 (B+, A-, AGND, Shield) connections.
  • Configuration: Use the internal web server via a standard web browser to configure IP addresses and routing parameters (BBMD or Foreign Device).
  • Status Indicators: Solid green indicates correct power; Ethernet link/activity is indicated by flashing or solid green on the RJ-45 port.

FAQs

What is the primary function of the RBIP-01?

The RBIP-01 acts as a BACnet router, enabling communication between Ethernet-based BACnet/IP networks and serial-based BACnet MS/TP networks for ABB ACH550 drives.

Is this module compatible with older ACH550 drives?

Yes, the RBIP-01 is compatible with all ABB ACH550 standard drives for HVAC, including older product generations.

How do I access the module settings?

The module features an internal web server that can be accessed via a standard web browser once connected to the Ethernet network to set IP addresses and view diagnostic logs.
