ABB FS450R12KE3/AGDR-71C IGBT Module and Driver Board Kit

ABB FS450R12KE3/AGDR-71C IGBT Module and Driver Board Kit

Description

The ABB FS450R12KE3/AGDR-71C is a comprehensive power semiconductor assembly consisting of an Econo+ IGBT module paired with its dedicated gate driver board. This kit is designed for high-performance power conversion...

17 people are viewing this right now

Availability: Low stock: 3 left

SKU: FS450R12KE3/AGDR-71C
Vendor: ABB
Category: IGBT Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

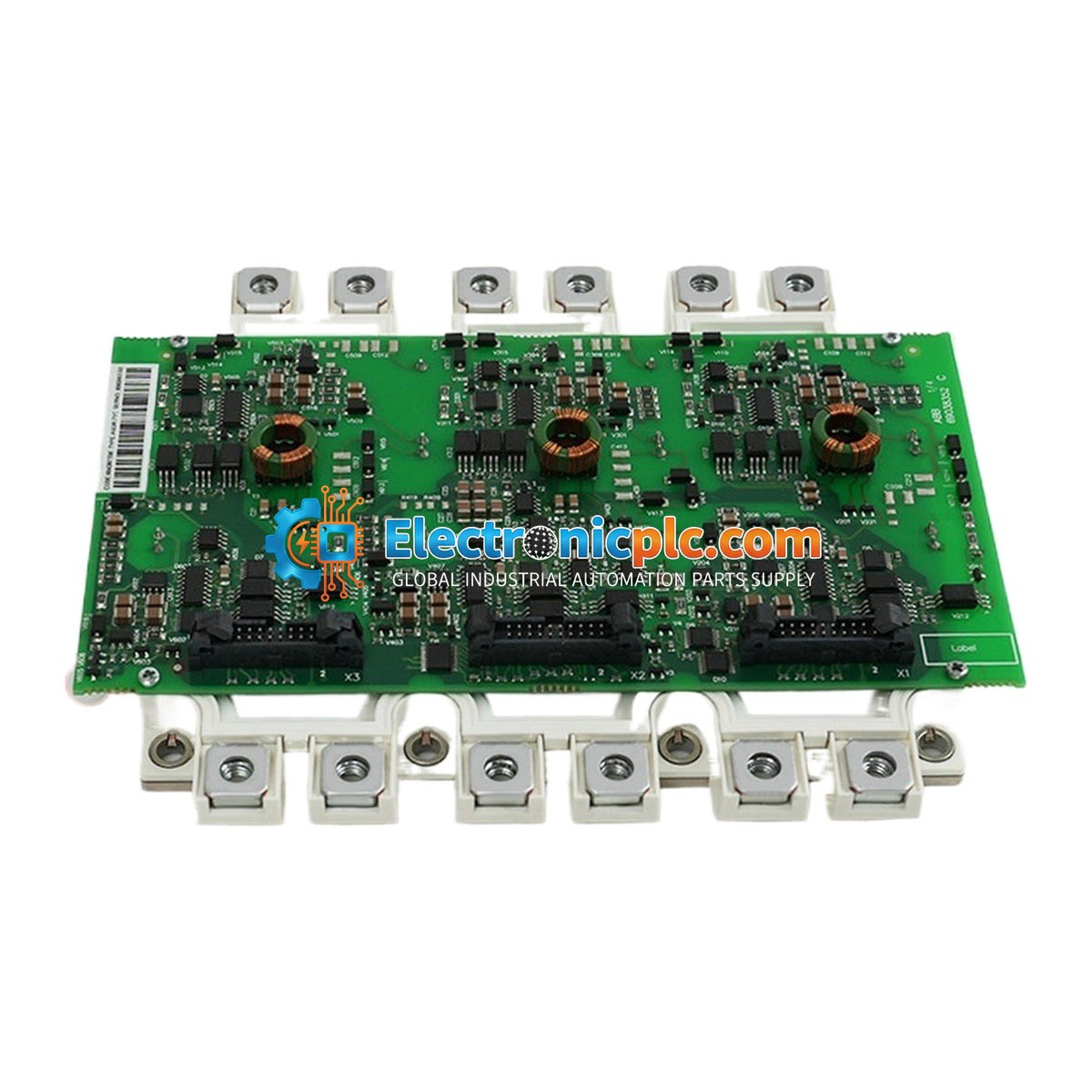

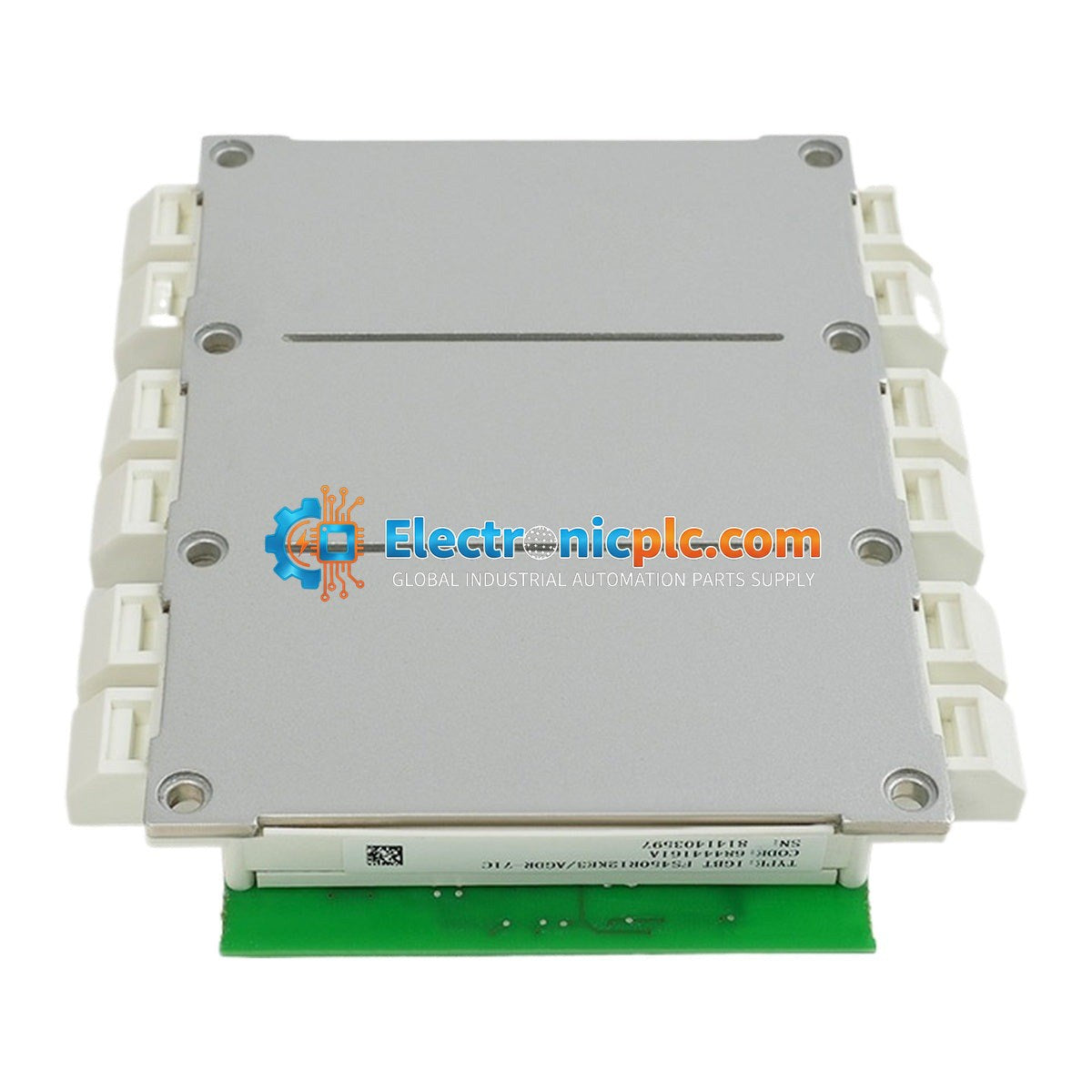

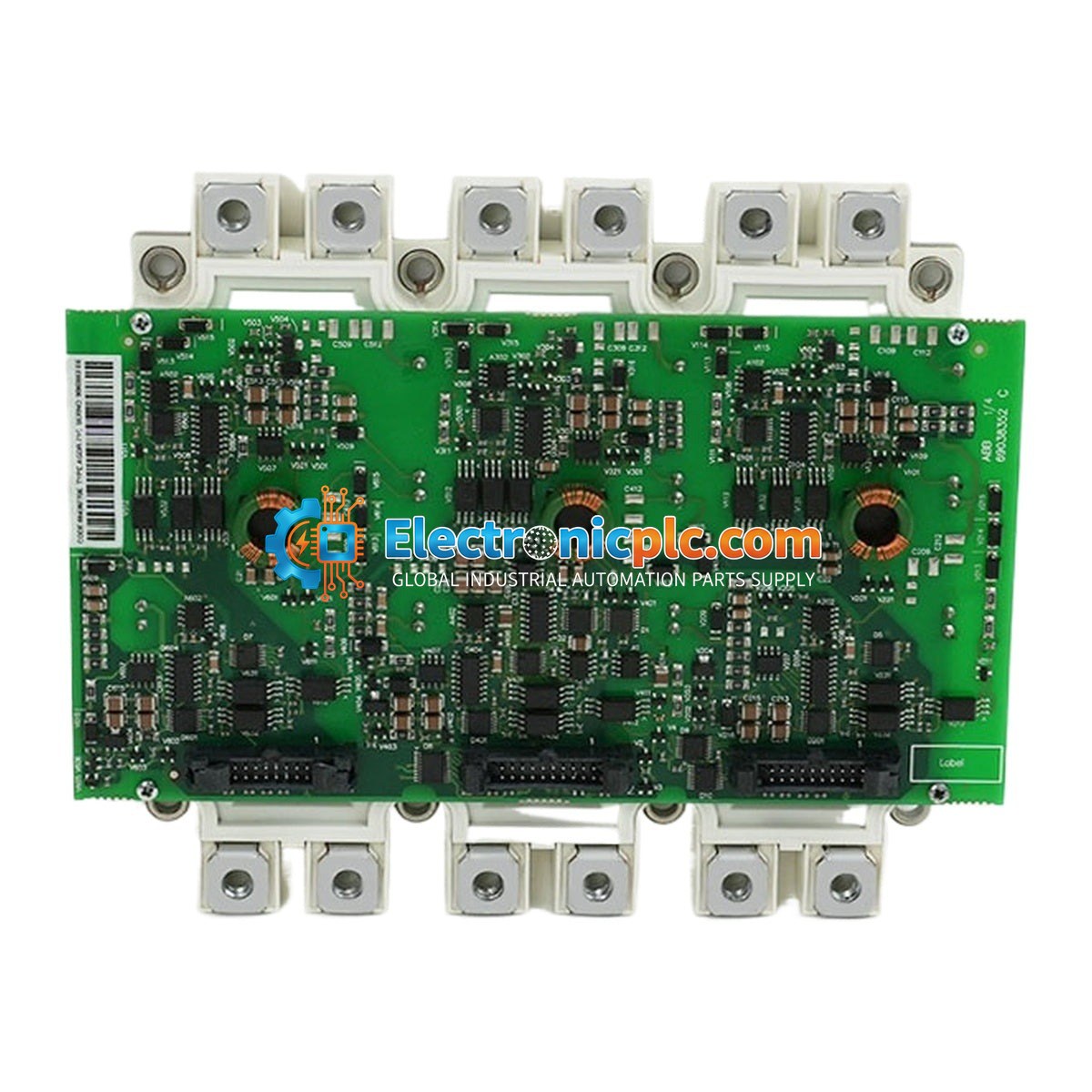

The ABB FS450R12KE3/AGDR-71C is a comprehensive power semiconductor assembly consisting of an Econo+ IGBT module paired with its dedicated gate driver board. This kit is designed for high-performance power conversion applications, specifically within the ABB ACS 800 drive series. As a critical component for motor control and power regulation, this module facilitates efficient switching of high-voltage loads in industrial environments.

Features

  • Integrated IGBT module and driver board assembly for simplified maintenance and replacement.
  • High power density Econo+ design suitable for demanding industrial drive applications.
  • Designed for reliable operation in ACS 800 variable frequency drive systems.
  • Robust isolation characteristics for enhanced system safety.

Applications

This IGBT module kit is primarily used in ABB ACS 800 series industrial drives. It serves as the power switching stage for motor control, inverter systems, and power conversion equipment where precise current regulation and high-voltage handling are required.

Technical Specifications

Product Model FS450R12KE3/AGDR-71C
Component Type IGBT Module Kit (with Driver Board)
Voltage Rating 1200 V
Current Rating 450 A
Supply Voltage +15 V / -8 V DC
Gate Current (Peak) +/- 35 A
Switching Frequency ≤ 20 kHz
Isolation Voltage 4 kV AC

Installation Guidelines

  • Ensure the drive system is fully powered down and capacitors are discharged before attempting to remove or install the module.
  • Handle the IGBT module using ESD-safe practices to prevent damage to the sensitive gate driver electronics.
  • Verify that the mounting surface is clean, flat, and free of debris to ensure optimal thermal transfer between the module baseplate and the heatsink.
  • Apply a thin, uniform layer of high-quality thermal interface material (TIM) if required by the specific heatsink assembly.
  • Ensure all electrical connections, particularly the gate control signals and high-power busbar terminals, are torqued to the manufacturer's specified values to prevent arcing or overheating.
  • Confirm that the driver board is securely seated and that all ribbon cables or connectors are properly aligned before re-energizing the system.

FAQ

Is this product still in production?

No, this specific assembly has been discontinued by the manufacturer. We provide these units as spare parts for legacy system maintenance and repair.

Does this kit include the driver board?

Yes, the FS450R12KE3/AGDR-71C is supplied as a complete kit including both the IGBT power module and the associated driver board.
