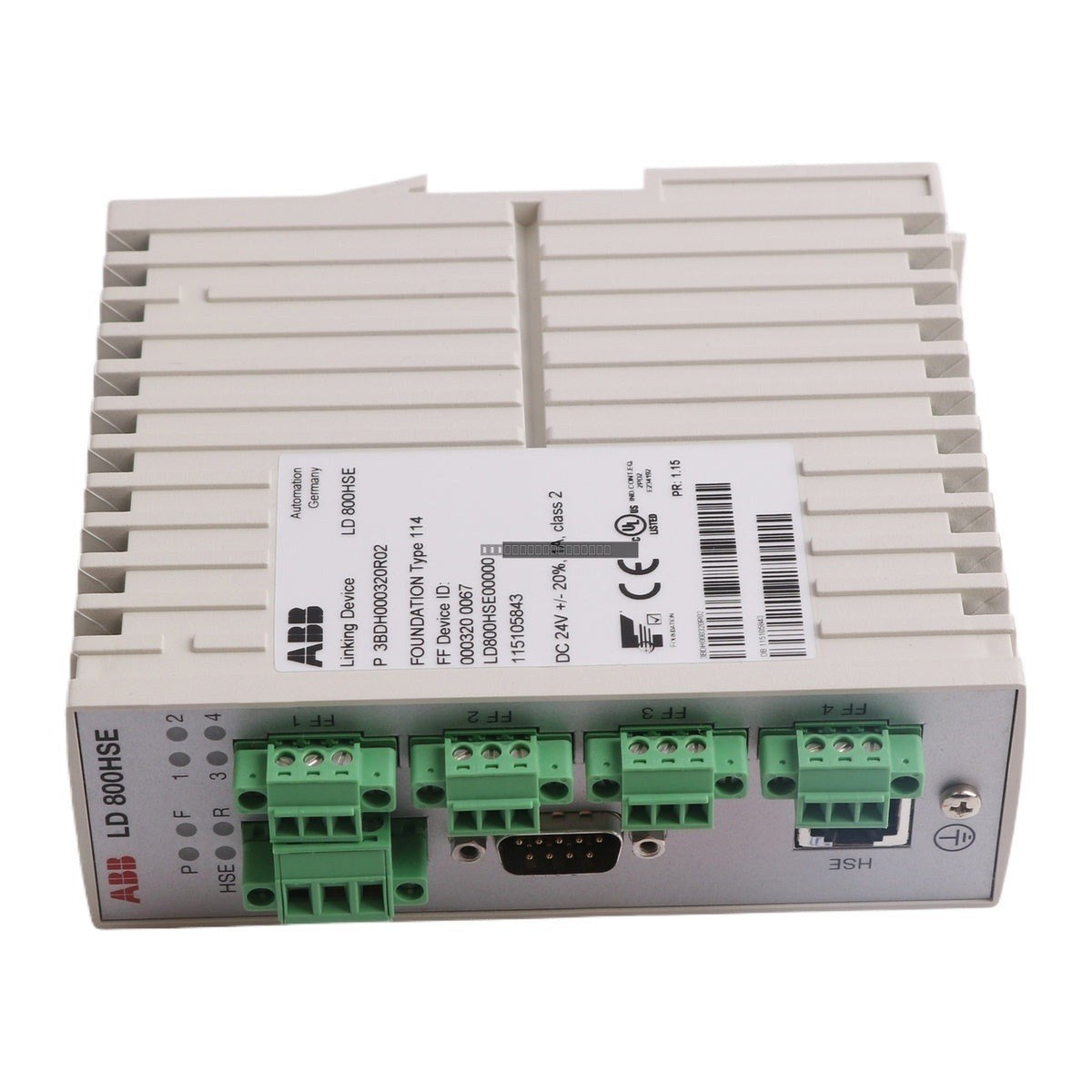

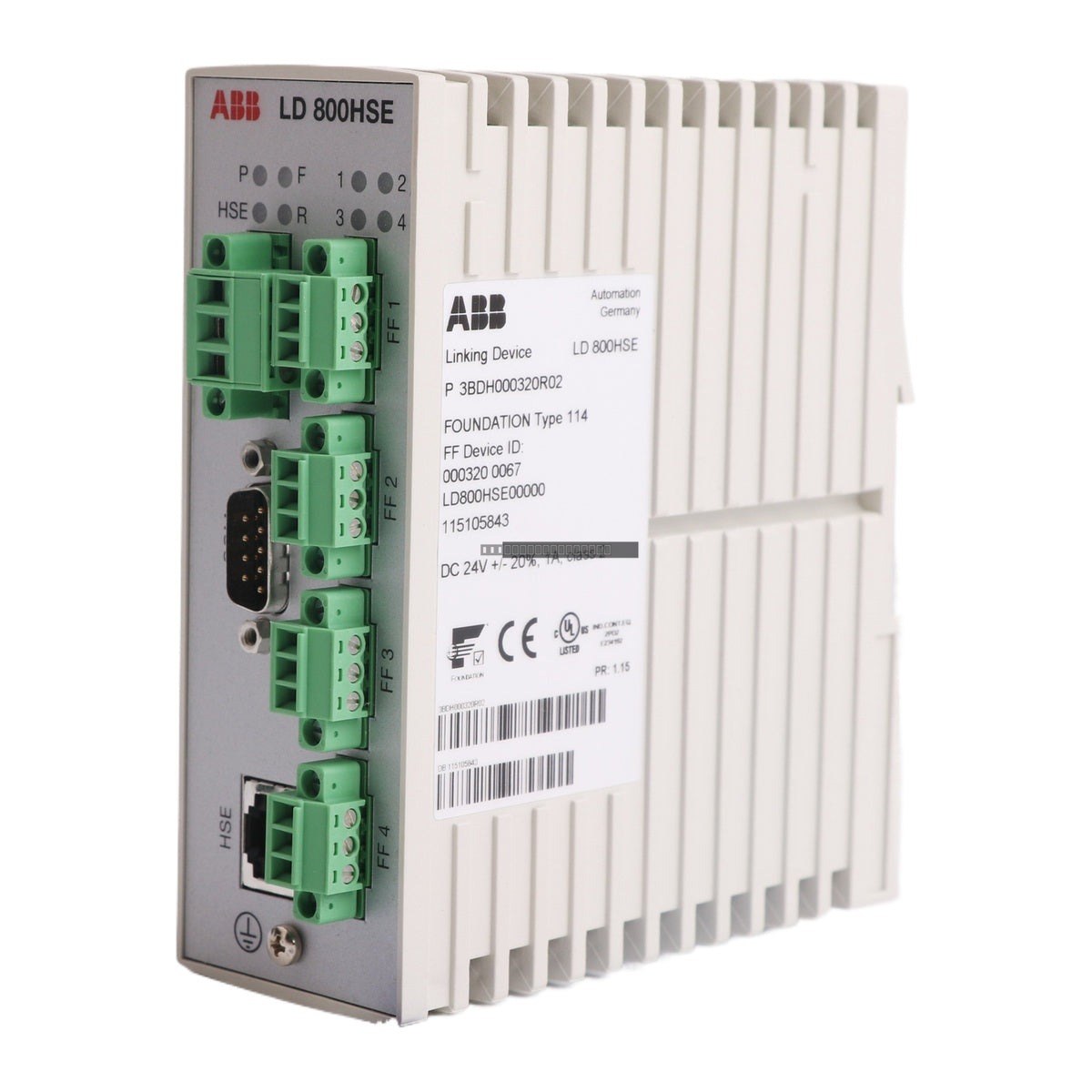

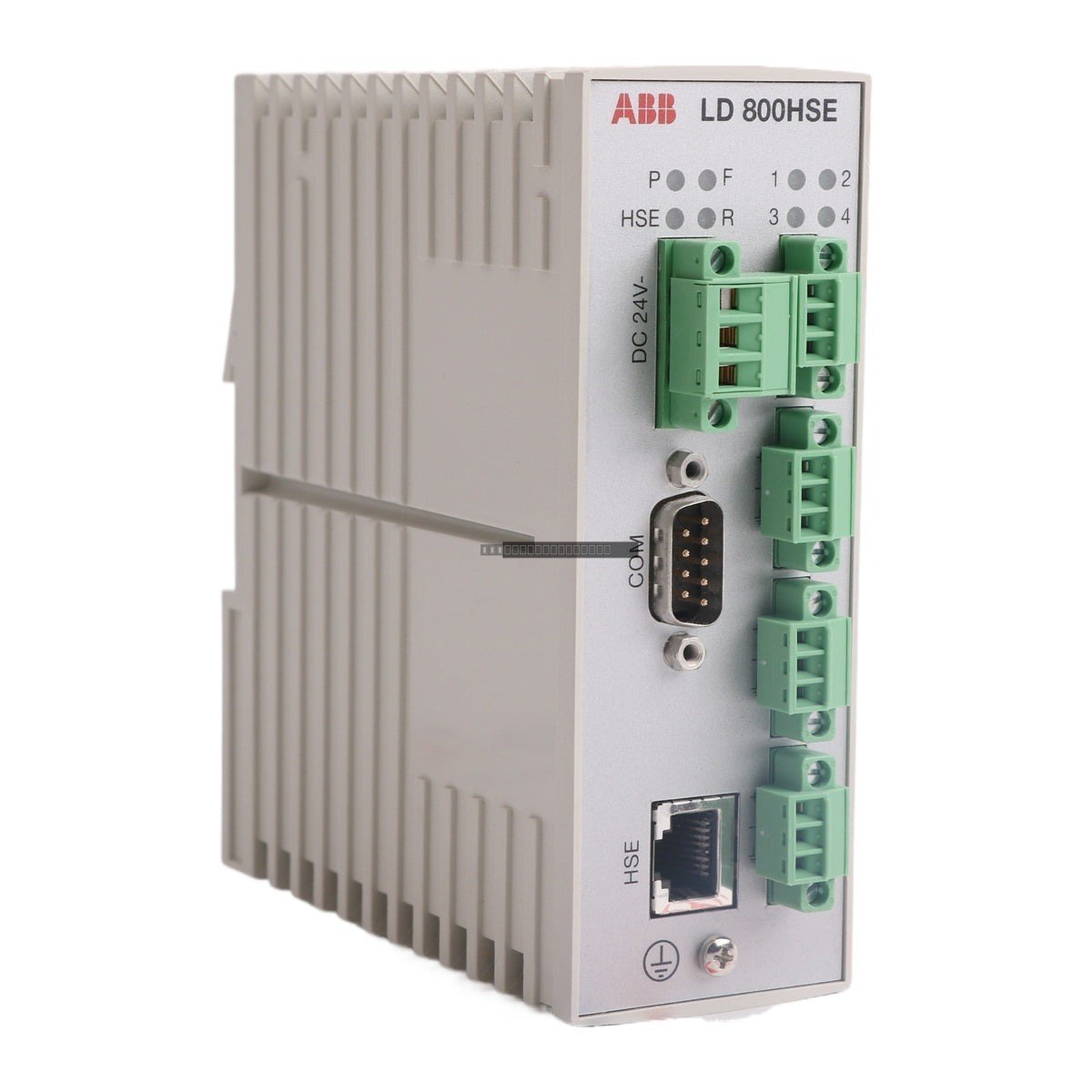

ABB LD800HSE 3BDH000320R02 Linking Device

ABB LD800HSE 3BDH000320R02 Linking Device

Description

The ABB LD800HSE (3BDH000320R02) is a high-performance linking device designed for the Freelance and Advant AC 800F control systems. This module serves as a critical bridge between FOUNDATION Fieldbus HSE...

29 people are viewing this right now

Availability: Low stock: 6 left

SKU: LD800HSE 3BDH000320R02
Vendor: ABB
Category: Linking Device
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB LD800HSE (3BDH000320R02) is a high-performance linking device designed for the Freelance and Advant AC 800F control systems. This module serves as a critical bridge between FOUNDATION Fieldbus HSE (High Speed Ethernet) networks and the control environment, facilitating seamless communication and data exchange across industrial automation architectures.

Features

  • Supports 4 channels for FOUNDATION Fieldbus connectivity.
  • Integrated Ethernet interface with 10/100 Mbit/s autosensing capabilities.
  • Dedicated RS-232 diagnostic port (9-pole SubD male) for local configuration and monitoring.
  • Robust design suitable for demanding industrial environments.
  • Supports standard Ethernet 10BASE-T/100BASE-TX protocols via RJ45 connection.

Technical Specifications

Model LD800HSE
Order Code 3BDH000320R02
Fieldbus Channels 4
Fieldbus Transfer Rate 31.25 kbit/s
Ethernet Port 10BASE-T/100BASE-TX (RJ45)
Ethernet Speed 10/100 Mbit/s (autosensing)
Serial Port RS-232 (9-pole SubD male)
Serial Speed 115.2 kbit/s
Operating Temperature 0 degC to 55 degC
Storage Temperature -20 degC to 70 degC
Relative Humidity 0% to 95% (non-condensing)

Installation Guidelines

  • Ensure the device is installed in a clean, dry, and vibration-free environment within an appropriate control cabinet.
  • Maintain proper ventilation to ensure the ambient temperature remains within the specified 0 degC to 55 degC range.
  • Use shielded Ethernet cabling for all network connections to minimize EMI interference.
  • Verify that all power is disconnected before installing or removing the module from the rack or DIN rail.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
  • Ensure the RS-232 connection is securely fastened and properly grounded to prevent signal noise.

FAQ

What is the primary function of the LD800HSE?

The LD800HSE acts as a Linking Device that connects FOUNDATION Fieldbus H1 segments to an HSE (High Speed Ethernet) backbone, allowing for integrated control and monitoring within the ABB Freelance system.

Can this device be used in high-temperature environments?

The device is rated for operation up to 55 degC. If your application exceeds this temperature, additional cooling or climate-controlled enclosures are required to maintain system reliability.
