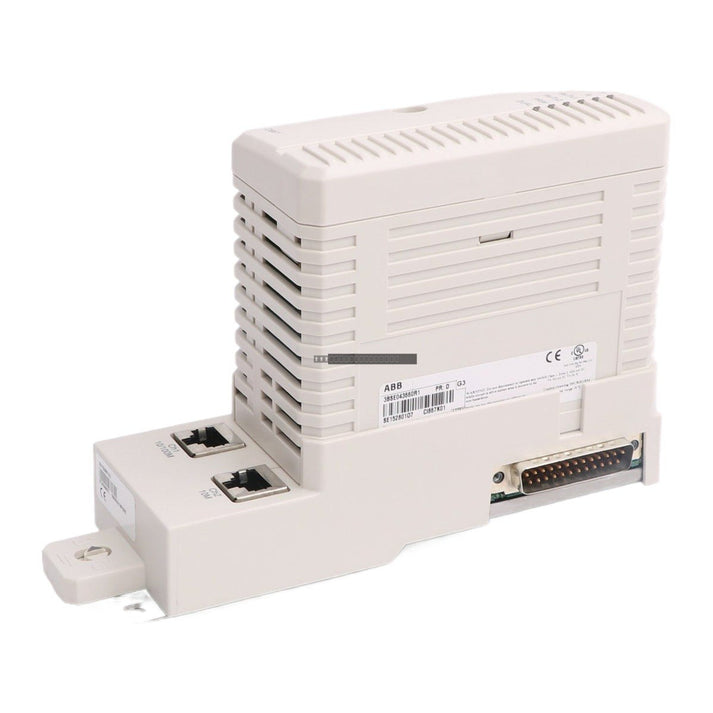

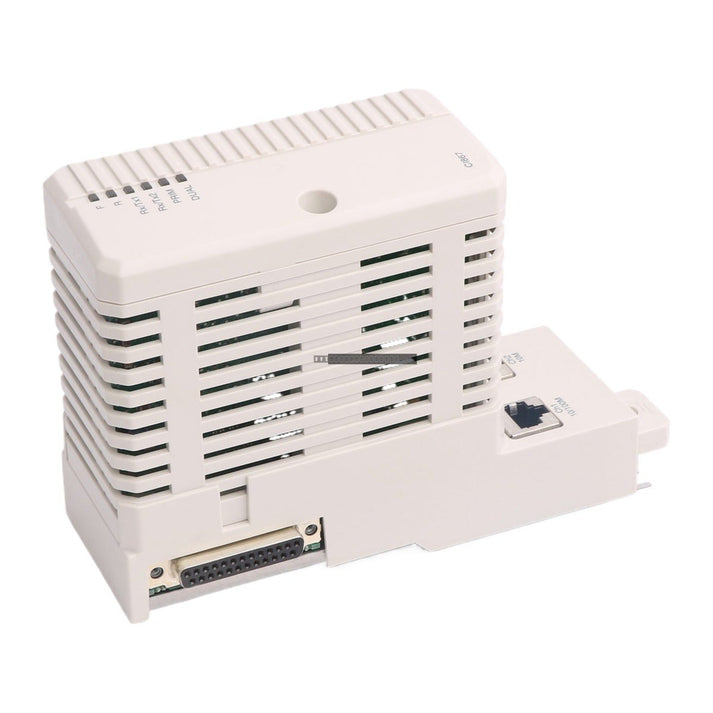

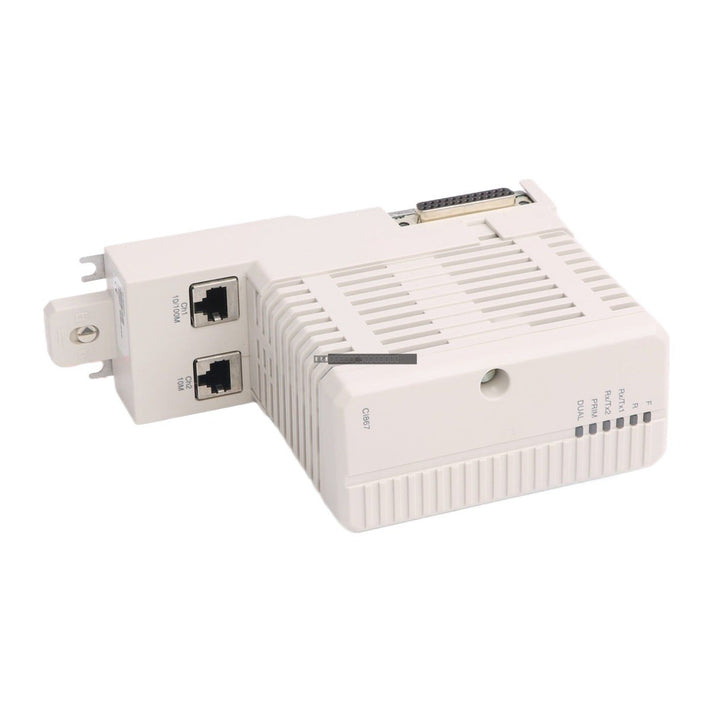

ABB CI867K01 3BSE043660R1 Modbus TCP Interface Kit

ABB CI867K01 3BSE043660R1 Modbus TCP Interface Kit

Description

The ABB CI867K01 (3BSE043660R1) is a high-performance communication interface module designed for the Advant AC 800M controller series. This module facilitates seamless integration of Modbus TCP communication, allowing the controller...

21 people are viewing this right now

Availability: Low stock: 5 left

SKU: CI867K01 3BSE043660R1
Vendor: ABB
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB CI867K01 (3BSE043660R1) is a high-performance communication interface module designed for the Advant AC 800M controller series. This module facilitates seamless integration of Modbus TCP communication, allowing the controller to function as either a Master or a Slave device within an industrial network. It is engineered to provide reliable data exchange in demanding automation environments.

Features

  • Supports Modbus TCP communication protocol for flexible network integration.
  • Configurable as either a Master or Slave node.
  • Equipped with a standard RJ-45 female 8-pin connector for Ethernet connectivity.
  • Supports transmission speeds of 10/100 Mbit/s.
  • Designed for integration with the AC 800M controller CEX bus.
  • Maximum capacity of 12 units on the CEX bus.

Technical Specifications

Product Model CI867K01 / 3BSE043660R1
Communication Protocol Modbus TCP
Operating Voltage 24 V DC
Current Consumption 160 mA
Transmission Speed 10/100 Mbit/s
Operating Temperature 0 to +55 degC
Max Altitude 2000 m (per IEC/EN 61131-2)
Connector Type RJ-45 Female (8-pin)

Installation Guidelines

  • Ensure the AC 800M controller is powered down before installing or removing the CI867K01 module.
  • Mount the module securely onto the CEX bus interface as specified by the system configuration.
  • Use shielded Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
  • Maintain adequate ventilation around the module to ensure operation within the specified 55 degC maximum ambient temperature.
  • Handle with care to prevent electrostatic discharge (ESD) damage during installation.

FAQ

Can this module act as both a Master and a Slave?
Yes, the CI867K01 is designed to support both Master and Slave roles for Modbus TCP communication depending on your system configuration.

What is the maximum number of these modules supported on the CEX bus?
The system supports up to 12 units on the CEX bus.

What is the operating temperature range?
The module is rated for operation between 0 and +55 degC.
