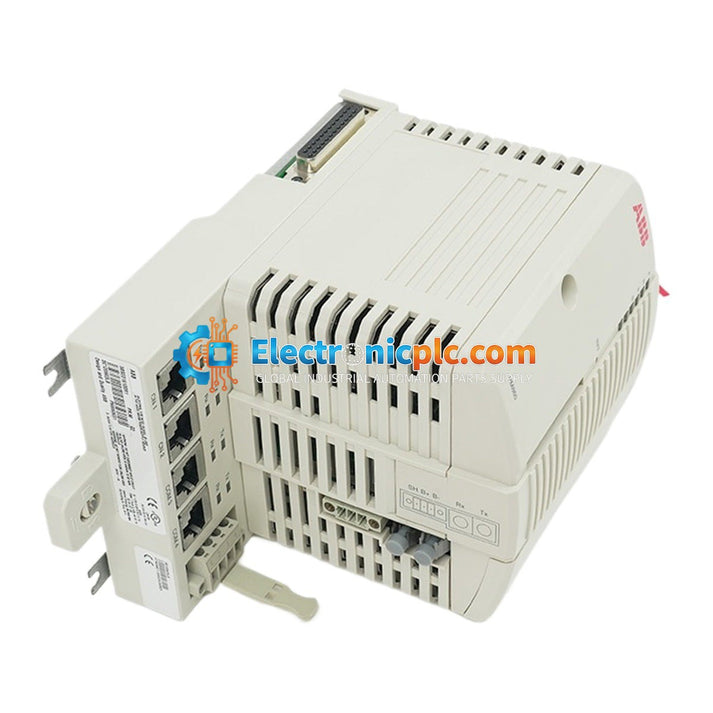

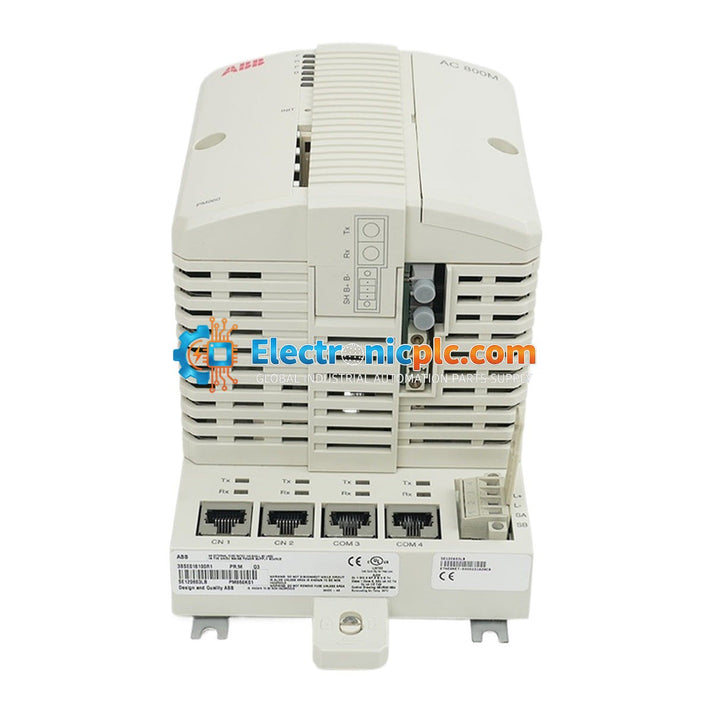

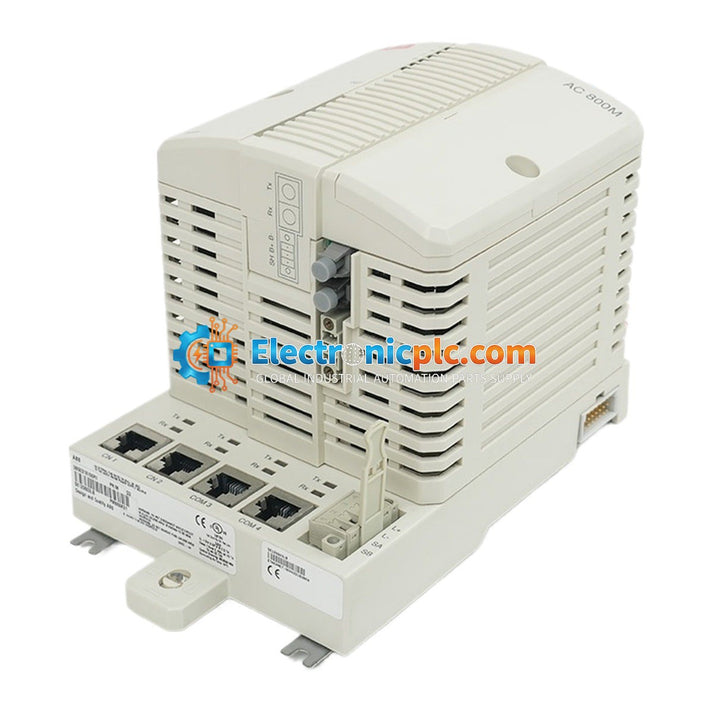

ABB PM860K01 3BSE018100R1 AC 800M Processor Unit Kit

ABB PM860K01 3BSE018100R1 AC 800M Processor Unit Kit

Description

The ABB PM860K01 (3BSE018100R1) is a comprehensive Processor Unit Kit designed for the ABB AC 800M control system, a core component of the Ability System 800xA. This kit provides a...

21 people are viewing this right now

Availability: Low stock: 2 left

SKU: PM860K01 3BSE018100R1
Vendor: ABB
Category: PLC Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB PM860K01 (3BSE018100R1) is a comprehensive Processor Unit Kit designed for the ABB AC 800M control system, a core component of the Ability System 800xA. This kit provides a complete, ready-to-deploy processing solution for industrial automation and process control. The package includes the PM860 CPU, TP830 baseplate (115 mm width), TB850 CEX-bus terminator, TB807 ModuleBus terminator, a memory backup battery, and the necessary 4-pin power connector.

The PM860 CPU utilizes an MPC860 microprocessor to deliver reliable real-time data processing and execution of complex control strategies. It is equipped with 16 MB of RAM and 2 MB of Flash PROM for firmware storage. The unit supports up to 32 applications per controller, making it suitable for demanding industrial environments.

Features

  • Complete Processor Unit Kit including CPU, baseplate, and bus terminators.
  • Dual RJ45 Ethernet ports (CN1, CN2) supporting MMS and IAC protocols.
  • Dedicated serial ports: COM3 (RS-232C with modem control) and COM4 (isolated for configuration tools).
  • Supports high-reliability redundant and non-redundant configurations.
  • Integrated LED status indicators and INIT push button for system management.
  • CompactFlash interface for external storage and data logging.

Applications

  • Petrochemical & Chemical Processing: Precise regulation of temperature, pressure, and flow rates.
  • Oil & Gas: Management of complex control loops for extraction and processing.
  • Water & Wastewater Treatment: Automation of treatment cycles and monitoring of remote I/O.
  • Manufacturing & Automotive: Robotic control and high-speed production line management.
  • Marine & Mining: Robust performance in high-EMI and harsh industrial environments.

Technical Specifications

Product Model PM860K01 3BSE018100R1
Processor Type MPC860
Clock Frequency 48 MHz
RAM 16 MB
Flash Memory 2 MB
Power Supply 24 V DC (19.2-30 V DC)
Power Dissipation 4.32 W
Operating Temperature +5 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Relative Humidity 5% to 95% (non-condensing)
Max Altitude 2000 meters

Installation Guidelines

  • Ensure the control cabinet is properly grounded before installation.
  • The module is designed for standard DIN-rail or baseplate mounting using a slide-and-lock mechanism.
  • Verify that power is disconnected before inserting or removing the module from the baseplate to prevent electrical damage.
  • Route communication cables away from high-voltage power lines to minimize EMI interference.
  • Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range.
  • Handle with ESD-safe precautions to protect sensitive internal circuitry.
