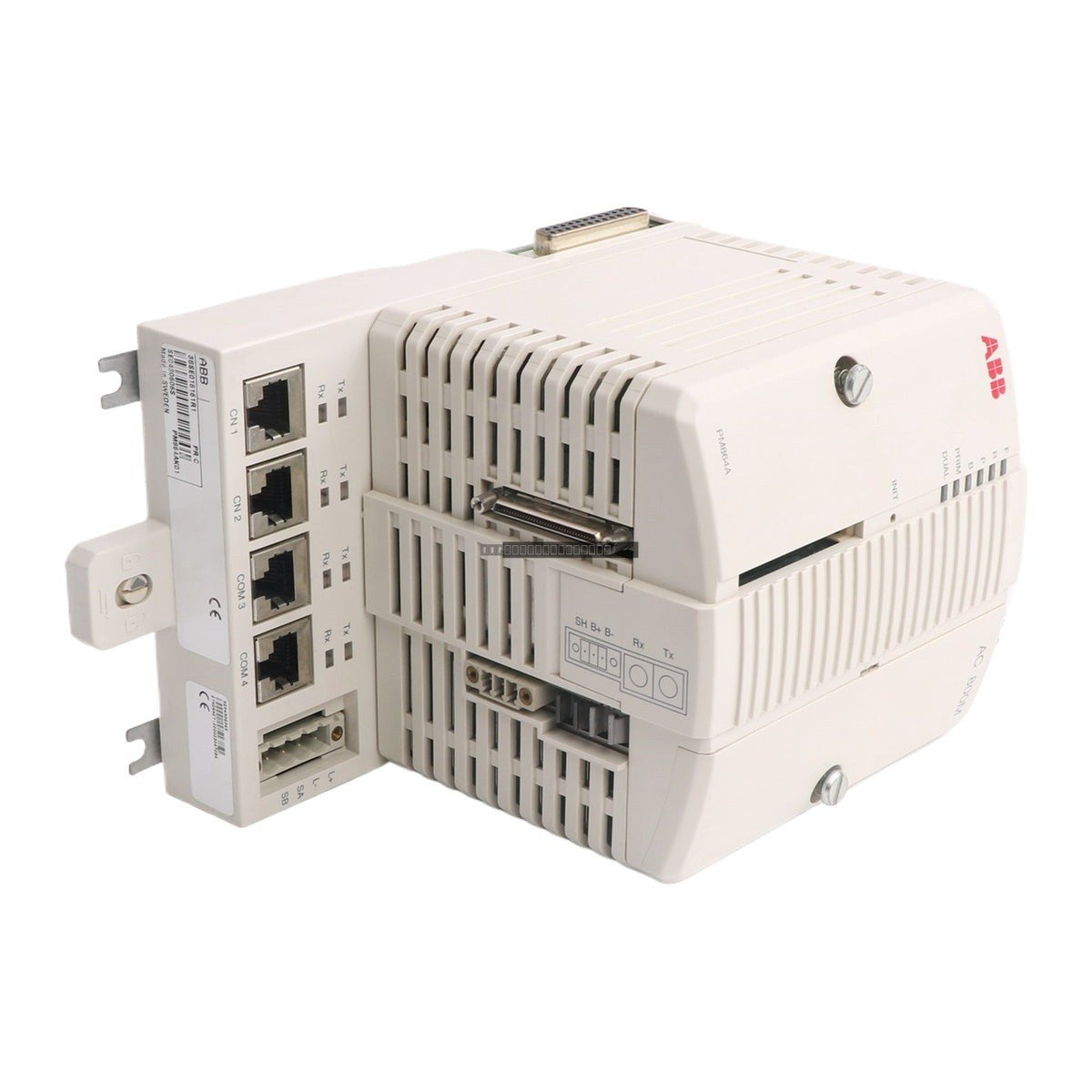

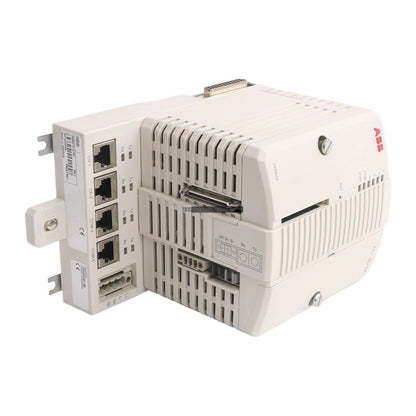

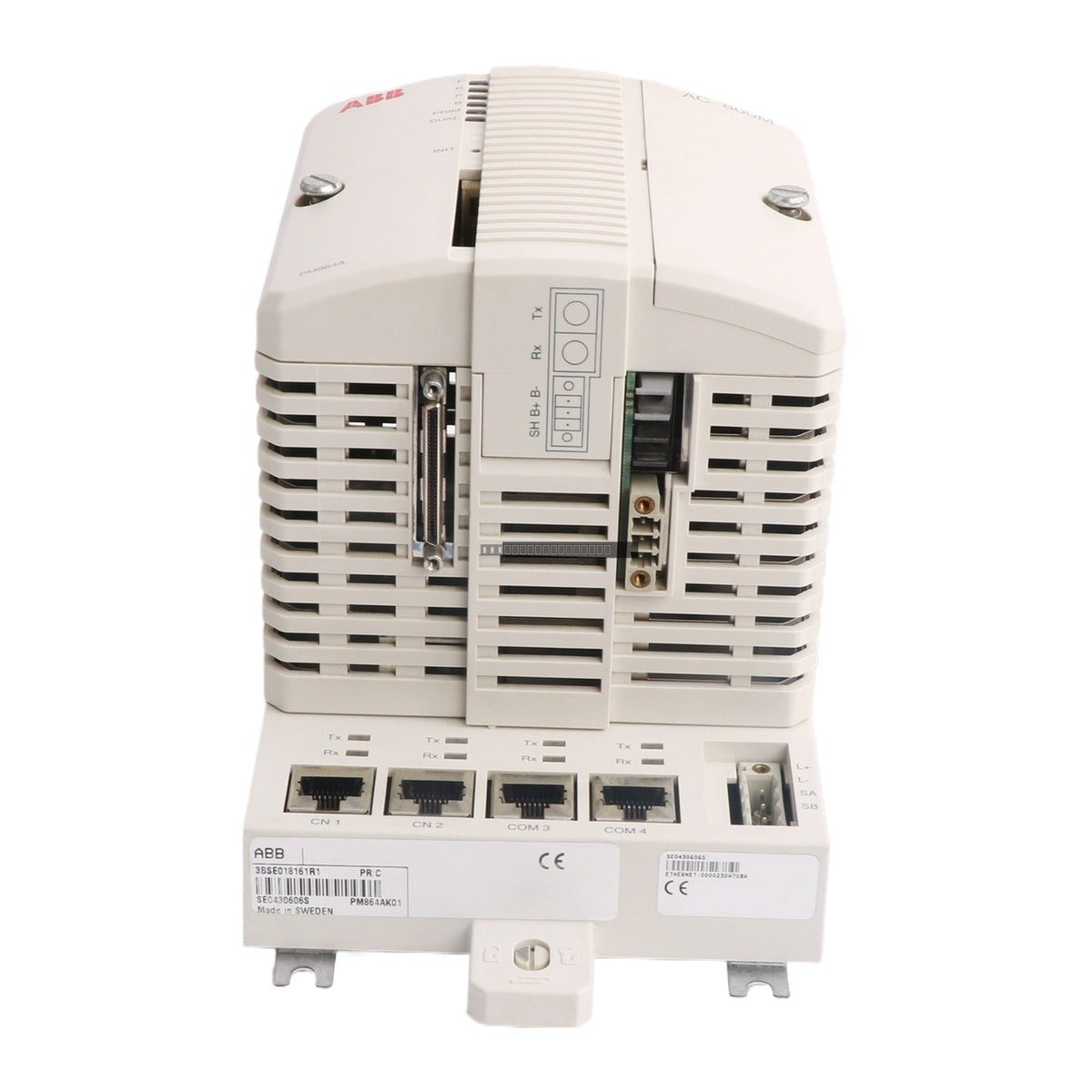

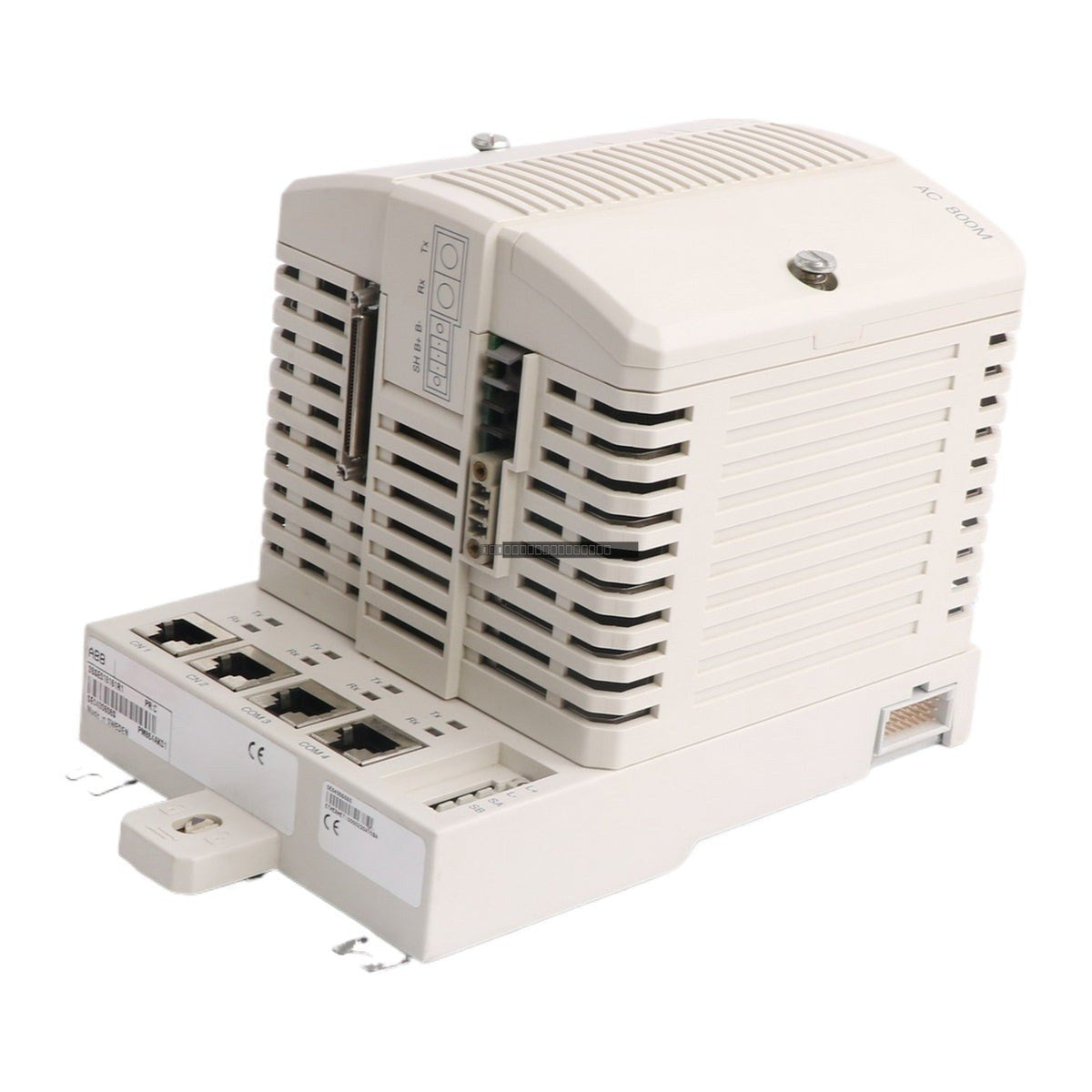

The ABB PM864AK01 (3BSE018161R1) is a high-performance processor unit kit designed for the AC 800M control system. This unit serves as the central processing hub, providing robust computational power and reliable control for industrial automation applications. The kit is engineered for demanding environments, ensuring consistent uptime and efficient process management.

Features

• Central processing unit for the AC 800M controller series.
• Equipped with four integrated communication ports for versatile connectivity.
• Features onboard status LEDs for real-time diagnostic monitoring and system health indication.
• Designed for high-availability industrial control architectures.

Applications

This processor unit is widely utilized in large-scale industrial automation systems, including power generation, chemical processing, oil and gas, and water treatment facilities. It is specifically intended for use within the ABB Advant AC 800M control platform to manage complex I/O configurations and control logic.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the processor unit to prevent electrical damage.
• Mount the unit securely within the designated AC 800M controller rack, ensuring proper seating in the backplane connector.
• Maintain adequate clearance around the module to facilitate airflow and prevent overheating.
• Handle the unit using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Verify that all communication cables are properly seated and routed away from high-voltage power lines to minimize EMI interference.

FAQ

What is included in the PM864AK01 kit?
The kit typically includes the PM864A processor unit. Please verify the specific contents against your project requirements if additional accessories are needed.

Is this unit compatible with existing AC 800M racks?
Yes, the PM864AK01 is designed for seamless integration into standard ABB AC 800M controller backplanes.

How do I interpret the status LEDs?
The status LEDs provide visual feedback on the processor's operational state, including power, run status, and communication link activity. Refer to the official ABB AC 800M hardware manual for specific blink codes and diagnostic meanings.
