Description

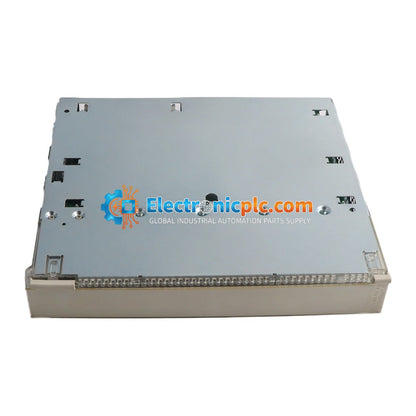

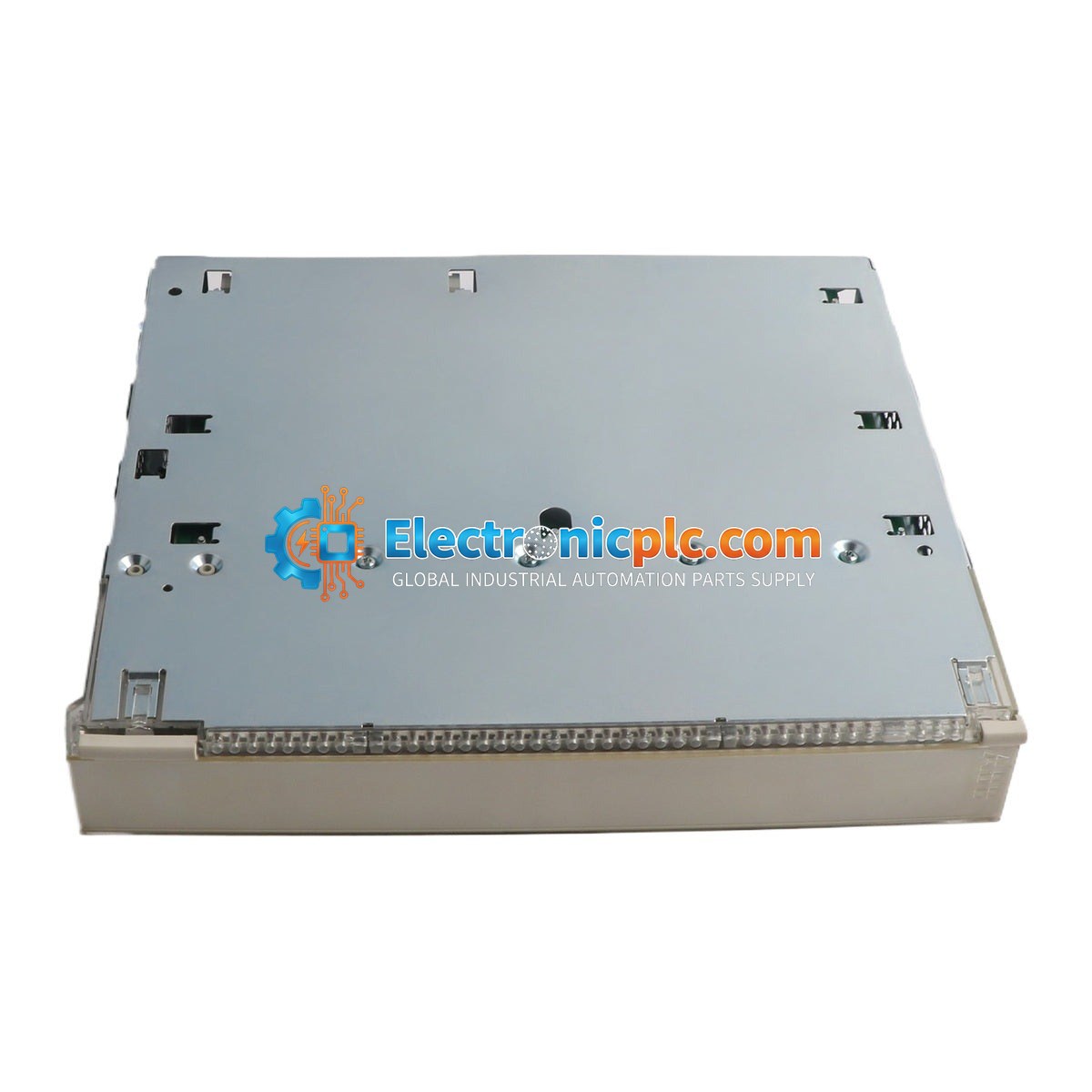

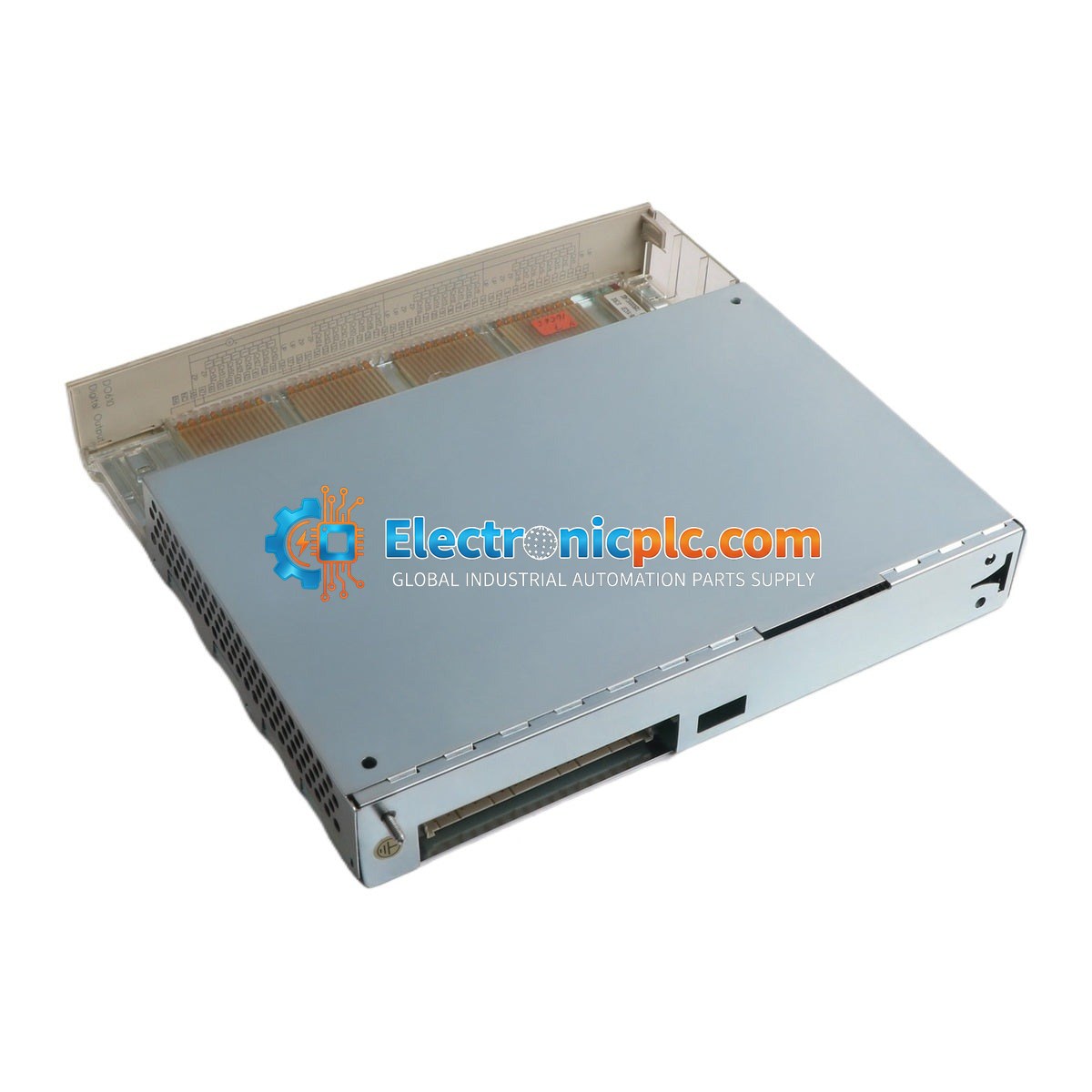

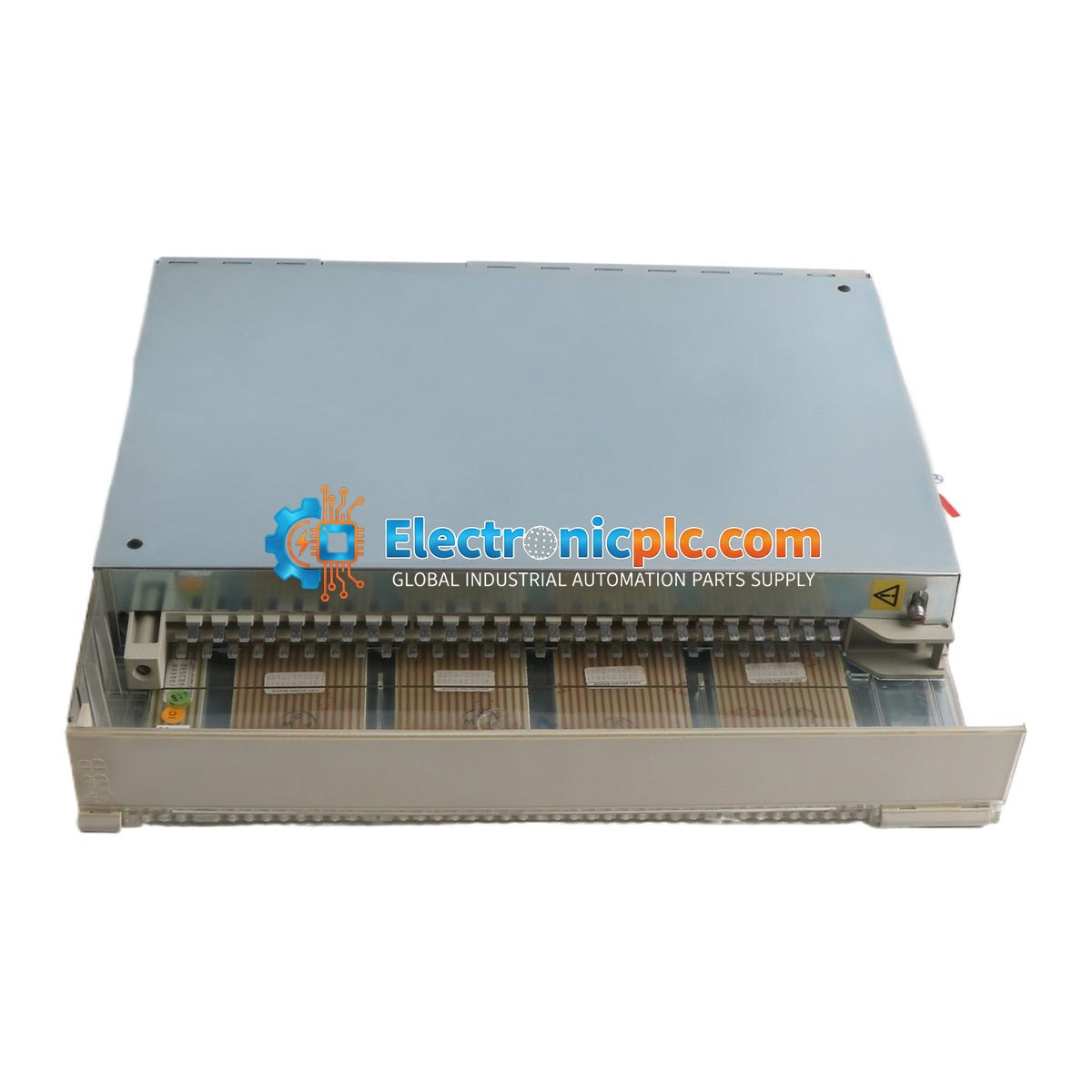

The ABB DO610 is a high-density digital output module designed for use within the Advant Controller 110 and 160 systems. This module provides 32 digital output channels, facilitating reliable control of field devices in industrial automation environments. It is identified by the order code 3BHT300006R1 and serves as a critical component for managing discrete signaling and actuator control in process control applications.

Features

• 32-channel digital output configuration for high-density signal management.
• Designed specifically for seamless integration with ABB Advant Controller 110/160 series.
• Robust construction suitable for demanding industrial environments.
• Facilitates efficient control of relays, contactors, and other discrete field devices.

Applications

The DO610 module is primarily deployed in industrial automation systems where high-density digital output is required for process control, sequence logic, and machine automation. It is commonly found in power generation, water treatment, and manufacturing control systems utilizing the Advant Controller architecture.

Technical Specifications

Installation Guidelines

• Ensure the controller power is disconnected before installing or removing the module to prevent electrical damage.
• Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
• Ensure the module is fully seated in the designated rack slot and secured according to system documentation.
• Verify that wiring is routed correctly and that terminal connections are tightened to the specified torque to maintain signal integrity.
• Maintain adequate ventilation around the controller rack to prevent overheating during operation.

FAQ

What is the primary function of the ABB DO610?

The DO610 is a 32-channel digital output module used to provide discrete control signals from an ABB Advant Controller to external field equipment.

Is the DO610 compatible with other Advant systems?

The DO610 is specifically designed for the Advant Controller 110 and 160 series. Please verify your specific system hardware revision before installation.

What should I do if the module fails to communicate?

Check the physical seating of the module in the rack, ensure all terminal wiring is secure, and verify that the system diagnostic LEDs indicate a fault-free state.
