ABB 3BHB003230R0101 GVC704 AE01 IGCT Power Drive Board

ABB 3BHB003230R0101 GVC704 AE01 IGCT Power Drive Board

The ABB 3BHB003230R0101 (GVC704 AE01) is a specialized Gate Unit and Power Drive Board designed for the control of Integrated Gate-Commutated Thyristor (IGCT) modules. It serves as a critical interface...

17 people are viewing this right now

Availability: In stock

SKU: 3BHB003230R0101 GVC704 AE01
Vendor: ABB
Category: IGCT Power Drive Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

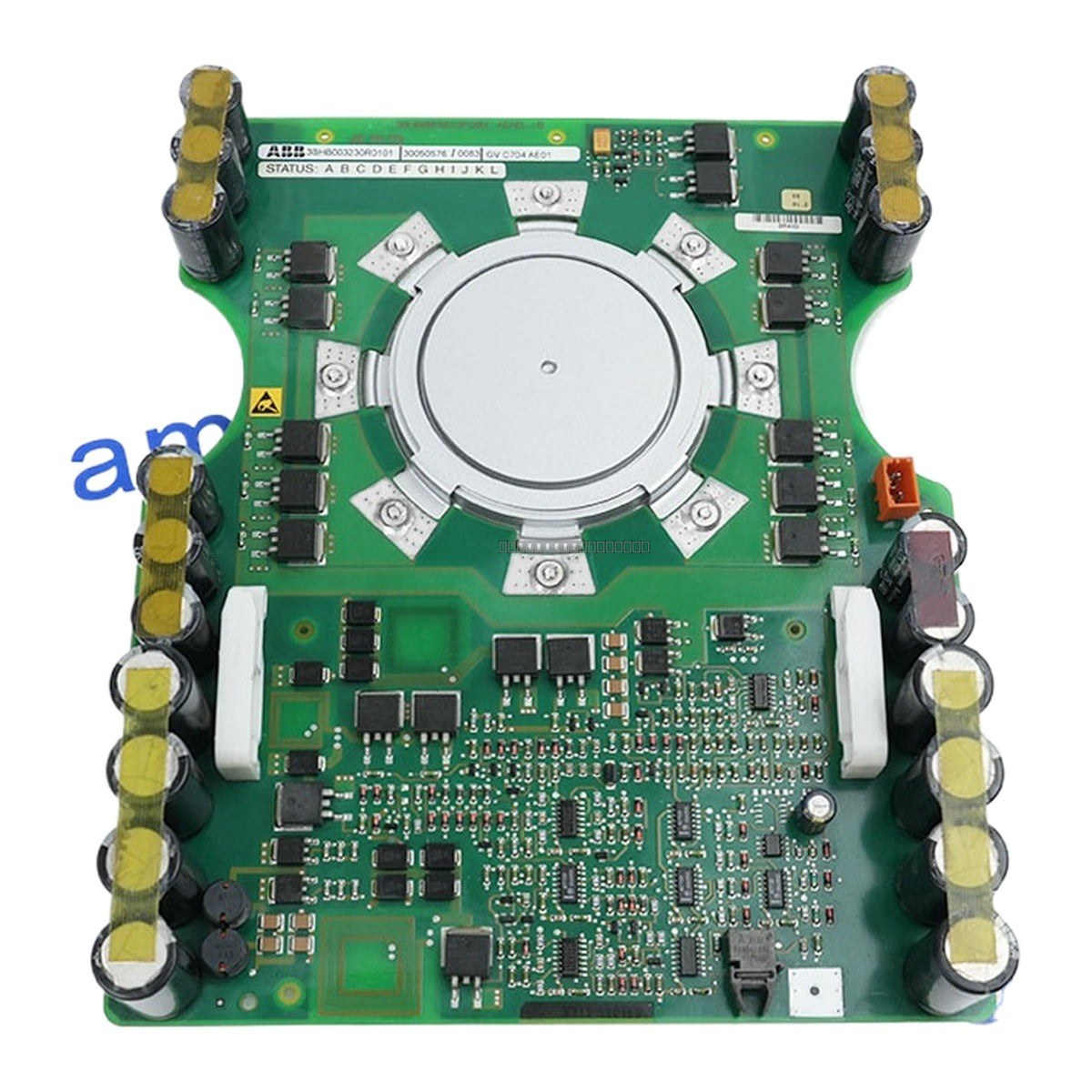

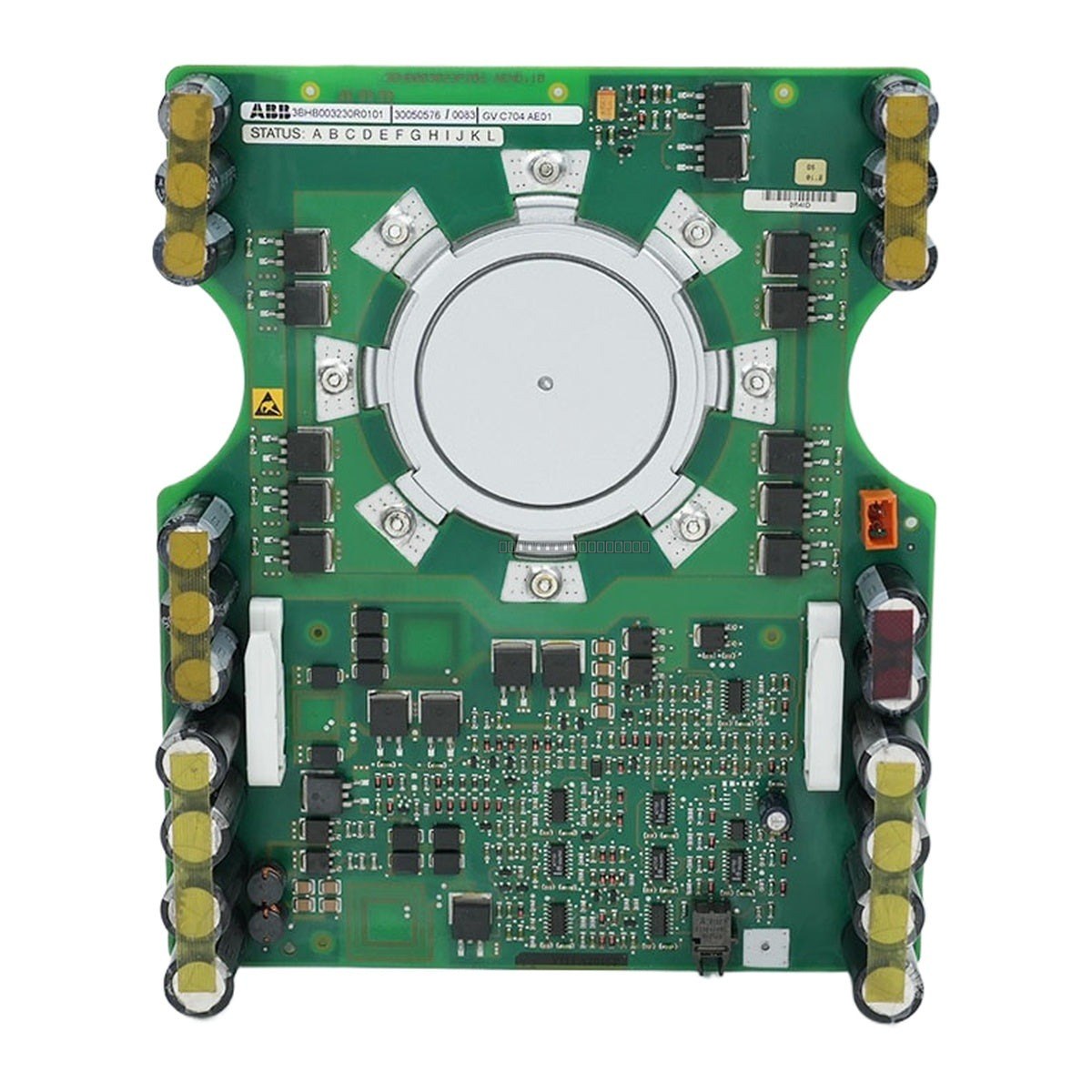

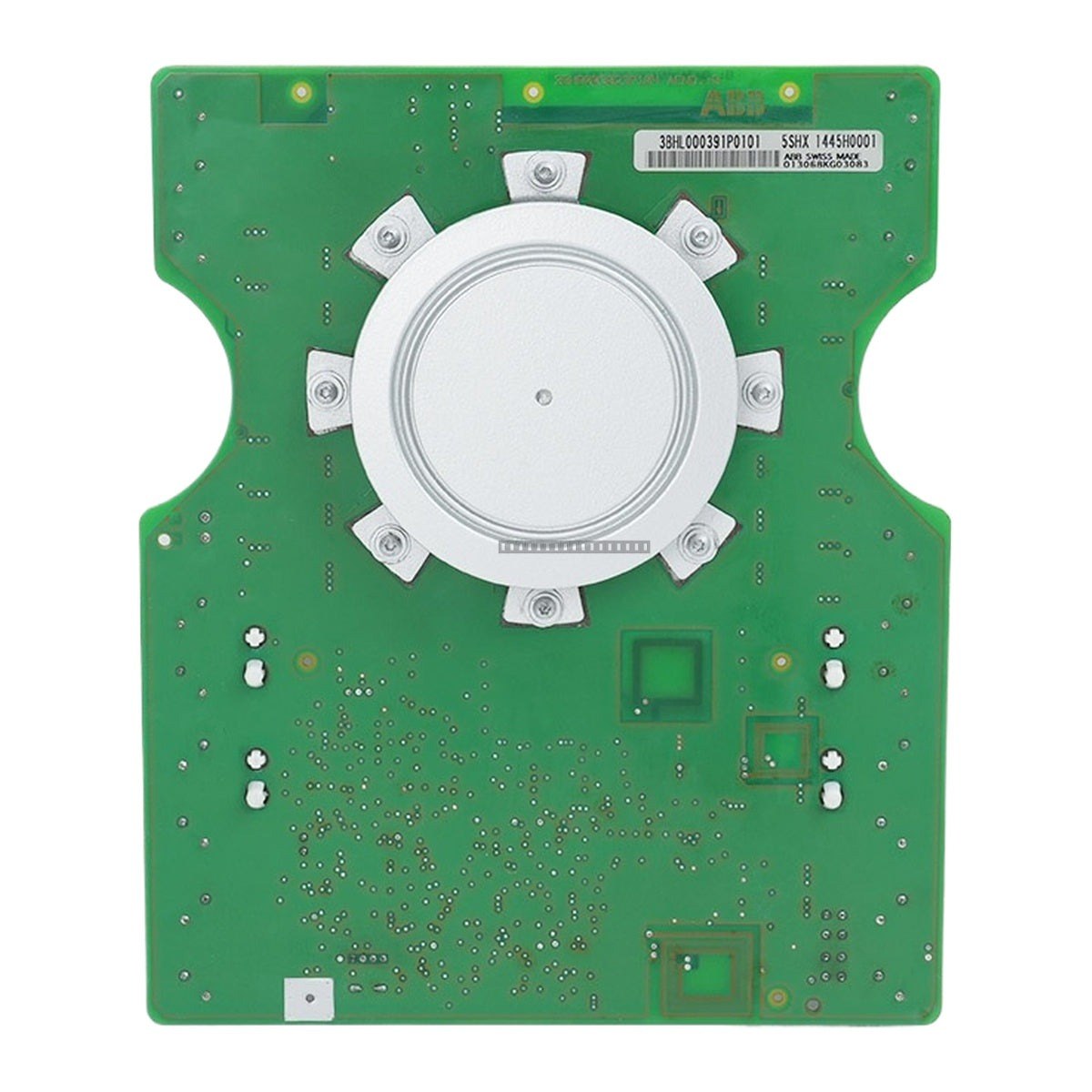

The ABB 3BHB003230R0101 (GVC704 AE01) is a specialized Gate Unit and Power Drive Board designed for the control of Integrated Gate-Commutated Thyristor (IGCT) modules. It serves as a critical interface within ABB's medium-voltage drive systems, such as the ACS1000 and ACS6000 series, by converting low-power control signals into the high-energy pulses required for reliable semiconductor switching.

Features

  • Designed for high-performance IGCT control in medium-voltage applications.
  • Functions as a power drive board to manage switching commands and power supply to IGCT modules.
  • Compatible with 3BHL000392P0101 (5SHX 1060H0001) IGCT modules.
  • Robust construction suitable for demanding industrial environments.

Applications

  • Mining & Minerals: Used for large conveyors, crushers, grinding mills, and mine hoists.
  • Oil & Gas: Controls compressors, pumps, and extruders.
  • Marine: Supports propulsion systems, thrusters, and large onboard pumping equipment.
  • Metals & Steel: Manages rolling mills, cooling fans, and high-torque water pumps.
  • Water & Wastewater: Regulates flow in large-scale pumping stations.
  • Power Generation: Operates auxiliary equipment including coal mills and conveyors.

Technical Specifications

Model 3BHB003230R0101 / GVC704 AE01
Spare Model 3BHL000391P0101 / 5SHX1445H0001
Voltage Rating (VCES) 4500 V
Current Rating (ITAVM) 2100 A
Power Losses 1.0 - 2.5 kW
Operating Temperature -40 degC to +125 degC
Storage Temperature -40 degC to +85 degC
Humidity < 95% RH (non-condensing)

Installation Guidelines

  • High Voltage Safety: Always ensure the drive is fully disconnected from the power supply before handling. Verify that DC-link capacitors are completely discharged using a calibrated multimeter.
  • ESD Protection: This module contains sensitive CMOS components. Utilize a grounded ESD wrist strap at all times when handling the board or its connectors.
  • Fiber Optic Handling: If equipped with fiber optic interfaces, do not bend cables beyond a 30mm radius. Ensure connector ends remain clean; use lint-free cloth and isopropyl alcohol for maintenance if required.
  • Potential Warning: This gate unit does not provide on-board potential separation. The supply cable and output must be rated to withstand the full high-voltage potential of the power semiconductor against ground.

FAQ

What is the primary function of the 3BHB003230R0101?

It acts as a gate unit and power drive board to convert control signals into high-energy pulses for switching IGCT semiconductors in ABB medium-voltage drives.

Is this module compatible with specific IGCT modules?

Yes, it is specifically designed to drive the 3BHL000392P0101 (5SHX 1060H0001) IGCT module.
