Description

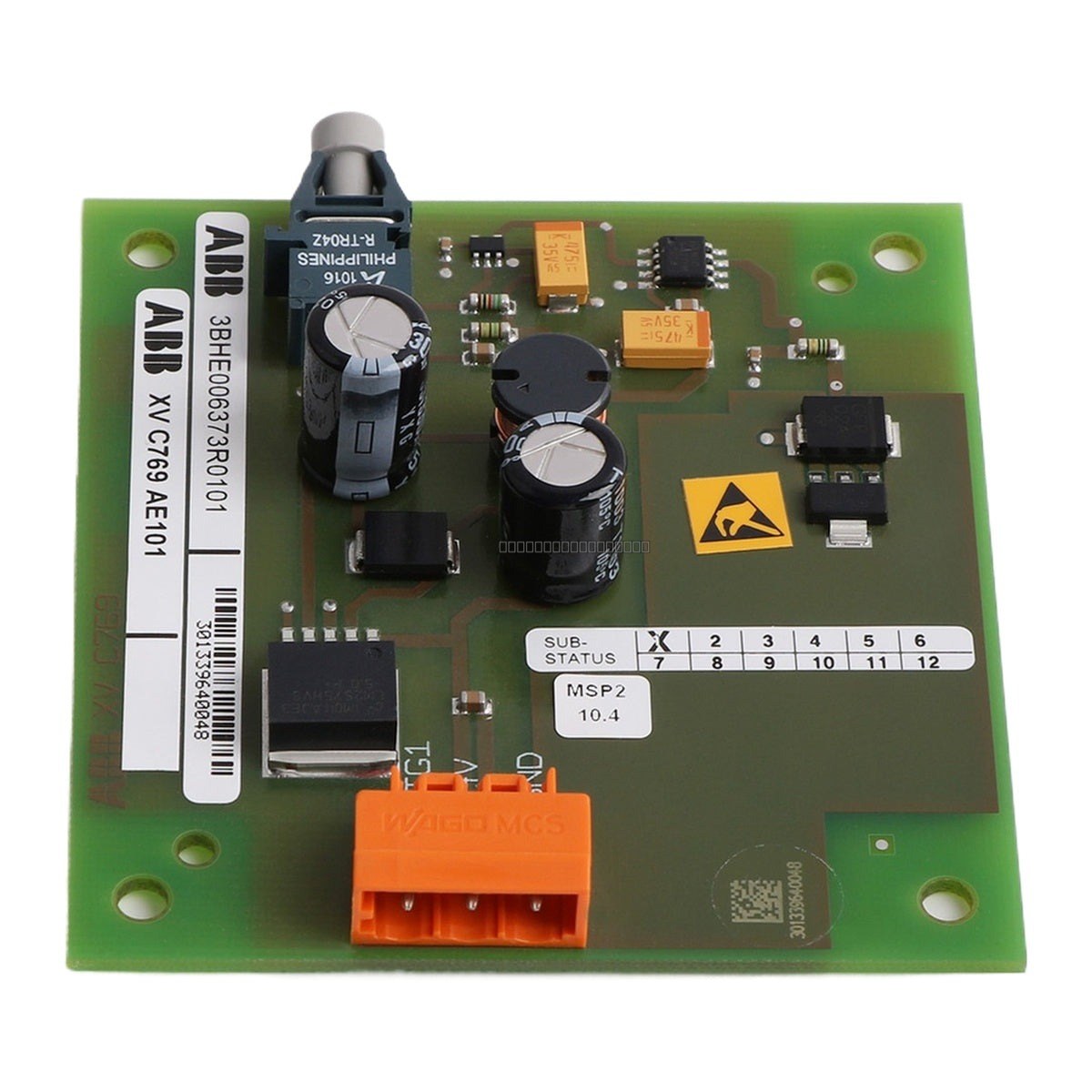

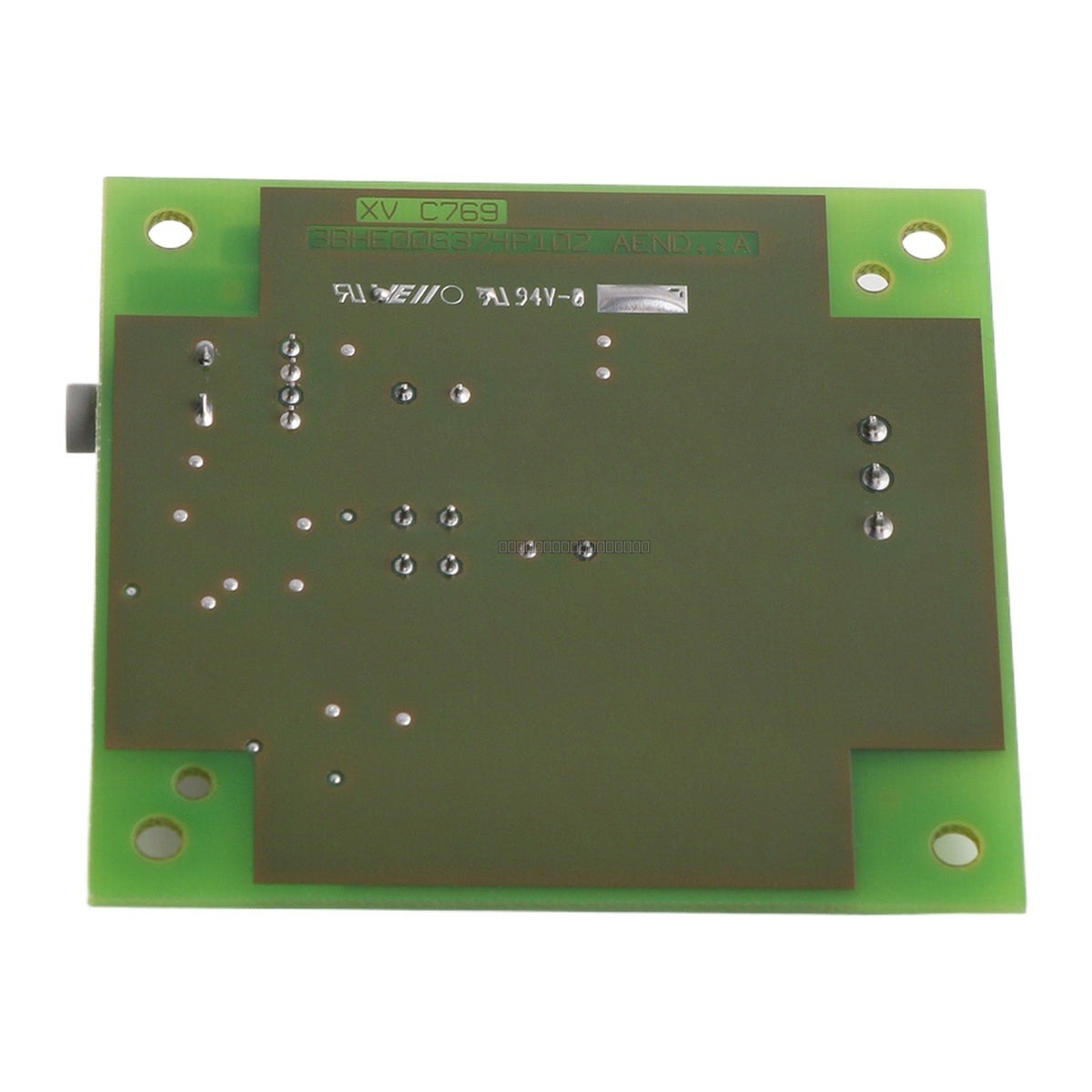

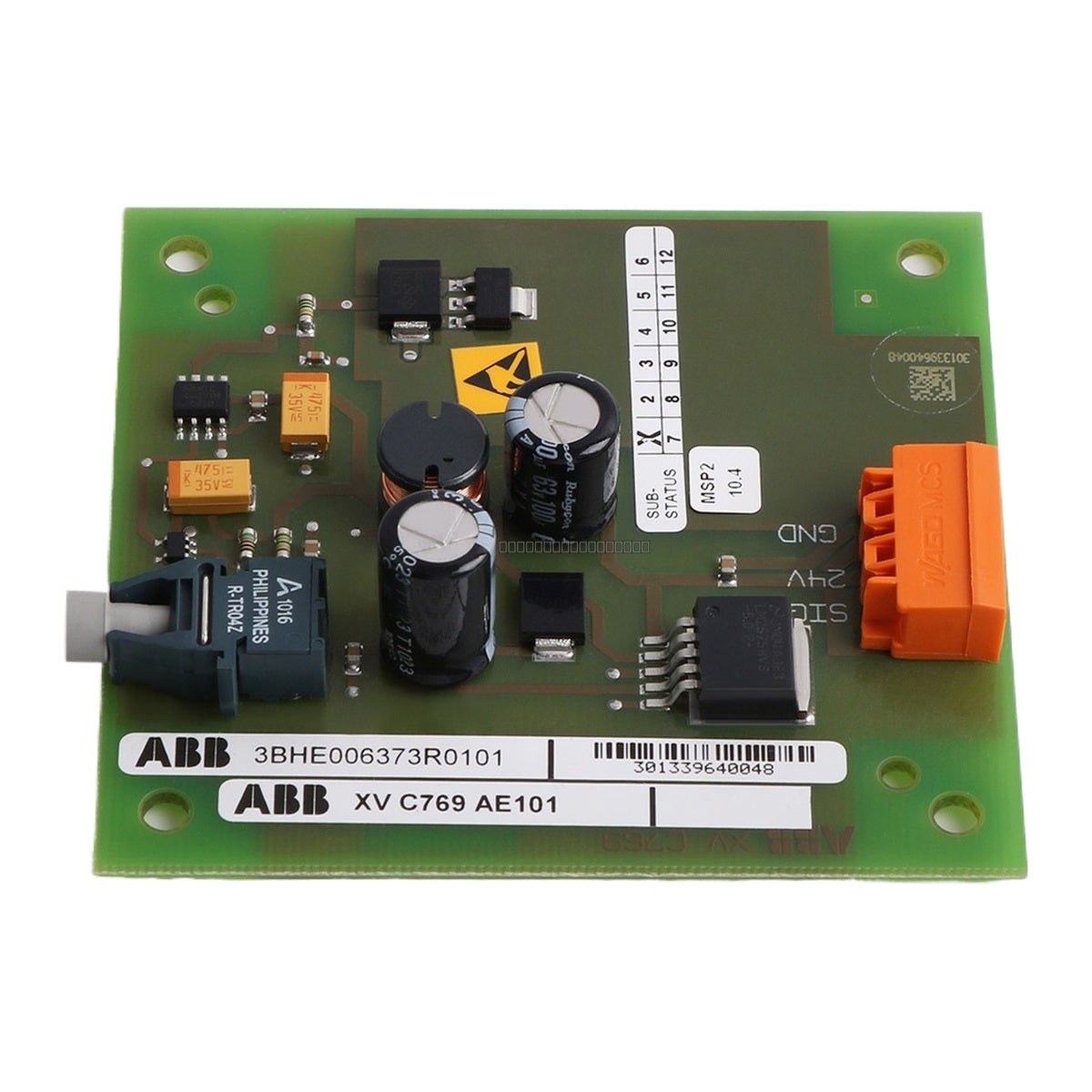

The ABB 3BHE006373R0101 (XVC769AE101) is an OEI-Board designed for integration within the ABB Advant OCS and Advant-800xA control systems. This communication interface module facilitates reliable data exchange between system components, supporting both optical and electrical network standards to ensure robust connectivity in industrial automation environments.

Features

  • Supports dual 100BASE-FX optical interfaces (1300nm) for long-distance, noise-immune communication.
  • Includes one 10/100BASE-TX electrical interface for standard Ethernet connectivity.
  • Designed for high-speed data transmission at 100Mbps in full-duplex mode.
  • Provides 1500V AC isolation to protect sensitive control electronics from electrical surges.
  • Compact form factor suitable for high-density rack mounting.

Technical Specifications

Model Number 3BHE006373R0101 (XVC769AE101)
Power Supply 24V DC (-15%/+20%)
Power Consumption 6W typical
Optical Interfaces 2x 100BASE-FX (1300nm)
Electrical Interface 1x 10/100BASE-TX
Isolation 1500V AC
Data Rate 100Mbps full-duplex
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% non-condensing
Vibration Rating 1G (5-150Hz)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the OEI-Board to prevent electrical damage.
  • Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
  • Verify that the supply voltage is within the specified 24V DC (-15%/+20%) range before powering on.
  • Ensure proper seating of the module in the rack to maintain secure electrical contact and thermal dissipation.
  • Route optical and electrical cables away from high-EMI sources, such as power cables or heavy-duty motors, to maintain signal integrity.

FAQ

What is the primary function of the 3BHE006373R0101 OEI-Board?

This board serves as an Optical Ethernet Interface (OEI) module, allowing ABB Advant OCS and 800xA systems to communicate over both fiber-optic and copper Ethernet media.

Is this module compatible with standard Ethernet switches?

Yes, the 10/100BASE-TX port is compatible with standard industrial Ethernet switches, while the 100BASE-FX ports require compatible fiber-optic transceivers or switches supporting 1300nm wavelength.
