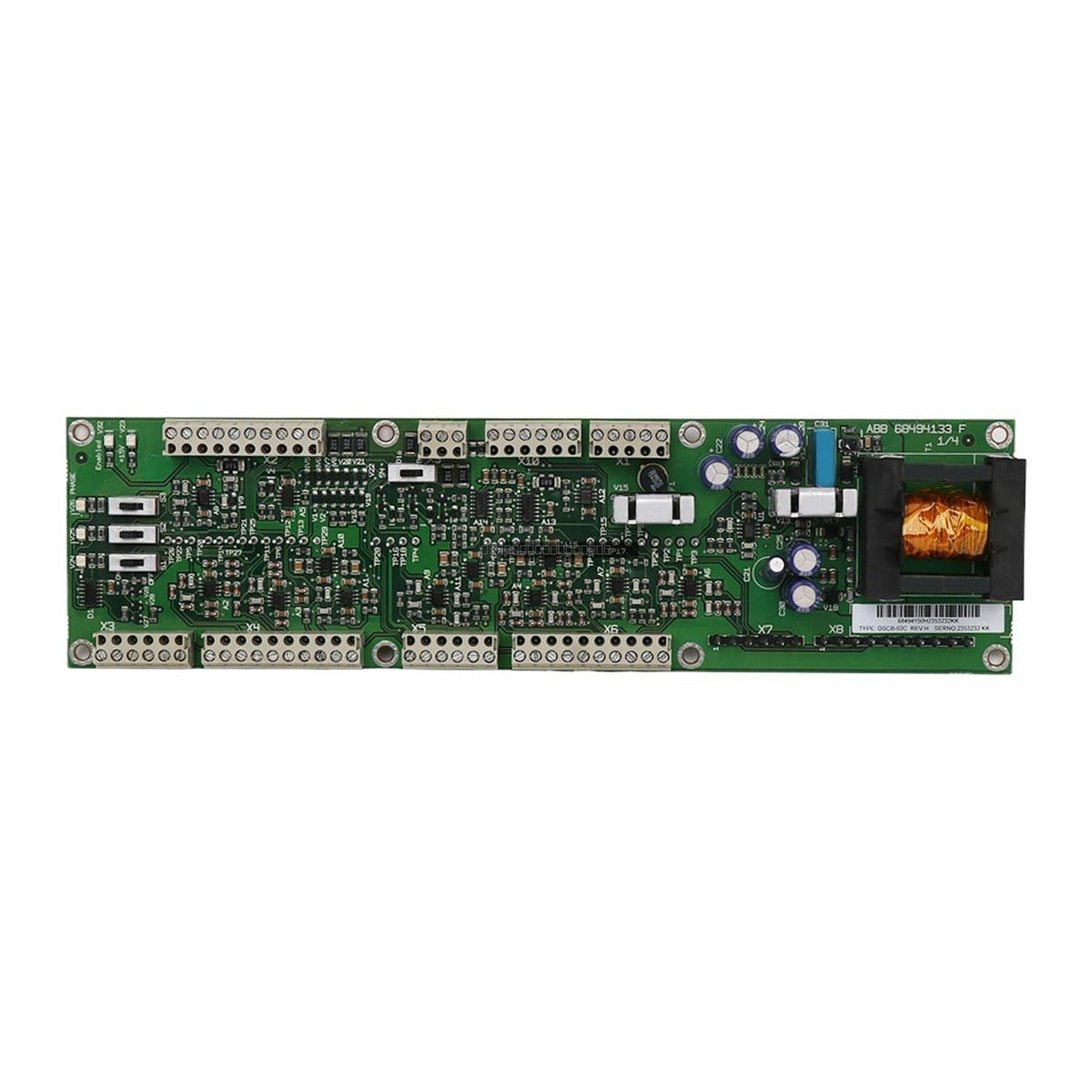

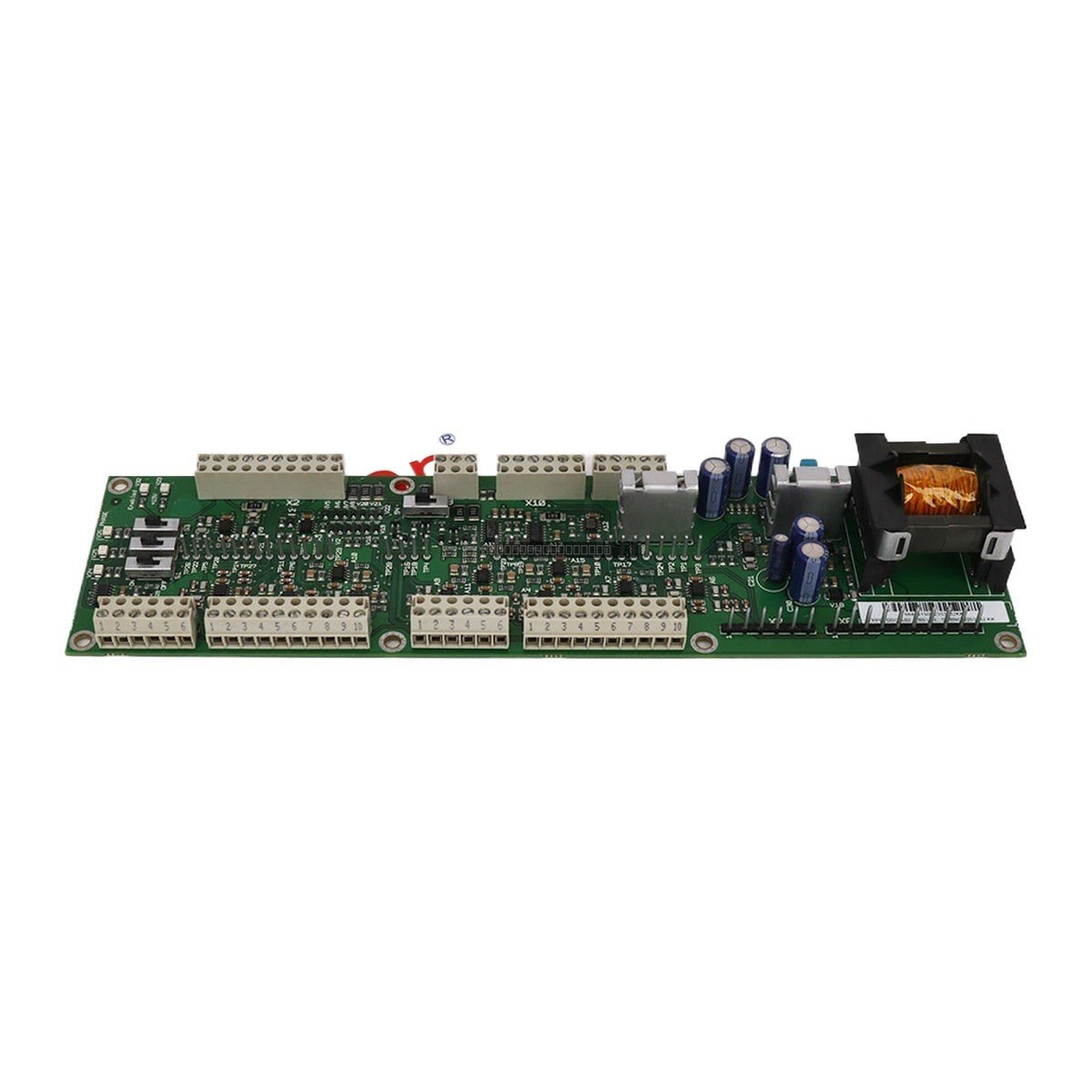

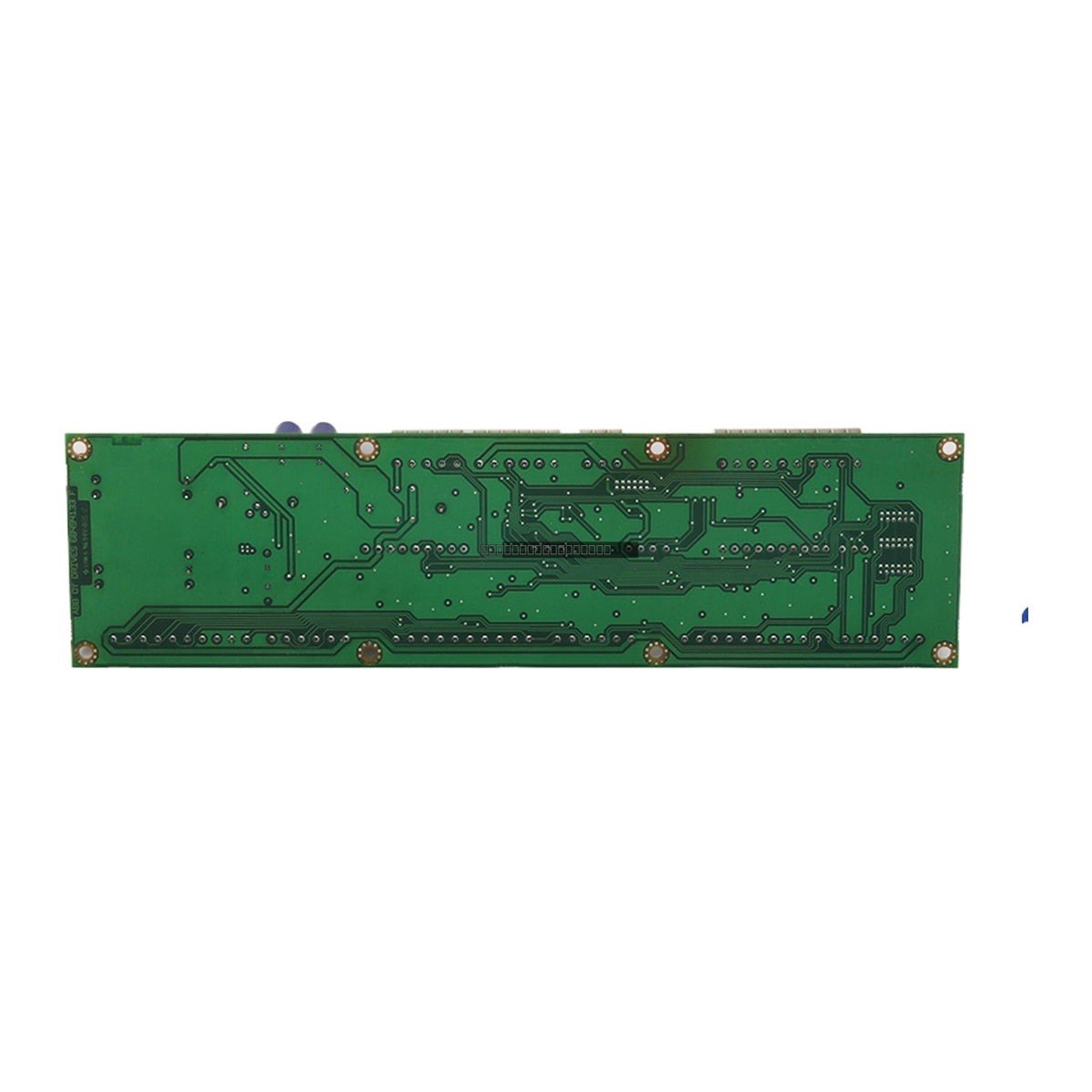

ABB DSCB-02 Diode Supply Connector Board Rev H

ABB DSCB-02 Diode Supply Connector Board Rev H

Description

The ABB DSCB-02 is a Diode Supply Connector Board designed for use within the Advant OCS and Advant-800xA control system environments. This component serves as a critical interface for power...

20 people are viewing this right now

Availability: Low stock: 2 left

SKU: DSCB-02
Vendor: ABB
Category: Diode Supply Connector Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB DSCB-02 is a Diode Supply Connector Board designed for use within the Advant OCS and Advant-800xA control system environments. This component serves as a critical interface for power distribution, ensuring reliable delivery of supply voltages to connected control modules. The Rev H iteration provides robust connectivity and signal integrity for demanding industrial automation applications.

Features

  • Designed for seamless integration with ABB Advant OCS and 800xA systems.
  • Supports 24V DC input voltage with stable ±15V DC output.
  • High isolation voltage rating of ≥ 2500V AC for enhanced system protection.
  • Current rating of ≤ 2A per channel.
  • Engineered for operation in harsh environments with a temperature range of -40 degC to +70 degC.

Technical Specifications

Product Model DSCB-02
Revision Rev H
Input Voltage 24V DC
Output Voltage ±15V DC
Current Rating ≤ 2A per channel
Isolation Voltage ≥ 2500V AC
Operating Temperature -40 degC to +70 degC (EN 50155)
Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the DSCB-02 board to prevent electrical damage.
  • Verify that the terminal connections (6–10-pin) are securely seated to maintain proper contact and prevent intermittent power supply.
  • Maintain proper grounding practices within the cabinet to minimize electromagnetic interference (EMI).
  • Ensure adequate ventilation around the module to comply with the specified operating temperature range.
  • Handle with standard ESD precautions to protect sensitive electronic components on the board.

FAQ

What is the primary function of the DSCB-02?
The DSCB-02 acts as a diode supply connector board, managing power distribution and isolation within ABB Advant control systems.

Is this board compatible with both Advant OCS and 800xA?
Yes, the DSCB-02 is designed to support both Advant OCS and Advant-800xA system architectures.

What are the environmental requirements for this module?
The module is rated for operation between -40 degC and +70 degC and supports humidity levels between 5% and 95% (non-condensing).
