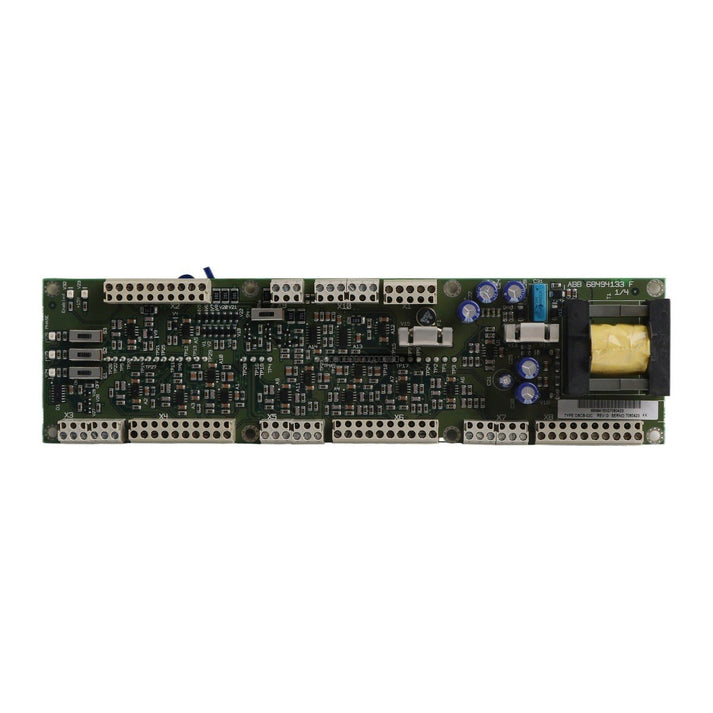

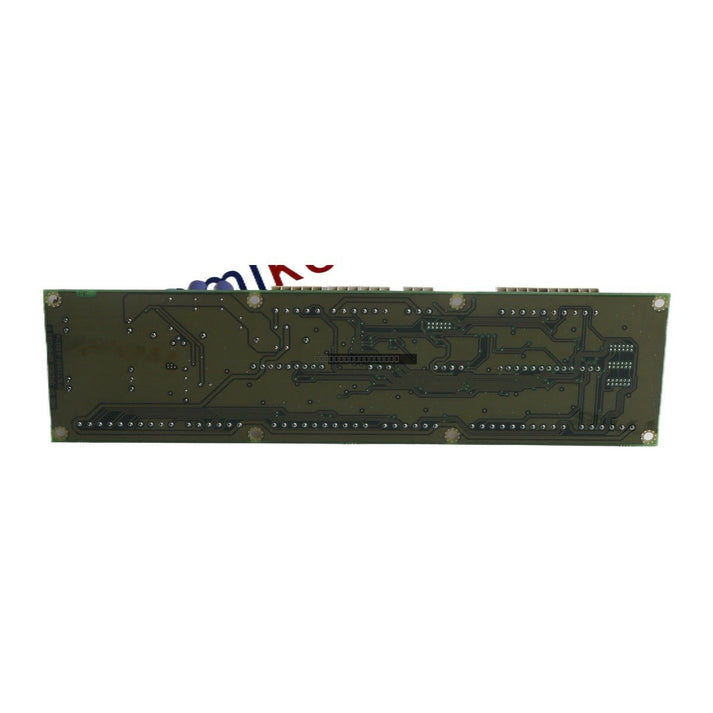

ABB DSCB-02C Diode Supply Connector Board

ABB DSCB-02C Diode Supply Connector Board

Description

The ABB DSCB-02C is a Diode Supply Connector Board designed for use within the Advant OCS and Advant 800xA control system environments. This module serves as a critical interface component...

19 people are viewing this right now

Availability: Low stock: 6 left

SKU: DSCB-02C
Vendor: ABB
Category: Connector Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB DSCB-02C is a Diode Supply Connector Board designed for use within the Advant OCS and Advant 800xA control system environments. This module serves as a critical interface component for power distribution and signal routing, ensuring reliable voltage regulation and supply isolation within industrial automation racks.

Features

  • Designed for integration with ABB Advant OCS and 800xA systems.
  • Supports a nominal input voltage of 24V DC.
  • Provides regulated output voltage of +/- 15V DC.
  • Current rating capacity of up to 2A per channel.
  • High isolation voltage rating of 2500V AC to protect sensitive control circuitry.
  • Robust design suitable for demanding industrial environments.

Technical Specifications

Product Model DSCB-02C
Spare Part Number 68494150
Revision H
Input Voltage 24V DC
Output Voltage +/- 15V DC
Current Rating 2A per channel
Isolation Voltage 2500V AC
Operating Temperature -40 degC to +70 degC (EN 50155)
Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the DSCB-02C board to prevent electrical damage.
  • Verify that the terminal connections are securely seated; the module utilizes a 6-10 pin terminal configuration.
  • Maintain proper grounding practices to ensure the isolation integrity of the board.
  • Ensure adequate airflow within the cabinet to maintain the operating temperature within the specified -40 degC to +70 degC range.
  • Handle the module using ESD-safe procedures to prevent damage to internal components.

FAQ

What is the primary function of the DSCB-02C?

The DSCB-02C acts as a diode supply connector board, facilitating the conversion and distribution of power within the Advant OCS and 800xA control systems, specifically providing isolated +/- 15V DC power.

Is this module compatible with all Advant systems?

This board is specifically designed for the Advant OCS and Advant 800xA series. Please verify your system hardware revision and part number (68494150) against your existing documentation before installation.
