ABB DSQC509 3HAC5687-1/05 Panel Board Unit

ABB DSQC509 3HAC5687-1/05 Panel Board Unit

Description

The ABB DSQC509 (3HAC5687-1/05) is a specialized Panel Board Unit designed for integration within ABB Advant OCS and Advant-800xA control systems. This connection unit serves as a critical interface component...

23 people are viewing this right now

Availability: Low stock: 10 left

SKU: DSQC509 3HAC5687-1/05
Vendor: ABB
Category: Panel Board Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

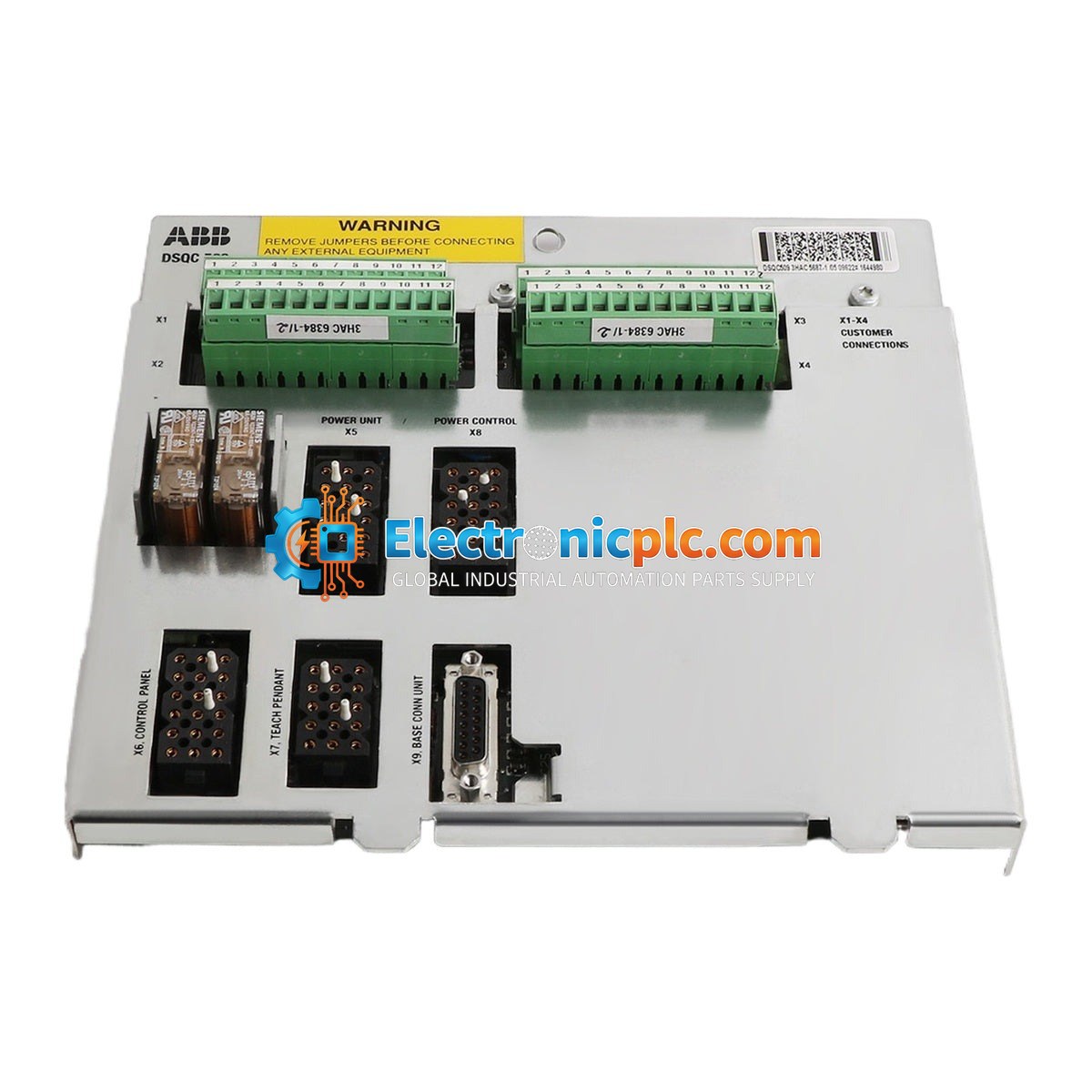

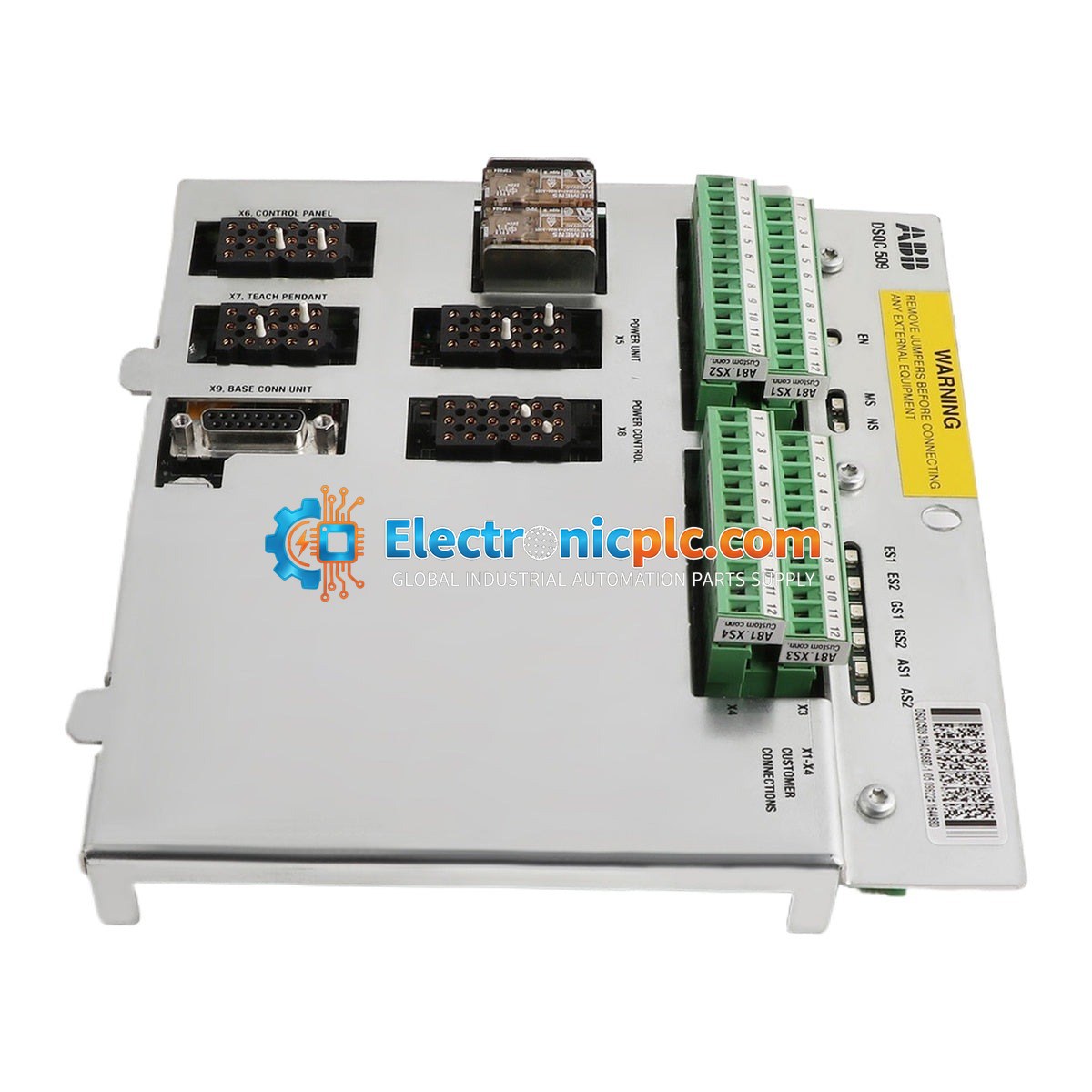

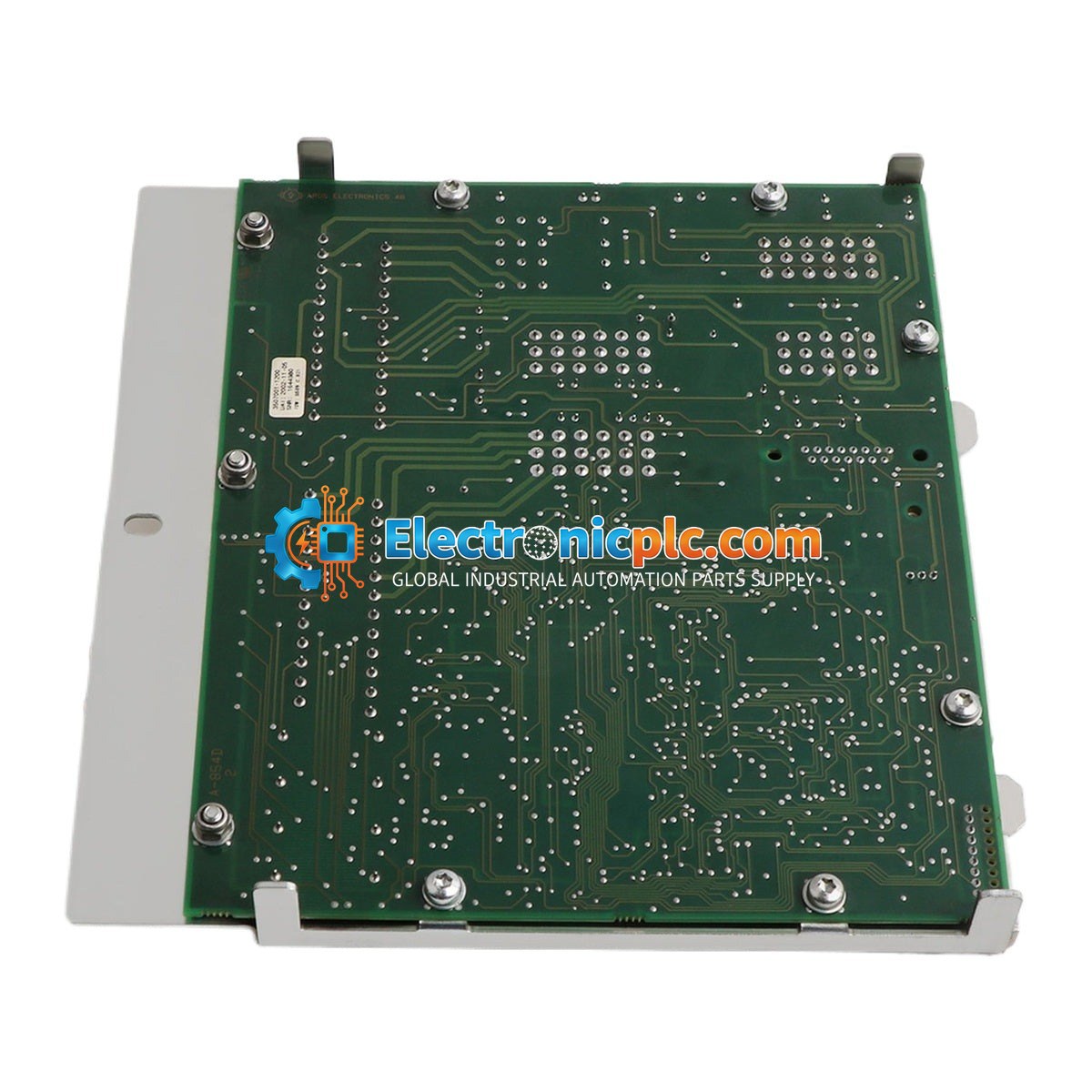

The ABB DSQC509 (3HAC5687-1/05) is a specialized Panel Board Unit designed for integration within ABB Advant OCS and Advant-800xA control systems. This connection unit serves as a critical interface component for PLC panel configurations, facilitating reliable signal distribution and relay switching within industrial automation environments.

Features

  • Integrated dual relay configuration for robust switching operations.
  • Equipped with five dedicated input ports for versatile signal handling.
  • Features dual 2-row connectors to ensure secure and stable wiring connections.
  • Designed for high-reliability performance in demanding industrial control panels.

Technical Specifications

Product Model DSQC509 / 3HAC5687-1/05
Supply Voltage 220 V AC +/- 10%
Internal DC Bus 24 V DC, 5 A
Power Consumption <= 25 VA
Isolation 2 kV AC
Operating Temperature -20 degC to +70 degC
Storage Temperature -25 degC to +85 degC
Humidity < 95% RH, non-condensing

Installation Guidelines

  • Ensure the control panel is fully de-energized before installing or removing the DSQC509 unit.
  • Mount the unit in a clean, dry environment, ensuring adequate ventilation to maintain operating temperatures within the specified range.
  • Use appropriate shielded cabling for all input connections to minimize EMI interference.
  • Verify that all dual 2-row connectors are firmly seated and locked to prevent intermittent signal loss.
  • Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.
  • Ensure proper grounding of the panel chassis to maintain system isolation integrity.

FAQ

What is the primary function of the DSQC509?

The DSQC509 acts as a connection and interface unit within ABB PLC panels, managing relay-based switching and signal routing between field devices and the control system.

Is this unit compatible with Advant-800xA systems?

Yes, the DSQC509 is designed for use within the ABB Advant OCS and Advant-800xA product families.

What are the power requirements for this module?

The unit operates on a 220 V AC supply with a power consumption of less than 25 VA and provides an internal 24 V DC bus at 5 A.
