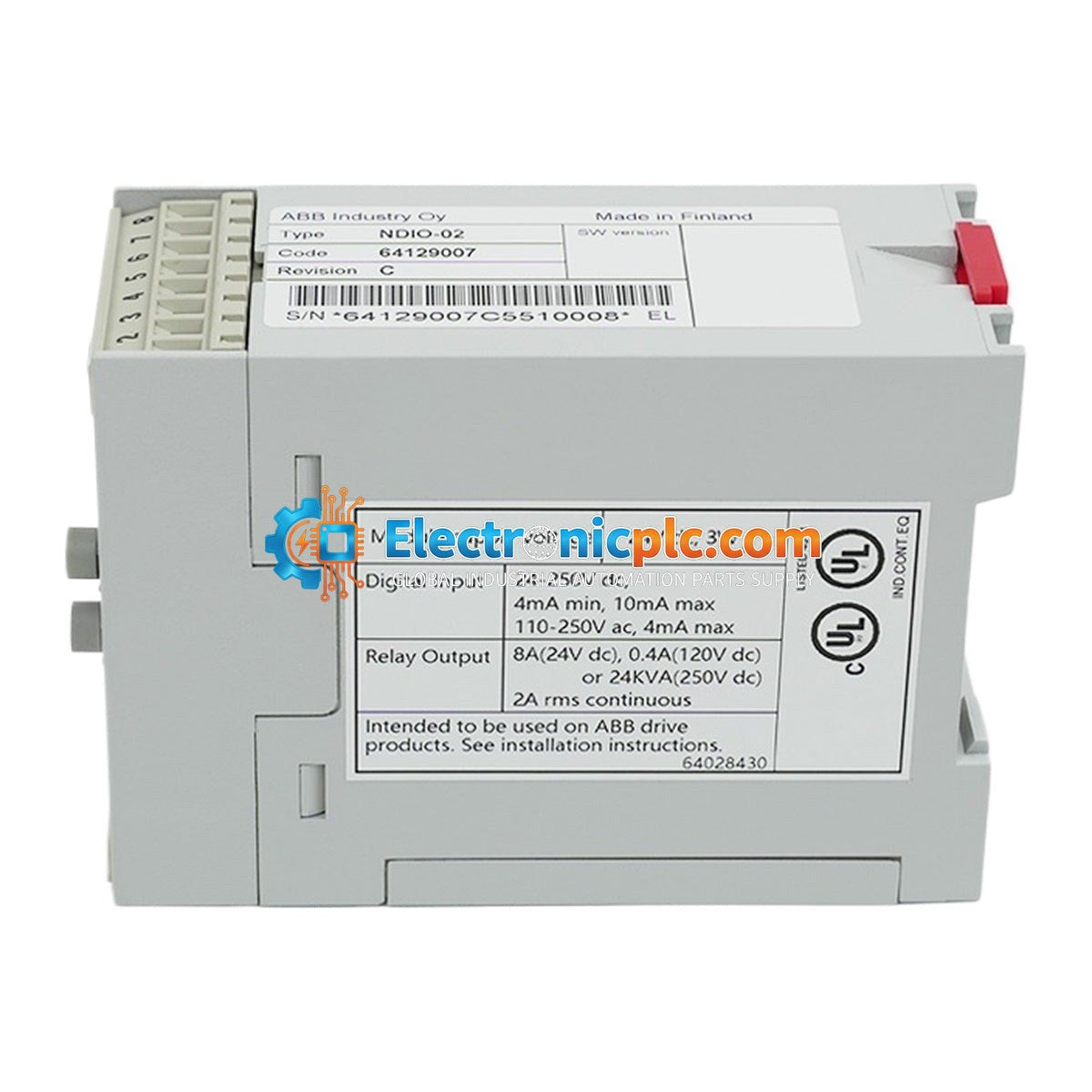

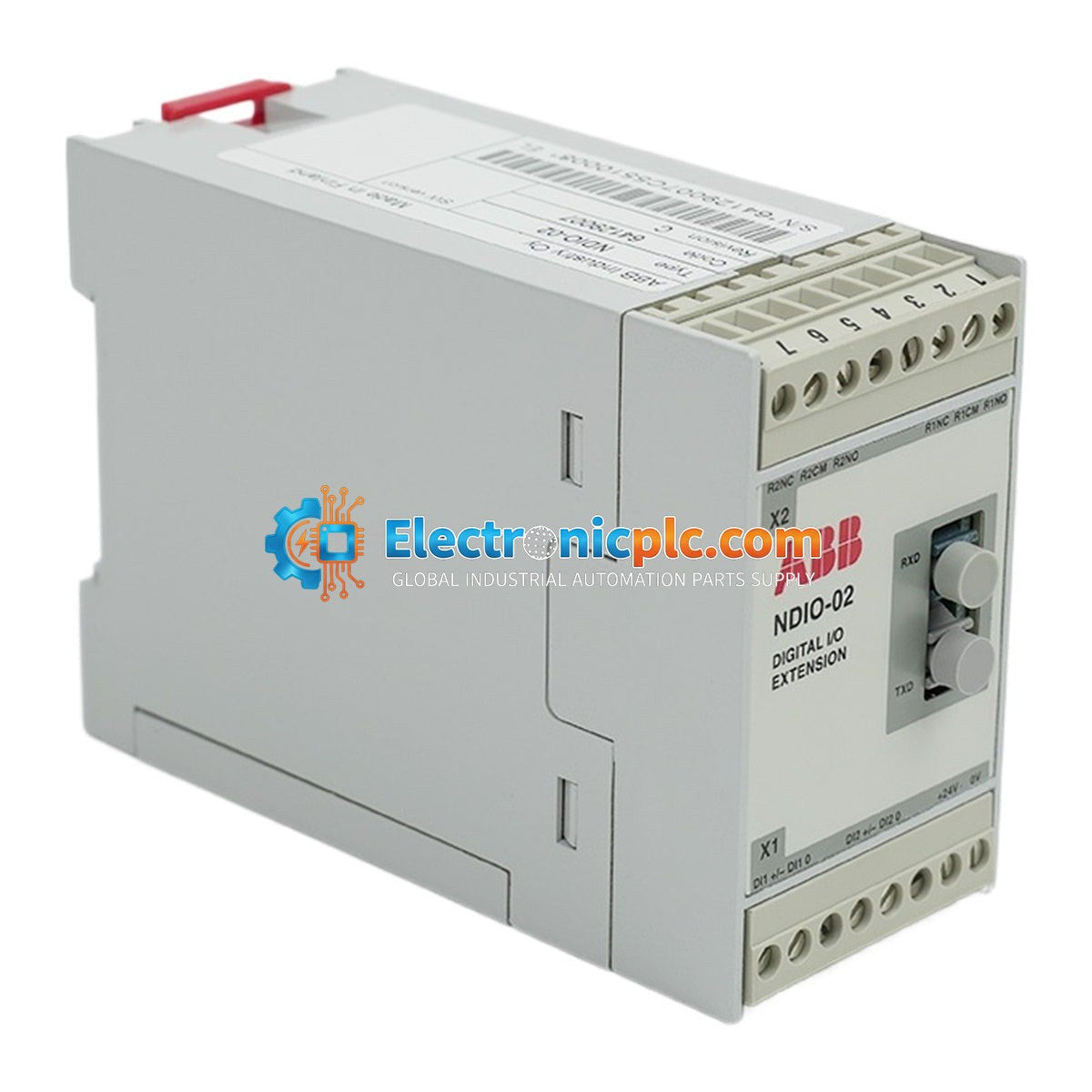

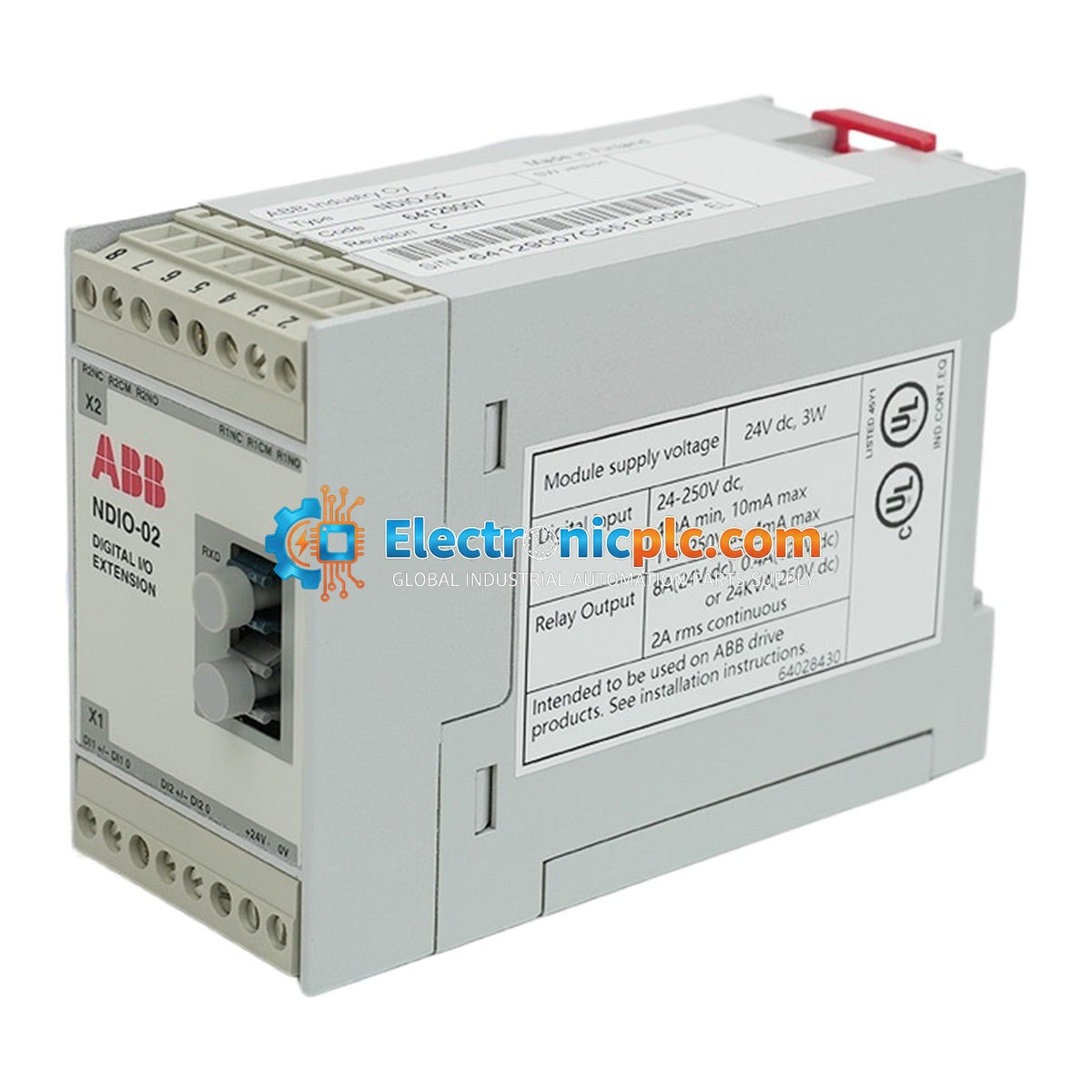

ABB NDIO-02 64129007 Digital I/O Extension Module

ABB NDIO-02 64129007 Digital I/O Extension Module

Description

The ABB NDIO-02 (64129007) is a digital I/O extension module designed for integration within the Advant OCS and Advant-800xA control system environments. This module serves to expand the system's interface...

28 people are viewing this right now

Availability: Low stock: 10 left

SKU: NDIO-02 64129007
Vendor: ABB
Category: Digital I/O Extension Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB NDIO-02 (64129007) is a digital I/O extension module designed for integration within the Advant OCS and Advant-800xA control system environments. This module serves to expand the system's interface capabilities by providing additional digital input and relay output channels, facilitating reliable communication between field devices and the controller.

Features

  • Provides 2 digital input channels supporting a wide voltage range of 24 – 250 V DC.
  • Equipped with 2 relay output channels rated for 250 V AC operation.
  • Compact design suitable for high-density control cabinet installations.
  • Robust isolation of 1500 V AC for enhanced signal integrity and protection.
  • Wide operating temperature range suitable for demanding industrial environments.

Applications

This module is typically utilized in industrial automation systems for monitoring discrete field signals and controlling auxiliary equipment such as contactors, solenoids, or alarm indicators. It is commonly found in Advant OCS and 800xA distributed control system architectures.

Technical Specifications

Product Model NDIO-02 64129007
Digital Inputs 2 channels (24 – 250 V DC)
Input Current 6 mA @ 24 V DC
Input Threshold ON > 15 V DC, OFF < 5 V DC
Digital Outputs 2 channels (250 V AC)
Power Supply 24 V DC
Power Consumption 5 W typical
Isolation 1500 V AC
Operating Temperature -25 degC to +60 degC
Storage Temperature -40 degC to +85 degC
Humidity 5% to 95% RH non-condensing

Installation Guidelines

  • Ensure the control system power is disconnected before installing or removing the module to prevent electrical damage.
  • Mount the module in a clean, dry, and vibration-free environment within an appropriate industrial enclosure.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI).
  • Ensure adequate ventilation around the module to maintain operating temperatures within the specified range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.

FAQ

What is the primary function of the NDIO-02 module?

The NDIO-02 is a digital I/O extension module used to provide two digital inputs and two relay outputs to ABB Advant OCS or 800xA control systems.

Can this module handle 250V AC outputs?

Yes, the relay outputs are rated for 250 V AC operation, making them suitable for switching standard industrial control loads.
