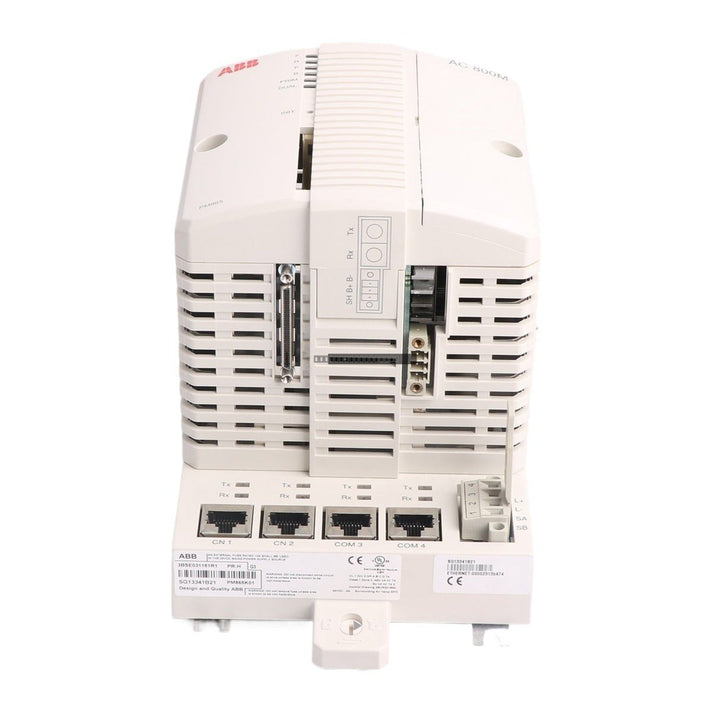

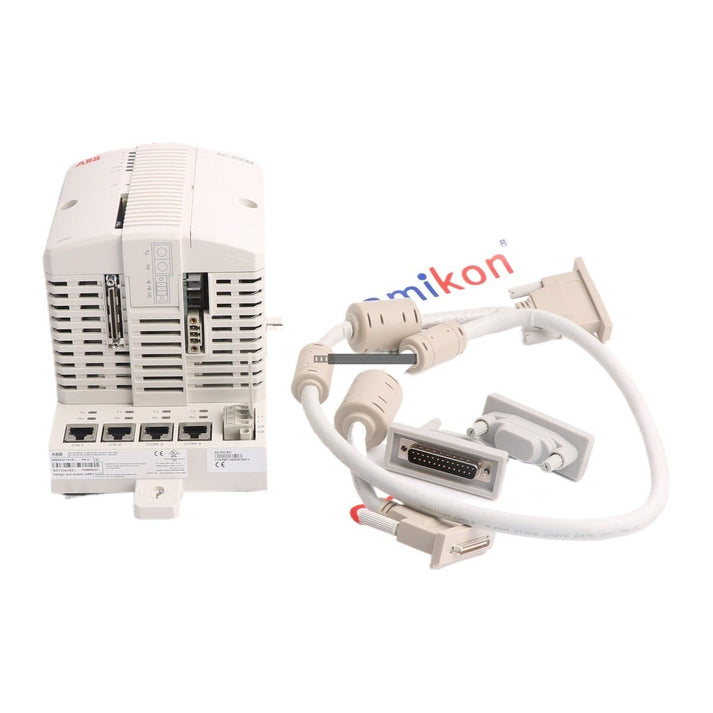

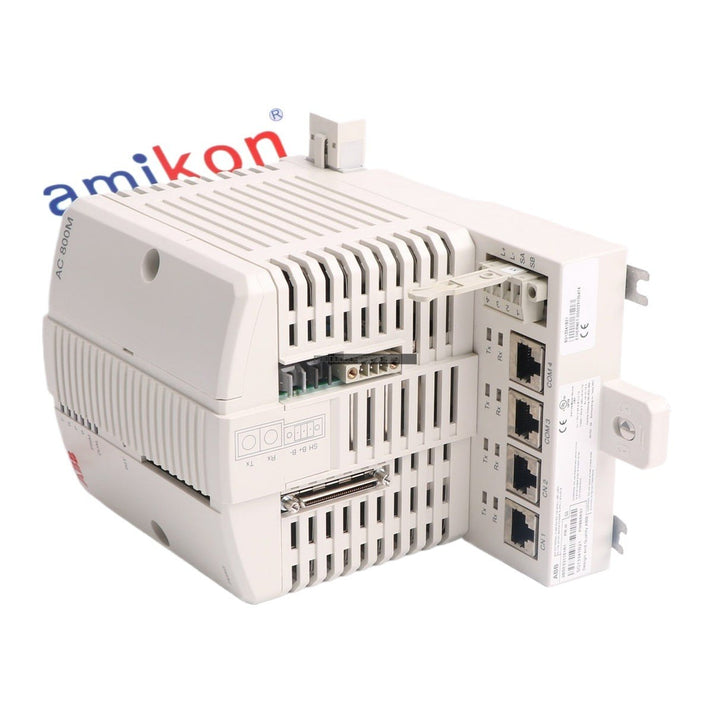

ABB PM865K01 3BSE031151R1 High Integrity Processor Unit Kit

ABB PM865K01 3BSE031151R1 High Integrity Processor Unit Kit

The ABB PM865K01 (3BSE031151R1) is a High Integrity Processor Unit designed for the AC 800M controller platform within the ABB System 800xA environment. This unit is engineered for safety-critical process...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: PM865K01 3BSE031151R1
Vendor: ABB
Category: PLC Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB PM865K01 (3BSE031151R1) is a High Integrity Processor Unit designed for the AC 800M controller platform within the ABB System 800xA environment. This unit is engineered for safety-critical process automation applications requiring high availability, deterministic control, and functional safety compliance. The processor is built around a 96 MHz PowerPC-based microprocessor, supported by 32 MB of RAM and 2 MB of Flash PROM for firmware storage.

Features

  • High Integrity (HI) CPU capable of SIL 3 safety applications when used with compatible safety modules.
  • Redundant controller architecture support for hot-standby configurations via RCU-Link.
  • Integrated communication interfaces including two RJ45 Ethernet ports and two serial ports (COM3/COM4).
  • CEX-Bus support for up to 12 communication modules, including PROFIBUS DP, Modbus TCP, and IEC 61850.
  • Includes essential hardware kit: PM865 CPU, TP830 baseplate, TB850, TB807, and TB852 terminators.

Applications

  • Chemical and material processing for continuous control loops.
  • Water and wastewater management including pump station and filtration control.
  • High-speed machinery coordination in packaging and textile industries.
  • Material handling systems requiring cross-system synchronization via Ethernet.

Technical Specifications

Model PM865K01 (3BSE031151R1)
Processor 96 MHz PowerPC
RAM 32 MB
Flash PROM 2 MB
Supply Voltage 24 V DC
Operating Temperature 0 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the processor module from the baseplate.
  • Mount the TP830 baseplate securely to the DIN rail; ensure proper grounding to the cabinet chassis.
  • Use shielded twisted-pair cabling for Ethernet connections to minimize EMI interference.
  • Maintain adequate ventilation around the controller to ensure operating temperatures remain within the 0 to 55 degC range.
  • For redundant configurations, ensure the RCU-Link cable (TK851) is correctly seated between the two PM865 units.
  • Follow all specific safety manual instructions when configuring for SIL 3 functional safety.

FAQ

What is the PM865K01?

The PM865K01 is a high-integrity processor unit kit for the ABB AC 800M system, designed to handle both standard process control and safety-related functions.

Does this unit support redundancy?

Yes, it supports CPU redundancy, CEX-Bus redundancy, and S800 I/O redundancy. Two units can be configured as a hot-standby pair with automatic failover.

What software is required for programming?

The controller is programmed using ABB Control Builder M or Control Builder Professional, supporting standard IEC 61131-3 languages.
