Description

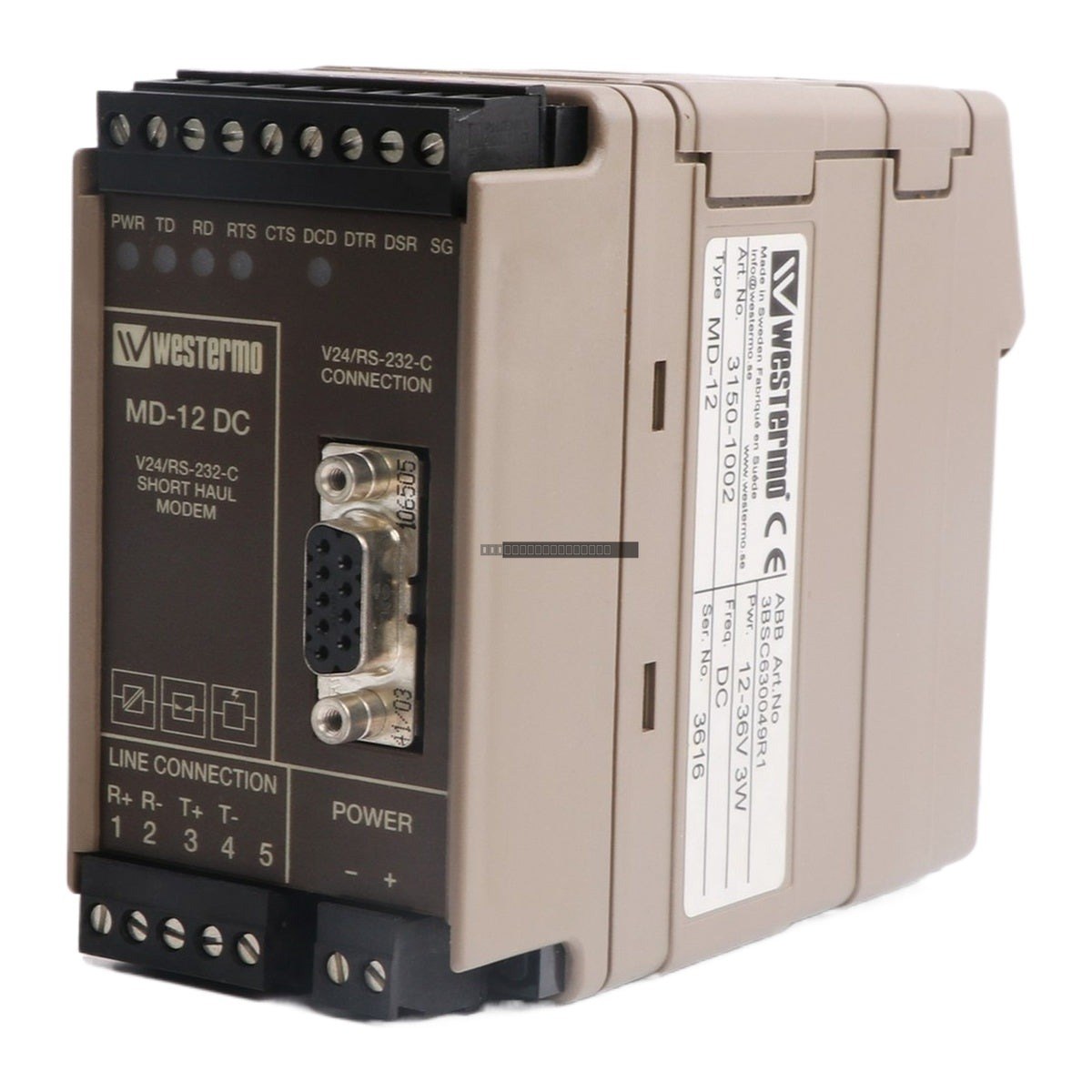

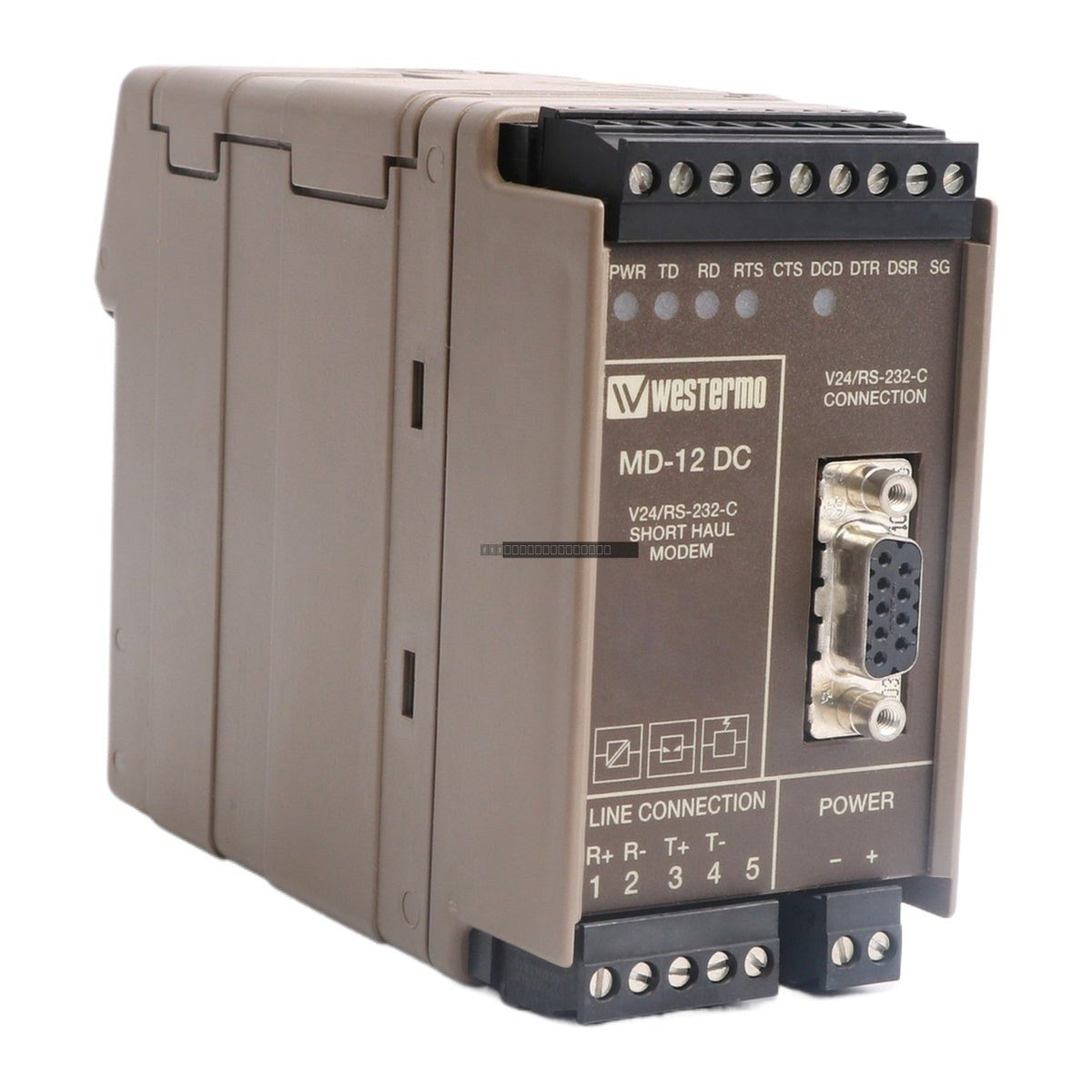

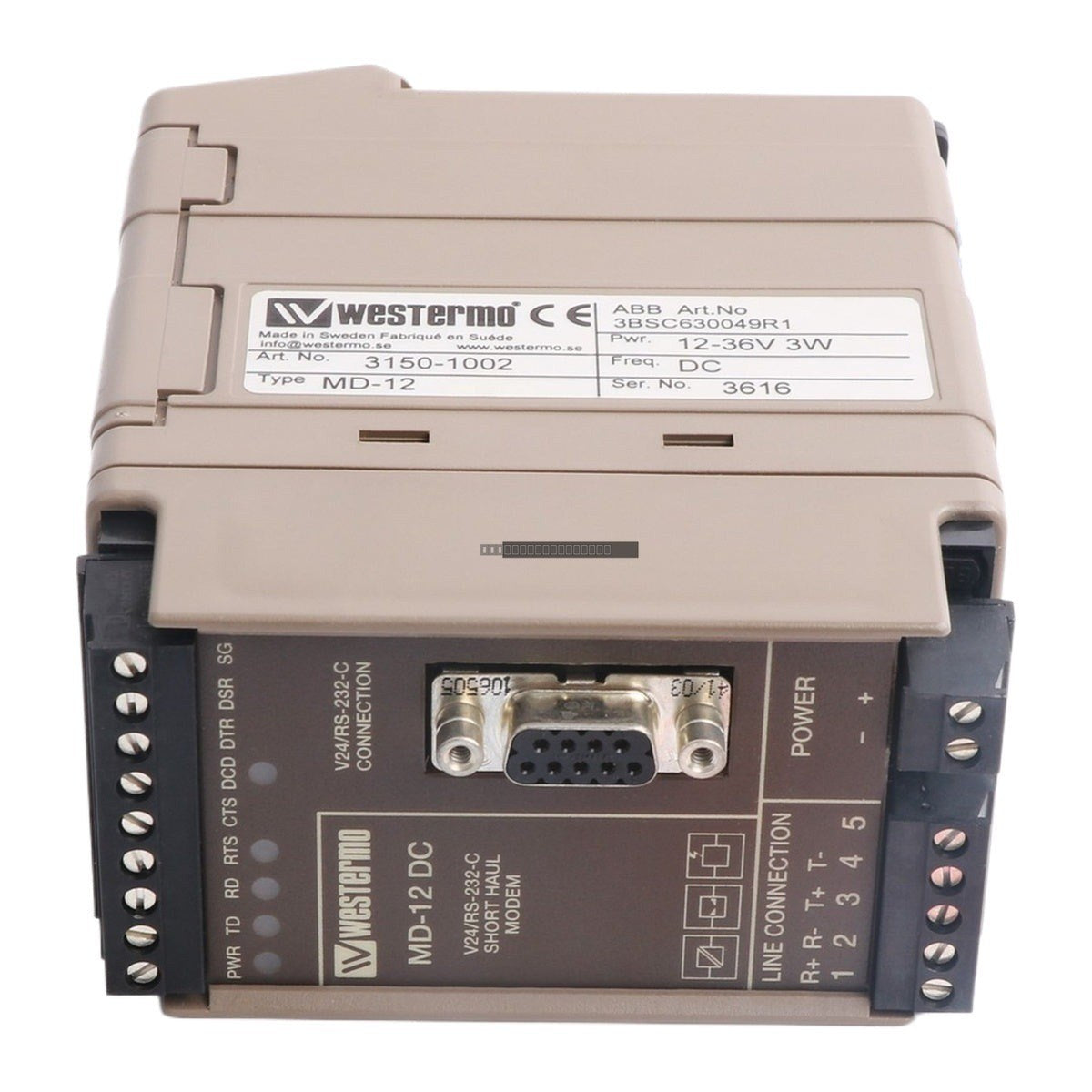

The ABB TC562 is a short-distance modem designed for integration within the Advant OCS and Advant 800xA control system environments. This module facilitates reliable data communication over short distances, supporting the connectivity requirements of distributed control architectures. It is identified by the order code 3BSC630049R1 and serves as a critical component for maintaining signal integrity in localized industrial network segments.

Features

• Designed for seamless compatibility with ABB Advant OCS and 800xA systems.
• Optimized for short-distance signal transmission and data exchange.
• Robust industrial design suitable for control room or cabinet-mounted environments.
• Direct replacement or spare for existing TC562 installations.

Applications

This modem is primarily utilized in industrial automation applications where short-range communication between controllers, I/O stations, or peripheral devices is required. It is commonly found in power generation, process manufacturing, and infrastructure control systems that utilize the Advant series architecture.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack or backplane.
• Verify that the module is correctly seated in the designated slot to ensure proper electrical contact with the system bus.
• Maintain proper grounding practices to protect against electromagnetic interference (EMI) and electrostatic discharge (ESD).
• Ensure adequate ventilation within the cabinet to prevent localized overheating, adhering to standard industrial clearance requirements.
• Route communication cables away from high-voltage power lines to minimize signal noise and potential interference.

FAQ

What is the primary function of the TC562?

The TC562 acts as a short-distance modem, enabling data communication between components within the ABB Advant OCS and 800xA control systems.

Is this module compatible with other systems?

The TC562 is specifically engineered for use within the ABB Advant OCS and 800xA product families. It is recommended to verify system compatibility via the specific hardware manual for your controller configuration.

What should I do if the modem fails to communicate?

First, check the physical seating of the module and ensure all cable connections are secure. Verify that the system diagnostics indicate the module is powered and recognized by the controller. If issues persist, consult the ABB Advant system error codes for specific troubleshooting steps.
