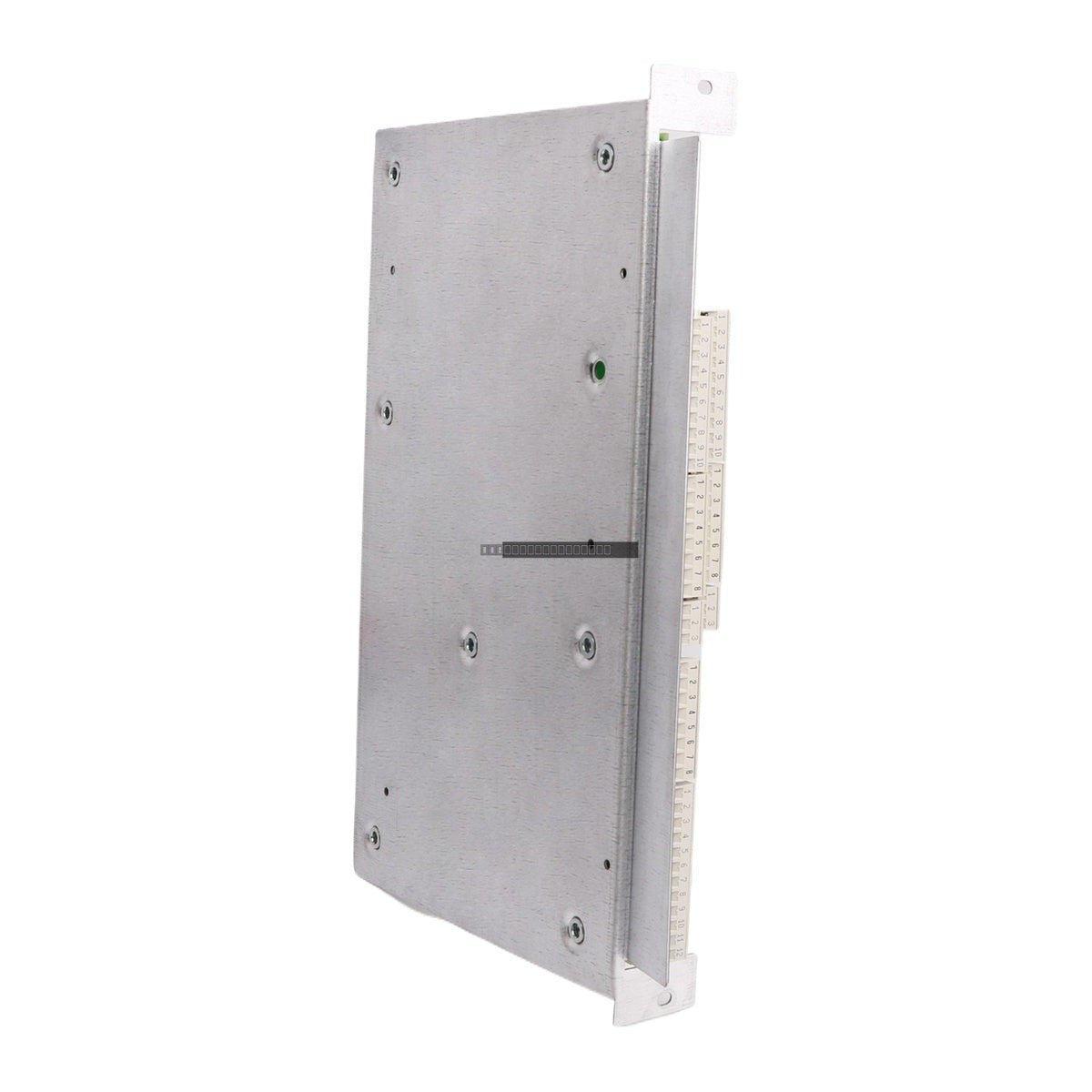

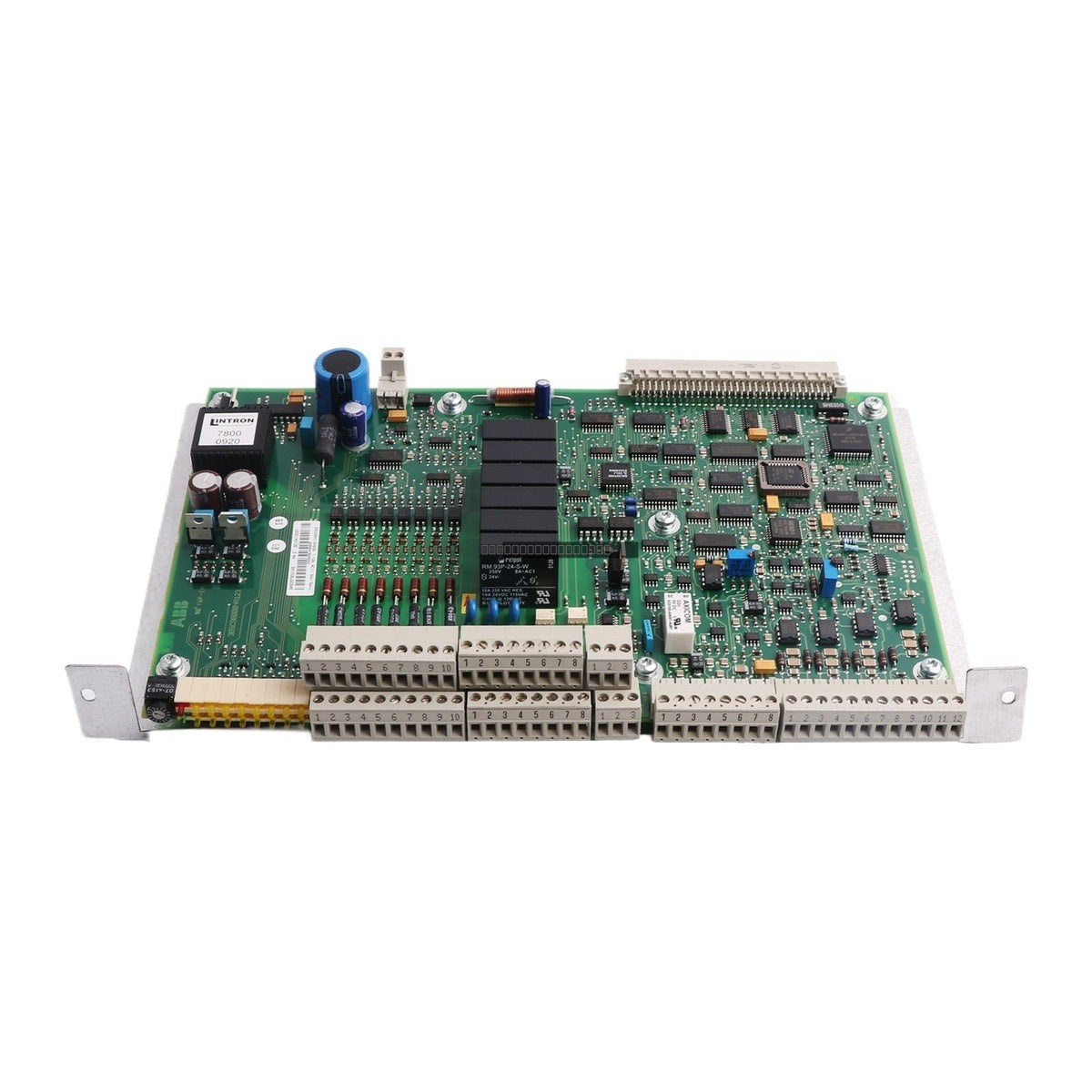

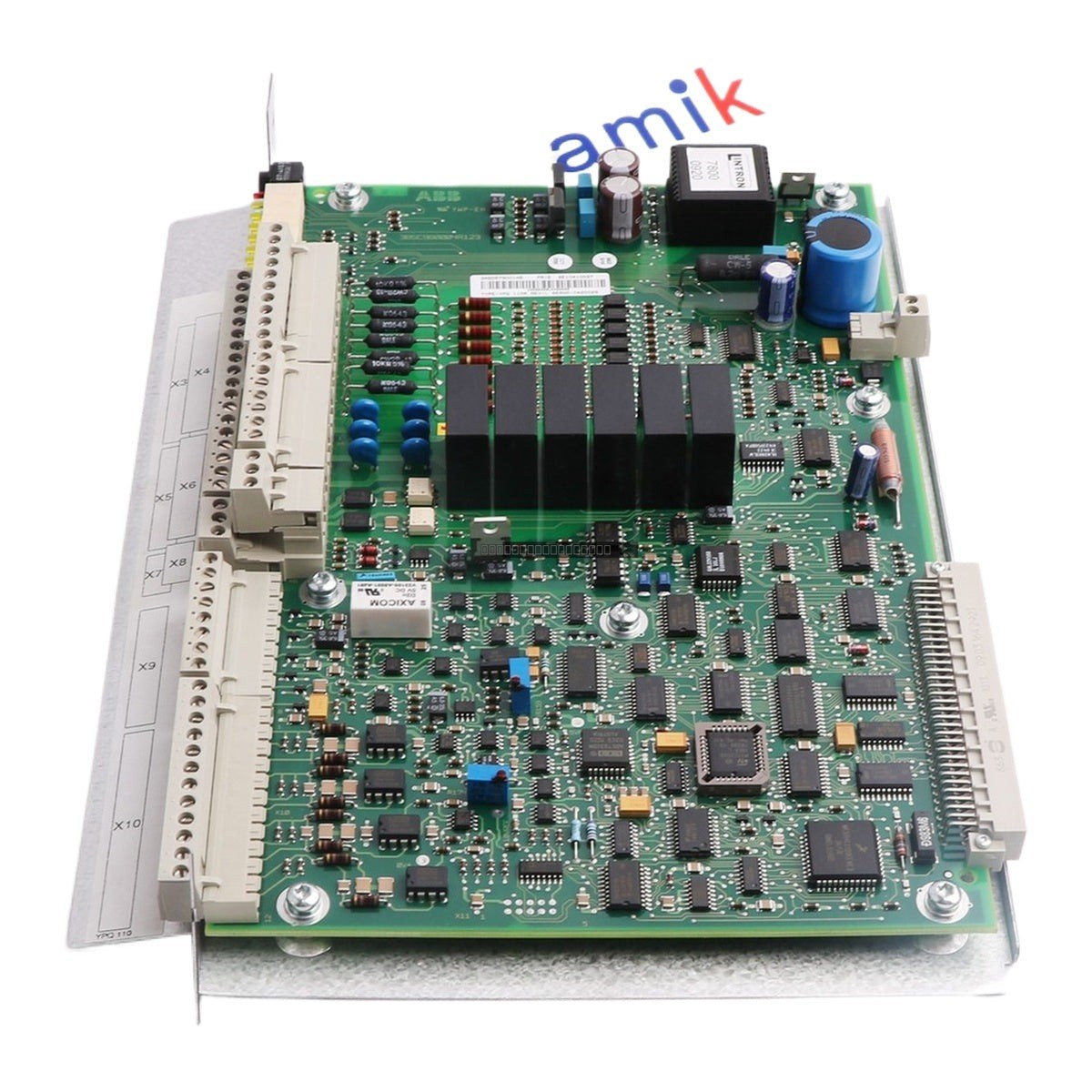

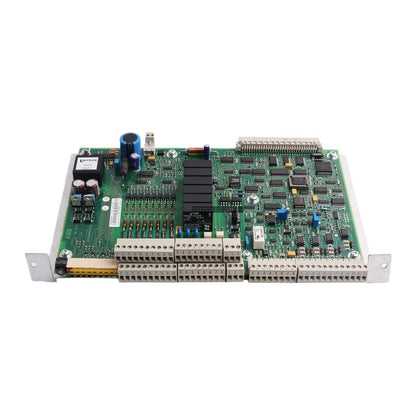

ABB YPQ110A 3ASD573001A5 Ulma I/O Module

ABB YPQ110A 3ASD573001A5 Ulma I/O Module

The ABB YPQ110A (3ASD573001A5) is a specialized Ulma I/O module designed for integration within the ABB Advant OCS and Advant-800xA control system environments. This module facilitates high-speed signal processing and...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: YPQ110A 3ASD573001A5
Vendor: ABB
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB YPQ110A (3ASD573001A5) is a specialized Ulma I/O module designed for integration within the ABB Advant OCS and Advant-800xA control system environments. This module facilitates high-speed signal processing and reliable communication between field devices and the controller via the ABB ModuleBus architecture.

Features

  • Designed for seamless integration with ABB Advant OCS and 800xA systems.
  • High-speed I/O update rates of 1 ms for both digital inputs and outputs.
  • Robust electrical isolation: 1500V AC between I/O and bus, and 300V AC channel-to-channel.
  • Low power consumption profile, typically ≤5W.
  • Versatile mounting options including standard TS35 DIN rail or panel mounting.

Technical Specifications

Model YPQ110A (3ASD573001A5)
Supply Voltage 24V DC
Power Consumption ≤5W (typical)
Bus Interface ABB ModuleBus
Isolation (I/O to Bus) 1500V AC
Isolation (Channel-to-Channel) 300V AC
Update Rate 1 ms (DI/DO)
Operating Temperature -25 degC to +60 degC (derate above 40 degC)
Humidity 5–95% RH (non-condensing)

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module to prevent electrical damage or system faults.
  • Mount the module on a standard TS35 DIN rail or secure it to a panel using the integrated mounting points.
  • Maintain adequate clearance around the module to ensure proper ventilation and cooling, especially when operating near the upper temperature limits.
  • Use shielded cabling for I/O connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the control cabinet to maintain signal integrity and safety compliance.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.

FAQ

What systems is the YPQ110A compatible with?

The YPQ110A is specifically engineered for use with ABB Advant OCS and Advant-800xA industrial control systems.

What is the required supply voltage for this module?

This module operates on a 24V DC power supply.

How should the module be mounted?

The unit is designed for flexible installation, supporting either standard TS35 DIN rail mounting or direct panel mounting.
