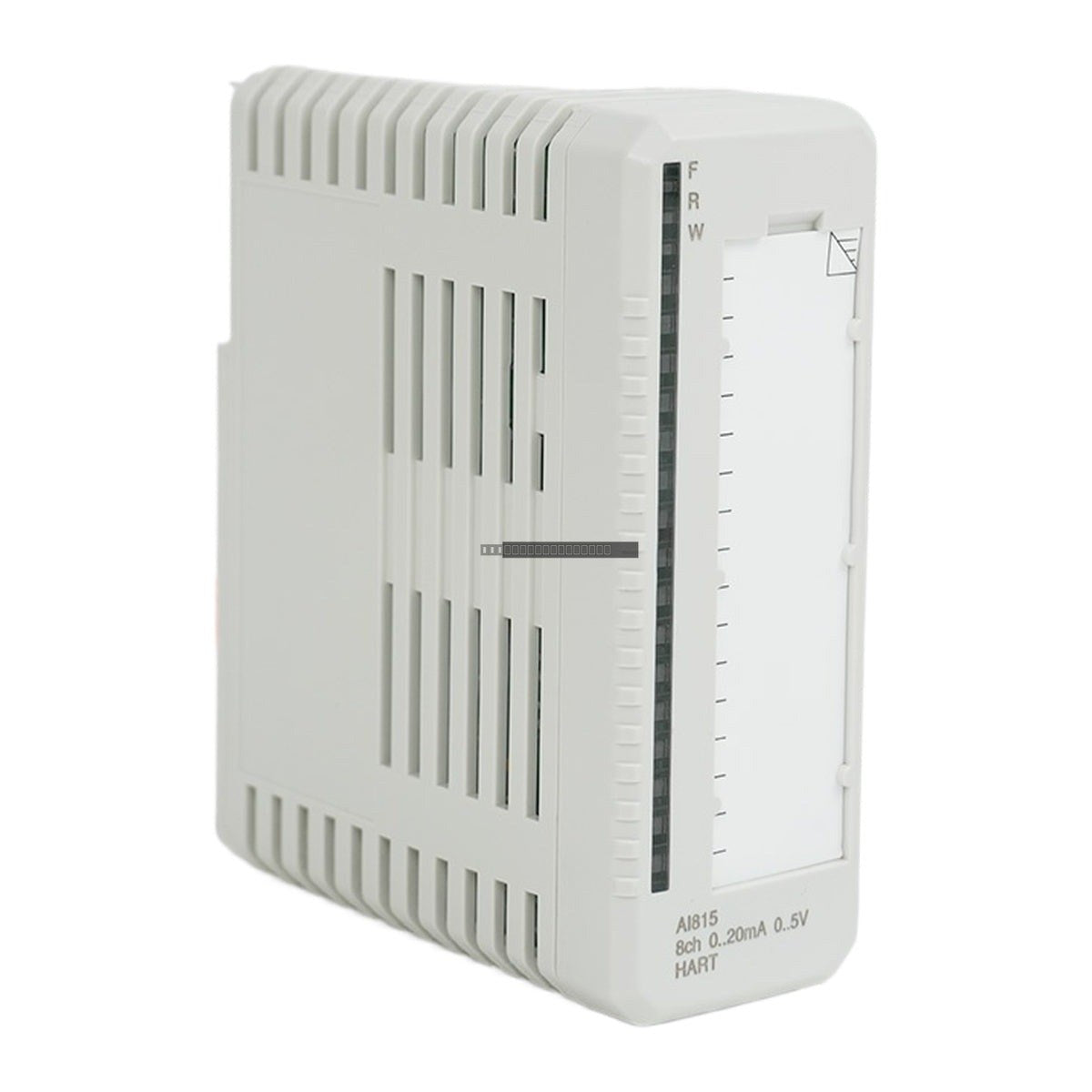

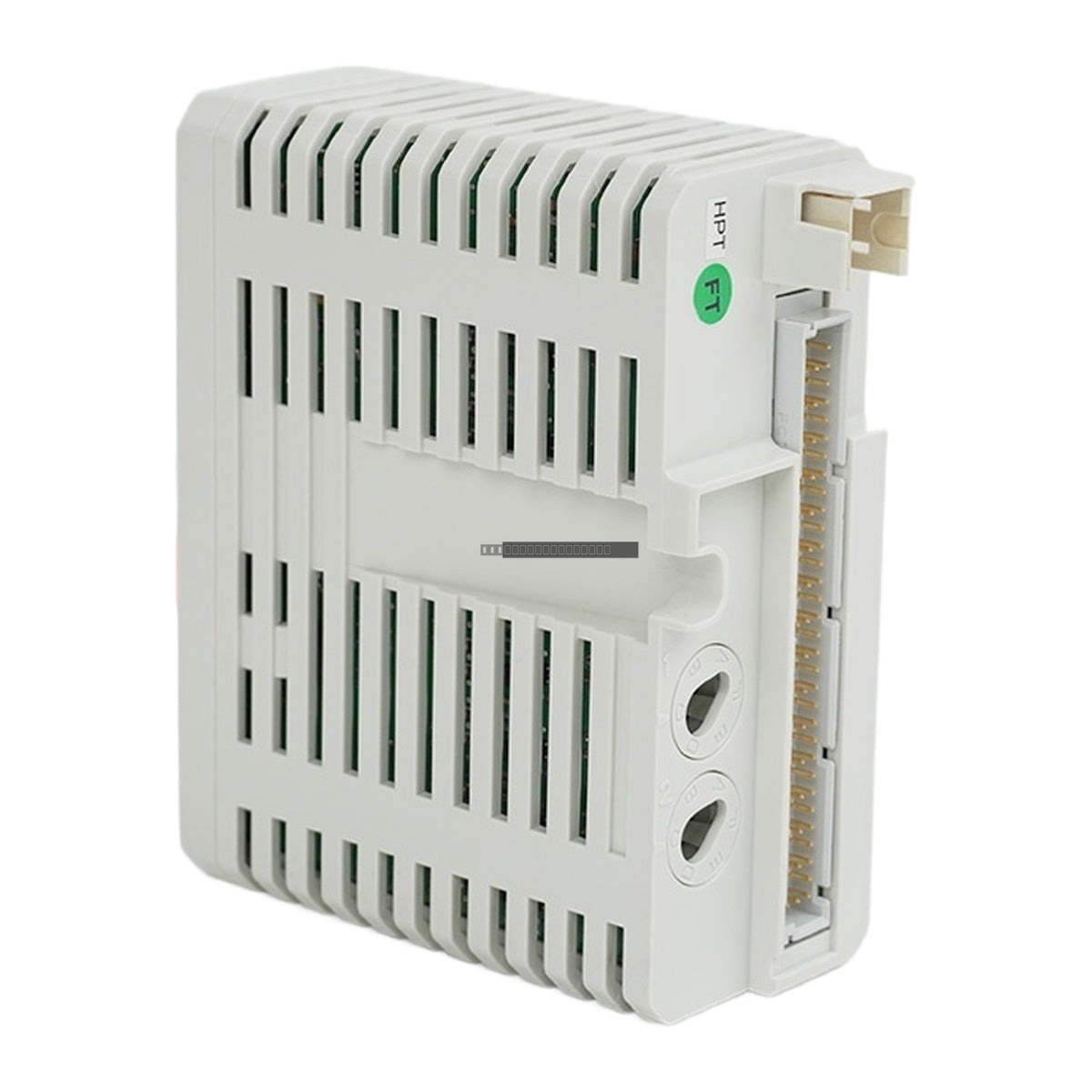

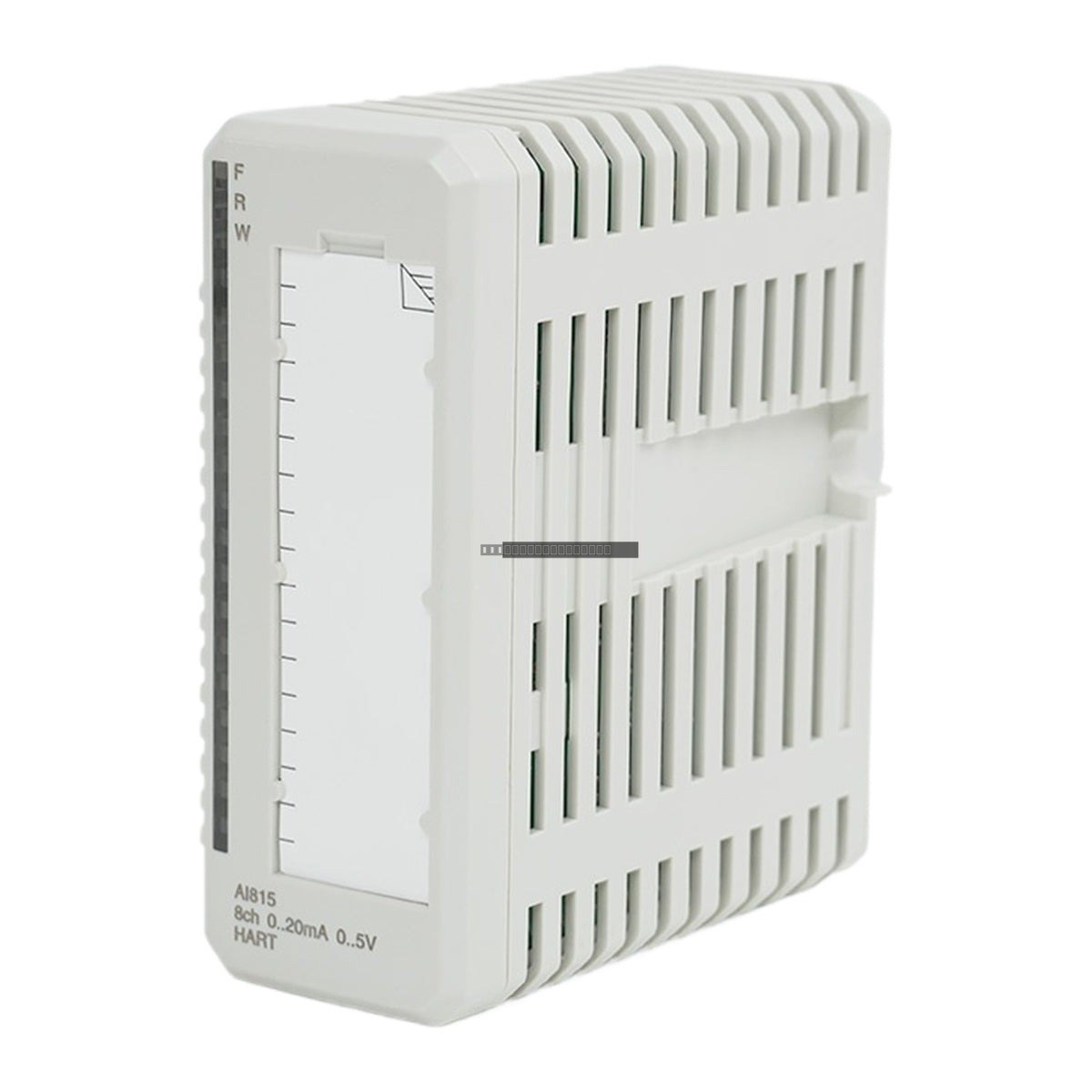

ABB AI815 3BSE052604R1 Analog Input Module

ABB AI815 3BSE052604R1 Analog Input Module

The ABB AI815 (3BSE052604R1) is an 8-channel analog input module designed for the S800 I/O system. This module is engineered to support HART (Highway Addressable Remote Transducer) pass-through communication, allowing...

17 people are viewing this right now

Availability: Low stock: 10 left

SKU: AI815 3BSE052604R1
Vendor: ABB
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB AI815 (3BSE052604R1) is an 8-channel analog input module designed for the S800 I/O system. This module is engineered to support HART (Highway Addressable Remote Transducer) pass-through communication, allowing for advanced diagnostics and configuration of field devices. It provides flexible input options, supporting current (0...20 mA, 4...20 mA) or voltage (0...5 V, 1...5 V) signals, though these signal types cannot be mixed on a single module.

Features

  • 8-channel analog input capacity with 12-bit resolution.
  • Supports HART pass-through communication for intelligent field device management.
  • Integrated current-limited transmitter supply for 2-wire or 3-wire field devices.
  • Groupwise isolation from ground to mitigate electrical noise and ground loops.
  • Robust input protection capable of withstanding overvoltage or undervoltage of at least 11 V DC.

Applications

  • Oil & Gas: Monitoring of wellheads and pipeline pumping stations.
  • Power Generation: Boiler control and steam turbine auxiliary systems.
  • Chemical & Pharmaceutical: Precision monitoring of reaction vessels and batch control.
  • Water & Wastewater: Pumping station management and aeration system control.

Technical Specifications

Model AI815
Order Code 3BSE052604R1
Channels 8
Resolution 12-bit
Input Signals 0...20 mA, 4...20 mA, 0...5 V, 1...5 V
Input Resistance (Voltage) > 10 M ohm
Input Resistance (Current) 250 ohm
Isolation Groupwise isolated from ground
Manufacturer ABB

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the Module Termination Unit (MTU).
  • Compatible with TU810, TU812, TU814, TU830, TU833, TU835, and TU838 MTUs.
  • Maintain proper grounding practices to ensure the effectiveness of the module's galvanic isolation.
  • Use shielded cabling for analog signals to minimize EMI in industrial environments.
  • Verify that external power supplies used for HART transmitters are HART-compatible.

FAQ

What is the primary function of the ABB AI815?

The AI815 is an S800 I/O analog input module used to interface field sensors with ABB control systems, supporting both standard analog signals and HART communication.

Can I mix voltage and current signals on this module?

No, the module must be configured for either voltage or current inputs; mixing signal types on the same module is not supported.

Does this module provide power to field transmitters?

Yes, it features a current-limited transmitter supply per channel, which simplifies the connection of 2-wire or 3-wire HART-compatible transmitters.
