ABB AO801 Analog Output Module 3BSE020514R1

ABB AO801 Analog Output Module 3BSE020514R1

Description

The ABB AO801 is an analog output module designed for the S800 I/O series. This module provides 8 channels of analog output, specifically configured for 20 mA current loops. It...

22 people are viewing this right now

Availability: Low stock: 9 left

SKU: AO801
Vendor: ABB
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

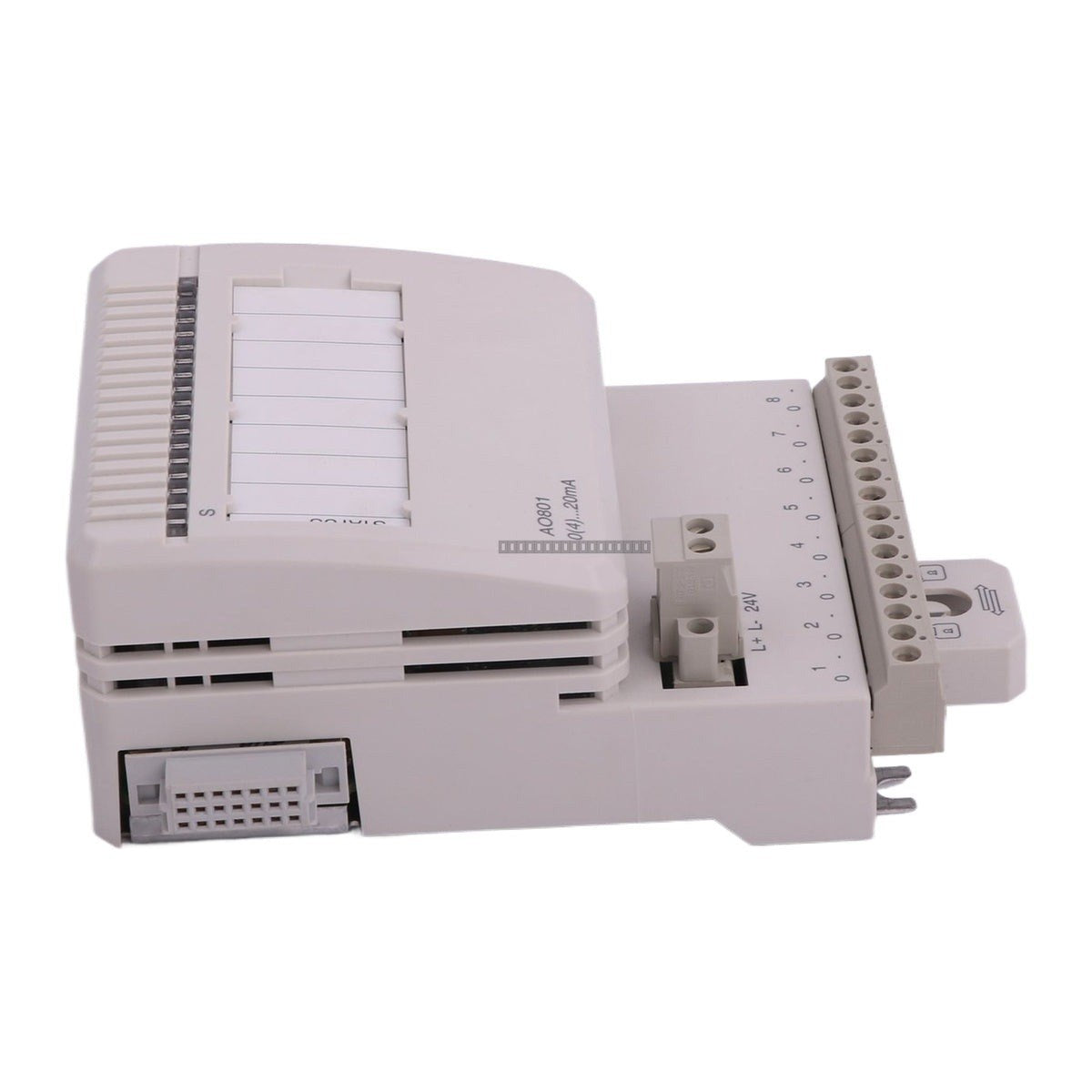

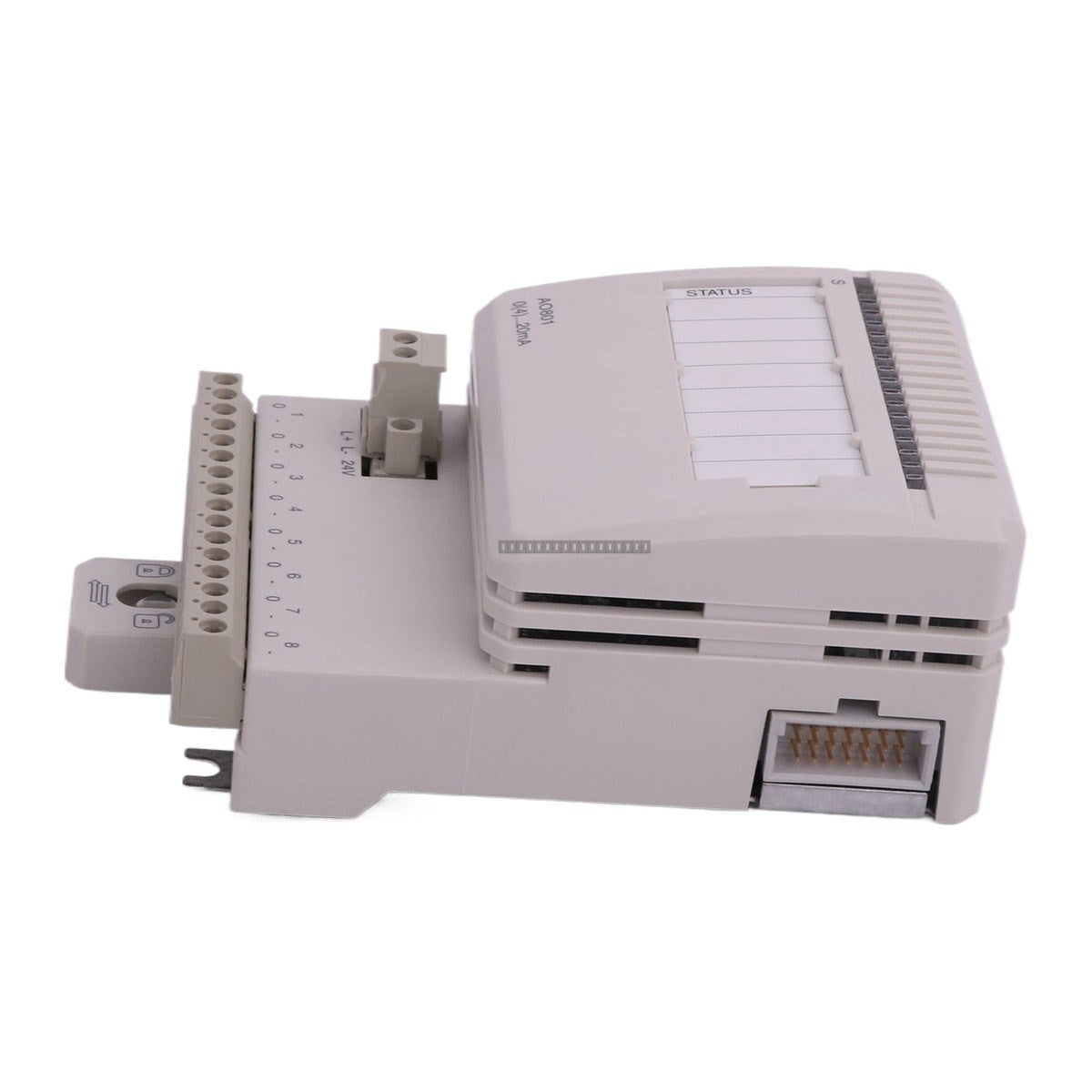

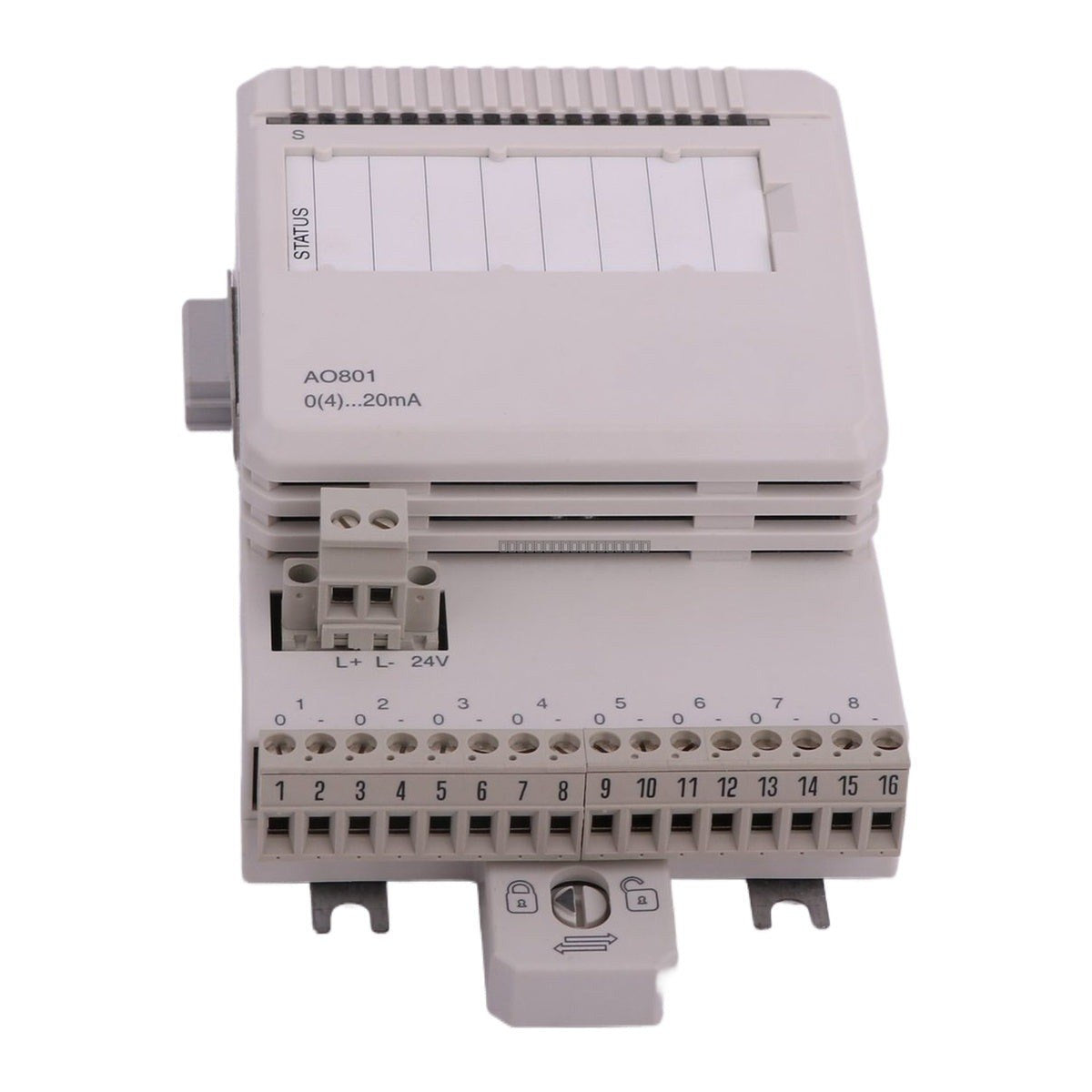

The ABB AO801 is an analog output module designed for the S800 I/O series. This module provides 8 channels of analog output, specifically configured for 20 mA current loops. It is a critical component for industrial control systems requiring precise analog signal transmission to field devices such as actuators, valves, and positioners.

Features

  • 8-channel analog output capability
  • Compatible with the ABB S800 I/O system architecture
  • Supports 20 mA current output signals
  • Robust design for industrial process automation environments
  • Identified by order code 3BSE020514R1

Applications

This module is typically utilized in distributed control systems (DCS) for process control applications, including chemical processing, power generation, and water treatment facilities where reliable analog signal output is required for process regulation.

Technical Specifications

Product Model AO801
Order Code 3BSE020514R1
Module Type Analog Output Module
Channel Count 8 Channels
Output Range 20 mA
Manufacturer ABB

Installation Guidelines

  • Ensure the power is disconnected from the S800 I/O rack before inserting or removing the module to prevent electrical damage.
  • Verify that the module is correctly seated in the mounting base to ensure proper backplane communication.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and signal noise.
  • Maintain adequate ventilation within the control cabinet to ensure the module operates within its specified temperature range.
  • Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.

FAQ

What is the primary function of the ABB AO801?

The AO801 is an analog output module used to convert digital control signals from the PLC or DCS into 20 mA analog signals to drive field instruments.

Is this module compatible with other S800 I/O components?

Yes, the AO801 is designed specifically for integration within the ABB S800 I/O system family.
