ABB DI830 3BSE013210R1 Digital Input SOE Module

ABB DI830 3BSE013210R1 Digital Input SOE Module

Description

The ABB DI830 (3BSE013210R1) is a 16-channel digital input module designed for the S800 I/O system. This module is specifically engineered for Sequence of Events (SOE) recording, providing high-precision time-stamping...

21 people are viewing this right now

Availability: Low stock: 7 left

SKU: DI830 3BSE013210R1
Vendor: ABB
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

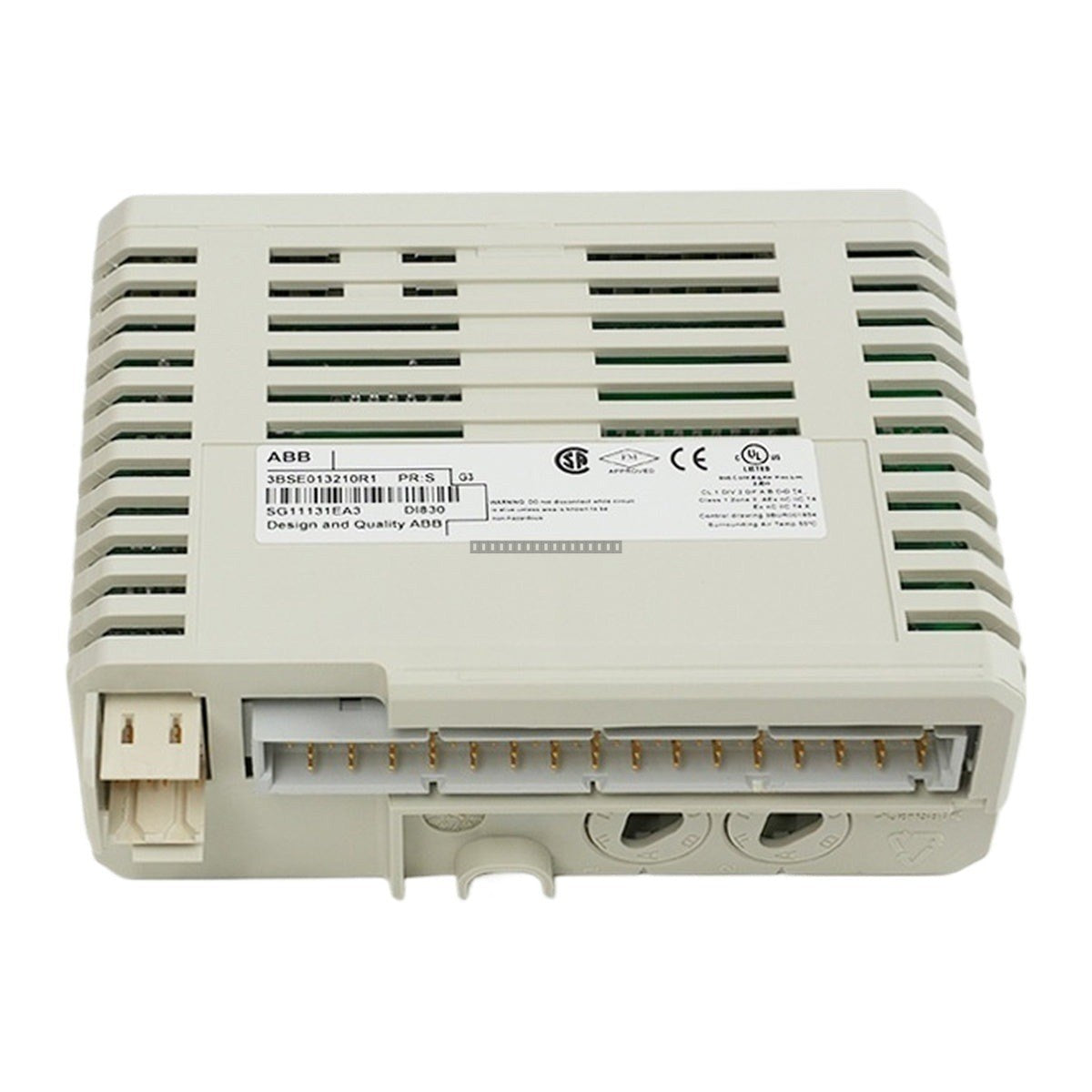

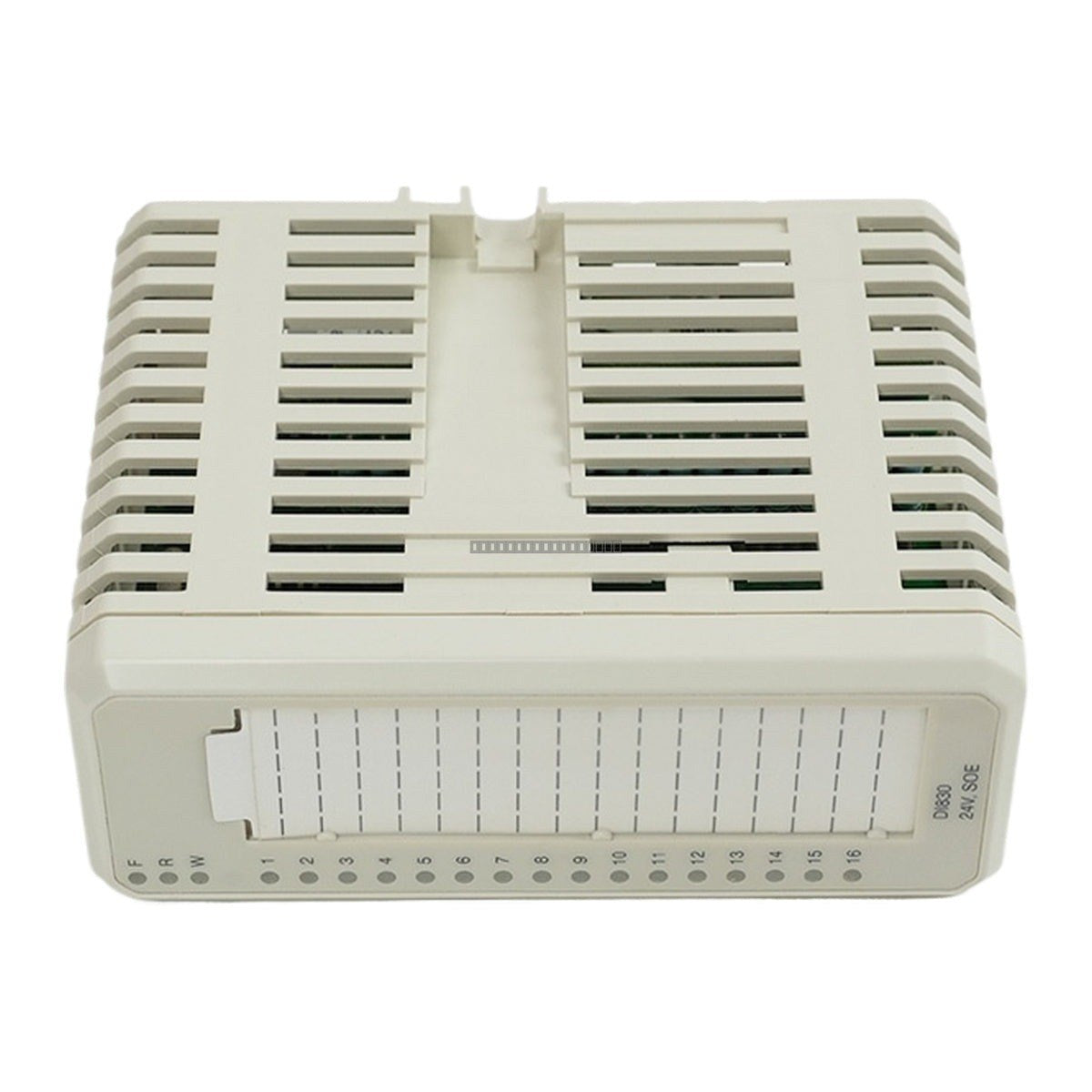

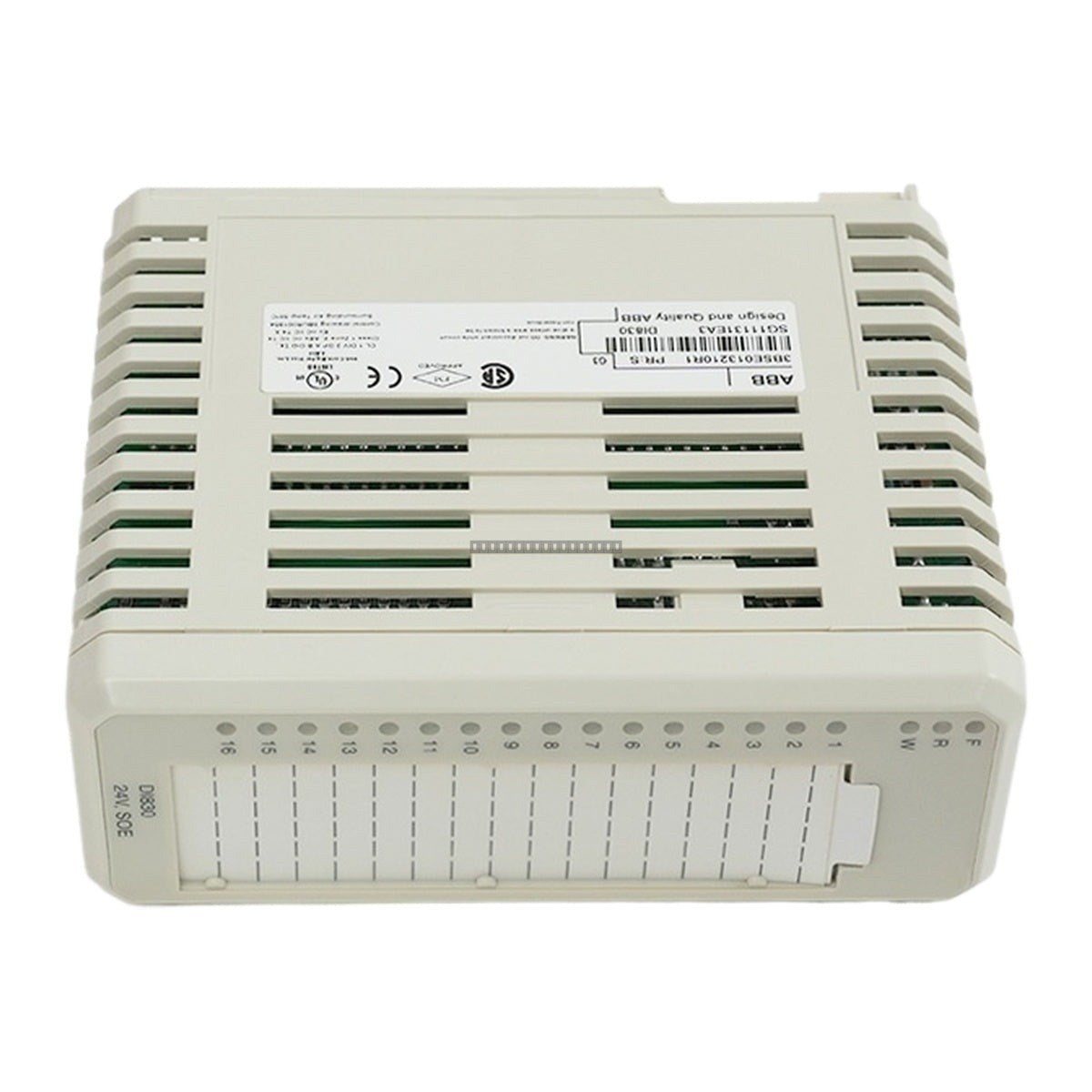

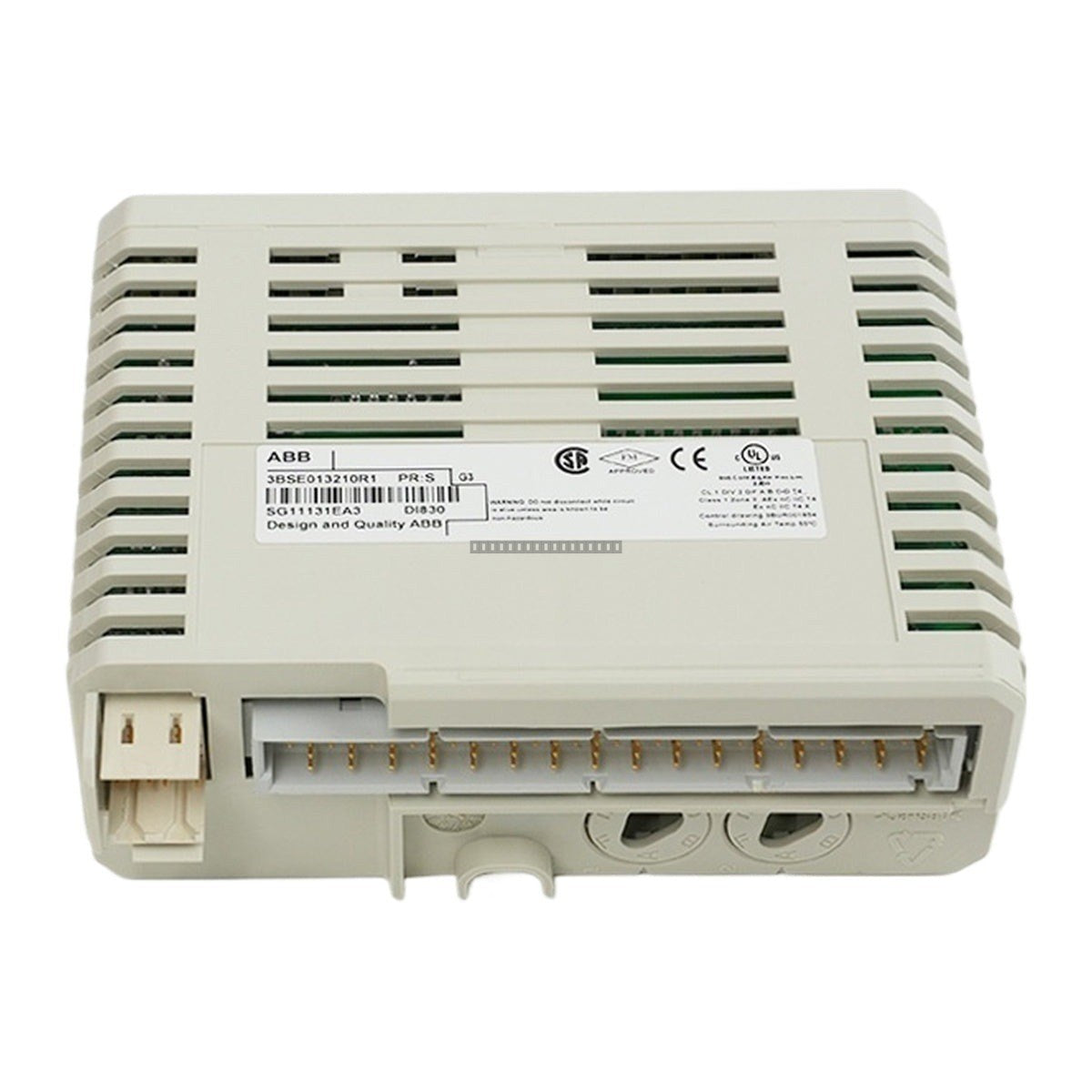

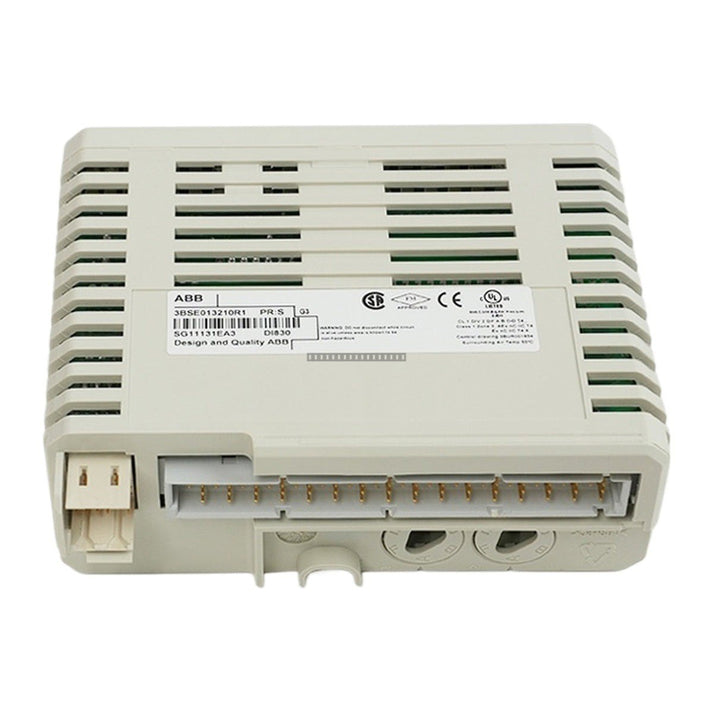

The ABB DI830 (3BSE013210R1) is a 16-channel digital input module designed for the S800 I/O system. This module is specifically engineered for Sequence of Events (SOE) recording, providing high-precision time-stamping for digital input signals. It supports 24 V DC current sinking inputs and is suitable for demanding industrial automation applications requiring accurate event monitoring.

Features

  • 16 digital input channels.
  • Current sinking input configuration.
  • High-precision event recording with 0.4 ms resolution.
  • Adjustable filter times from 0 to 100 ms.
  • Supports field cable lengths up to 600 meters.
  • Integrated SOE functionality for precise sequence analysis.

Technical Specifications

Model DI830 (3BSE013210R1)
Input Voltage (Rated) 24 V DC
Input Voltage Range (Off) -30 to +5 V
Input Voltage Range (On) 13 to 30 V
Input Impedance 3.2 kOhm
Number of Channels 16
Event Recording Resolution 0.4 ms
Event Recording Accuracy -0.3 ms to +0.7 ms
Rated Insulation Voltage 50 V
Dielectric Test Voltage 500 V AC

Installation Guidelines

  • Ensure the S800 I/O station is powered down before installing or removing the module from the mounting base.
  • The module is designed for mounting on an S800 I/O DIN-rail base. Ensure secure mechanical seating to maintain electrical connection.
  • Use shielded cables for field wiring to minimize electromagnetic interference (EMI), especially when utilizing the maximum cable length of 600 meters.
  • Maintain proper grounding practices for the S800 I/O system to ensure signal integrity and protection against surges.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the module electronics.

FAQ

What is the primary function of the DI830 module?

The DI830 is a digital input module for the ABB S800 I/O system, specifically designed to handle Sequence of Events (SOE) recording, which allows for the precise time-stamping of input state changes.

What is the maximum field cable length for this module?

The DI830 supports a maximum field cable length of 600 meters (approximately 656 yards).

Does this module require external power for the inputs?

The DI830 operates with a 24 V DC signal level. Ensure the field power supply is compatible with the specified input voltage ranges (13 to 30 V for the 'On' state).
