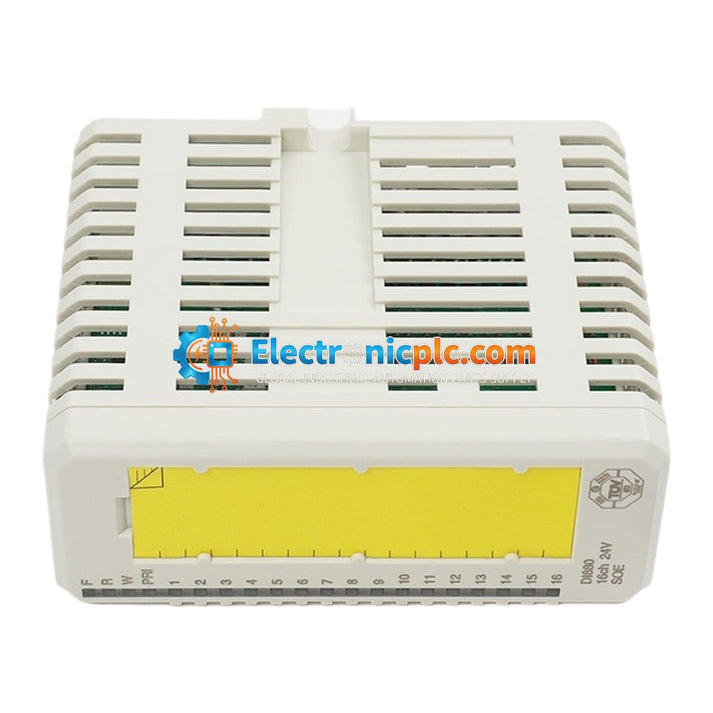

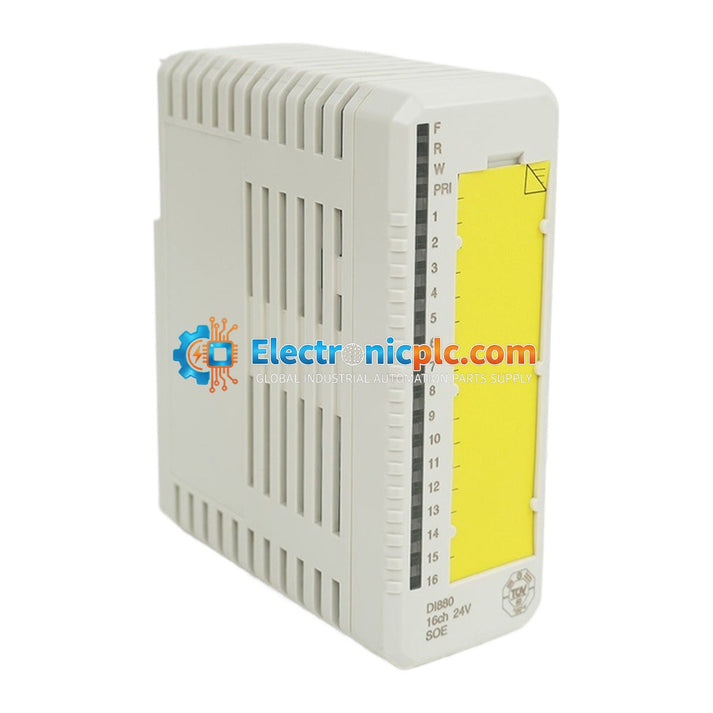

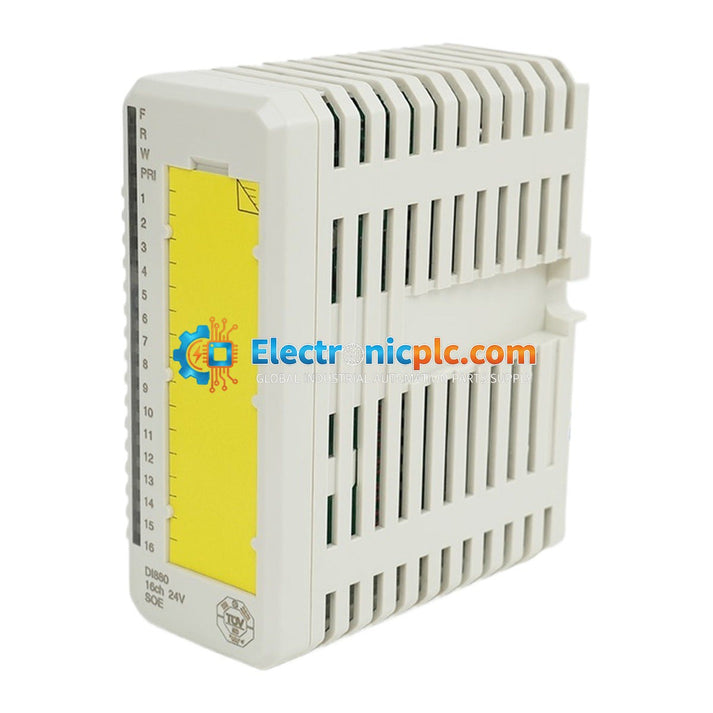

ABB DI880 3BSE028586R1 Digital Input Module

ABB DI880 3BSE028586R1 Digital Input Module

Description

The ABB DI880 (3BSE028586R1) is a 16-channel, 24 V d.c. digital input module designed for the S800 I/O system. It supports both single and redundant configurations, making it suitable for...

24 people are viewing this right now

Availability: Low stock: 9 left

SKU: DI880 3BSE028586R1
Vendor: ABB
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB DI880 (3BSE028586R1) is a 16-channel, 24 V d.c. digital input module designed for the S800 I/O system. It supports both single and redundant configurations, making it suitable for high-availability industrial control applications. Each input channel is equipped with current limiting, EMC protection, status indication LEDs, and optical isolation to ensure robust signal processing. The module also features advanced Sequence of Events (SOE) recording capabilities with 1 ms resolution, allowing for precise diagnostics and event tracking in critical systems.

Features

  • 16 channels for 24 V d.c. inputs with current sinking.
  • Supports single or redundant system configurations.
  • 1 group of 16 channels isolated from ground.
  • Integrated Sequence of Events (SOE) function with 1 ms resolution.
  • Current-limited transducer power supply provided per input channel.
  • Advanced on-board diagnostics and input status LEDs.
  • Supports hot-swapping for maintenance without system downtime.

Applications

  • Safety Instrumented Systems (SIS): Primary input for ESD and F&G applications.
  • Oil & Gas: Monitoring of critical valves, pressure switches, and level sensors.
  • Power Generation: Turbine control and distribution protection.
  • Chemical & Petrochemical: Management of high-risk reactor inputs.
  • Marine & Offshore: Certified for harsh maritime environments.

Technical Specifications

Product Model DI880 3BSE028586R1
Number of Channels 16
Signal Specification 24 V d.c.
Input Voltage Range 18 to 30 V d.c.
Input Impedance 3.1 kΩ
Filter Times (Selectable) 0 to 127 ms
SOE Resolution 1 ms
Power Dissipation 2.4 W
Rated Insulation Voltage 50 V

Installation Guidelines

  • The DI880 must be installed with a compatible Module Termination Unit (MTU) such as the TU810, TU842, or TU843.
  • Mounting: Designed for horizontal or vertical DIN-rail installation. Ensure the locking mechanism is fully engaged for mechanical stability and proper electrical grounding.
  • Mechanical Keying: The module utilizes a keying code of FF to prevent incorrect module insertion into the MTU.
  • Handling: Use standard ESD precautions when handling the module.
  • Hot Swapping: The module supports hot-swapping; however, always refer to the specific S800 I/O system manual for safety procedures before removal or insertion under power.

Compliance and Certifications

The DI880 complies with EN50178, EN61131-2, and UL508 industrial standards. It is certified for use in SIL3 high-integrity applications.

FAQs

Does the DI880 3BSE028586R1 support event logging?

Yes, the DI880 features Sequence of Events (SOE) functionality, collecting logical events with a resolution of 1 millisecond and a queue capacity of up to 512 x 16 events.

What is the voltage hold-up time?

In the event of a mains blackout, the secondary output of the DI880 has a voltage hold-up time of approximately 46–47 ms.

Is the module compatible with redundant systems?

Yes, the DI880 is designed to support both single and redundant configurations to meet high-availability requirements.
