ABB SD822 3BSC610038R1 Power Supply Module

ABB SD822 3BSC610038R1 Power Supply Module

Description

The ABB SD822 (Order Code: 3BSC610038R1) is a high-performance, space-saving power supply module designed specifically for the ABB AC 800M and S800 I/O product lines. This unit provides reliable 24V...

18 people are viewing this right now

Availability: Low stock: 6 left

SKU: SD822 3BSC610038R1
Vendor: ABB
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

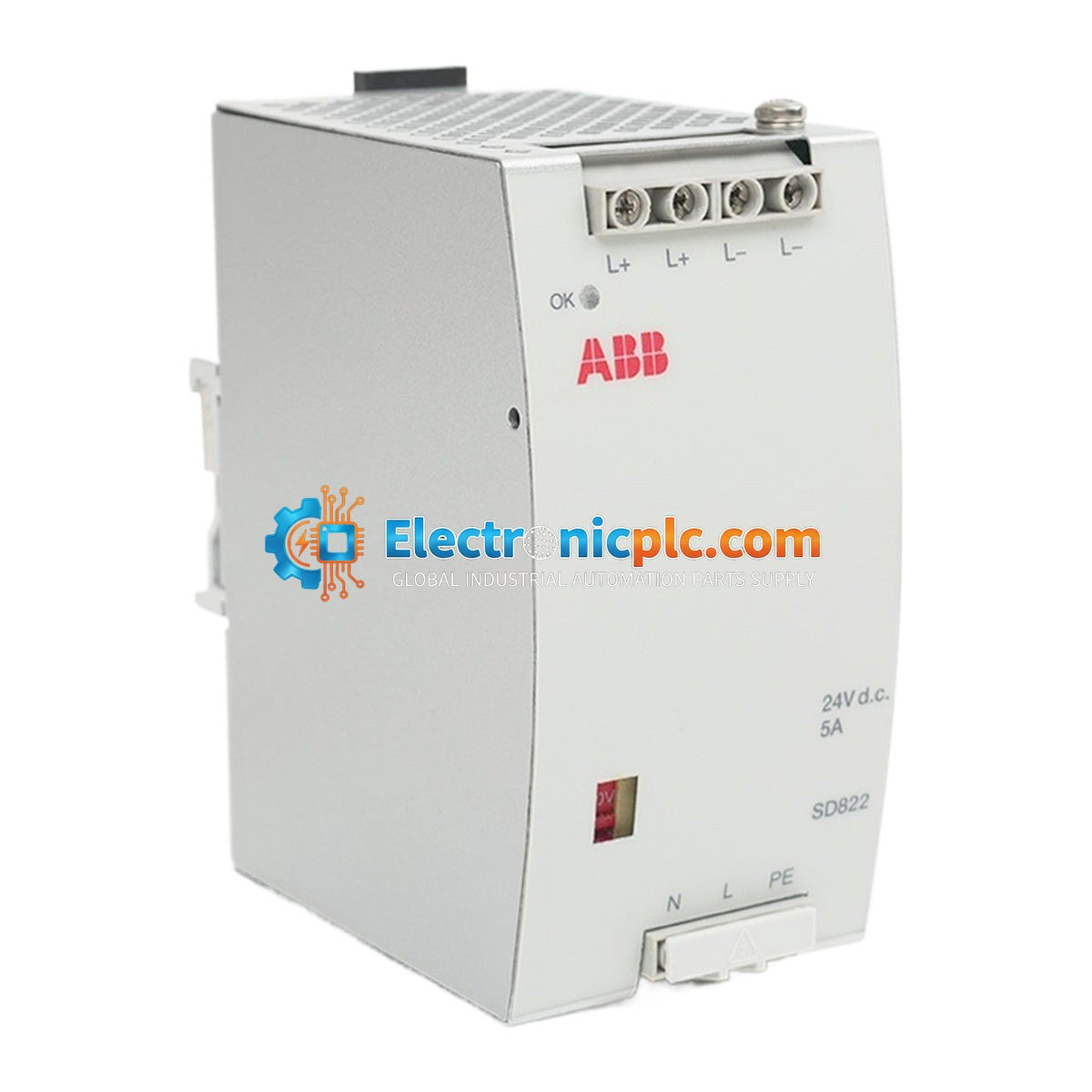

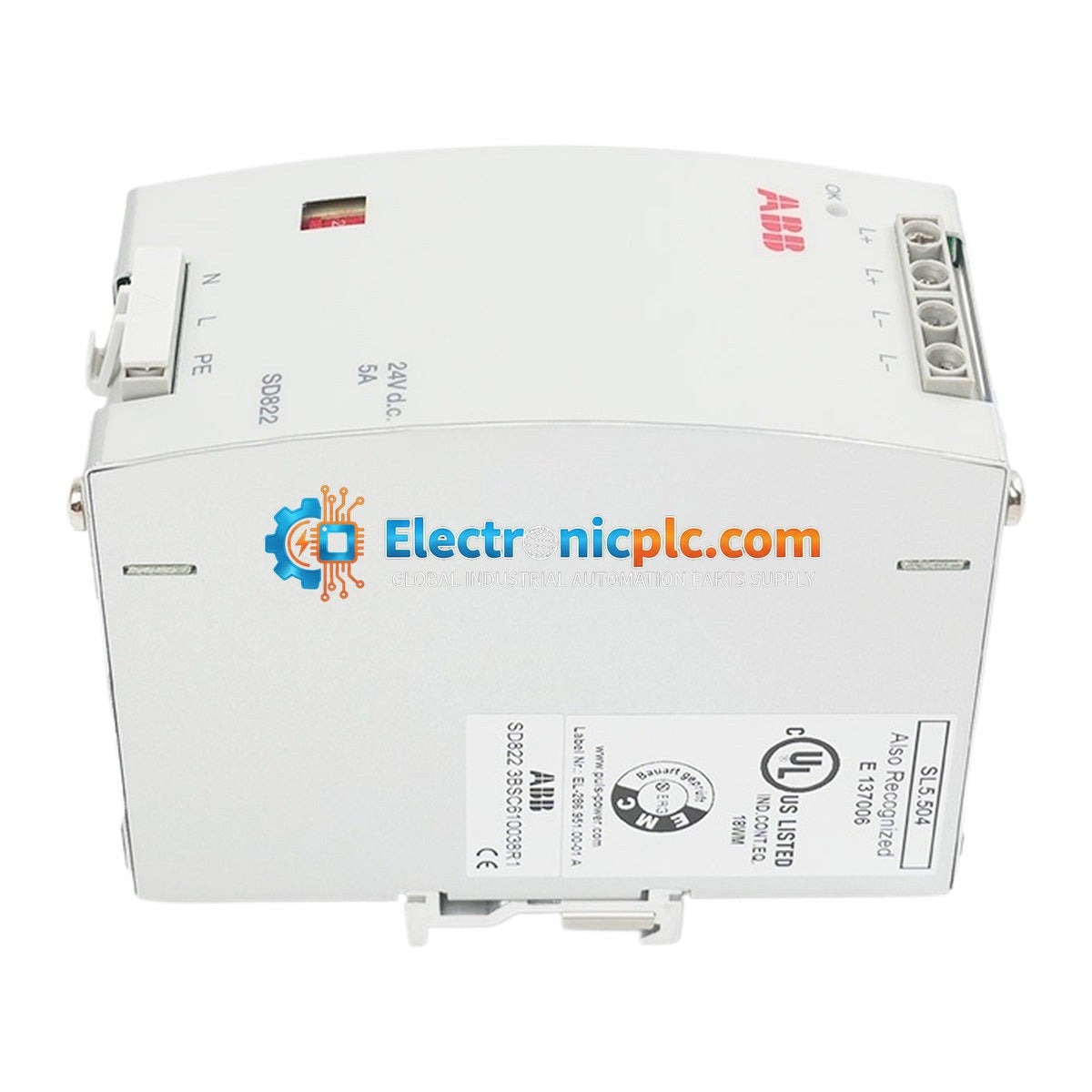

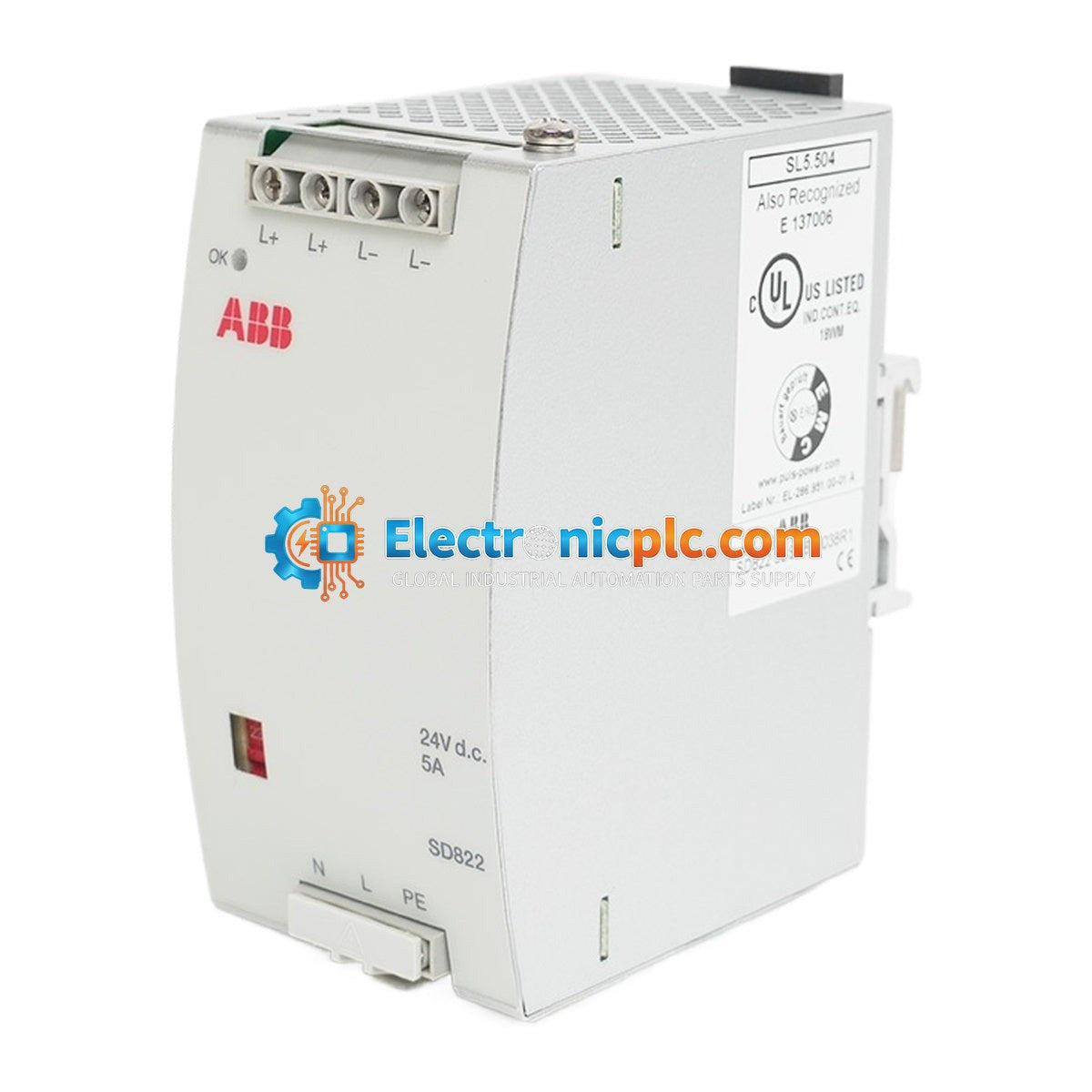

The ABB SD822 (Order Code: 3BSC610038R1) is a high-performance, space-saving power supply module designed specifically for the ABB AC 800M and S800 I/O product lines. This unit provides reliable 24V DC output power for controllers, sensors, and actuators in industrial automation and process control environments. It is engineered for demanding applications, including those requiring IEC 61508-SIL2 and SIL3 rated solutions.

Features

  • Compact design optimized for DIN-rail mounting.
  • Class I equipment (requires Protective Earth connection).
  • Provides protective separation between primary and secondary circuits.
  • Suitable for SELV and PELV applications.
  • Integrated protection against over-current (current limiting) and over-voltage (OVP).
  • Supports redundant power configurations when paired with an SS822 voting unit.

Applications

  • Factory Automation: Powering PLC systems, controllers, and field instrumentation.
  • Process Control: Ensuring stable, regulated power for DCS (Distributed Control Systems).
  • Building Automation: Supporting HVAC, lighting, and security control infrastructure.
  • Machine Control & Robotics: Providing stable 24V DC power to mechanical control systems.

Technical Specifications

Product Model SD822 (3BSC610038R1)
Input Voltage 100 – 120 V AC / 230 V AC (Selectable)
Power Consumption 150 VA typical
Operating Temperature 0 to +50 degC
Storage Temperature -40 to +70 degC
Humidity 5 – 95 % RH (non-condensing)
Weight 0.6 kg

Installation Guidelines

  • Voltage Selection: Before installation, verify the input voltage switch on the device surface. The unit is factory-set to 230V AC; adjust to 115V AC if required by your local power grid.
  • Mounting: Designed for standard DIN-rail mounting. Ensure adequate clearance around the unit for heat dissipation.
  • Grounding: As Class I equipment, the module must be connected to a reliable Protective Earth (PE) terminal to ensure safety and EMI compliance.
  • Redundancy: For applications requiring power redundancy, the SD822 must be integrated with an appropriate SS822 voting unit.
  • Handling: Always power down the system before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
