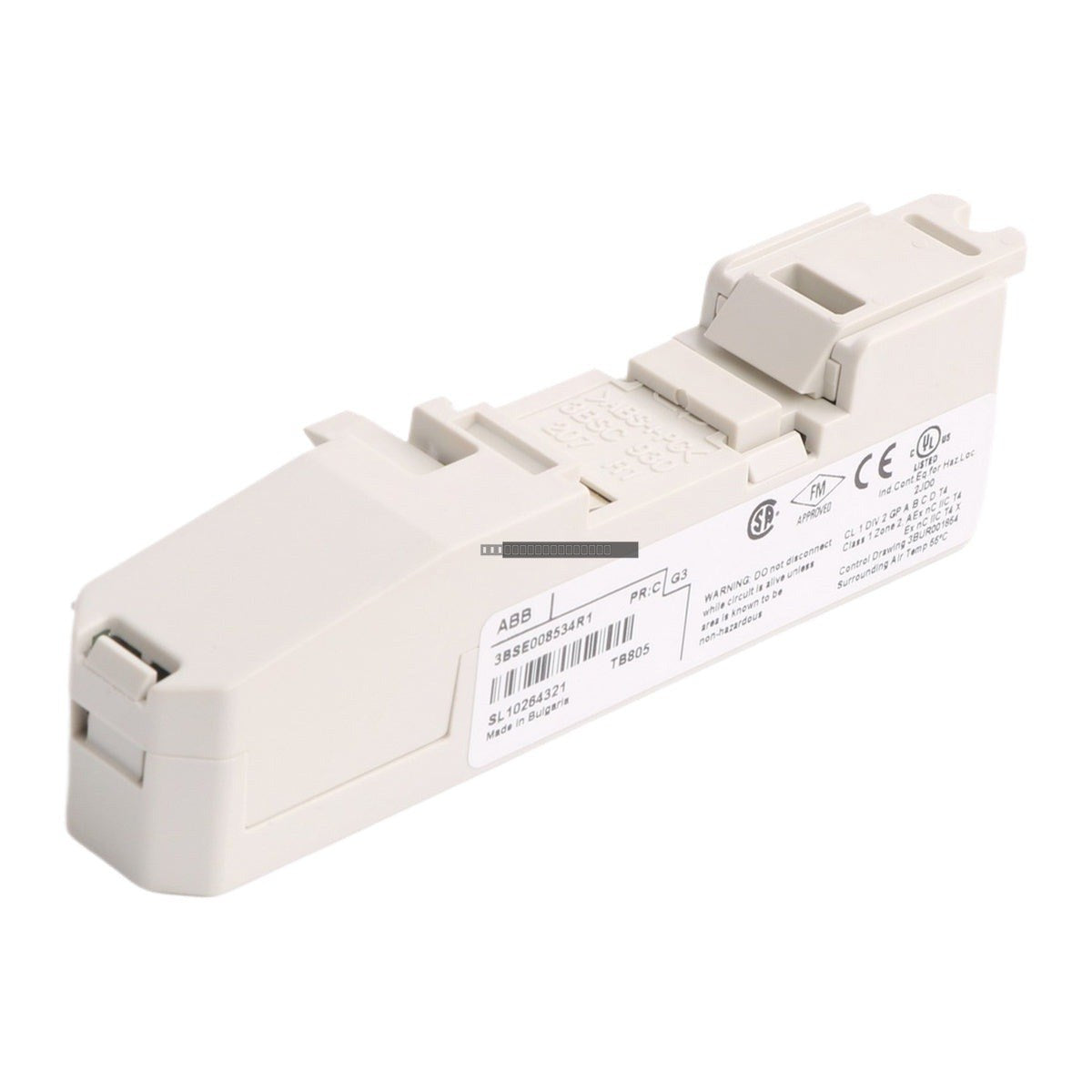

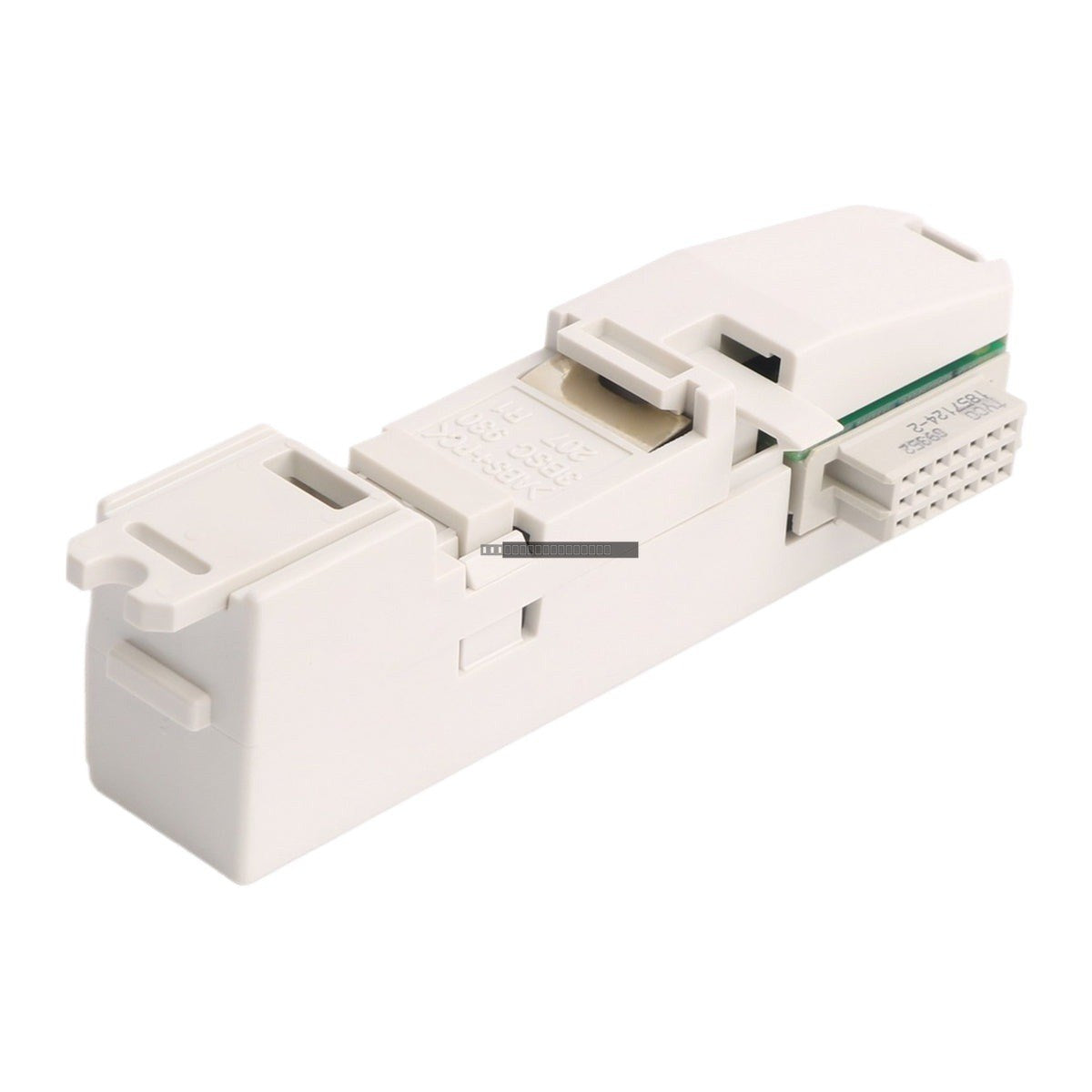

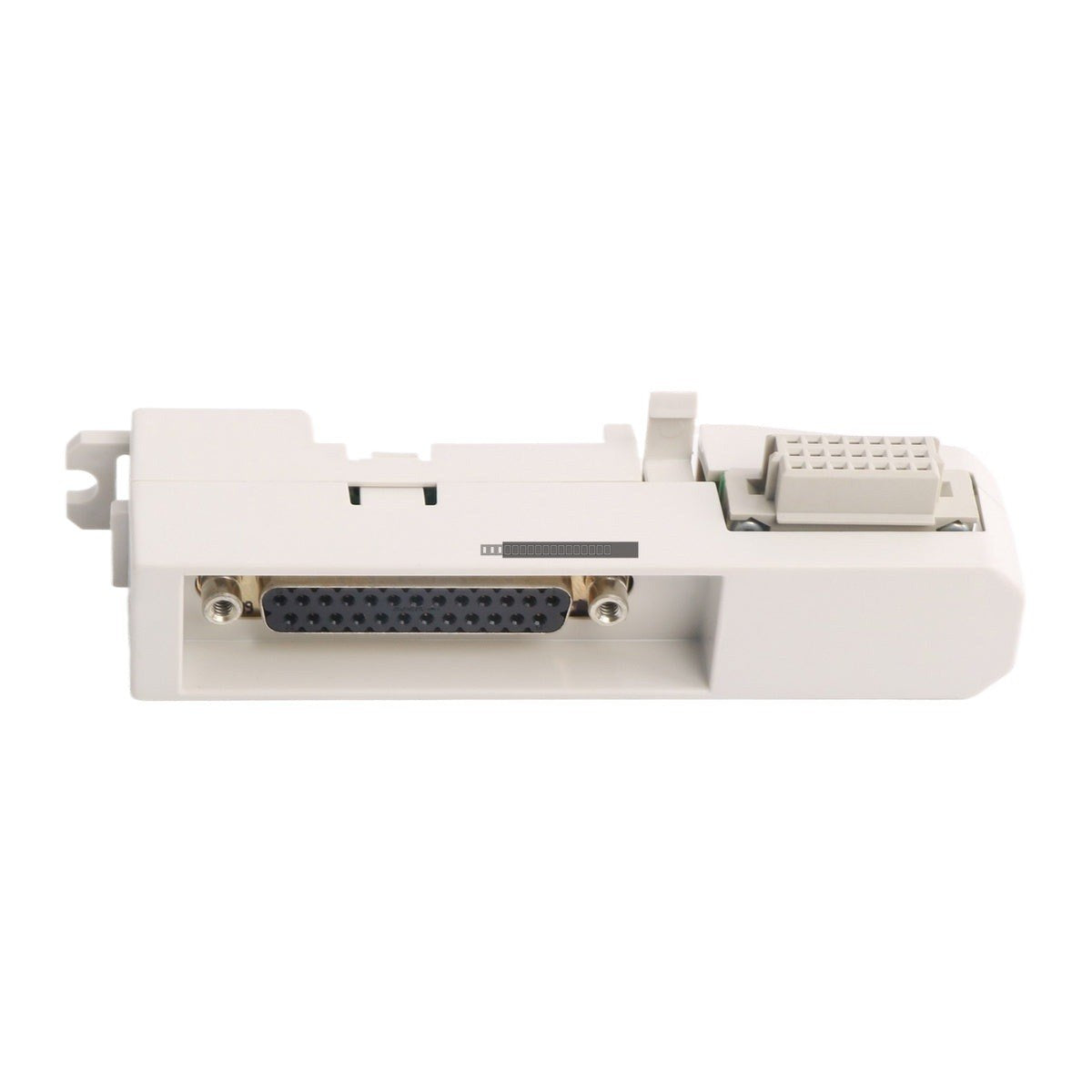

ABB TB805 Bus Outlet Module 3BSE008534R1

ABB TB805 Bus Outlet Module 3BSE008534R1

Description

The ABB TB805 is a bus outlet module designed for the S800 I/O system. This component functions as a bus extension adapter (female), facilitating reliable communication and connectivity within the...

26 people are viewing this right now

Availability: Low stock: 3 left

SKU: TB805
Vendor: ABB
Category: Bus Extension Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB TB805 is a bus outlet module designed for the S800 I/O system. This component functions as a bus extension adapter (female), facilitating reliable communication and connectivity within the distributed I/O architecture. It is engineered to maintain signal integrity in industrial control environments where modular expansion is required.

Features

  • Designed specifically for ABB S800 I/O series integration.
  • Functions as a bus extension adapter (female interface).
  • Compact form factor for efficient cabinet space utilization.
  • Robust construction suitable for demanding industrial automation environments.

Applications

The TB805 is typically utilized in process automation systems where S800 I/O modules are deployed. It is commonly found in power generation, water treatment, and chemical processing facilities that rely on the ABB Advant or 800xA control platforms for distributed I/O management.

Technical Specifications

Product Model TB805
Order Code / Spare Model 3BSE008534R1
Manufacturer ABB
Function Bus Outlet / Bus Extension Adapter
Connector Type Female
Weight 0.04 kg

Installation Guidelines

  • Ensure the control system is powered down before installing or removing any bus interface modules to prevent electrical damage.
  • Verify that the bus cable connectors are clean and free of debris before mating with the TB805 female interface.
  • Ensure the module is securely seated in the designated I/O rack position to maintain proper electrical contact.
  • Maintain proper grounding practices within the control cabinet to minimize EMI/RFI interference with bus communications.
  • Handle with care to avoid bending pins or damaging the housing during installation.

FAQ

What is the primary function of the TB805?
The TB805 serves as a bus outlet module and extension adapter for the ABB S800 I/O system, allowing for the physical extension of the I/O bus.

Is this module compatible with all S800 I/O systems?
The TB805 is designed for the S800 I/O series. Please verify your specific system configuration and part number (3BSE008534R1) against your existing hardware documentation to ensure compatibility.
