ABB AI801 3BSE020512R1 Analog Input Module

ABB AI801 3BSE020512R1 Analog Input Module

Description

The ABB AI801 (3BSE020512R1) is an S800 I/O series analog input module designed for high-precision process data acquisition. This module provides 8 channels for monitoring current signals, ensuring reliable performance...

22 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3BSE020512R1
Vendor: ABB
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

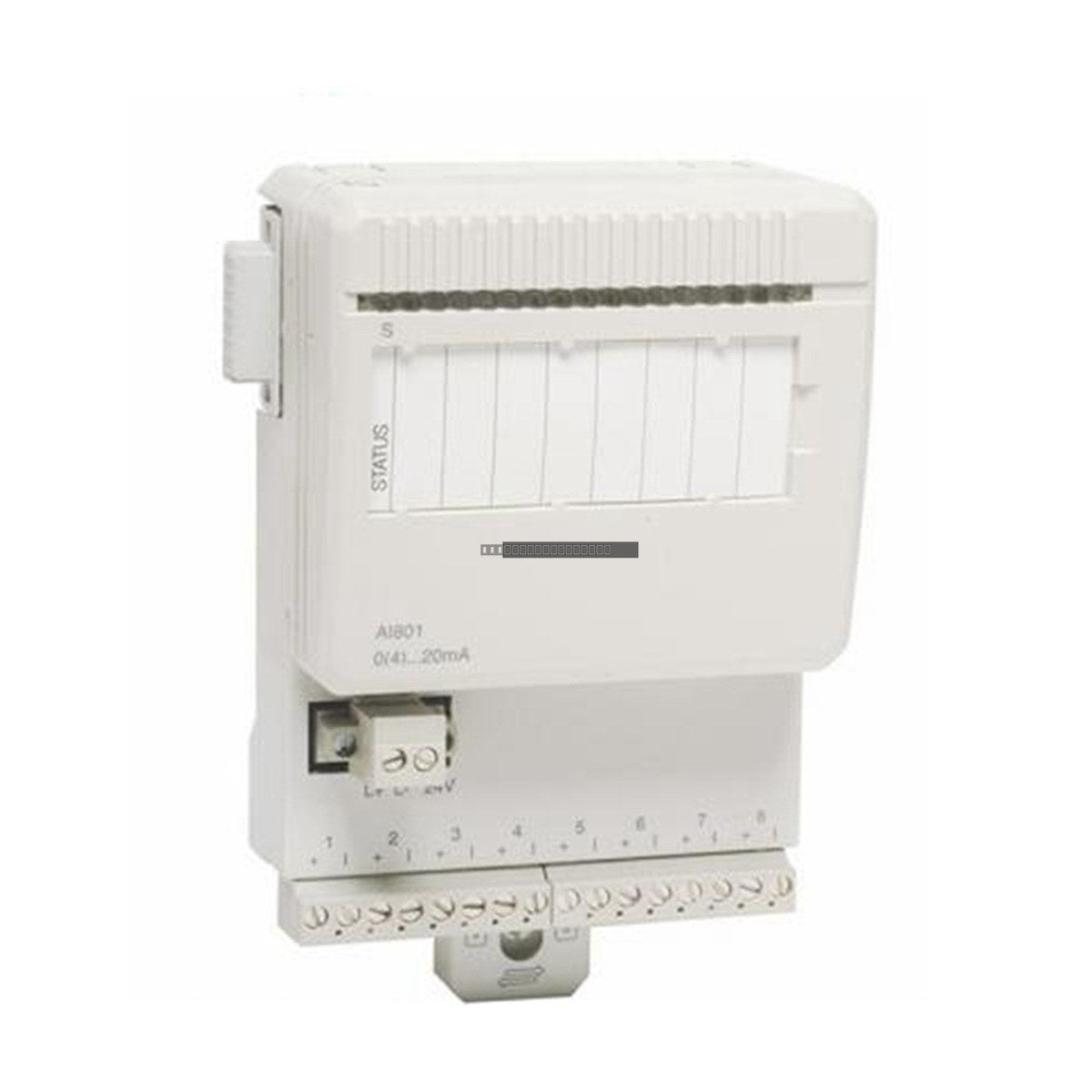

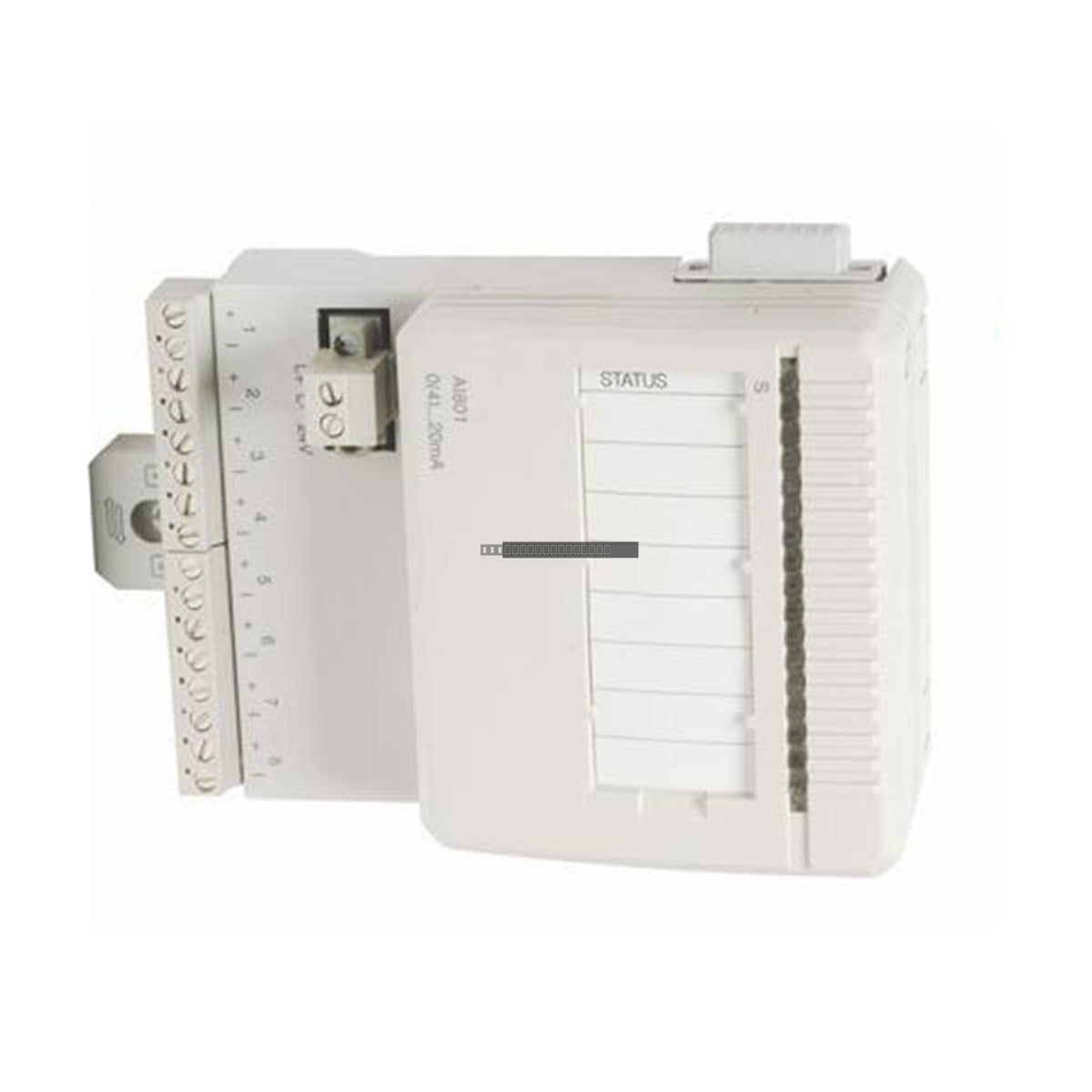

The ABB AI801 (3BSE020512R1) is an S800 I/O series analog input module designed for high-precision process data acquisition. This module provides 8 channels for monitoring current signals, ensuring reliable performance in demanding industrial environments. It is engineered for integration within the Advant OCS and other compatible ABB control systems, offering robust signal processing capabilities.

Features

  • 8 isolated analog input channels.
  • Supports standard 0 to 20 mA current input ranges.
  • 12-bit resolution for accurate signal conversion.
  • Compact modular design for efficient panel space utilization.
  • Wide operating temperature range suitable for harsh industrial conditions.

Technical Specifications

Model AI801 (3BSE020512R1)
Number of Channels 8
Input Signal 0 to 20 mA
Resolution 12-bit
Input Impedance 250 Ohm
Input Voltage Drop Max 5 V
Scanning Time 10 ms per channel
Accuracy +/- 0.1% of full-scale range
Operating Temperature -25 degC to +70 degC

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment free from excessive dust and corrosive gases.
  • Use shielded twisted-pair cabling for all analog inputs to minimize electromagnetic interference (EMI).
  • Ground the cable shields at the designated terminal points to maintain signal integrity.
  • Verify that the module is securely seated in the I/O base before applying power.
  • Always disconnect power before inserting or removing the module from the I/O rack to prevent electrical damage.
  • Maintain adequate ventilation around the module to prevent overheating during continuous operation.

FAQ

What is the primary function of the AI801 module?
The AI801 is an analog input module used to convert 0-20 mA current signals from field devices into digital values for processing by an ABB controller.

Is this module compatible with other S800 I/O components?
Yes, the AI801 is designed to be used within the ABB S800 I/O system family. Please verify your specific controller configuration and baseplate compatibility before installation.
