ABB 3BSE008518R1 AI830 Analog Input RTD Module

ABB 3BSE008518R1 AI830 Analog Input RTD Module

Description

The ABB AI830 (3BSE008518R1) is an 8-channel analog input module designed for the S800 I/O system. This module is specifically engineered for high-precision temperature measurement and resistance sensing, supporting a...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: 3BSE008518R1
Vendor: ABB
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

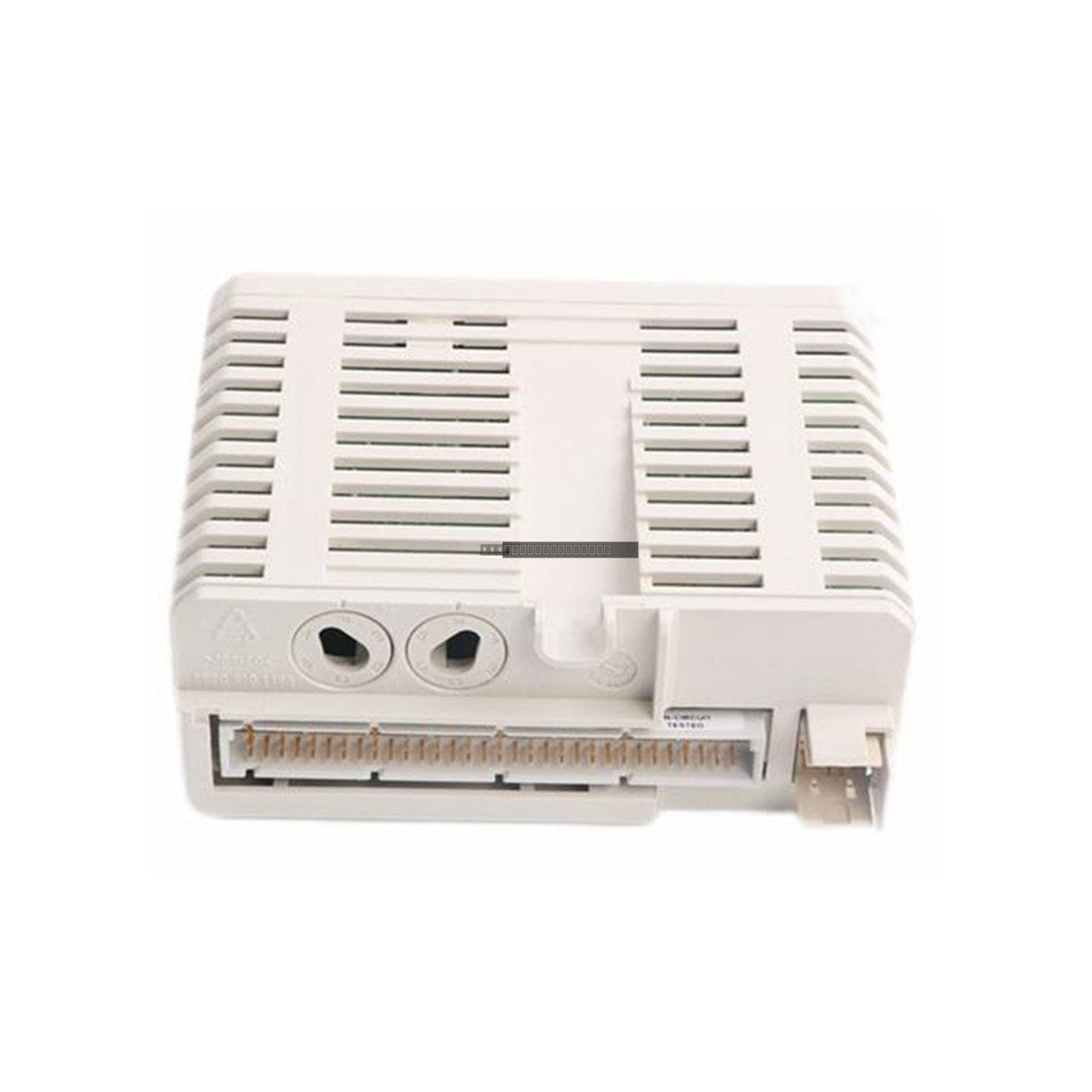

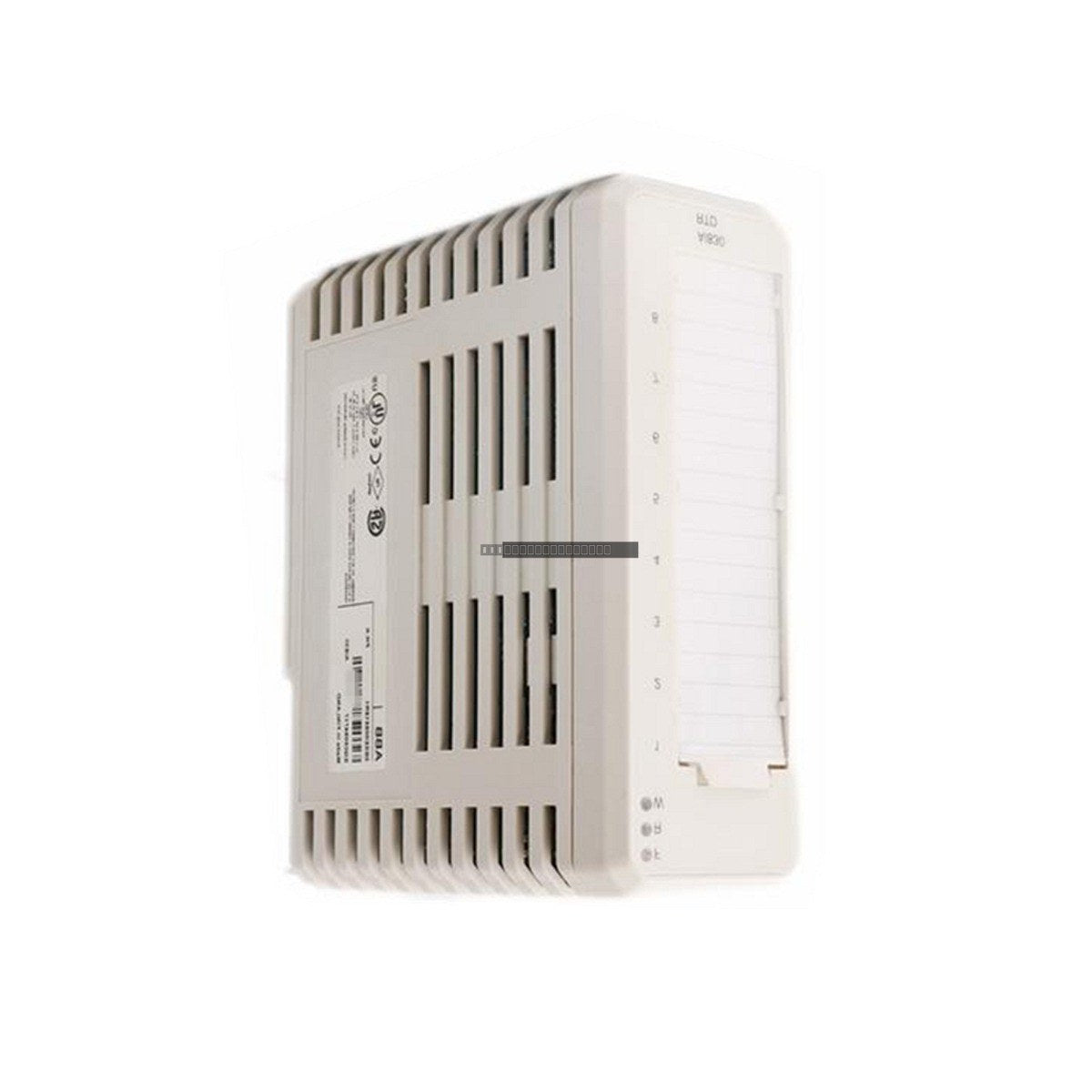

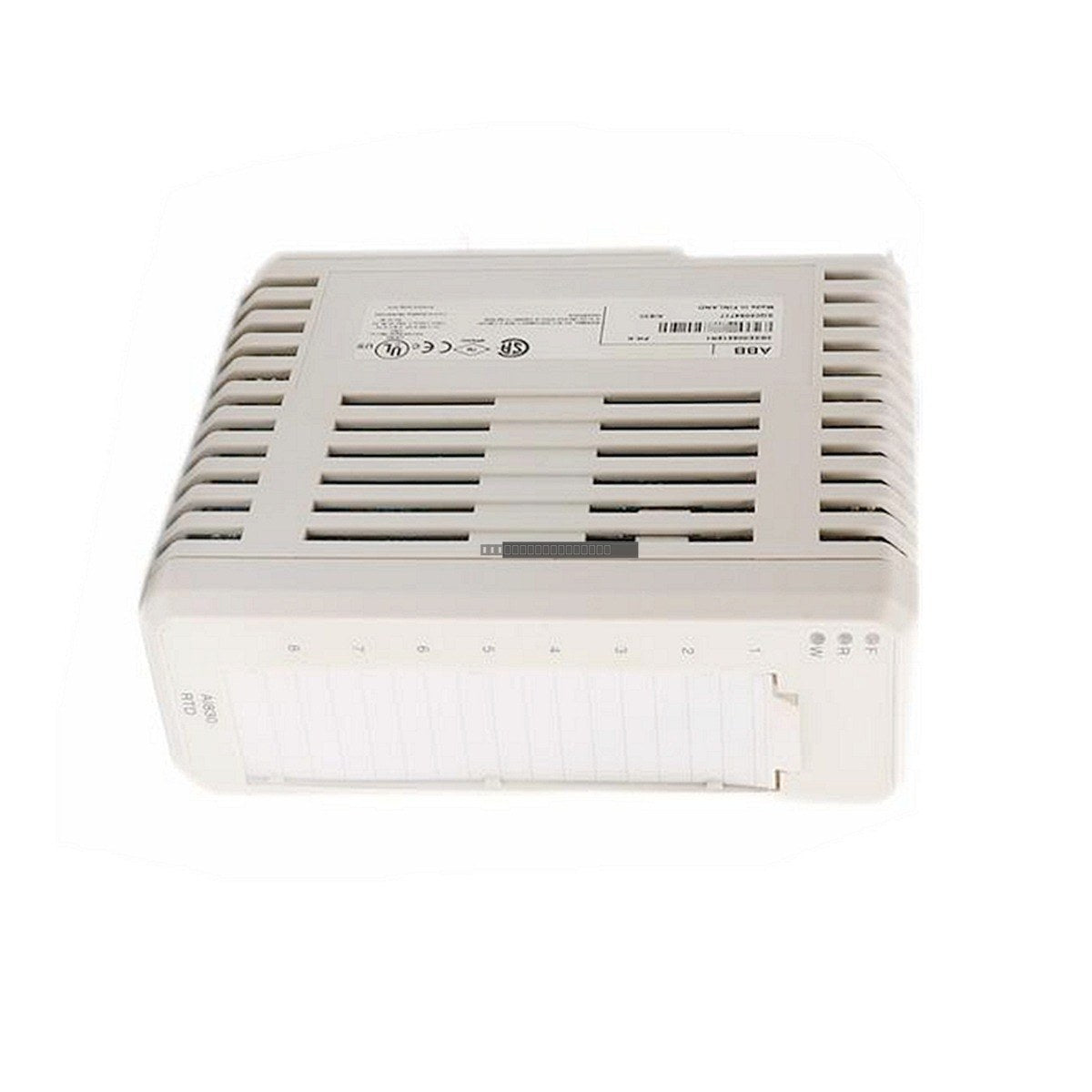

The ABB AI830 (3BSE008518R1) is an 8-channel analog input module designed for the S800 I/O system. This module is specifically engineered for high-precision temperature measurement and resistance sensing, supporting a variety of RTD types and resistive potentiometers. As a key component of the Advant S800 I/O family, it provides reliable signal acquisition for industrial control applications.

Features

  • 8 isolated input channels for RTD and resistance measurements.
  • Supports multiple sensor types including Pt100, Cu10, Ni100, and Ni120.
  • Integrated support for resistive potentiometer inputs.
  • Optimized update cycle time of 150 ms + 9 ms.
  • High common-mode rejection ratio (CMRR) of >60 dB at 50/60 Hz.
  • Low power dissipation of 1.6 W for efficient cabinet thermal management.

Technical Specifications

Model AI830 (3BSE008518R1)
Number of Channels 8
Input Types 3-wire RTD (Pt100, Cu10, Ni100, Ni120), Potentiometer
Update Cycle Time 150 ms + 9 ms
CMRR (50/60 Hz) >60 dB
Rated Insulation Voltage 50 V
Dielectric Test Voltage 500 V AC
Power Dissipation 1.6 W
Current Consumption (+5V Modulebus) 70 mA

Installation Guidelines

  • Ensure the S800 I/O station is powered down before inserting or removing the module from the mounting base.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
  • Verify that the module is correctly seated in the terminal unit to ensure proper connection to the Modulebus.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Maintain adequate ventilation within the control cabinet to stay within operating temperature limits.

FAQ

Is the ABB AI830 3BSE008518R1 still in production?
No, this specific model has been discontinued by the manufacturer. We provide high-quality surplus units to support legacy system maintenance.

What types of RTDs are compatible with this module?
The AI830 supports 3-wire Pt100, Cu10, Ni100, and Ni120 sensors, as well as resistive potentiometers.
