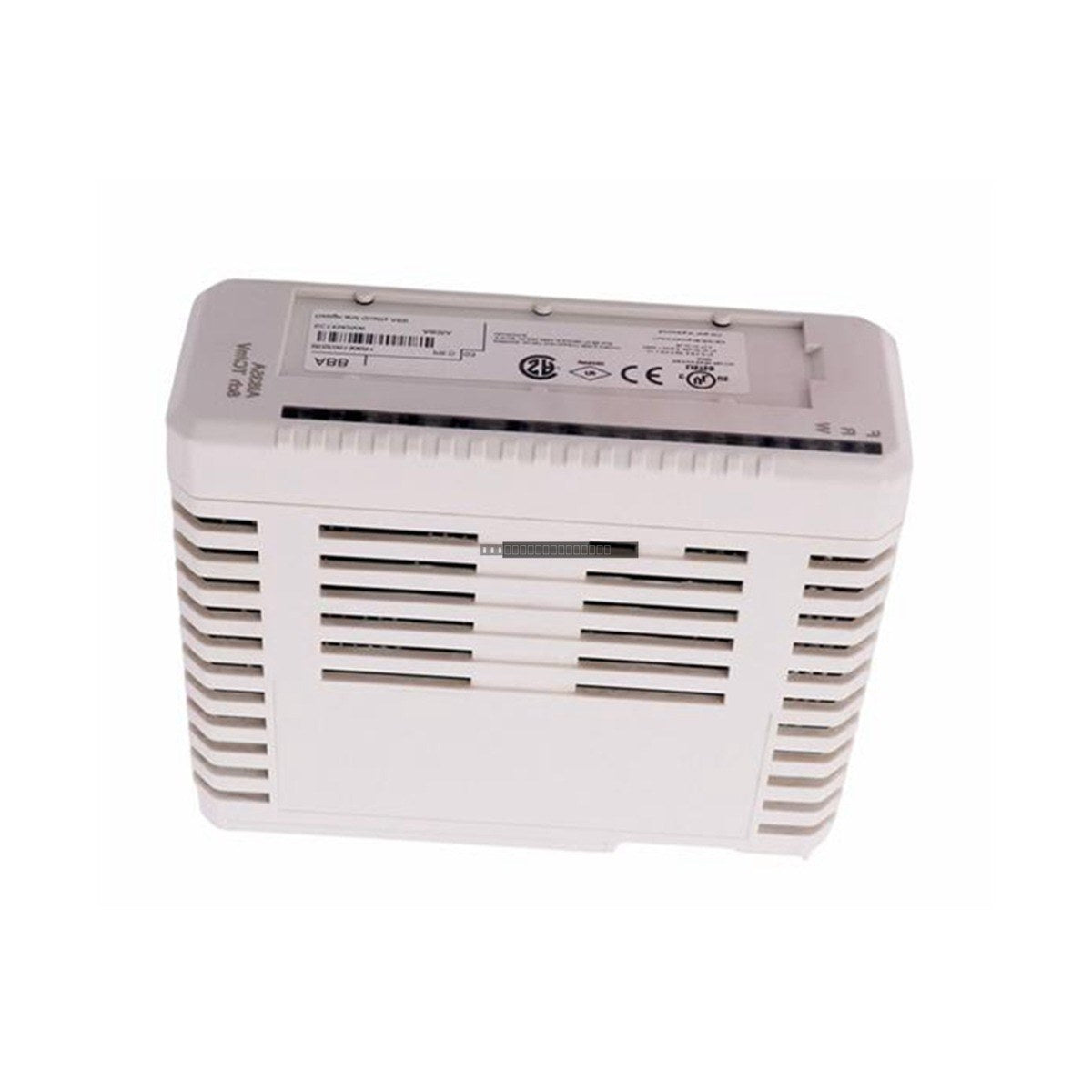

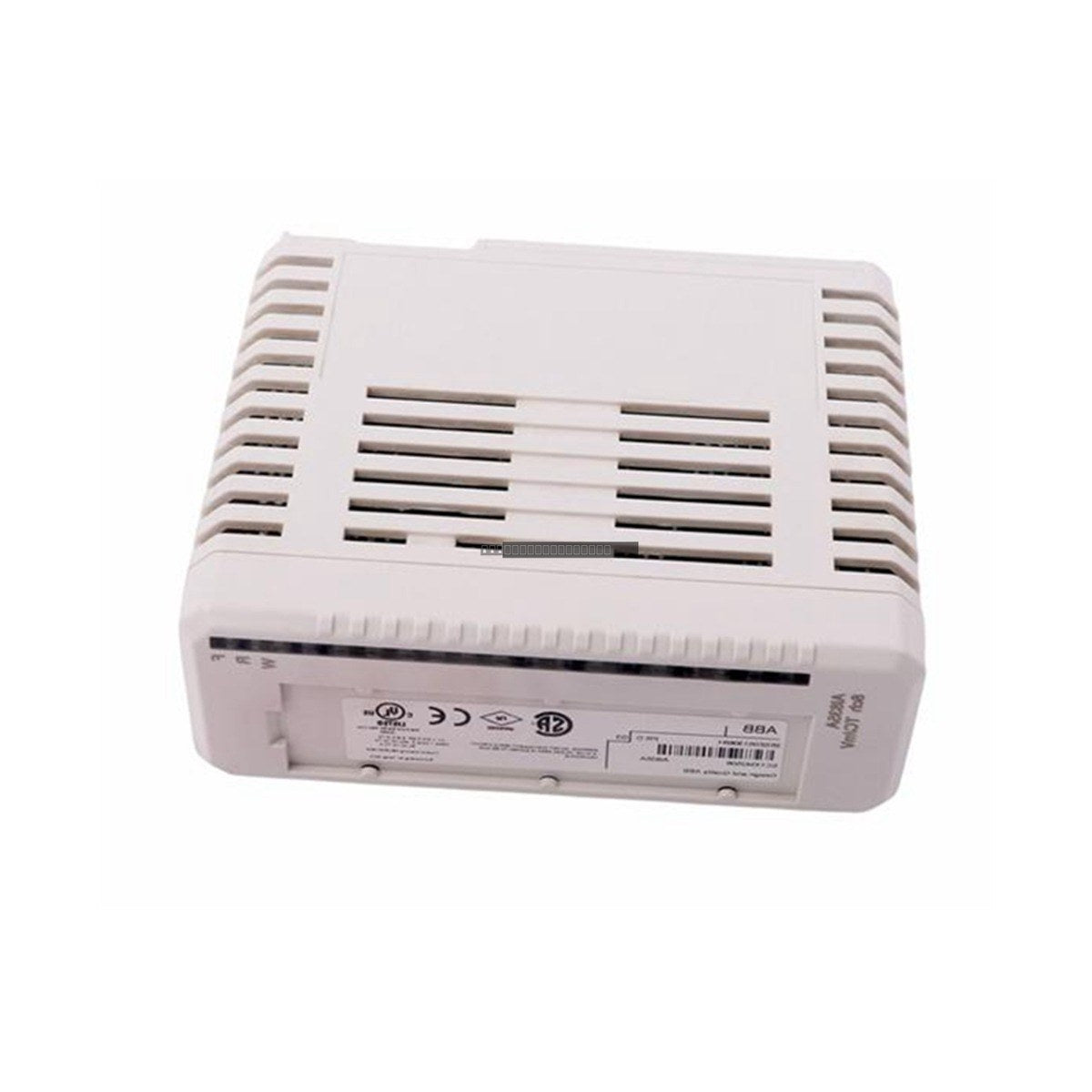

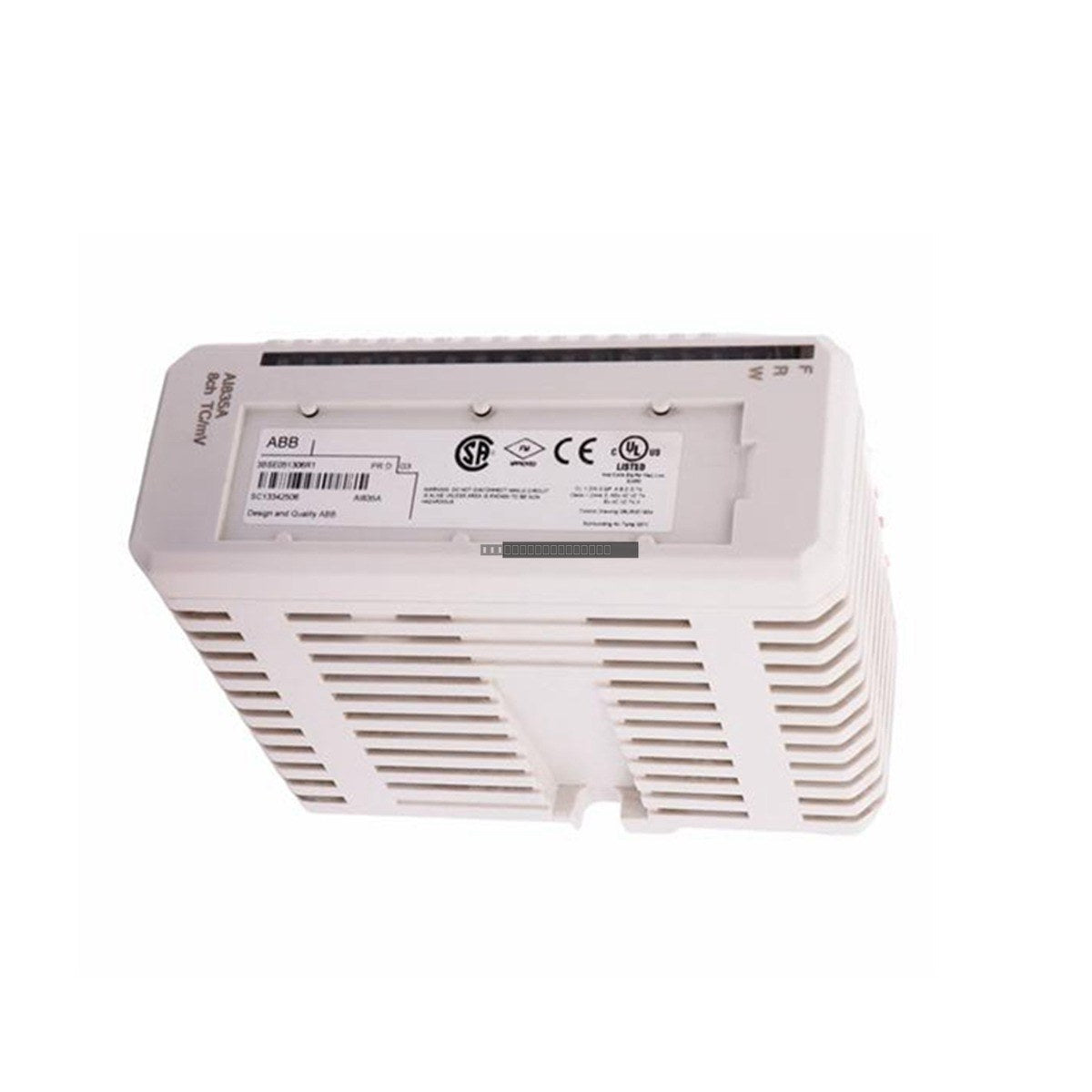

ABB 3BSE051306R1 AI835A S800 I/O 8-Channel Analog Input Module

ABB 3BSE051306R1 AI835A S800 I/O 8-Channel Analog Input Module

The ABB AI835A (3BSE051306R1) is a high-precision analog input module within the S800 I/O series, specifically engineered for thermocouple and millivolt signal acquisition. Designed for integration with the ABB Ability...

21 people are viewing this right now

Availability: Low stock: 8 left

SKU: 3BSE051306R1
Vendor: ABB
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB AI835A (3BSE051306R1) is a high-precision analog input module within the S800 I/O series, specifically engineered for thermocouple and millivolt signal acquisition. Designed for integration with the ABB Ability System 800xA, this module provides 8 differential input channels, offering versatile configuration for process temperature monitoring and linear voltage measurement.

Features

  • 8 differential input channels supporting mV and various thermocouple types (B, C, D, E, J, K, L, N, R, S, T, U).
  • Configurable measurement range: -30 mV to +75 mV linear.
  • 15-bit A/D resolution for high-accuracy signal conversion.
  • Channel 8 can be dedicated to Cold Junction (CJ) compensation via Pt100 RTD or configured for standard input use.
  • Integrated wire-break and open-circuit monitoring for enhanced diagnostic reliability.
  • Groupwise isolation from ground.

Applications

  • Power Generation: Monitoring turbine exhaust gas temperatures and boiler heat levels.
  • Chemical Processing: Precision tracking for reactor vessels, fluid lines, and distillation columns.
  • Oil & Gas: Reliable data acquisition for remote extraction sites and refinery process loops.
  • Metallurgy: Temperature management in furnaces, casting, and curing processes.

Technical Specifications

Product Model AI835A (3BSE051306R1)
Channels 8 Differential
Input Impedance > 1 MΩ
Resolution 15 bits
CMRR (50/60 Hz) 120 dB
NMRR (50/60 Hz) > 60 dB
Power Dissipation 1.6 W
Modulebus Consumption 75 mA (+5 V) / 50 mA (+24 V)
Max Cable Length 600 meters
Rated Insulation 50 V

Installation Guidelines

  • Ensure the system power is completely disconnected before mounting or removing the module from the MTU (Module Termination Unit).
  • This module is designed for standard S800 I/O rack mounting; verify that the MTU is correctly seated and locked.
  • Maintain proper shielding for field cables to minimize electromagnetic interference, keeping signal runs under the 600-meter limit.
  • Handle with standard ESD precautions to prevent damage to sensitive internal components.
  • When using Channel 8 for Cold Junction compensation, ensure the Pt100 RTD is correctly wired to the designated MTU terminals.

FAQ

What type of thermocouple sensors are compatible with the AI835A?

The module supports a wide range of industry-standard thermocouples, including types B, C, D, E, J, K, L, N, R, S, T, and U.

Can Channel 8 be used for standard measurements?

Yes. While Channel 8 is typically configured for Cold Junction temperature compensation, it can be utilized as a standard input channel if CJ compensation is managed via a fixed user parameter or an external source.

Is this module compatible with HART communication?

No, the AI835A does not support HART protocol or Sequence of Events (SOE) time-tagging.
