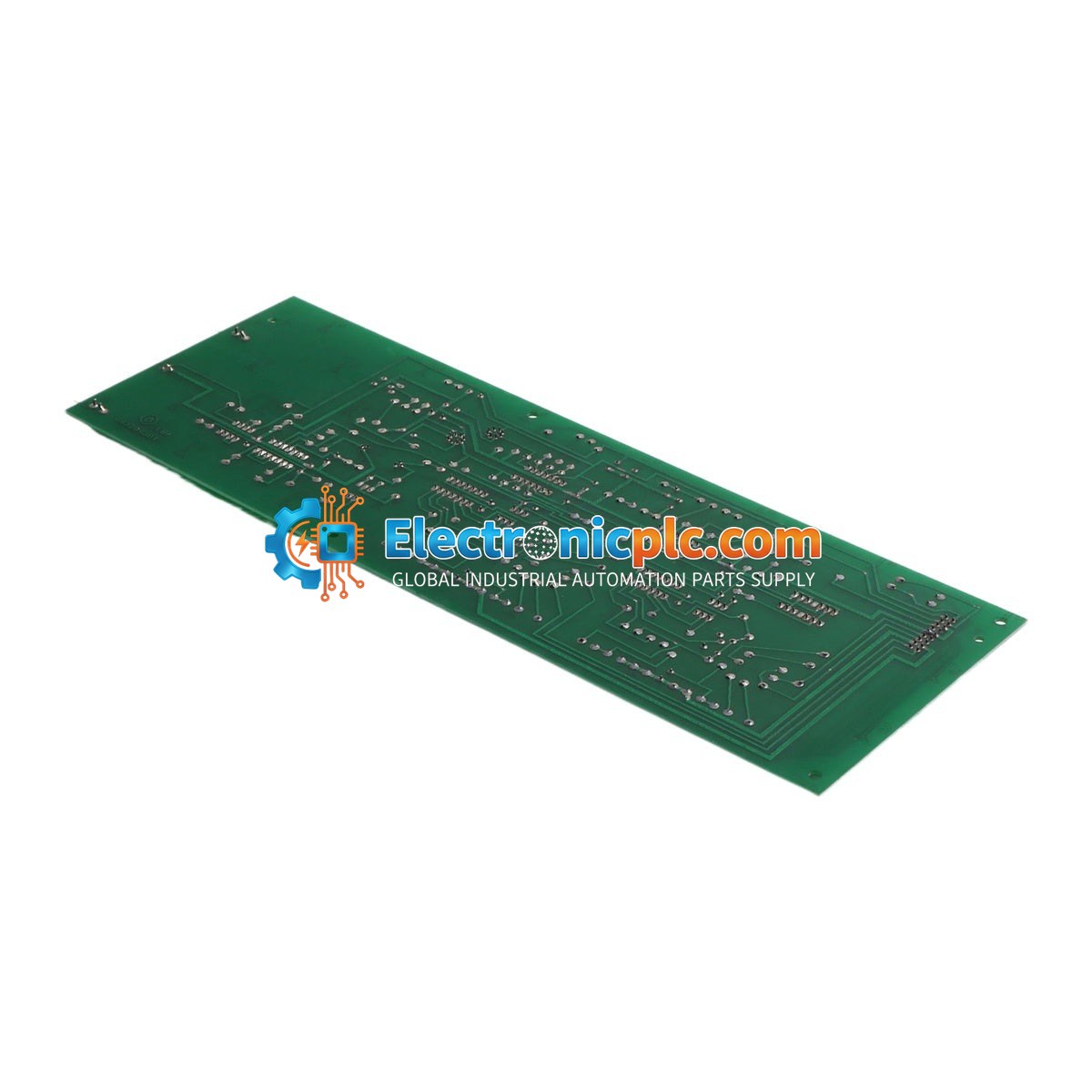

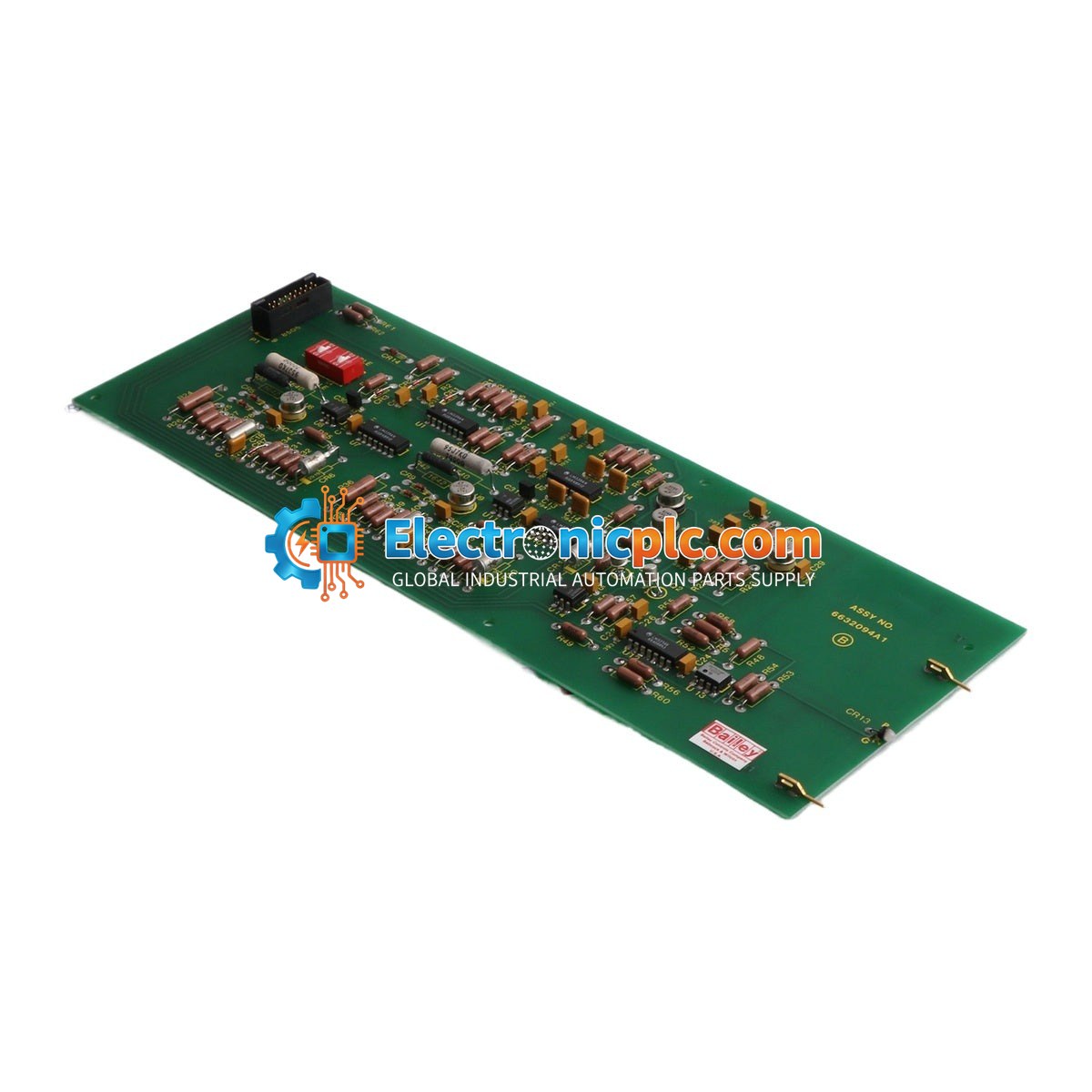

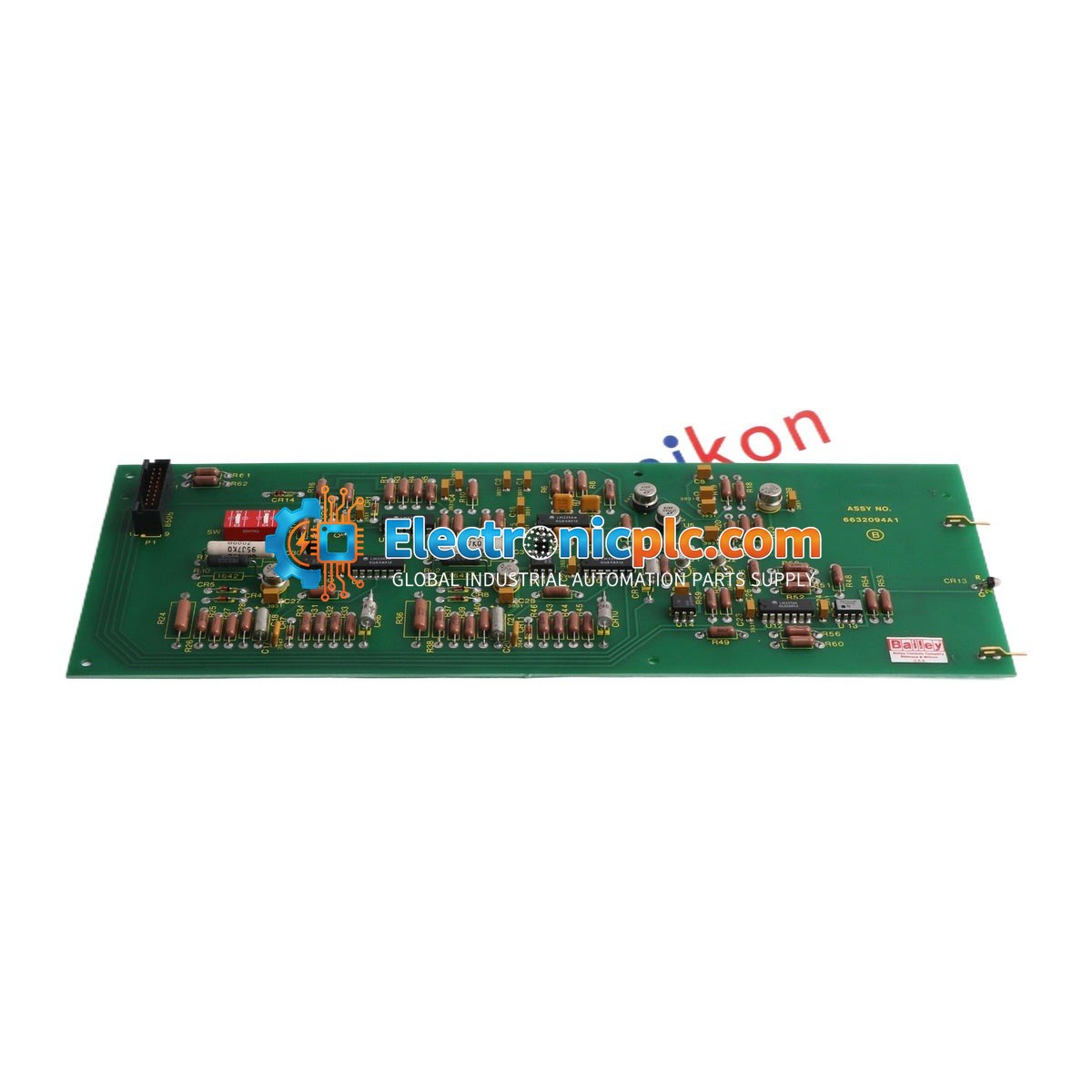

ABB Bailey 6632094A1 Circuit Board

ABB Bailey 6632094A1 Circuit Board

Description

The ABB Bailey 6632094A1 is a high-performance circuit board designed for integration within industrial control systems. This PC board serves as a core processing or I/O interface component, utilizing a...

26 people are viewing this right now

Availability: Low stock: 3 left

SKU: 6632094A1
Vendor: ABB
Category: Circuit Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB Bailey 6632094A1 is a high-performance circuit board designed for integration within industrial control systems. This PC board serves as a core processing or I/O interface component, utilizing a 20 MHz NEC V30H 16-bit processor to manage control logic and data processing tasks. It is equipped with 2 MB of memory dedicated to firmware storage, ensuring reliable execution of system-specific operations.

Features

  • Integrated 20 MHz NEC V30H 16-bit microprocessor.
  • 2 MB onboard memory for firmware storage.
  • Designed for high-reliability industrial control environments.
  • Supports a wide range of digital and analog I/O configurations.

Technical Specifications

Product Model 6632094A1
Manufacturer ABB
Processor 20 MHz NEC V30H (16-bit)
Firmware Memory 2 MB
Rack Supply Voltage +5 V dc +/- 5%
Field Power +24 V dc +/- 10%
Digital Inputs 16 channels, 24 V dc
Digital Outputs 8 relay outputs
Analog Outputs 4 single-ended
Operating Temperature -20 degC to +70 degC
Storage Temperature -40 degC to +85 degC

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the circuit board to prevent electrical damage.
  • Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques, such as wearing a grounded wrist strap.
  • Verify that the rack supply voltage is stable at +5 V dc +/- 5% before powering up the module.
  • Ensure all field wiring for the 24 V dc inputs and relay outputs is properly routed and secured to prevent mechanical stress on the board connectors.
  • Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.

FAQ

What is the primary function of the 6632094A1 circuit board?

The 6632094A1 is a specialized circuit board used in ABB Bailey control systems, functioning as a processor and I/O interface module to handle digital and analog signals within the automation architecture.

What are the power requirements for this module?

The module requires a +5 V dc supply for internal logic and a +24 V dc supply for field-side I/O operations.
