ABB Bailey Infi 90 IMASO11 Analog Output Slave Module

ABB Bailey Infi 90 IMASO11 Analog Output Slave Module

Description

The ABB Bailey Infi 90 IMASO11 is an Analog Output Slave Module designed for use within the Symphony Plus and Infi 90 distributed control systems. This module is primarily utilized...

19 people are viewing this right now

Availability: Low stock: 6 left

SKU: IMASO11
Vendor: ABB
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

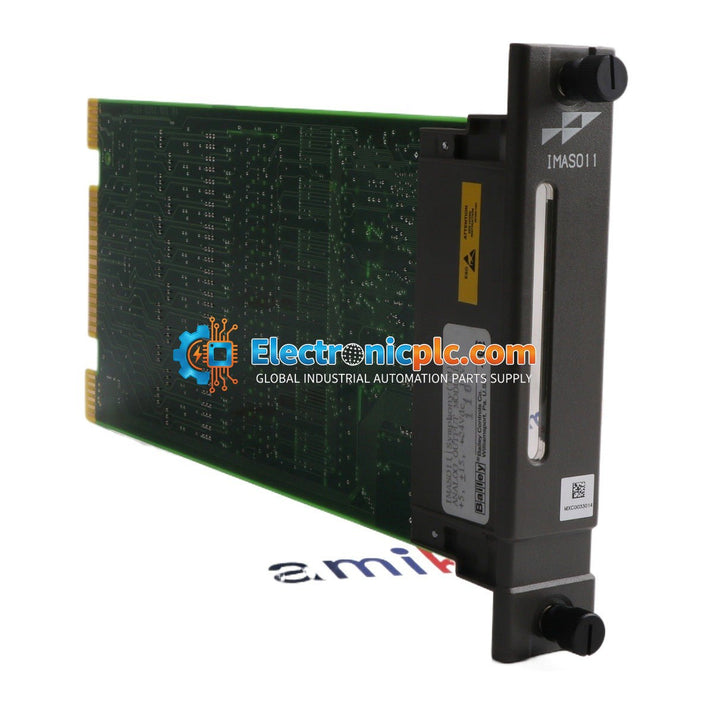

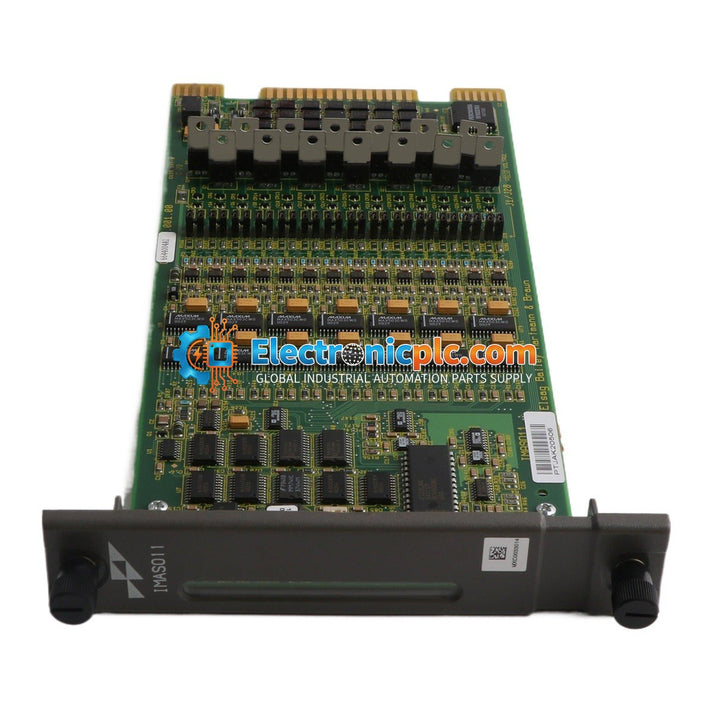

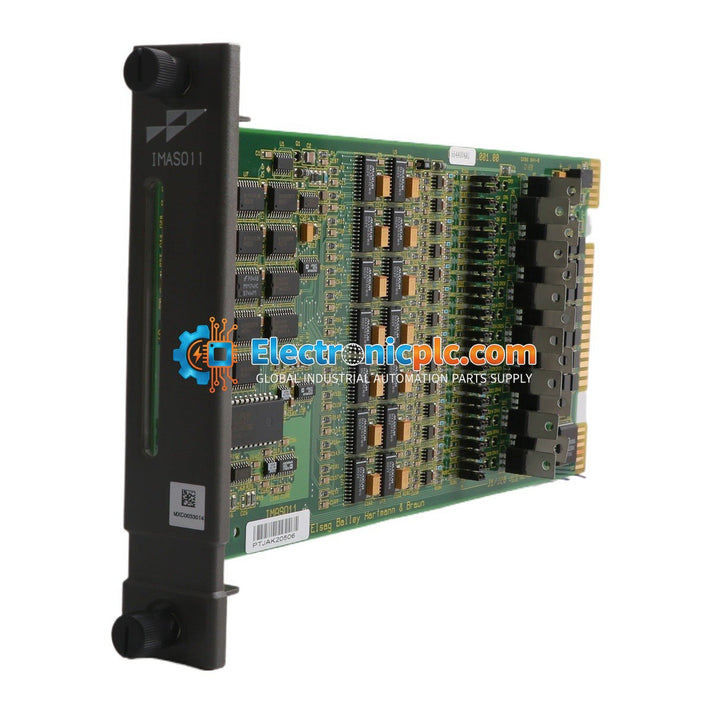

The ABB Bailey Infi 90 IMASO11 is an Analog Output Slave Module designed for use within the Symphony Plus and Infi 90 distributed control systems. This module is primarily utilized in high-precision applications, including turbine control, where reliable conversion of digital control signals into analog outputs is required for field device actuation.

Features

  • Provides 14 analog output channels.
  • Supports both 1 to 5 VDC and 4-20 mA output signals.
  • Features 10-bit D/A resolution for precise signal conversion.
  • Integrated short-circuit protection with a 50 mA nominal current limit.
  • Designed for rack-mounted installation within the Infi 90 or Symphony Plus control environment.

Technical Specifications

Model IMASO11
Manufacturer ABB
Output Channels 14
Output Types 1-5 VDC, 4-20 mA
D/A Resolution 10 bits
Output Accuracy 0.15% to 0.25%
Overvoltage Category III (per ANSI/ISA S82.01-1994)
Short Circuit Protection 50 mA nominal limit
Weight 0.26 kg

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the IMASO11 module from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Verify that the rack slot is clean and free of debris to ensure proper seating and electrical contact.
  • Route analog signal cabling separately from high-voltage or high-EMI power lines to minimize signal interference.
  • Ensure proper grounding of the module chassis to the rack backplane to maintain signal integrity and safety compliance.

FAQ

What is the primary function of the IMASO11 module?

The IMASO11 acts as an analog output slave module, converting digital commands from the controller into analog signals (4-20 mA or 1-5 VDC) to drive field instruments or actuators.

Is this module compatible with Symphony Plus systems?

Yes, the IMASO11 is designed for compatibility with the ABB Symphony Plus and Infi 90 control platforms.

What is the output accuracy of this module?

The module provides an output accuracy ranging from 0.15% to 0.25%, depending on the specific configuration and operational environment.
