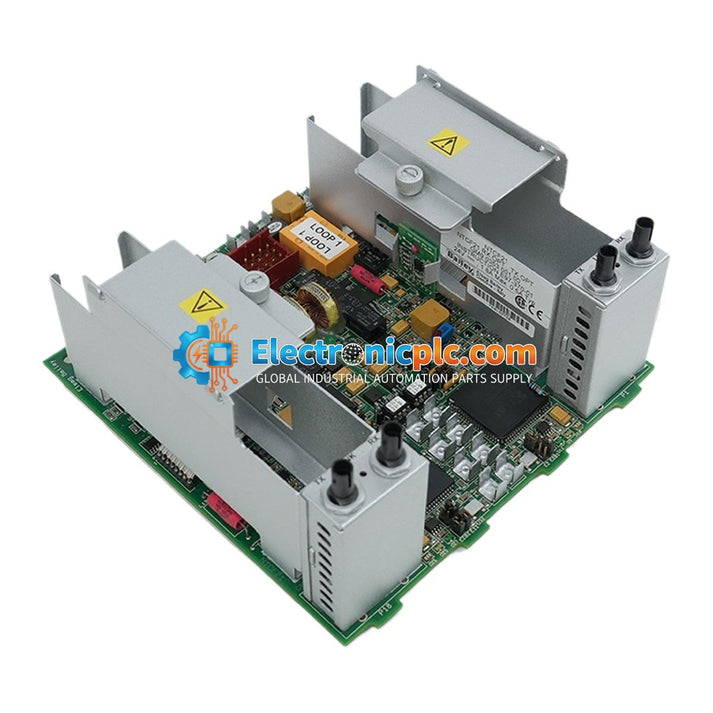

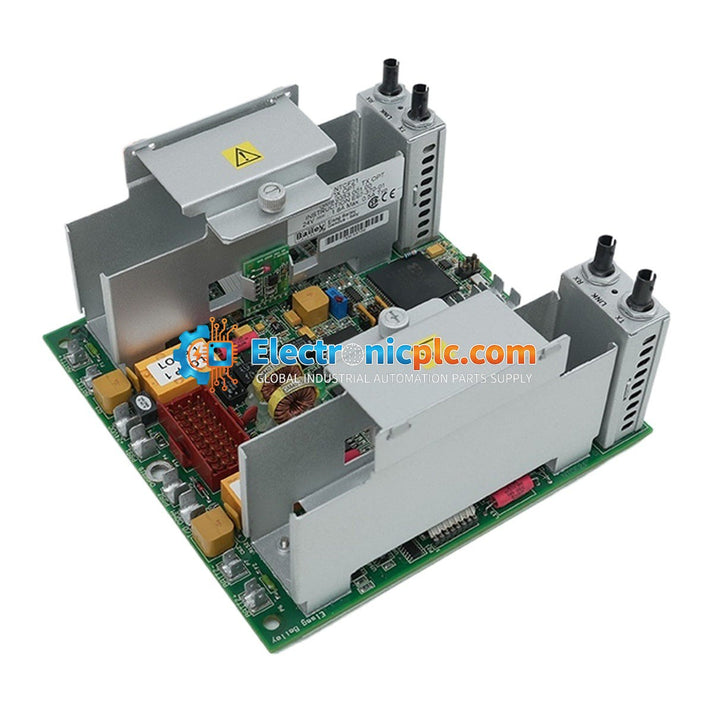

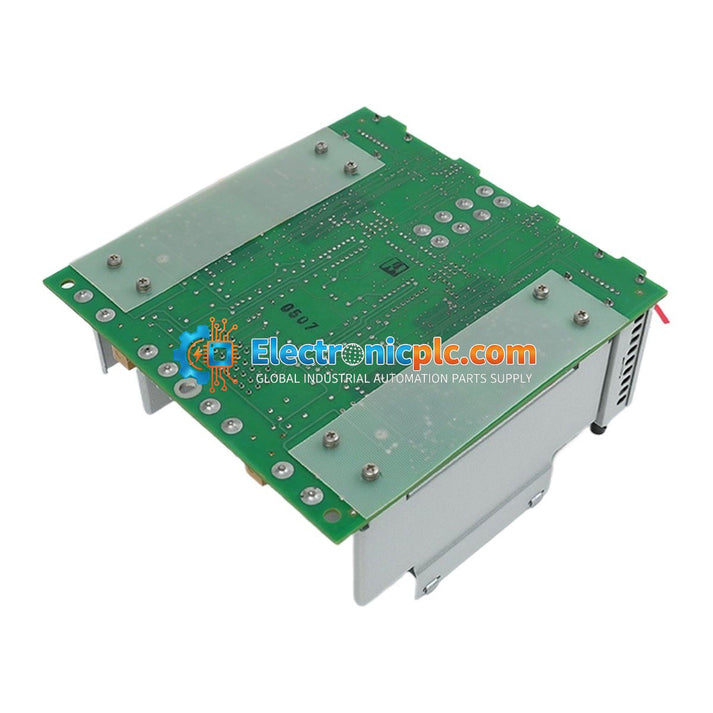

ABB Bailey Infi 90 NTCF21 Fiber Optic Termination Unit

ABB Bailey Infi 90 NTCF21 Fiber Optic Termination Unit

Description

The ABB Bailey Infi 90 NTCF21 is a fiber-to-fiber termination unit designed to interface PCU communication modules (such as the NIS or NPM) with fiber optic media. This unit is...

29 people are viewing this right now

Availability: Low stock: 8 left

SKU: NTCF21
Vendor: ABB
Category: Fiber Optic Termination Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB Bailey Infi 90 NTCF21 is a fiber-to-fiber termination unit designed to interface PCU communication modules (such as the NIS or NPM) with fiber optic media. This unit is a critical component for long-distance communication within the INFI-Net control network, enabling reliable data transmission across fiber optic infrastructure. The NTCF21 supports direct connection of 62.5-micron fiber optic cables for both transmit (TX) and receive (RX) functions.

Features

  • Designed for Bailey Infi 90 control systems.
  • Fiber-to-fiber communication interface for long-distance network extension.
  • Supports 62.5-micron multi-mode fiber optic cabling.
  • Compatible with PCU communication nodes (NIS/NPM).
  • Provides robust data transmission in industrial environments.

Applications

  • Power Generation: Linking area controllers and remote I/O in coal, gas, and renewable energy plants.
  • Water & Wastewater: Supporting SCADA networks for monitoring distributed transmission and distribution assets.
  • Oil, Gas & Petrochemical: Providing reliable communication for flow computers and control racks.
  • Manufacturing: Synchronized block control for chemical, pulp, paper, and pharmaceutical processing.
  • Mining & Metals: Rugged communication solutions for high-vibration and high-EMI environments.

Technical Specifications

Product Model NTCF21
Manufacturer ABB
Fiber Type Multi-mode (62.5 micron)
Data Rate Up to 10 Mbps
Power Supply +5 V DC
Power Consumption 2-3 W (Typical)
Operating Temperature 0 degC to +60 degC
Storage Temperature -40 degC to +85 degC

Installation Guidelines

  • Ensure the unit is mounted in a clean, dry environment protected from excessive dust and moisture.
  • Verify that fiber optic connectors are clean before insertion to prevent signal attenuation.
  • Maintain the minimum bend radius for all fiber optic cables to avoid signal loss or physical damage.
  • Secure the unit using the designated mounting screws to ensure proper grounding and EMC compliance.
  • Power down the system before installing or removing the module from the communication bus.
  • Route fiber optic cables away from high-voltage power lines to minimize potential interference.

FAQs

What is the ABB NTCF21?

The NTCF21 is a fiber optic termination unit used in Bailey INFI 90 systems to interface PCU communication modules with fiber optic media for long-distance communication.

What is the purpose of the NTCF21?

It acts as a terminal unit to facilitate the connection between the PCU communication module (NPM/NIS) and fiber optic cables within the control network.

Is this unit a replacement for older models?

Yes, the NTCF family (including NTCF21, NTCF22, and NTCF23) serves as an improved replacement for the legacy NTCF0X and NTCF1X termination unit families.
