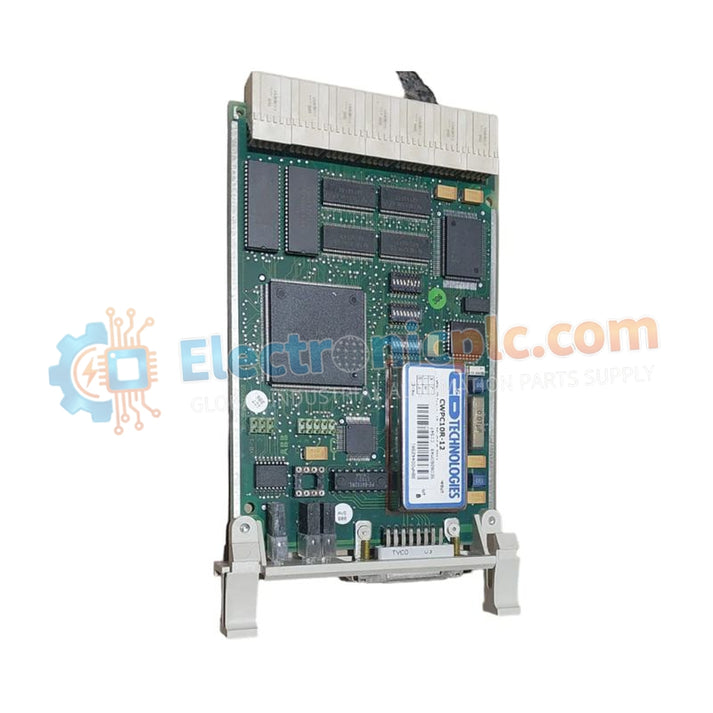

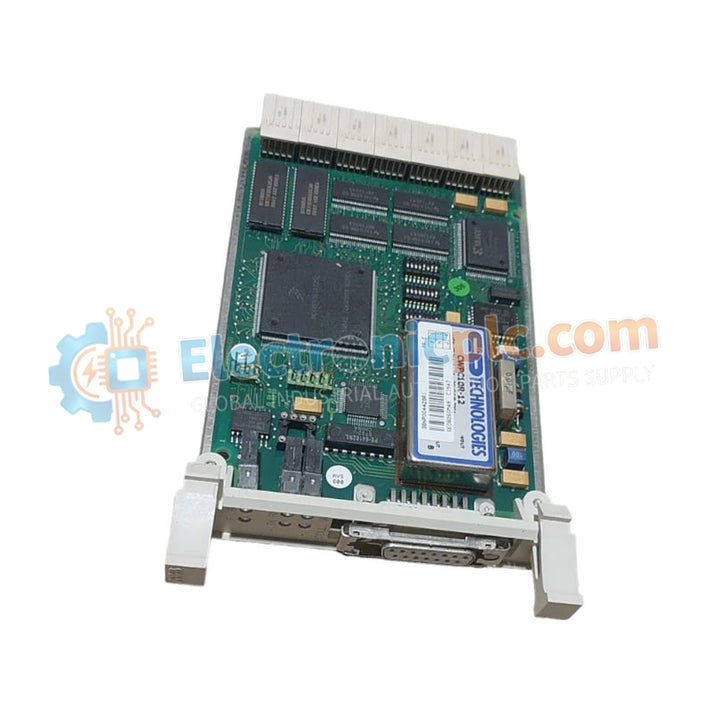

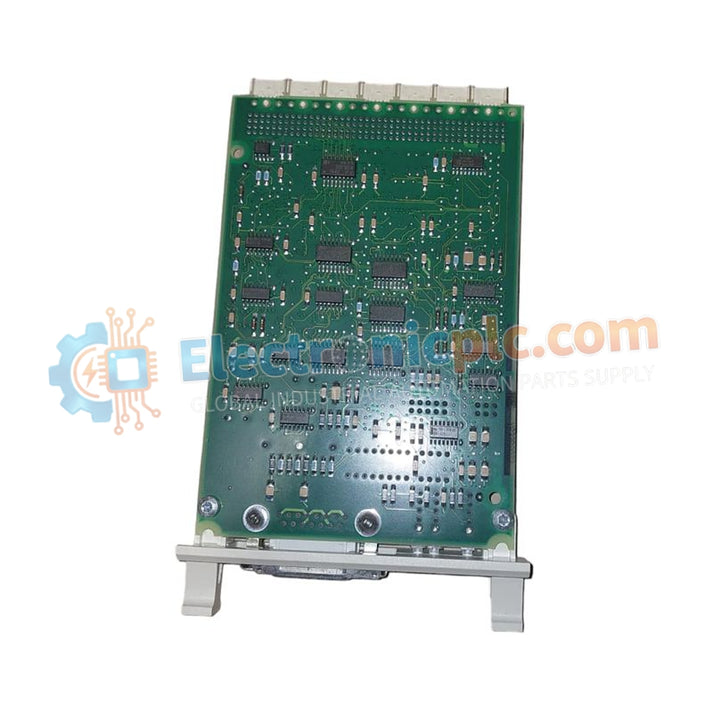

ABB CI547 3BNP004429R1 Communication Board

ABB CI547 3BNP004429R1 Communication Board

Product Description

The CI547 (3BNP004429R1) is a high-performance communication interface module for the ABB ABB MasterPiece 200 Control System and ABB Advant OCS architectures.

It operates within the Masterbus 300 network, enabling reliable peer-to-peer communication between controllers and...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: CI547 3BNP004429R1
Vendor: ABB
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The CI547 (3BNP004429R1) is a high-performance communication interface module for the ABB ABB MasterPiece 200 Control System and ABB Advant OCS architectures.

It operates within the Masterbus 300 network, enabling reliable peer-to-peer communication between controllers and field subsystems. The module includes an onboard slave processor dedicated to communication protocol handling, which reduces processing load on the main PM150 processor module, improving real-time control determinism and reducing scan jitter in large DCS networks.

The CI547 is commonly used for legacy system maintenance and expansion, providing stable communication performance in long-life industrial installations.

Detailed Technical Specifications

Parameter Specification
Model CI547
Part Number 3BNP004429R1
Platform MasterPiece 200 / Advant OCS
Network Protocol Masterbus 300
Processor Architecture Dedicated onboard slave processor
Controller Compatibility PM150 CPU modules
Function Communication task offloading
Dimensions 257 × 30 × 125 mm
Weight 0.165 kg

Applications

  • Pulp and paper production systems

  • Mining and metallurgy automation

  • Power plant process control

  • Legacy DCS infrastructure maintenance

Especially useful in distributed industrial control networks requiring deterministic communication.

Frequently Asked Questions

Q1: How does the onboard slave processor improve performance?
The slave processor manages Masterbus 300 communication tasks independently, allowing the main CPU to focus on control logic execution and reducing network-related processing delays.

Q2: Is it compatible with modern ABB 800xA systems?
The module is primarily designed for legacy systems. Integration with ABB 800xA System requires gateway or connectivity server solutions supporting Masterbus protocols.
